pfb-fhir 0.0.8

Render a PFB graph from FHIR data

Table of Contents

1. About The Project
   • Built With
2. Getting Started
   • Prerequisites
   • Installation
3. Usage
4. Roadmap
5. Contributing
6. License
7. Contact
8. Acknowledgments

pfb_fhir

About The Project

Render a PFB graph from FHIR data

Built With

• pydantic
• fastavro
• pypfb[gen3]
• flatten_json
• fhirclientr4
• synthea

Special thanks

• Kyle Ellrott (OHSU)
• NHGRI Genomic Data Science Analysis, Visualization and Informatics Lab-space AnVIL
• NCPI FHIR Working Group, Robert Carroll (VUMC), Allison Heath (CHOP)
• Center for Translational Data Science (UChicago) gen3
• ncpi-fhir-pfb-prototype Brian O'Connor (Broad), Ann Van (Nimbus Informatics)
• GA4GH cohort-rep-hackathon synthea

Getting Started

Installation:

# clone
git clone https://github.com/bmeg/pfb_fhir
cd pfb_fhir

To get a local copy up and running follow these simple example steps.

# use virtual env
python3 -m venv venv
source venv/bin/activate

# install dependencies
pip install -r requirements.txt

# install this package
pip install -e .

Usage

See help for a list of commands, examine configuration examples in fixtures:

$ pfb_fhir --help
Usage: pfb_fhir [OPTIONS] COMMAND [ARGS]...

  Render FHIR Data in PFB.

Options:
  -l, --log-level [NOTSET|DEBUG|INFO|WARNING|ERROR|CRITICAL]
  --output_path TEXT              Output path for working files and output.
                                  Read from PFB_FHIR_OUTPUT_PATH [default:
                                  ./DATA]

  --config_path TEXT              Path to config file. Read from
                                  PFB_FHIR_CONFIG_PATH [default:
                                  ./config.yaml]

  --help                          Show this message and exit.

Commands:
  version    Print the version.
  transform  Transform FHIR resources from directory.
  inspect    Inspect a PFB.
  visualize  Create a simple visualization.
  config     Print the config.
  demo       Download Test data and create example PFB and figure.

Environmental variables and their defaults

• PFB_FHIR_CONFIG_PATH ./config.yaml
• PFB_FHIR_OUTPUT_PATH DATA/
• PFB_FHIR_CACHE_PATH cache/

Demos

Several demonstration datasets are available:

• anvil Read 1000G data from AnVIL.
• dbgap Read open access data from dbGAP's FHIR service.
• kf Read synthetic clinical data created by kids first.
• ncpi Read examples from ncpi ImplementationGuide.
• synthea Read synthetic clinical data created by synthea.
• genomic-reporting Read oncology example from ImplementationGuide.

For example:

# run the demo
pfb_fhir demo dbgap

# view the image
open DEMO/dbgap/output/dbgap.pfb.avro.png

# inspect the pfb
pfb_fhir inspect --pfb_path  DEMO/dbgap/output/dbgap.pfb.avro

# use gen3's pfb utility
cat DEMO/dbgap/output/dbgap.pfb.avro | pfb show stats

# or native avro tools
java -jar avro-tools-1.11.0.jar getschema DEMO/dbgap/output/dbgap.pfb.avro | \
jq '.fields[] | select(.name == "object") | .type[] | .name '

Using the PFB

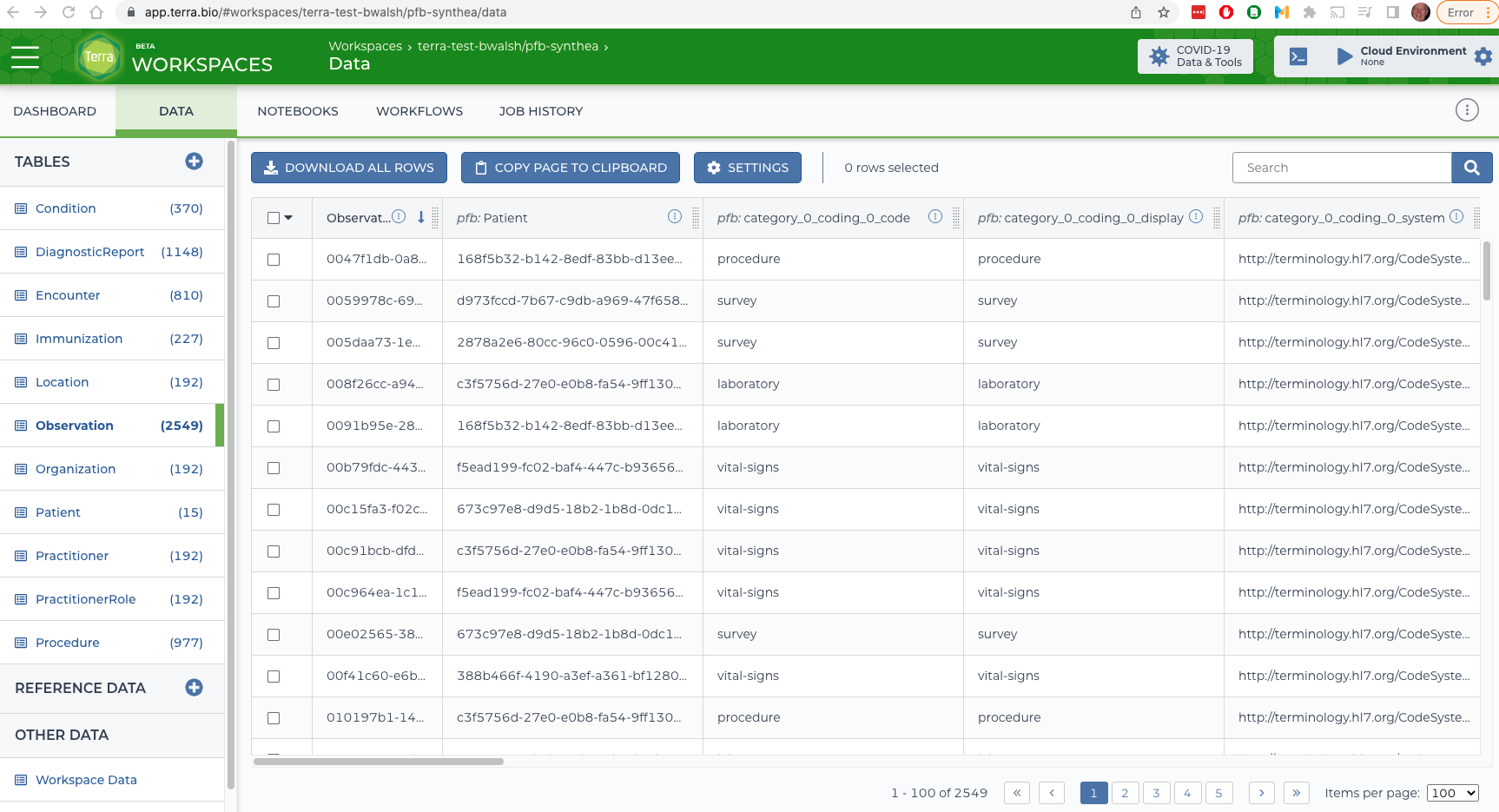

Terra

# run the demo
pfb_fhir demo synthea

# upload that PFB to google storage
gsutil cp DEMO/synthea/output/synthea.pfb.avro $GOOGLE_BUCKET

# Sign the url so terra can read it.
gsutil signurl -u  $GOOGLE_BUCKET/synthea.pfb.avro

# Or, grant access
# gsutil acl ch -u AllUsers:R  $GOOGLE_BUCKET/synthea.pfb.avro

# url encode the signed url

open 'https://app.terra.bio/#import-data?format=PFB&url=https:....'

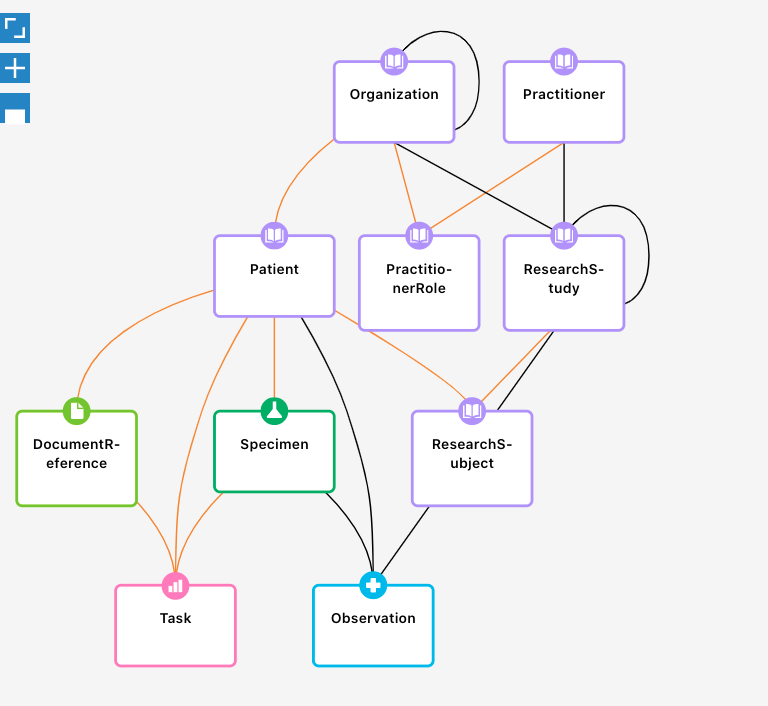

Gen3

The easiest way to see the resulting schema in gen3 is to use the Data Dictionary Development workflow Use the intermediate file located at <PFB_FHIR_OUTPUT_PATH>//output/dump-ordered.json e.g. DEMO/ncpi/output/dump-ordered.json

Contributing

Contributions are what make the open source community such an amazing place to learn, inspire, and create. Any contributions you make are greatly appreciated.

If you have a suggestion that would make this better, please fork the repo and create a pull request. You can also simply open an issue with the tag "enhancement". Don't forget to give the project a star! Thanks again!

1. Fork the Project
2. Create your Feature Branch (git checkout -b feature/AmazingFeature)
3. Commit your Changes (git commit -m 'Add some AmazingFeature')
4. Push to the Branch (git push origin feature/AmazingFeature)
5. Open a Pull Request

Distribution

# update pypi

export TWINE_USERNAME=  #  the username to use for authentication to the repository.
export TWINE_PASSWORD=  # the password to use for authentication to the repository.

rm -r dist/
python3  setup.py sdist bdist_wheel
twine upload dist/*

License

Distributed under the Apache License. See LICENSE for more information.

Contact

Brian Walsh - @bpwalsh - walsbr AT ohsu DOT edu

Acknowledgments

• NIH-NCPI
• AnVIL
• ncpi-fhir-pfb-prototype
• gen3

Roadmap

• ✅ config.yaml driven map of FHIR resource to PFB node,
• ✅ Parse FHIR resources, retrieve and cache FHIR profile (schema) elements,
• ✅ Recursively match with FHIR profiles (schemas)
• ✅ Flatten for export
• ✅ write to PFB
• ✅ test cases for protected/ resources - ResearchSubject, Patient, Specimen, Task, DocumentReference
• ✅ networkx based visualization
• ✅ pfb cli
• ✅ demo with public data
• ✅ update README with Terra import examples
• ✅ update README with gen3 import examples
• ✅ update to new release of pypfb 0.5.18
• ✅ include kids first
• ✅ simplify
• ✅ add genomic reporting examples
• ✅ pypi

Distribution

Test with docker

docker build -t pfb_fhir .

# typical run command
docker run -v $(pwd)/cache:/app/pfb_fhir/cache -v $(pwd)/DEMO:/app/pfb_fhir/DEMO pfb_fhir demo ncpi

Update pypi

export TWINE_USERNAME=  #  the username to use for authentication to the repository.
export TWINE_PASSWORD=  # the password to use for authentication to the repository.

rm -r dist/
python3  setup.py sdist bdist_wheel
twine upload dist/*

Known Issues

• simplify - could do a better job of making resulting nodes more "data frame friendly"
• config.yaml - currently there is no way of expressing a reference found in a FHIR extension.
