Pfeiffer Vacuum Protocol

A python interface for controlling Pfeiffer vacuum gauges over RS485.

Installation, Testing, and Dependencies

This library is available on pip. Please install it with the following command.

pip install pfeiffer-vacuum-protocol

Testing is done with python's unit testing framework. You can verify the current branch is working with the following command.

[cmpierce@turing dist]$ python -m unittest pfeiffer_vacuum_protocol.tests
...............................
----------------------------------------------------------------------
Ran 31 tests in 0.006s

OK

The only required dependency is your favorite serial library. This package was developed and tested against pySerial. However, it should be compatible with any library that implements python's IO interface.

Description and Hardware Compatibility

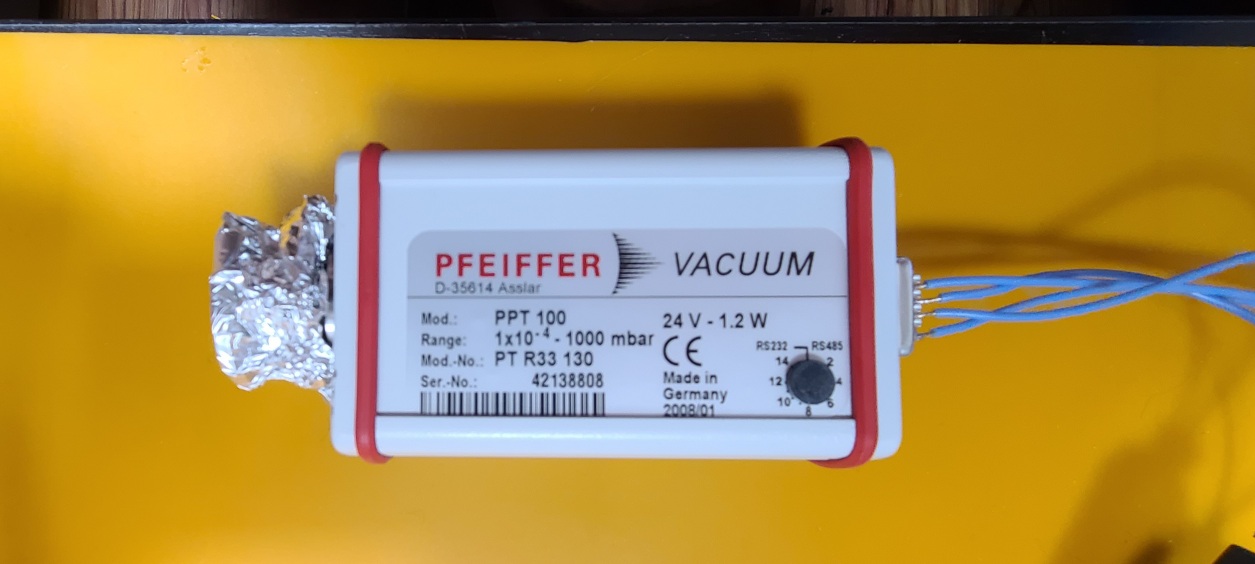

This library was created to communicate with a Pfeiffer vacuum PPT 100 over its RS485 interface. These gauges can be purchased cheaply from ebay and this library enables simple readout of pressure from the gauges through python.

To correctly do this, you'll need to make a quick custom cable for the device. Please follow the pinout in the PPT 100 manual reproduced here. On this particular gauge, V DC is 24 V.

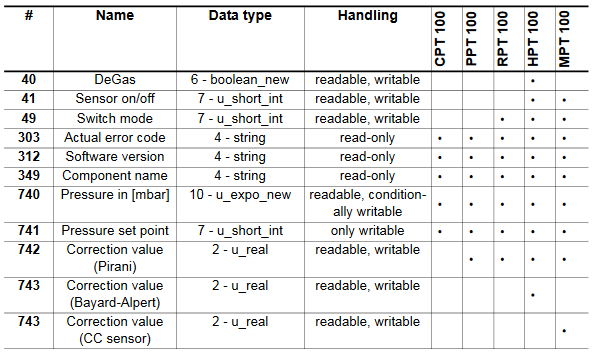

Cheap RS485 adapters exist that allow the gauge to be directly connected to a PC. Currently, only functions relevant to the PPT 100 are implemented in the library. The following is a table of compatibility for other models reproduced from the PPT 100 manual. If you are interested in other gauges, then please consider contributing.

Quickstart Guide

The library is designed for and tested against the pySerial interface for communicating with the gauges. However, because it can technically be used with any serial interface that implements python's IO interface, I have decided against imposing which library to use in the dependencies of this project. To use pySerial as in this example, please installit through pip with pip install pySerial.

The most common operation is to read out pressure from the gauge. The following example will read out pressure from a gauge attached to COM port 1 with address 1 on the RS485 network. The pressure returned will be in bar.

import serial
import pfeiffer_vacuum_protocol as pvp

# Open the serial port with a 1 second timeout
s = serial.Serial("COM1", timeout=1)

# Read the pressure from address 1 and print it
p = pvp.read_pressure(s, 1)
print("Pressure: {:.3f} bar".format(p))

Invalid Character Filter

Some users have reported invalid characters coming from their serial device. Sometimes this can be resolved by simply ignoring those extra characters. The library comes with a filter built in. This is kept off by default to properly display errors to the user. However, it can be enabled/disabled by running one of the following function after import.

import pfeiffer_vacuum_protocol as pvp
pvp.enable_valid_char_filter()  # Filter on
pvp.disable_valid_char_filter()  # Turn it off again

The filter can also be overridden on a per-function basis. The relevant functions have an optional argument called valid_char_filter which can be set to True or False to enable or disable the filter in a more targeted way.

Package Reference

read_error_code(s, addr, valid_char_filter=None)

Reads Pfeiffer's low level error code on the gauge. This appears to be useful for diagnosing failure of the transmitter itself.

Parameters

• s: pySerial object The open serial device attached to the gauge
• addr: int The address of the gauge
• valid_char_filter: bool Manually override the valid character filter

Returns

• error_code: pfeiffer_vacuum_protocol.ErrorCode enum element The error code returned by the gauge, this can be one of NO_ERROR, DEFECTIVE_TRANSMITTER, or DEFECTIVE_MEMORY

read_software_version(s, addr, valid_char_filter=None)

Returns the vacuum gauge's firmware version.

Parameters

• s: pySerial object The open serial device attached to the gauge
• addr: int The address of the gauge
• valid_char_filter: bool Manually override the valid character filter

Returns

• firmware_version: three element tuple if ints The version numbers as the tuple (major, minor, sub-minor)

read_gauge_type(s, addr, valid_char_filter=None)

Returns the name of the vacuum gauge attached at this address.

Parameters

• s: pySerial object The open serial device attached to the gauge
• addr: int The address of the gauge
• valid_char_filter: bool Manually override the valid character filter

Returns

• gauge_type: str The model name of the gauge attached

read_pressure(s, addr, valid_char_filter=None)

Reads the pressure from the gauge and returns it in bars.

Parameters

• s: pySerial object The open serial device attached to the gauge
• addr: int The address of the gauge
• valid_char_filter: bool Manually override the valid character filter

Returns

• pressure: float Pressure measured by gauge in bars

write_pressure_setpoint(s, addr, val, valid_char_filter=None)

Sets the gauge's "vacuum setpoint". In the manual, this appears to tell the gauge if it's operating in a high or low pressure regime to change some of its signal processing.

Parameters

• s: pySerial object The open serial device attached to the gauge
• addr: int The address of the gauge
• valid_char_filter: bool Manually override the valid character filter

Returns

• None

read_correction_value(s, addr, valid_char_filter=None)

Returns the current correction value used to adjust pressure measurements for different gas compositions.

Parameters

• s: pySerial object The open serial device attached to the gauge
• addr: int The address of the gauge
• valid_char_filter: bool Manually override the valid character filter

Returns

• correction_value: float The current correction value

write_correction_value(s, addr, val, valid_char_filter=None)

Sets the correction value on the gauge. Used to adjust the pressure measurement for different gas compositions.

Parameters

• s: pySerial object The open serial device attached to the gauge
• addr: int The address of the gauge
• valid_char_filter: bool Manually override the valid character filter

Returns

• None

enable_valid_char_filter()

Globally enable a filter to ignore invalid characters coming from the serial device.

disable_valid_char_filter()

Globally disable a filter to ignore invalid characters coming from the serial device.
