pickomino-env 1.4.1

Pickomino (Heckmeck) Gymnasium environment

Pickomino-Env

Description

An environment conforming to the Gymnasium API for the dice game Pickomino (Heckmeck am Bratwurmeck) Goal: train a Reinforcement Learning agent for optimal play. Meaning, decide which face of the dice to collect, when to roll and when to stop.

Differences from the Physical Game

If you know the physical game, note the following simplifications:

• Failed Attempt: the highest tile on the table is removed, not turned face-down.
• Tile selection: the best reachable tile is always taken automatically, you cannot choose a lower-valued tile like in the physical game.
• Stealing: always performed when possible, you cannot choose.
• Win condition: determined correctly when playing manually with GUI (most worms win, ties broken by the highest tile). When training without a renderer, no winner is declared; use total reward as your metric. But take care, stolen tiles do not reduce your reward, total reward can exceed your final score.
• Stack height: not included in the observation (visible in the physical game).

Action Space

The action space is MultiDiscrete([6, 2]). The step() method accepts both the ndarray returned by action_space.sample() and a plain Python tuple.

action = (die_face (0–5), action_type (0=roll, 1=stop))

Index	die_face	action_type
0–5	Die face to collect: 0→1 eye, 1→2 eyes, 2→3 eyes, 3→4 eyes, 4→5 eyes, 5→worm	—
0–1	—	0 = roll again, 1 = stop and take a tile

Observation Space

The observation is a dict with four keys:

Key	Min	Max	Shape
dice_collected	0	8	(6,)
dice_rolled	0	8	(6,)
tiles_table	0	1	(16,)
tile_players	0	36	(number_of_players,)

There are eight dice, each with faces 1–5 plus a worm. The worm is a sixth distinct die face, but it scores 5 points. The same as the 5-eye face — so it is not a sixth distinct point value.

Note: There are eight dice to roll and collect. A die has six sides with the number of eyes one through five, but a worm instead of a six. The values correspond to the number of eyes, with the worm also having the value five (and not six!). The 16 tiles are numbered 21 to 36 and have worm values from one to four spread in four groups. The game is for two to seven players. Here your Reinforcement Learning Agent is the first player. The other players are computer bots. The bots play, according to a heuristic. When you create the environment, you have to define the number of bots.

For a more detailed description of the rules, see the file pickomino-rulebook.pdf. You can play the game online here: https://www.maartenpoirot.com/pickomino/. The heuristic used by the bots is described here: https://frozenfractal.com/blog/2015/5/3/how-to-win-at-pickomino/.

Rewards

The goal is to collect tiles in a stack. The winner is the player, which at the end of the game has the most worms on her tiles. For the Reinforcement Learning Agent a reward equal to the value (worms) of a tile is given when the tile is picked. For a failed attempt (see rulebook), a corresponding negative reward is given. When a bot steals your tile, no negative reward is given. Hence, the total reward at the end of the game can be greater than the score.

For the full rules see the Pickomino rulebook or play online. To try the environment manually, see Play manually. The bot heuristic is described here.

Info Dictionary

The info dictionary is returned at every step. It is intended for debugging and logging, not for learning.

Key	Type	Description
dice_collected	list[int]	Counts of each die face collected this turn
dice_rolled	list[int]	Counts of each die face in the current roll
terminated	bool	Whether the episode has terminated
truncated	bool	Whether the game was truncated due to the last action
tiles_table_vec	numpy.ndarray[int8], shape (16,)	Binary vector of tiles currently available on the table
smallest_tile	int	Lowest-numbered tile still on the table
explanation	str	Reason for the last termination, truncation, or failed attempt
player_stack	list[int]	All tiles currently held by the agent
player_score	int	Agent's current score (sum of worm values)
current_player_index	int	Index of the player whose turn it is
bot_scores	list[int]	Scores of all bots, in order

Starting State

• dice_collected = [0, 0, 0, 0, 0, 0].
• dice_rolled = [3, 0, 1, 2, 0, 2] Random dice, sum = 8.
• tiles_table = [1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1].
• tile_players = [0, 0, 0] (with number_of_bots = 2).

Episode End

Termination occurs when there are no more tiles to take on the table — Game Over.

Truncation

Truncation occurs when the agent attempts an illegal action during dice selection or rolling (for example, selecting a face that was not rolled, selecting a face already collected this turn, or choosing to roll when no dice remain). The game continues, and a new valid action is required.

Invalid Actions

Out-of-range actions (outside [0–5] or [0–1]) raise a ValueError and do not affect the episode state.

Failed Attempt

A Failed Attempt occurs when the agent fails to secure a tile. If the agent has a stack of already picked tiles, then the top tile is returned to the table, and a negative reward is applied. If the stack is empty, nothing happens, and the reward is zero. The game continues — the episode does not end.

Arguments

These must be specified.

Parameter	Type	Default	Description
number_of_bots	int	1	Number of bot opponents (1-6) you want to play against
render_mode	str or None	None	Visualization mode: None (training), "human" (display), or "rgb_array" (recording)

Bot Heuristic

The bots use the following heuristic, inspired by Frozen Fractal's strategy:

• Take the highest-contributing face. Select the die face where count × face value is greatest. Worms count as 5.
• Tie-breaking. When two faces contribute equally: prefer worms over 5s. If still tied, prefer the face with the fewest dice keeping more dice available for future rolls. Hence, for example, three 4s are preferred over four 3s.
• Worm priority on early rolls. If no dice have been collected yet and this is the third roll or later, take worms if available, regardless of contribution.
• Stop as soon as a tile is reachable. Once the running total meets or exceeds the lowest available tile value, and a worm has been collected, the bot stops.

Setup

• Python 3.10–3.14

Installation

We recommend installing in a virtual environment:

python -m venv .venv
# macOS/Linux
source .venv/bin/activate

# Windows PowerShell
.venv\Scripts\Activate.ps1

# Windows cmd.exe
.venv\Scripts\activate.bat

# Windows Git Bash
source .venv/Scripts/activate
pip install pickomino-env

Verify your installation:

pickomino-play

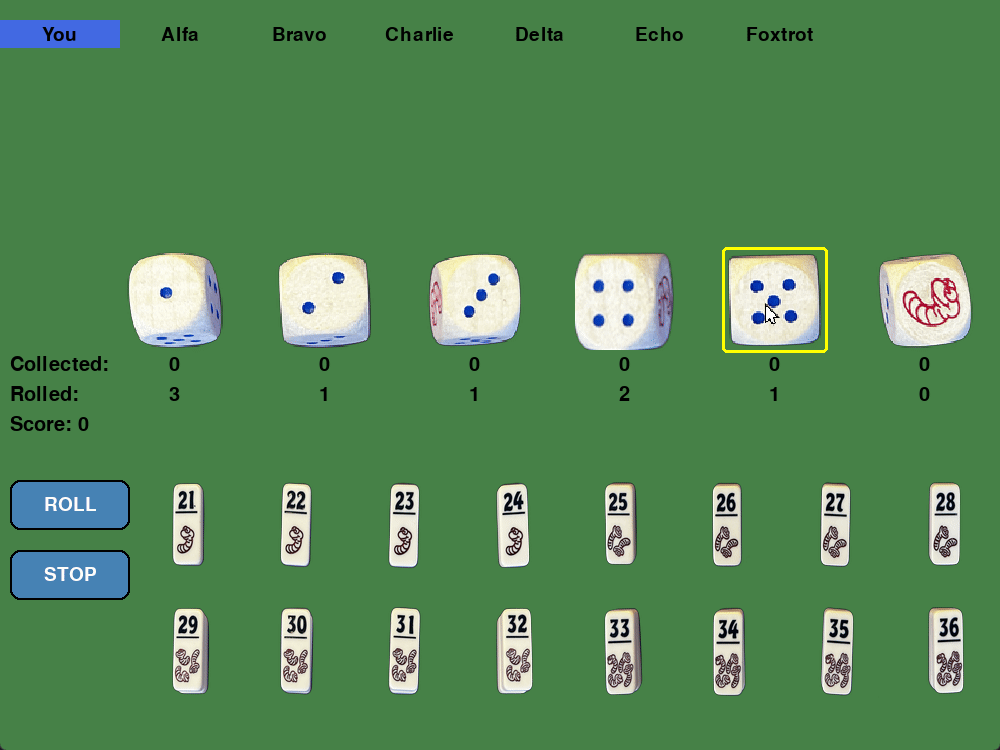

Play manually

Playing a few games manually is a great way to understand the rules and game dynamics before training a Reinforcement Learning agent. Launch the game with the pygame GUI:

pickomino-play

To play against more bots:

pickomino-play --number-of-bots=3

Valid range: 1–6 bots.

To change the bot play speed, adjust the RENDER_DELAY constant in constants.py. A higher value slows the bots down, a lower value speeds them up.

RENDER_DELAY: Final[float] = 2

Usage example

import gymnasium as gym

# render_mode options:
#   None         — no rendering, fastest (default, recommended for training)
#   "human"      — pygame window, requires a display
#   "rgb_array"  — returns RGB array, useful for recording
env = gym.make("Pickomino-v0", render_mode="human", number_of_bots=2)

# Reset and get initial observation
obs, info = env.reset(seed=42)

# Run one episode
terminated = False
truncated = False
total_reward = 0

while not terminated and not truncated:
    # Agent selects action: (die_face, roll_choice)
    action = env.action_space.sample()  # Random action for demo
    # Step environment
    obs, reward, terminated, truncated, info = env.step(action)
    total_reward += reward
    if truncated:
        print(f"Invalid action: {info['explanation']}")

print(f"Episode finished. Total reward: {total_reward}")
env.close()

Security & Bug Bounty

Found a bug? Valid reports are rewarded with a physical copy of the Pickomino board game. See SECURITY.md for scope, timelines, and how to report.

Resources

• Game Rules: Pickomino Rulebook
• Play Online: Maarteen Poirot's Pickomino
• Play Board Game Arena: Pickomino with elo system
• Bot Strategy: How to Win at Pickomino
• Repository: smallgig/Pickomino
• Gymnasium: https://gymnasium.farama.org/

License

MIT License. See LICENSE for details.
