picosnitch 1.0.3

Monitor network traffic per executable using BPF

Picosnitch

• 🔔 Receive notifications whenever a new program connects to the network, or when it's modified
• 📈 Monitors your bandwidth, breaking down traffic by executable, hash, parent, domain, port, or user over time
• 🌍 Web and terminal interfaces with GeoIP lookups for each connection (IP Geolocation by DB-IP)
• 🛡️ Can optionally check hashes or executables using VirusTotal
• 🚀 Executable hashes are cached based on device + inode for improved performance
• 🐳 Detects applications running inside containers, multiple versions of the same app are differentiated based on their hash
• 🕵️ Uses BPF for accurate, low overhead bandwidth monitoring and fanotify to watch executables for modification
• 👨‍👦 Since applications can call others to send/receive data for them, the parent executable and hash is also logged for each connection
• 🧰 Pragmatic and minimalist design focusing on accurate detection with clear and reliable error reporting when it isn't possible

Installation

AUR for Arch and derivatives

Details

• install picosnitch manually or using your preferred AUR helper

PPA for Ubuntu and derivatives

Details

• sudo add-apt-repository ppa:elesiuta/picosnitch
• sudo apt update
• sudo apt install picosnitch
• optionally install dash with pip or pipx
  • sudo apt install pipx
  • pipx install dash
• you may require a newer version of BCC (unofficial PPA) since the version in the Ubuntu repos sometimes lags behind its supported kernel

OBS for Debian and derivatives

Details

• visit the OBS picosnitch page and follow the instructions for your distribution
• optionally install dash with pip or pipx
  • sudo apt install pipx
  • pipx install dash
• if you're having issues on bullseye, you may need a newer version of BCC

OBS for openSUSE Tumbleweed and derivatives

Details

• sudo zypper addrepo https://download.opensuse.org/repositories/home:elesiuta/openSUSE_Tumbleweed/home:elesiuta.repo
• sudo zypper refresh
• sudo zypper install picosnitch

Copr for Fedora, Mageia, Mandriva, and derivatives

Details

• sudo dnf copr enable elesiuta/picosnitch
• sudo dnf install picosnitch
• optionally install dash with pip or pipx
  • sudo dnf install pipx
  • pipx install dash

Nixpkgs for Nix

Details

• install and enable using the picosnitch service option
  • add services.picosnitch.enable = true; to your Nix configuration file (typically /etc/nixos/configuration.nix)
  • run sudo nixos-rebuild switch
• workaround for "Failed to compile BPF module"
  • systemctl stop picosnitch
  • sudo picosnitch start-no-daemon then send SIGINT (ctrl + c)
  • systemctl start picosnitch

PyPI for any Linux distribution with Python >= 3.8

Details

• install the BPF Compiler Collection python package for your distribution
  • it should be called python-bcc or python-bpfcc
• install picosnitch using pip or pipx
  • pipx install "picosnitch[full]"
• create a service file for systemd to run picosnitch (recommended)
  • picosnitch systemd
• optional dependencies (will install from PyPI with [full] if not already installed)
  • for dash: dash, pandas, and plotly
  • for dash themes: dash-bootstrap-components and dash-bootstrap-templates
  • for GeoIP lookups: geoip2
  • for notifications: dbus-python, python-dbus, or python3-dbus (name depends on your distro and should be installed from their repo)
  • for sql server: one of psycopg, pymysql, mariadb, or psycopg2 (latter two not included with [full])
  • for VirusTotal: requests

GitHub for installing from source

Details

• clone the repo or download picosnitch.py and setup.py
• install the BPF Compiler Collection python package for your distribution
  • it should be called python-bcc or python-bpfcc
• install psutil
• install python-setuptools
• install picosnitch with python setup.py install --user
• see other options with python setup.py [build|install] --help
• you can also run the script picosnitch.py directly

Usage

• Running picosnitch
  • enable/disable autostart on reboot with systemctl enable|disable picosnitch
  • start/stop/restart with systemctl start|stop|restart picosnitch
  • or if you don't use systemd picosnitch start|stop|restart

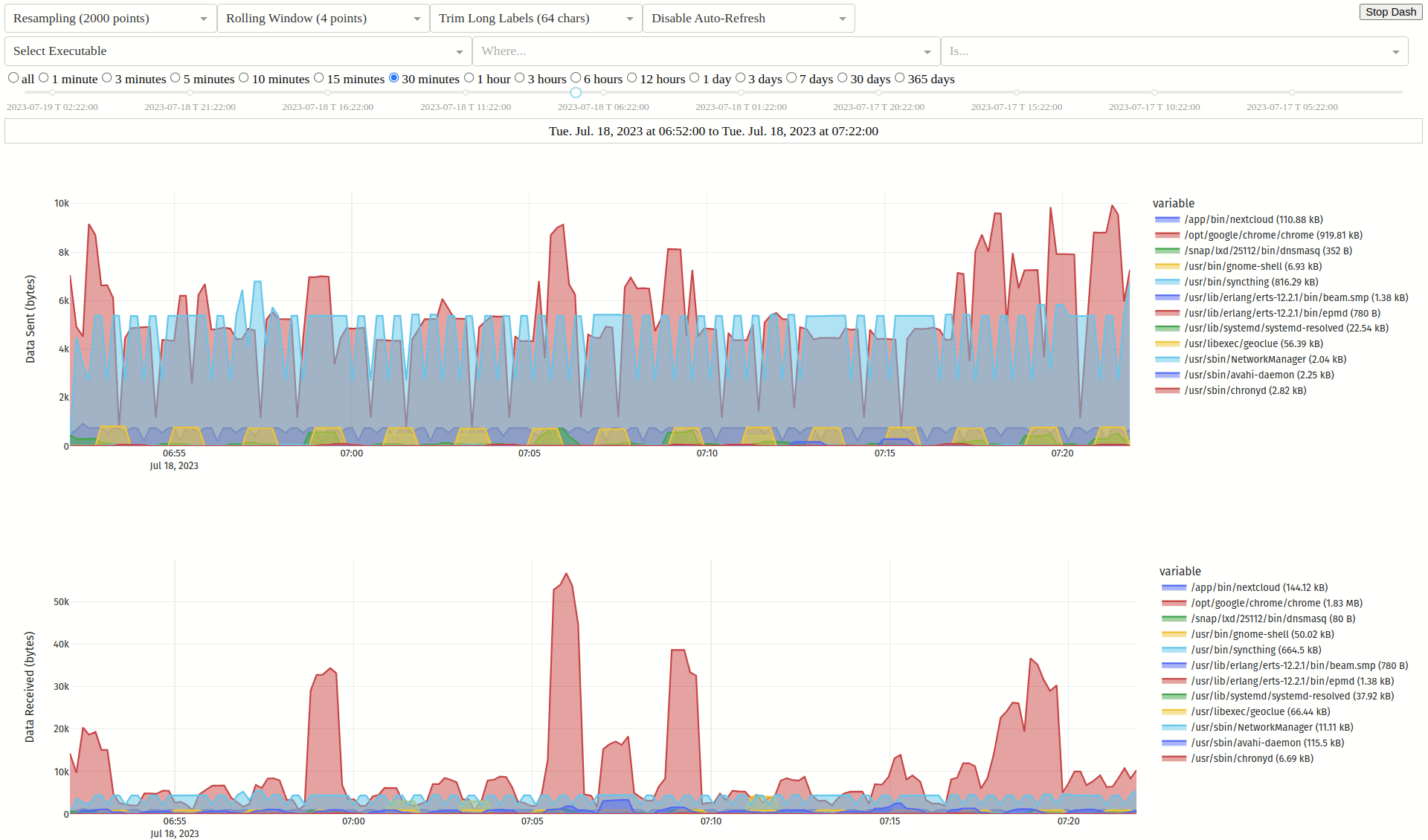

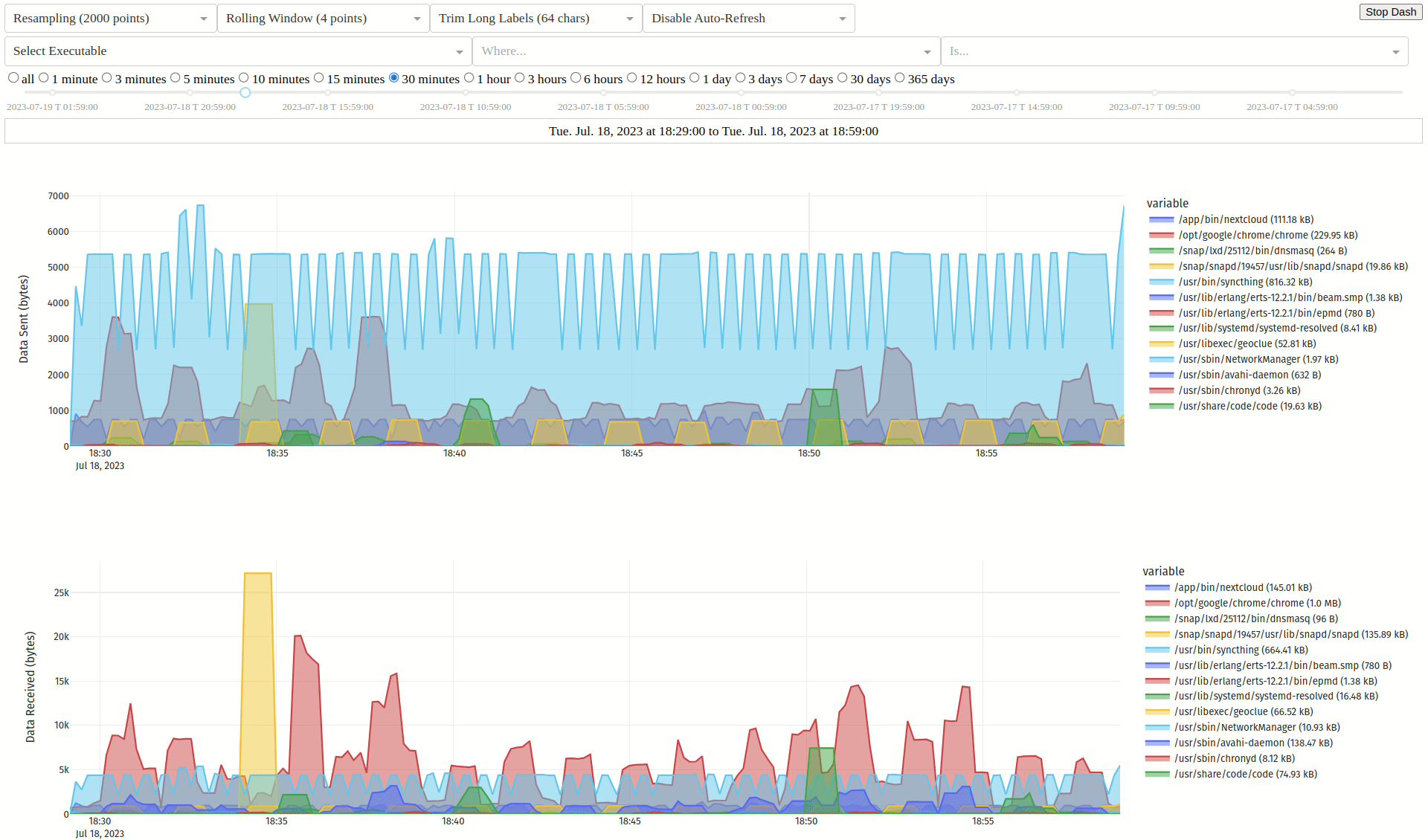

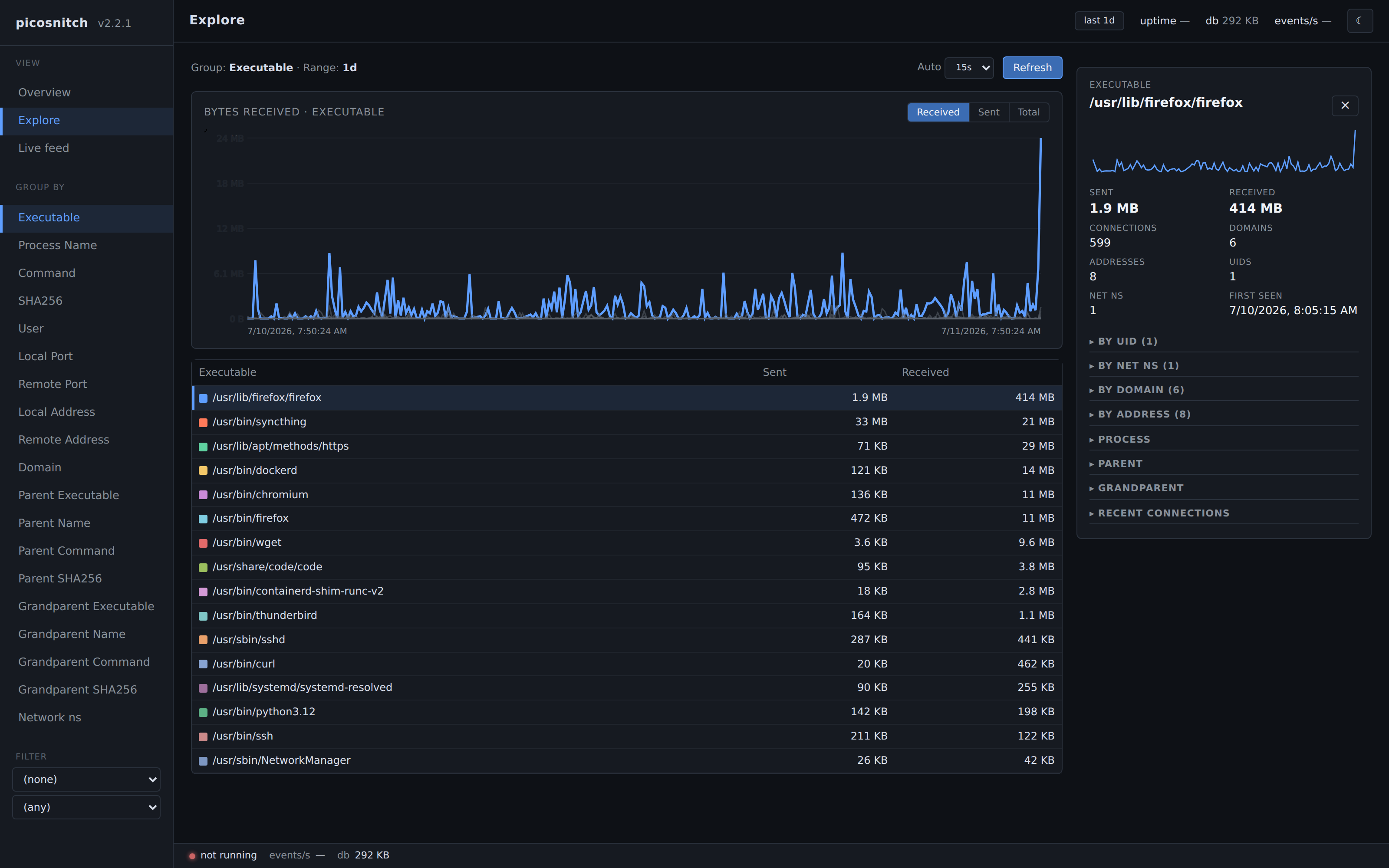

• Web user interface for browsing past connections
  • start with picosnitch dash
  • visit http://localhost:5100 (you change this by setting the environment variables HOST and PORT)

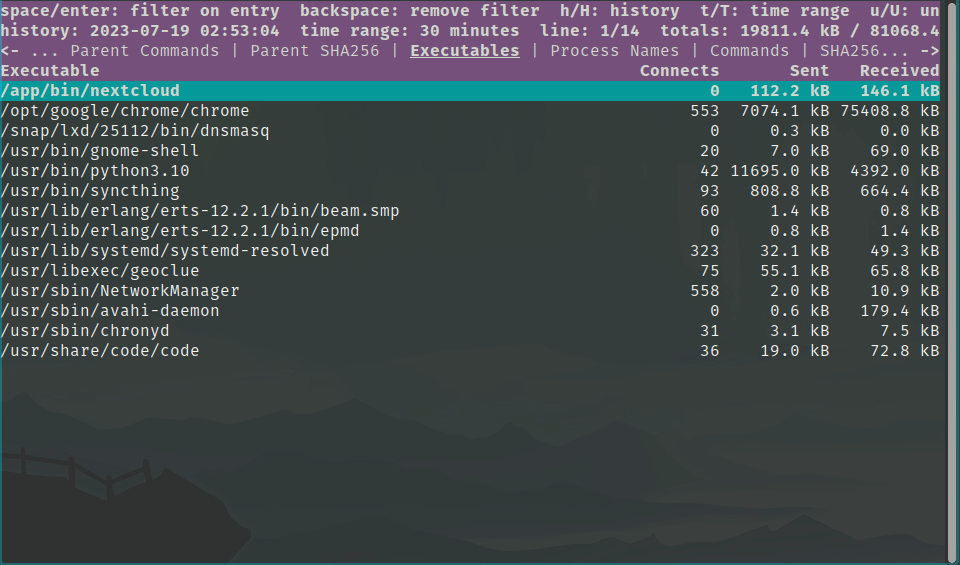

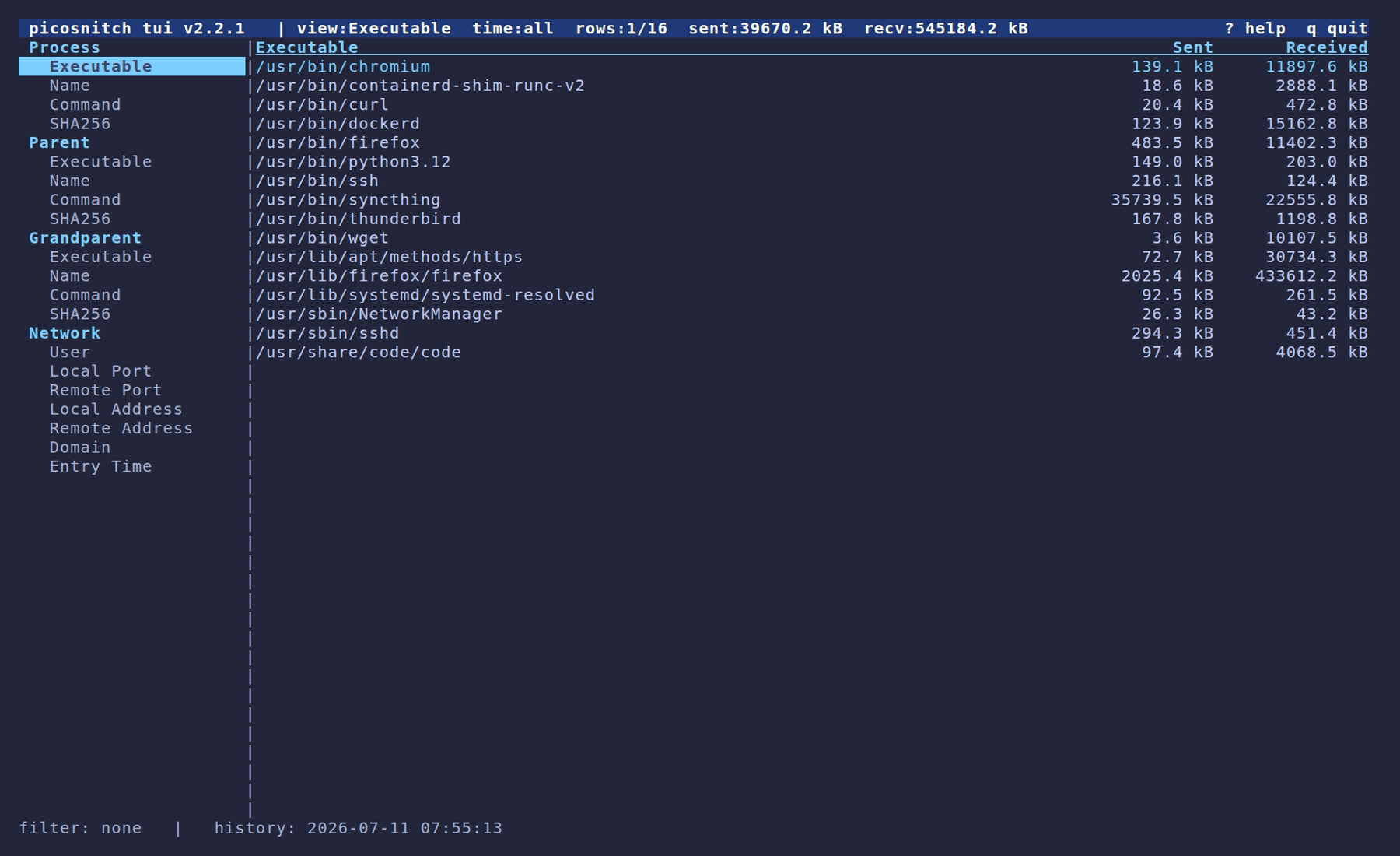

• Terminal user interface for browsing past connections
  • start with picosnitch view
  • space/enter/f: filter on entry e: exclude entry backspace/F/E: remove filter h/H: step through history (time offset) t/T: cycle time range u/U: cycle byte units r: refresh view q: quit
• Show usage with picosnitch help

Configuration

• Config is stored in ~/.config/picosnitch/config.json
  • restart picosnitch if it is currently running for any changes to take effect

{
  "DB retention (days)": 30, # How many days to keep connection logs in snitch.db
  "DB sql log": true, # Write connection logs to snitch.db (SQLite)
  "DB sql server": {}, # Write connection logs to a MariaDB, MySQL, or PostgreSQL server
  "DB text log": false, # Write connection logs to conn.log
  "DB write limit (seconds)": 10, # Minimum time between connection log entries
  # increasing it decreases disk writes by grouping traffic into larger time windows
  # reducing time precision, decreasing database size, and increasing hash latency
  "Dash scroll zoom": true, # Enable scroll zooming on plots
  "Dash theme": "", # Select a theme name from https://bootswatch.com/
  # requires installing https://pypi.org/project/dash-bootstrap-components/
  # and https://pypi.org/project/dash-bootstrap-templates/ with pip or pipx
  "Desktop notifications": true, # Try connecting to dbus to show notifications
  "Every exe (not just conns)": false, # Check every running executable with picosnitch
  # these are treated as "connections" with a port of -1
  # this feature is experimental but should work fairly well, errors should be expected as
  # picosnitch is unable to open file descriptors for some extremely short-lived processes
  # if you just want logs (no hashes) to trace process hierarchy, see execsnoop or forkstat
  "GeoIP lookup": true, # GeoIP lookup of IP addresses in user interface (terminal and web)
  "Log addresses": true, # Log remote addresses for each connection
  "Log commands": true, # Log command line args for each executable
  "Log ignore": [], # List of hashes (str), domains (str), IP subnets (str), or ports (int)
  # will omit connections that match any of these from the connection log
  # domains are in reverse domain name notation and will match all subdomains
  # the process name, executable, and hash will still be recorded in record.json
  "Log ports": true, # Log local and remote ports for each connection
  "Perf ring buffer (pages)": 256, # Power of two number of pages for BPF program
  # only change this if it is giving you errors (e.g. missed events)
  # picosnitch opens a perf buffer for each event type, so this is multiplied by up to 18
  "Set RLIMIT_NOFILE": null, # Set the maximum number of open file descriptors (int)
  # it is used for caching process executables and hashes (typical system default is 1024)
  # this is good enough for most people since caching is based on executable device + inode
  # fanotify is used to detect if a cached executable is modified to trigger a hash update
  "Set st_dev mask": null, # Mask device number for open file descriptors (int)
  # set to 0 to disable verification if it is giving you errors (e.g. FD cache errors)
  # defaults to 0 if a btrfs partition is detected, otherwise 0xffffffff
  "VT API key": "", # API key for VirusTotal, leave blank to disable (str)
  "VT file upload": false, # Upload file if hash not found, only hashes are used by default
  "VT request limit (seconds)": 15 # Number of seconds between requests (free tier quota)
}

Logging

• A log of seen executables is stored in ~/.config/picosnitch/exe.log
  • this is a history of your notifications
• A record of seen executables is stored in ~/.config/picosnitch/record.json
  • this is used for determining whether to create a notification
  • it contains known process name(s) by executable, executable(s) by process name, and sha256 hash(es) with VirusTotal results by executable
• Enable DB sql log (default) to write the full connection log to ~/.config/picosnitch/snitch.db
  • this is used for picosnitch dash, picosnitch view, or something like DB Browser
  • note, connection times are based on when the group is processed, so they are accurate to within DB write limit (seconds) at best, and could be delayed if the previous group is slow to hash
  • notifications are handled by a separate subprocess, so they are not subject to the same delays as the connection log
• Use DB sql server to write the full connection log to a MariaDB, MySQL, or PostgreSQL server
  • this is independent of DB sql log and is used for providing an off-system copy to prevent tampering (use GRANT to assign privileges and see limitations for other caveats)
  • to configure, add the key client to DB sql server with value mariadb, psycopg, psycopg2, or pymysql, you can also optionally set table_name
  • assign remaining connection parameters for mariadb, psycopg, or pymysql to DB sql server as key/value pairs
• Enable DB text log to write the full connection log to ~/.config/picosnitch/conn.log
  • this may be useful for watching with another program
  • it contains the following fields, separated by commas (commas, newlines, and null characters are removed from values)
  • entry time, sent bytes, received bytes, executable path, process name, cmdline, sha256, parent executable, parent name, parent cmdline, parent sha256, user id, local port, remote port, local address, remote address, domain
• The error log is stored in ~/.config/picosnitch/error.log
  • errors will also trigger a notification and are usually caused by far too many or extremely short-lived processes/connections, or suspending your system while a new executable is being hashed
  • while it is very unlikely for processes/connections to be missed (unless Every exe (not just conns) is enabled), picosnitch was designed such that it should still detect this and log an error giving you some indication of what happened
  • for most people in most cases, this should raise suspicion that a program may be misbehaving
  • a program should not be able to hide from picosnitch (either by omission or spoofing another program) without picosnitch reporting an error
  • see limitations below for other sources of errors

Limitations

• Despite focusing on reliability and notable advantages over existing tools, picosnitch still has some limitations depending on its use case
• When used as a security/auditing tool, a program with sufficient privileges might alter picosnitch or its logs, or employ alternative communication mechanisms not monitored by picosnitch and potentially invisible to the kernel, some mitigations include
  • use DB sql server to maintain an off-system copy of your logs
  • cross-checking with a standalone router/firewall to ensure all communication is accounted for
  • use sandboxing such as flatpak
• Detecting open sockets and identifying the process is very reliable with BPF; however, the executable name and path could be ambiguous or spoofed if malicious, as a countermeasure, picosnitch hashes the executable to provide a reliable identifier
  • only the process executable itself is hashed, leaving out shared libraries (e.g. LD_PRELOAD rootkits), extensions, or scripts which could become compromised
    • some possible mitigations include using an immutable OS or tools such as AIDE, fs-verity, IMA/EVM, or debsums (with caveats)
  • for extremely short-lived processes, picosnitch may not be able to open a file descriptor in time in order to hash it (this is rare)
  • the device and inode of the opened file descriptor are checked against what was reported by the BPF program to detect if the executable was replaced; however, BTRFS uses non-unique inodes, negating this protection (a negligible issue mentioned for completeness)
  • if hashing the executable fails for any reason, the traffic will still be logged with all available information, accompanied by an error notification
• A large influx of new processes or connections may lead to some missed log entries as picosnitch preserves system traffic latency rather than impeding it to catch up with processing event callbacks
  • such incidents will be detected, logged as an error, and you will be notified
  • you can mitigate this by increasing Perf ring buffer (pages)
• In addition to bugs, please report any other limitations that may have been missed!
