pixelmap-python

PyPI Python versions License: MIT

Dense image correspondence: given two photographs of the same scene, work out where each pixel of the first one went in the second.

Python bindings for the pixelmap Rust crate, the reference implementation of the PIXELMAP framework (white paper). Every cell of an affine correspondence grid acts as an autonomous agent holding its own local affine transform; agents refine their transform against the image data and propagate what they find to their neighbours, and a forward/backward consistency check culls the ones that disagree. Repeating that coarse-to-fine yields a dense, geometrically consistent mapping.

Useful for optical flow, image registration and stitching, stereo matching, morphing, and as the front half of a 3D reconstruction.

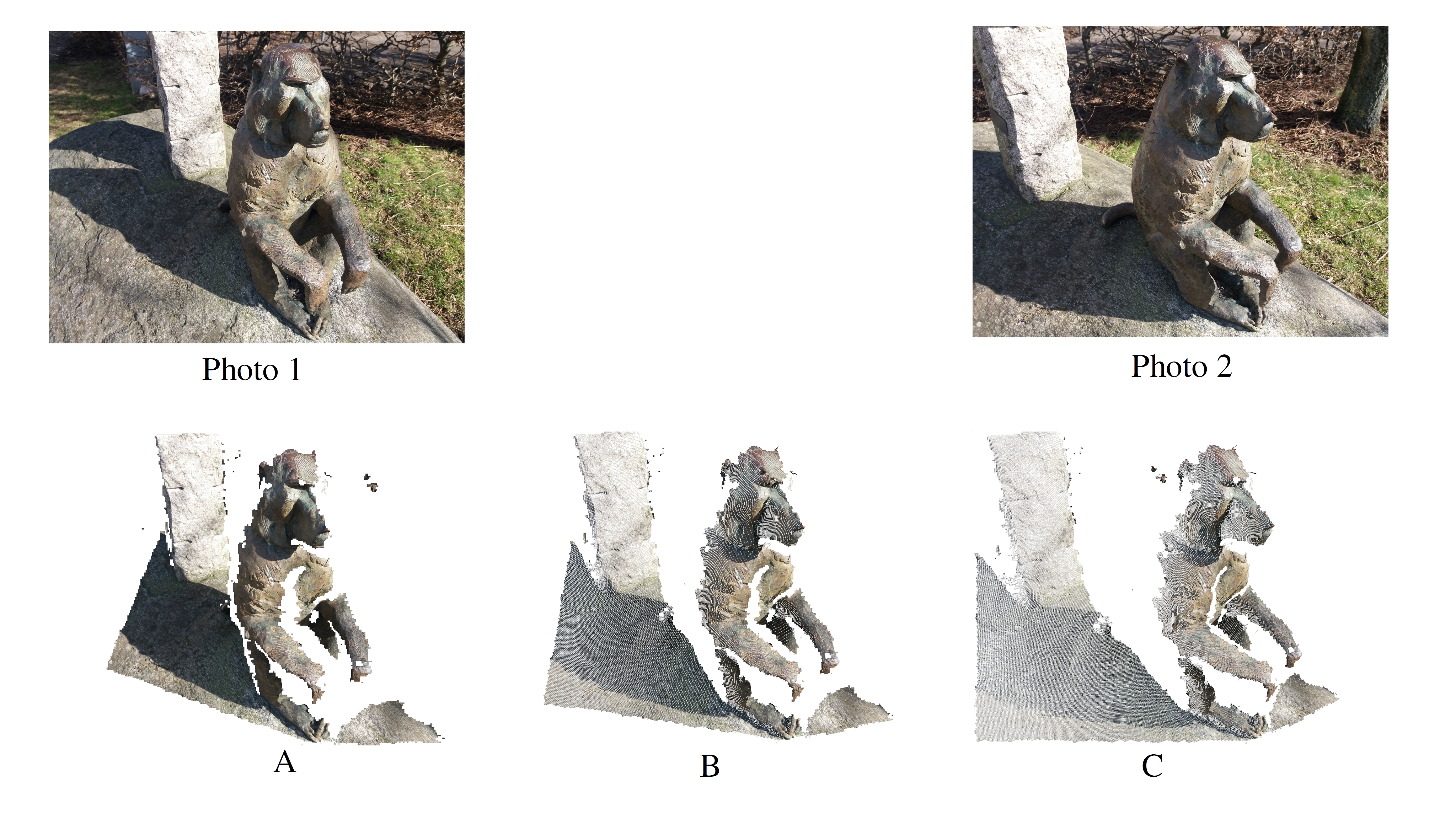

PIXELMAP applied to two photos of a monkey statue

Install

pip install pixelmap-python

The package installs as pixelmap-python but imports as pixelmap — PyPI will not accept pixelmap as a distribution name, because it collides with the unrelated pixel-map project under PyPI's similarity rule.

Wheels are published for Linux (x86-64, aarch64, musl), macOS (Apple silicon and Intel) and Windows (x86-64), for CPython 3.9 and newer. NumPy is the only runtime dependency; no Rust toolchain is needed unless you build from source.

Quick start

import numpy as np
import pixelmap
from PIL import Image

a = np.asarray(Image.open("a.jpg").convert("RGB"))
b = np.asarray(Image.open("b.jpg").convert("RGB"))  # same dimensions as a

mapping = pixelmap.correspond(a, b, quality="low")

flow = mapping.flow()  # (H, W, 2) float32: how far each pixel moved
print(f"{mapping.coverage:.1%} of the image was mapped")

# Where did the pixel at (120, 84) end up?
print(mapping.lookup(120.0, 84.0))  # (114.2, 80.6), or None if unmapped

flow[y, x] is (dx, dy) in the source photos' own pixel coordinates. Regions the algorithm could not map — occlusions, featureless sky, anything the consistency check rejected — are NaN rather than a plausible-looking coordinate:

unmapped = np.isnan(flow[..., 0])

Coverage well below 1.0 is normal and not a failure. A very low value means the two photos had little in common, or are related by something an affine grid cannot express.

Warping one photo onto the other

flow(absolute=True) returns destination coordinates instead of displacements, which is what OpenCV's remap wants:

import cv2

dst = mapping.flow(absolute=True)
warped = cv2.remap(a, dst[..., 0], dst[..., 1], cv2.INTER_LINEAR)

There is also a built-in morph, which interpolates the first photo t of the way towards the second:

halfway = mapping.morph(0.5, detail=2)  # (h, w, 4) uint8, at working resolution

Watching a long run

mapping = pixelmap.correspond(
    a,
    b,
    quality=pixelmap.Quality.HIGH,
    progress=lambda step, total: print(f"{step}/{total}"),
)

The GIL is released while the solver runs, so correspond can be called from a worker thread without blocking the rest of your program.

API
correspond(photo1, photo2, *, quality, seed, max_round_trip_error, progress) Run the pipeline.
Correspondence.flow(*, backward=False, absolute=False) The dense field as (H, W, 2) float32.
Correspondence.lookup(x, y, *, backward=False) One point, or NumPy arrays of them.
Correspondence.morph(t, *, detail=1) The first photo warped towards the second.
Correspondence.coverage Fraction of the image that got a mapping.
Correspondence.comparisons Region comparisons performed.
Correspondence.source_dimensions / .working_dimensions / .working_scale Geometry.
Correspondence.to_bytes() / .from_bytes(data, photo1, photo2) Save and reload a mapping.
Quality.LOW / .MEDIUM / .HIGH Presets, or the equivalent strings.

Input. Photos are uint8 arrays of shape (H, W), (H, W, 1), (H, W, 3) or (H, W, 4) — Pillow images work directly. Both must have the same dimensions and be at least 32 pixels on each side. Violations raise SizeMismatchError, PhotoTooSmallError or ValueError, all of which are ValueError subclasses.

Quality. LOW, MEDIUM and HIGH run 4, 10 and 13 refinement steps and finish at a working width of 400, 800 and 1600 pixels respectively, so cost grows faster than the step count suggests. flow and lookup answer in your photos' coordinates regardless; use working_scale if you need to reason about the solver's effective resolution.

Determinism. The same photos, quality and seed give the same mapping — run to run, thread to thread, and machine to machine. Pass seed= to vary it.

Building from source

Requires Rust 1.83 or newer.

git clone https://github.com/d4per/pixelmap-python
cd pixelmap-python
pip install maturin
maturin develop --release
pytest

maturin develop without --release builds an unoptimised solver that is many times slower; use it only for iterating on the bindings themselves.

See also

License

MIT — see LICENSE.
