plcrex 1.2.0

PLCreX - Approaches towards the analysis and reuse capabilities of IEC 61131-3 Programmable Logic Controllers

PLCreX - Approaches towards the analysis and reuse capabilities of IEC 61131-3 Programmable Logic Controllers

Quick links

Releases · Documentation · Quick Start · Key Features · Licenses · Acknowledgments

---

Quick Start

Explore the docs »

• Download IEC-Checker v0.4 via IEC-Checker's GitHub releases [.url]
• Download NuSMV symbolic model checker v2.6.0 via NuSMV's homepage [.url]
• Install PLCreX via PyPI: pip install plcrex or
• Install PLCreX via PLCreX's GitHub repository: install-windows.bat
  • [optional] Run local tests: coverage run -m pytest ./tests/ --verbose
  • Activate virtual environment (venv): run.bat

Key Features

Explore the docs »

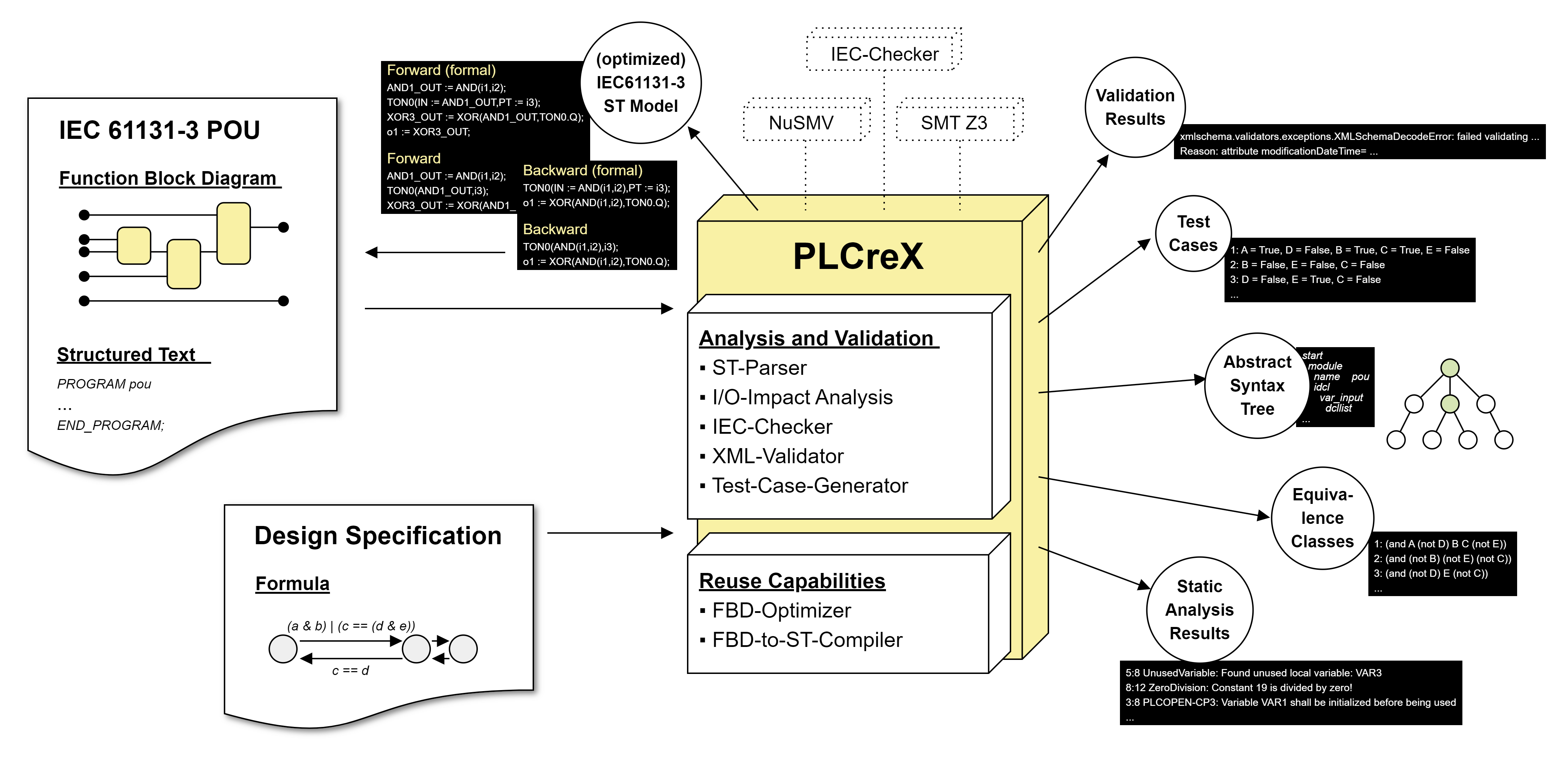

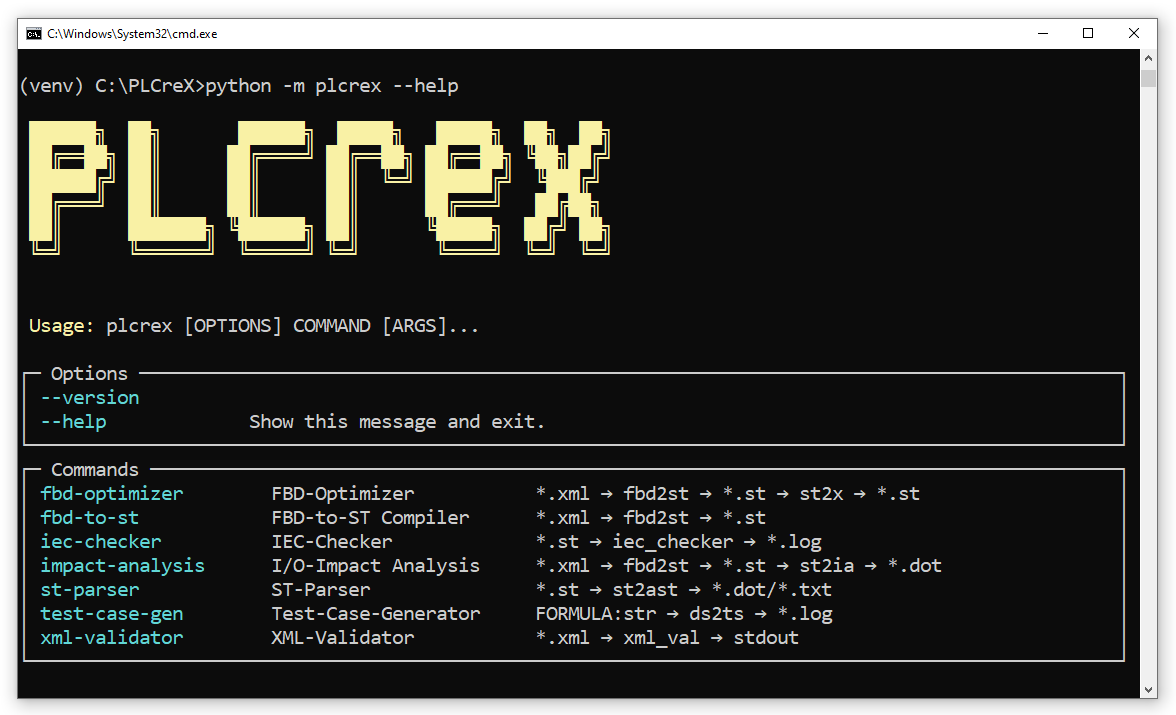

Usage: python -m plcrex --help

Tool	Usage	Script	Version	Design flow
FBD-Optimizer	plcrex fbd-optimizer [OPTIONS] SOURCE EXE EXPORT FILENAME	st2x	2.2.0	*.xml → fbd2st → *.st → st2x → *.st
FBD-to-ST Compiler	plcrex fbd-to-st [OPTIONS] SOURCE EXPORT FILENAME	fbd2st	1.4.0	*.xml → fbd2st → *.st
IEC-Checker	plcrex iec-checker [OPTIONS] SOURCE EXE EXPORT FILENAME	iec_checker	1.2.0	*.st → iec_checker → *.log
I/O-Impact Analysis	plcrex impact-analysis [OPTIONS] SOURCE EXPORT FILENAME	st2ia	1.4.1	*.xml → fbd2st → *.st → st2ia → *.dot
ST-Parser	plcrex st-parser [OPTIONS] SOURCE EXPORT FILENAME	st2ast	1.2.0	*.st → st2ast → .dot/.txt
Test-Case-Generator	plcrex test-case-gen [OPTIONS] FORMULA EXPORT FILENAME	ds2ts	2.1.2	FORMULA:str → ds2ts → *.log
XML-Validator	plcrex xml-validator [OPTIONS] SOURCE	xml_val	1.2.0	*.xml → xml_val → stdout

NOTE: Use the "--help" option to see feature details

Licenses

PLCreX and its dependencies are licensed as follows:

Tool	Version	License
PLCreX	1.2.0	GPLv3
IEC-Checker	0.4	LGPL v3.0
NuSMV	2.6.0	LGPL v2.1

Acknowledgments

Inspiration, code snippets, etc.

• blark [v0.5.0]
• IEC-Checker [v0.4]
