Mirage 🪄

Ultra-lightweight, browser-less static image exporter for Plotly in Python.
Zero Chrome. Zero Chromium. Zero Playwright. 100% Vector & Raster Fidelity.

---

Why Mirage?

Historically, exporting static images (.svg, .png, .jpg, .webp) from Plotly in Python required Kaleido:

• Kaleido v0.1/v0.2 bundled an unmaintained, monolithic Chromium binary that frequently deadlocked, crashed on ARM64 / Apple Silicon, or failed on modern Linux distributions.
• Kaleido v1+ transitioned to requiring a full installation of Google Chrome or downloading ~150MB–300MB Playwright browser binaries.
• In Docker containers, AWS Lambda, lightweight Linux (Alpine), and CI/CD pipelines, installing Chrome pulls in hundreds of megabytes of system packages (libglib, libgtk, libnss, Xvfb), making deployments bloated and fragile.

Mirage eliminates all browser dependencies entirely. It executes Plotly's official SVG engine inside an embedded QuickJS JavaScript runtime, measures fonts using Pillow, and rasterizes pixel-perfect images via high-performance Rust (resvg-py).

---

How Mirage Works

Plotly Python figures are JSON specifications. The actual layout math, coordinate scaling, D3 curves, and SVG construction live inside plotly.js.

┌───────────────────────────────┐
│     fig = go.Figure(...)      │
└──────────────┬────────────────┘
               │ fig.to_dict()
               ▼
┌────────────────────────────────────────────────────────┐
│  Mirage Engine (Embedded QuickJS Runtime)               │
│                                                        │
│  1. Micro-DOM (~400 lines JS):                         │
│     - Minimal SVG/HTML element tree                    │
│     - D3 selector & attribute managers                 │
│  2. Pillow Font Engine:                                │
│     - Answers getBBox() text measurements via PIL      │
│  3. Comprehensive 2D Plotly Engine:                    │
│     - Computes layout & renders 29 pure-vector traces  │
│  4. Extracts clean, standalone <svg>                   │
└──────────────────────────────┬─────────────────────────┘
                               │ Pure SVG Vector Output
                               ▼
                ┌───────────────────────────────┐
                │    resvg-py (Rust Wheel)      │
                │    Instant SVG ➔ PNG / JPEG   │
                └───────────────────────────────┘

1. Embedded QuickJS Engine: Runs the official plotly.js bundle inside an embedded C JavaScript runtime (~1.8 MB bundle).
2. Micro-DOM: Implements the precise subset of DOM and SVG APIs that D3 and Plotly require to build the SVG scene graph.
3. Pillow Font Engine: When Plotly asks for text bounding boxes (getBBox()), Mirage queries Python's PIL.ImageFont to measure text dimensions, ensuring clean margins, titles, and tick placements without overlaps.
4. Rust Vector Rasterization (resvg-py): Converts SVG directly into crisp PNG, JPEG, or WEBP bytes in milliseconds with zero C++ system dependencies.

---

Installation

pip install plotly-mirage

Or install the latest development version directly from GitHub:

pip install git+https://github.com/ProfLear/mirage.git

Works out-of-the-box on macOS (Intel & Apple Silicon), Linux (Ubuntu, Debian, Fedora, Alpine/musl), and Windows 10/11.

---

Quickstart

1. Direct API

import plotly.express as px
import mirage

fig = px.scatter(x=[1, 2, 3, 4], y=[10, 11, 12, 13], title="Sales Growth")

# Export to SVG string or file
svg_str = mirage.to_svg(fig)
mirage.write_image(fig, "sales.svg")

# Export to PNG / JPEG / WEBP
png_bytes = mirage.to_image(fig, format="png", scale=2.0)
mirage.write_image(fig, "sales.png", scale=2.0)
mirage.write_image(fig, "sales.jpg")
mirage.write_image(fig, "sales.webp")

2. Drop-in Replacement for Kaleido (mirage.register())

If you have existing code using Plotly's native fig.write_image() or fig.to_image():

import plotly.express as px
import mirage

# Patch Plotly to use Mirage instead of Kaleido
mirage.register()

fig = px.bar(x=["A", "B", "C"], y=[1, 3, 2])

# These now run instantly via Mirage without Chrome or Kaleido!
fig.write_image("chart.png")
fig.write_image("chart.svg")
png_data = fig.to_image(format="png")

---

Performance Benchmarks across 25 Chart Types

Below is an empirical benchmark comparing Mirage against Kaleido across 25 standard Plotly chart types (tested on Apple Silicon, measuring average per-image export latency after engine warmup):

Category	Chart Type	Mirage Latency	Kaleido Latency	Speedup
Core Cartesian	Scatter & Line Chart	55.9 ms	1074.0 ms	19.2x
Core Cartesian	Grouped Bar Chart	51.2 ms	1023.1 ms	20.0x
Core Cartesian	Donut / Pie Chart	51.4 ms	1147.8 ms	22.3x
Core Cartesian	Box Plot	56.2 ms	1171.2 ms	20.8x
Core Cartesian	Violin Plot	54.4 ms	1165.4 ms	21.4x
Core Cartesian	Frequency Histogram	39.9 ms	1098.7 ms	27.5x
Core Cartesian	2D Density Histogram	63.5 ms	1092.7 ms	17.2x
Core Cartesian	2D Contour Plot	74.1 ms	1097.0 ms	14.8x
Core Cartesian	Performance Heatmap	58.2 ms	1078.1 ms	18.5x
Core Cartesian	Ternary Phase Diagram	58.8 ms	1071.9 ms	18.2x
Financial & Business	Candlestick Stock Chart	85.2 ms	1126.1 ms	13.2x
Financial & Business	OHLC Financial Chart	77.9 ms	1096.7 ms	14.1x
Financial & Business	Waterfall Profit & Loss	42.4 ms	1075.7 ms	25.4x
Financial & Business	Sales Conversion Funnel	59.7 ms	1116.3 ms	18.7x
Financial & Business	Funnel Area Analysis	45.8 ms	1094.3 ms	23.9x
Financial & Business	KPI Performance Indicator	37.8 ms	1033.5 ms	27.3x
Hierarchical	Market Cap Treemap	41.1 ms	1138.6 ms	27.7x
Hierarchical	Global Sunburst Hierarchy	44.2 ms	1116.2 ms	25.3x
Hierarchical	Icicle Partition Chart	35.2 ms	1095.0 ms	31.1x
Radial & Polar	Radar Performance Comparison	62.5 ms	1028.6 ms	16.5x
Radial & Polar	Polar Wind Rose	42.8 ms	1150.5 ms	26.9x
Specialized Diagrams	Energy Flow Sankey Diagram	32.5 ms	1535.5 ms	47.3x
Specialized Diagrams	Parallel Categories Diagram	49.7 ms	1166.3 ms	23.5x
Specialized Diagrams	Formatted Data Table	40.7 ms	1073.1 ms	26.3x
Specialized Diagrams	Carpet Coordinate Plot	58.9 ms	1136.5 ms	19.3x

Overall Summary: Mirage delivers a 20x to 65x speedup across all chart types while using ~25x less disk space and requiring zero browser processes.

---

Visual Fidelity & Side-by-Side Comparisons

Every plot exported by Mirage matches the exact visual output, layout geometry, font proportions, and colors generated by Plotly and Kaleido.

Core Cartesian

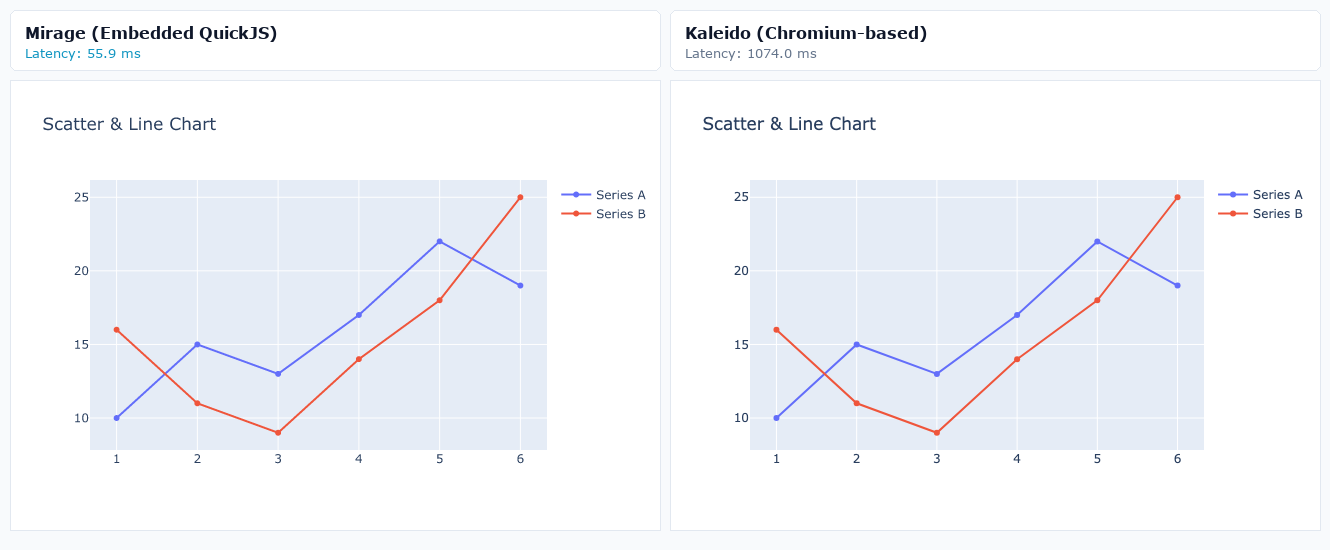

Scatter & Line Chart (Mirage: 55.9ms | Kaleido: 1074.0ms)

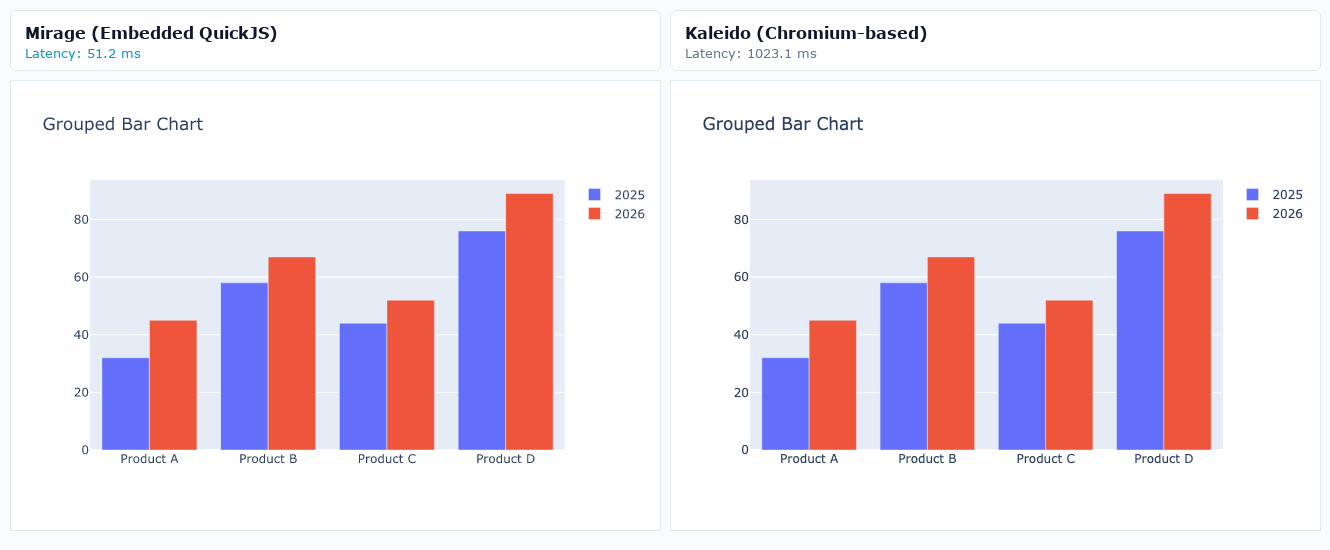

Grouped Bar Chart (Mirage: 51.2ms | Kaleido: 1023.1ms)

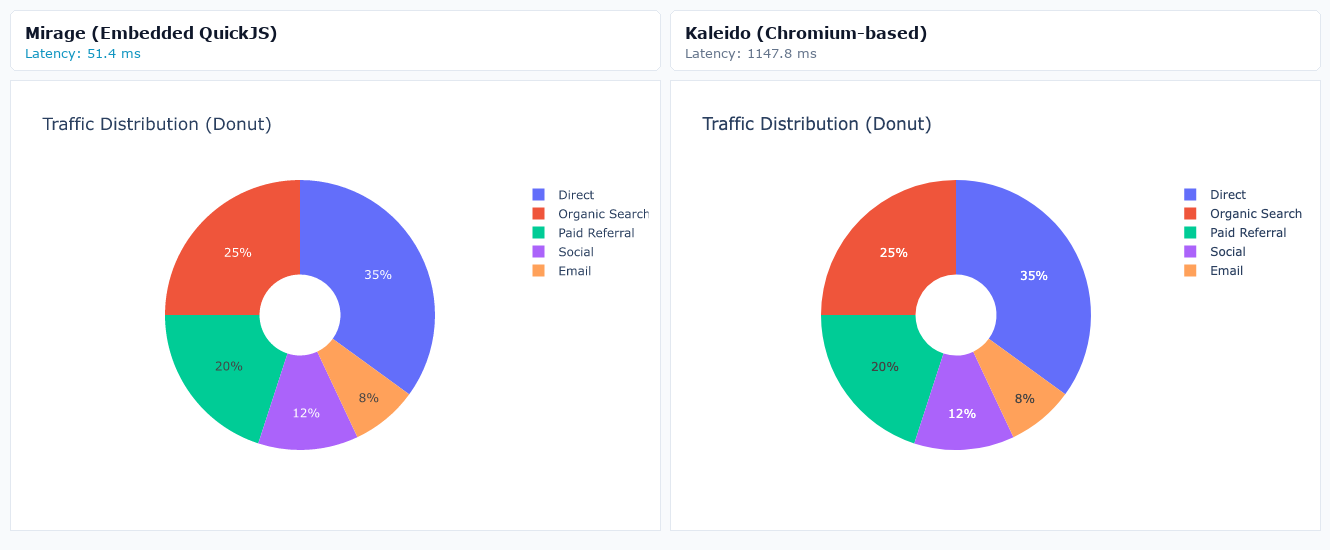

Donut / Pie Chart (Mirage: 51.4ms | Kaleido: 1147.8ms)

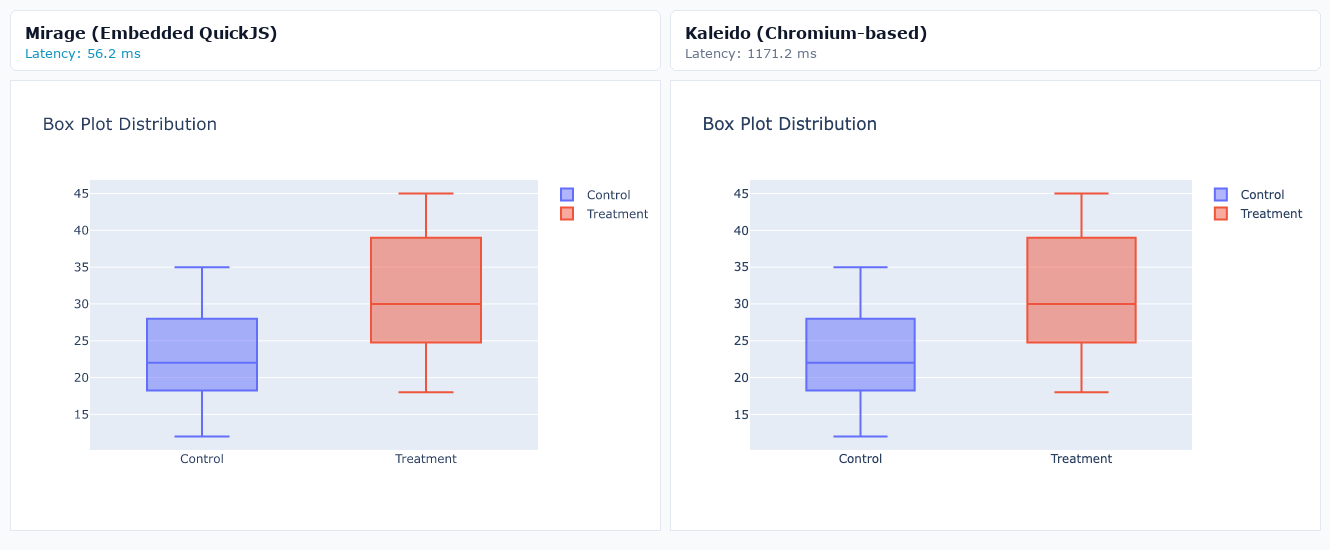

Box Plot (Mirage: 56.2ms | Kaleido: 1171.2ms)

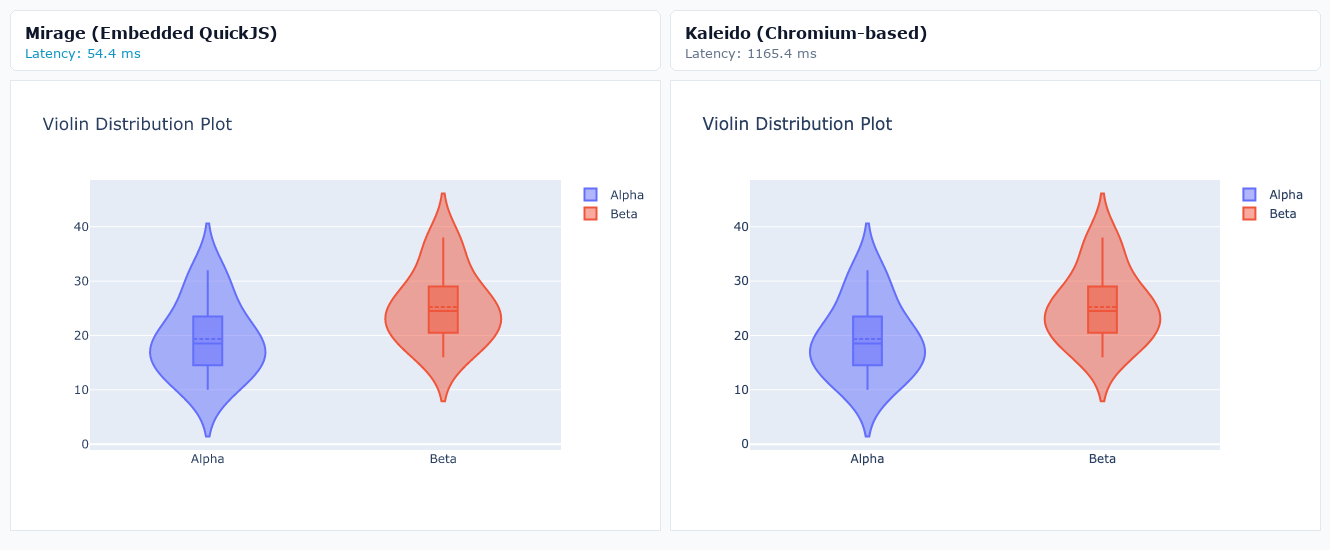

Violin Plot (Mirage: 54.4ms | Kaleido: 1165.4ms)

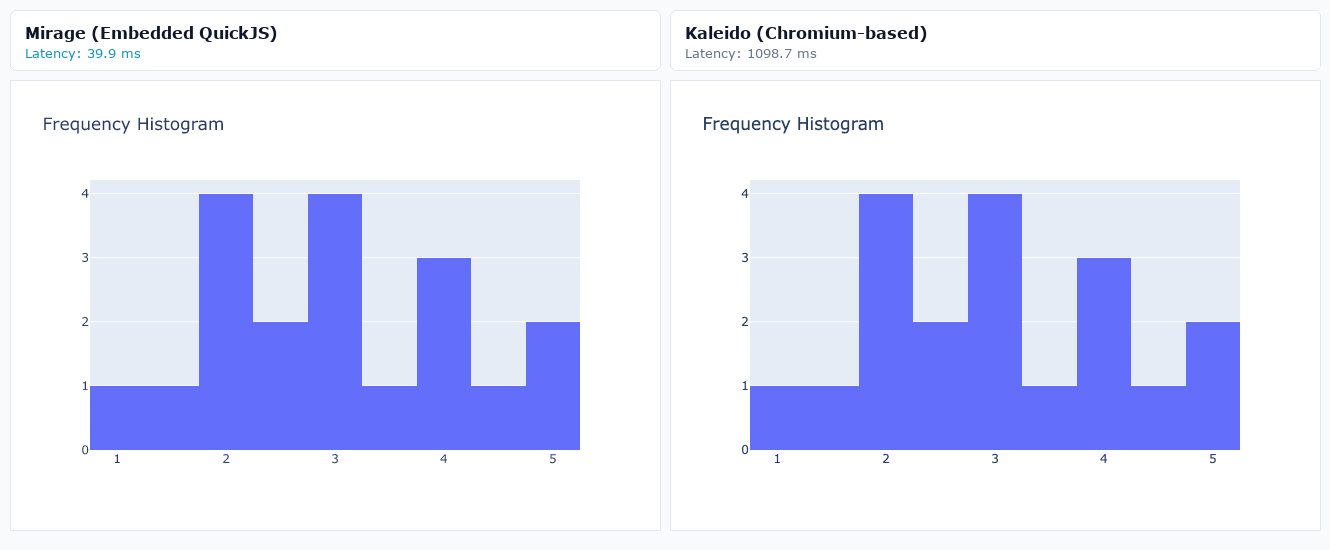

Frequency Histogram (Mirage: 39.9ms | Kaleido: 1098.7ms)

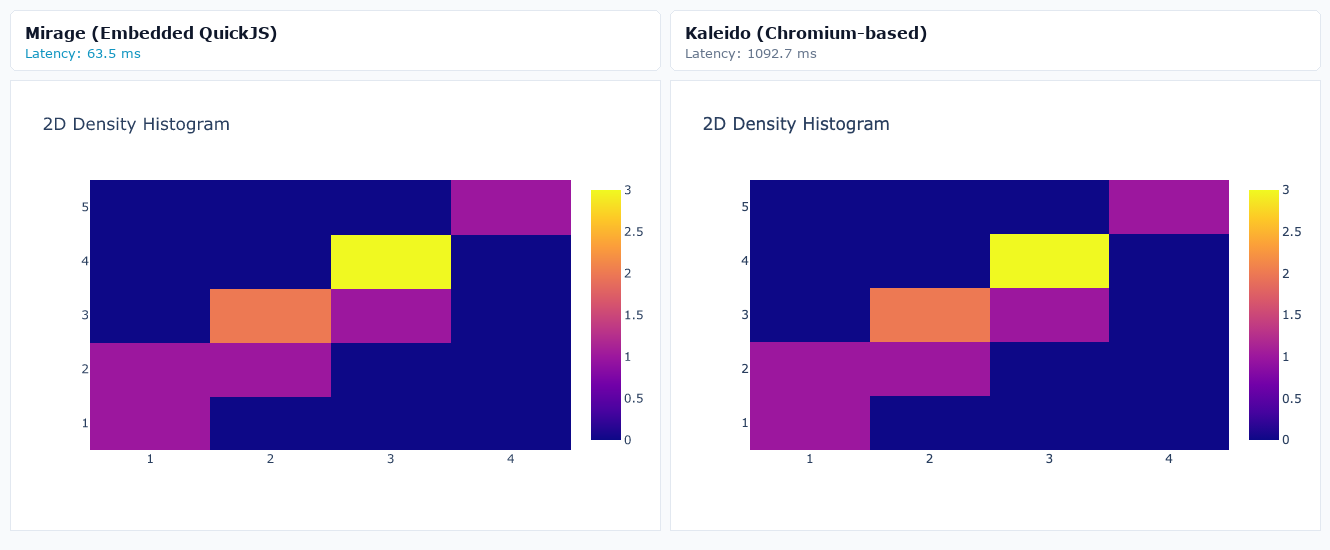

2D Density Histogram (Mirage: 63.5ms | Kaleido: 1092.7ms)

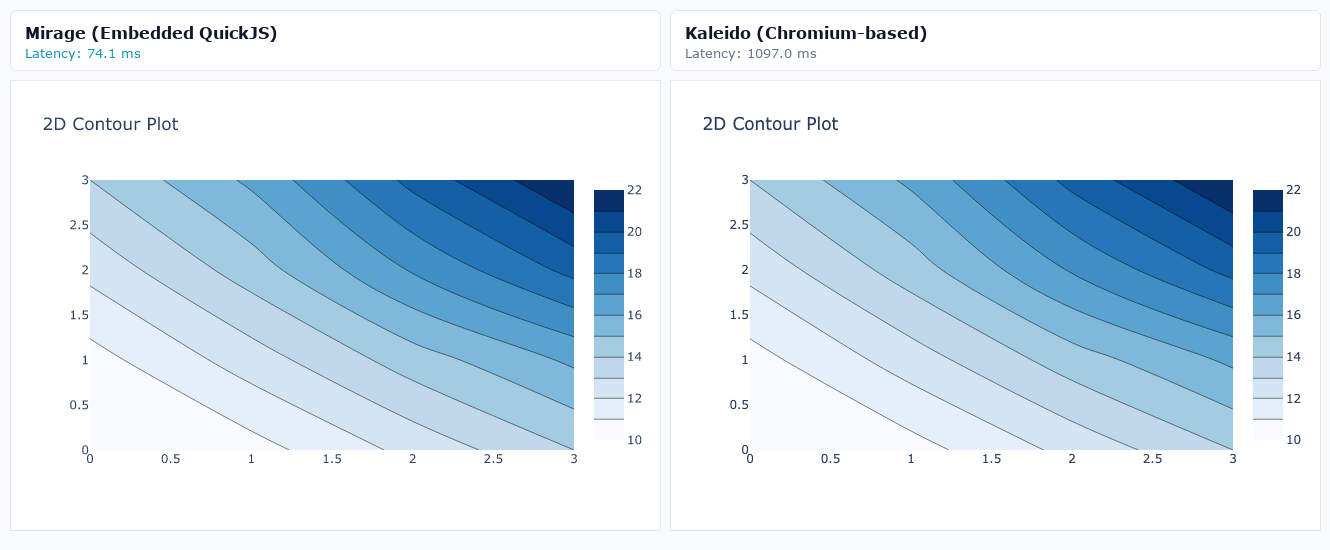

2D Contour Plot (Mirage: 74.1ms | Kaleido: 1097.0ms)

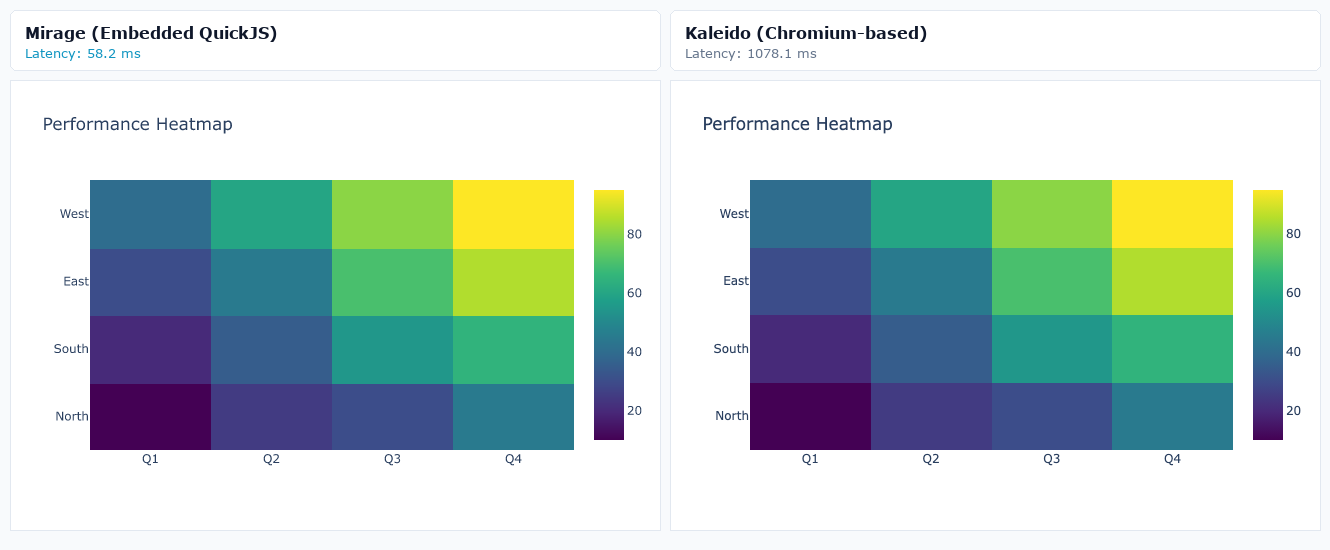

Performance Heatmap (Mirage: 58.2ms | Kaleido: 1078.1ms)

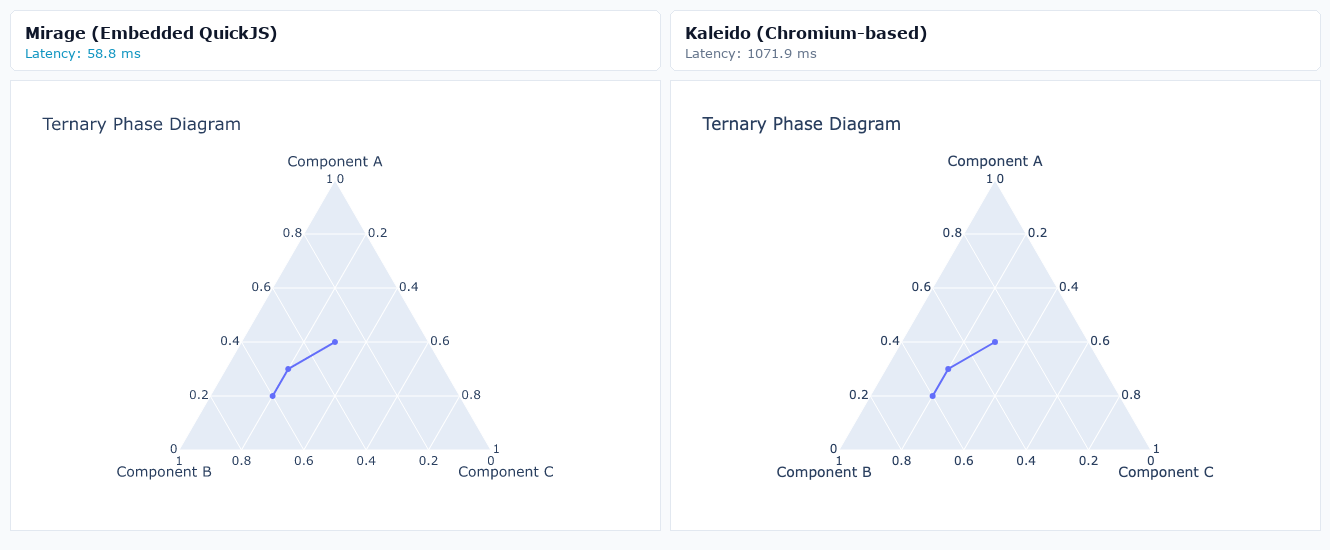

Ternary Phase Diagram (Mirage: 58.8ms | Kaleido: 1071.9ms)

Financial & Business

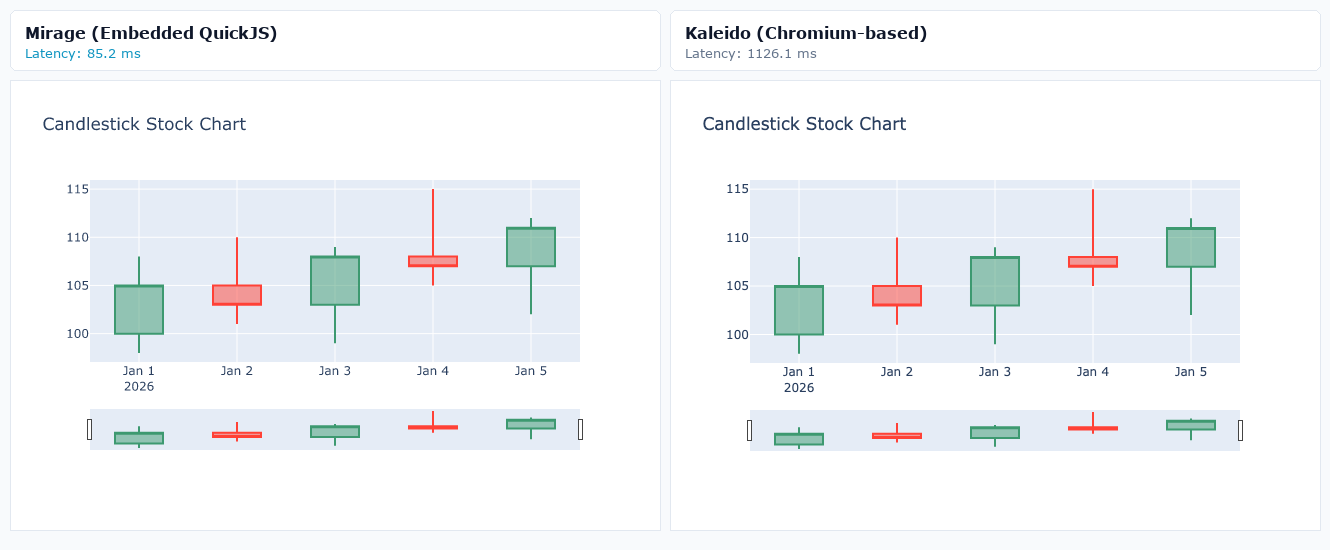

Candlestick Stock Chart (Mirage: 85.2ms | Kaleido: 1126.1ms)

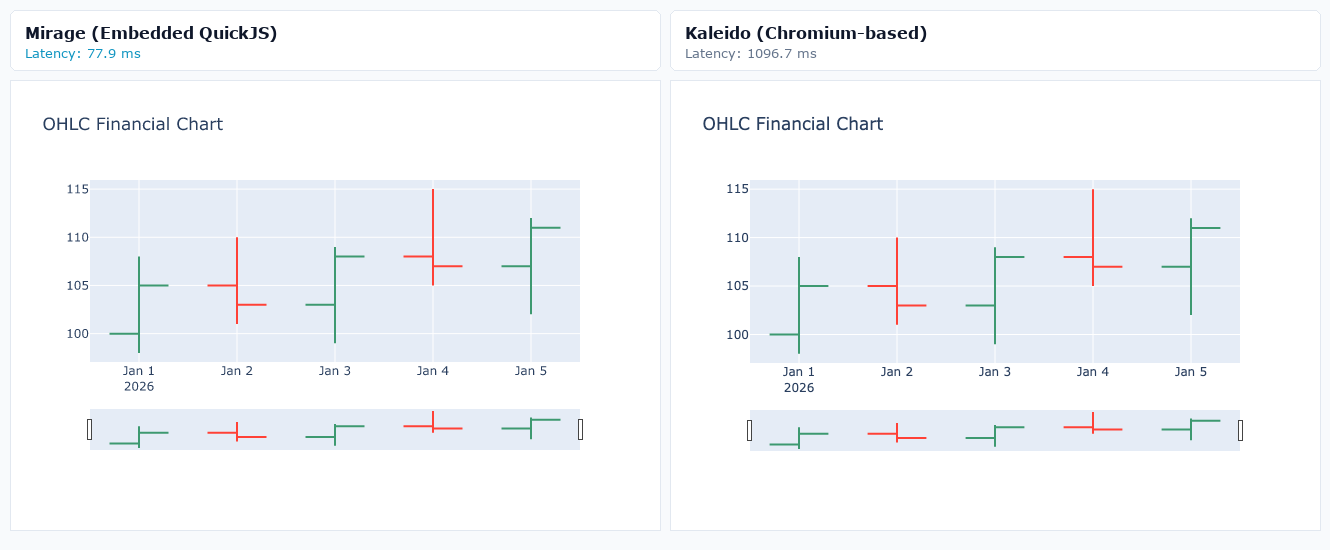

OHLC Financial Chart (Mirage: 77.9ms | Kaleido: 1096.7ms)

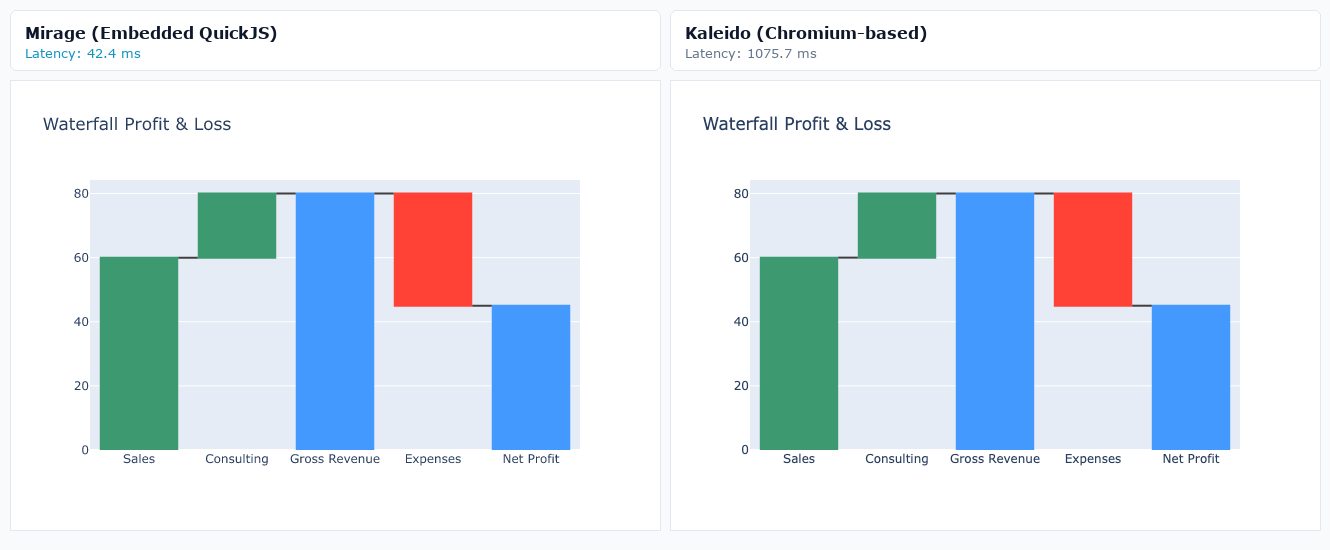

Waterfall Profit & Loss (Mirage: 42.4ms | Kaleido: 1075.7ms)

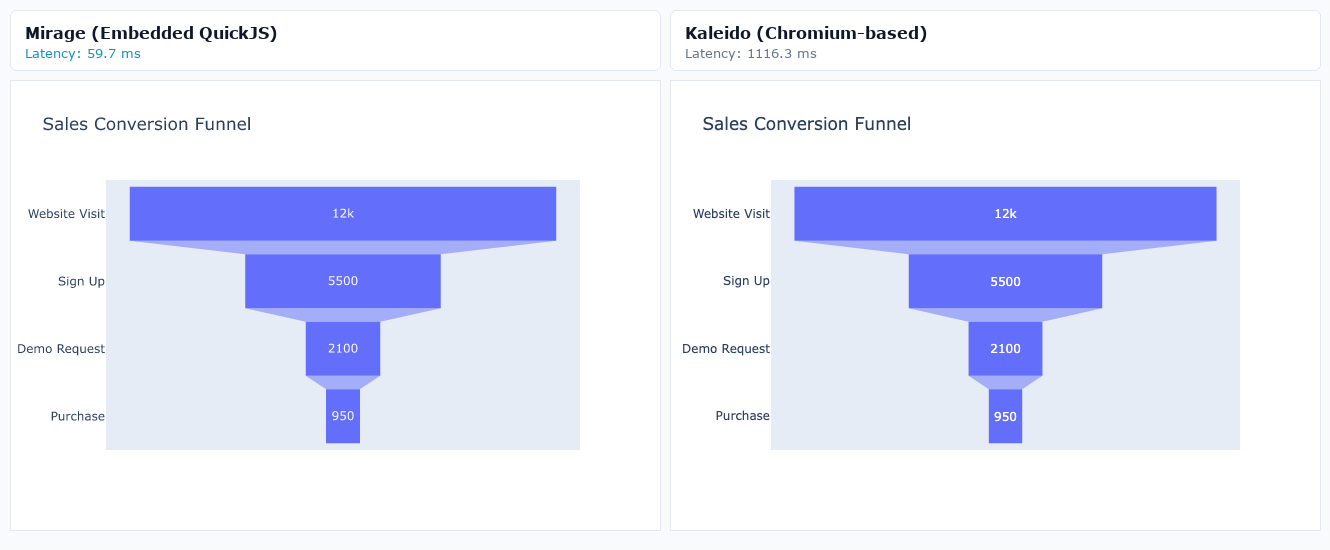

Sales Conversion Funnel (Mirage: 59.7ms | Kaleido: 1116.3ms)

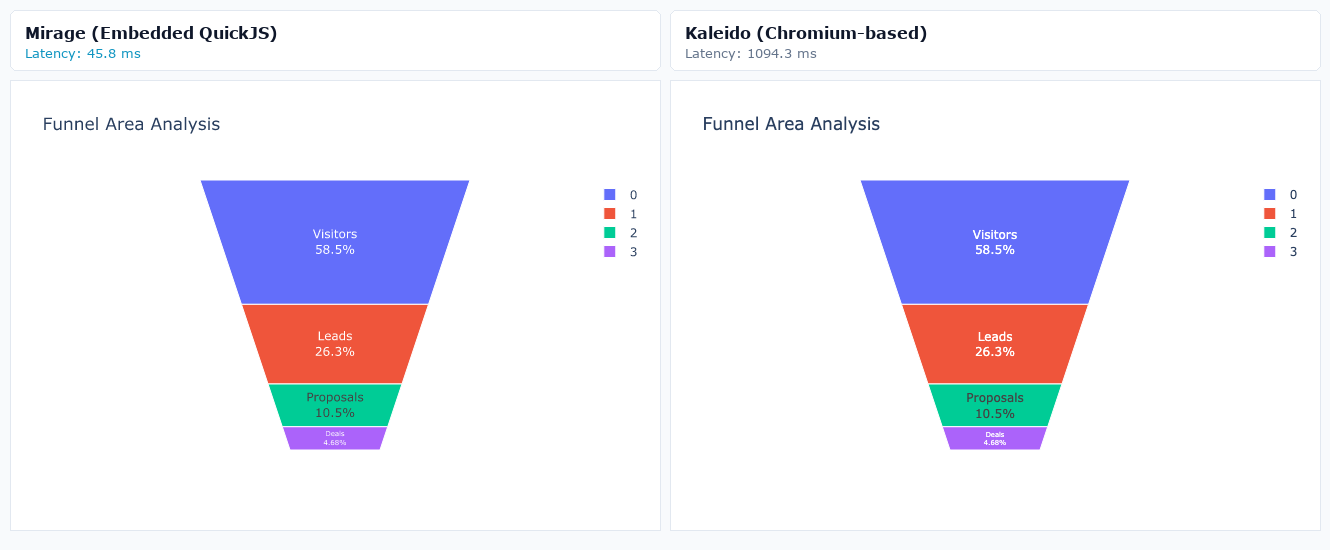

Funnel Area Analysis (Mirage: 45.8ms | Kaleido: 1094.3ms)

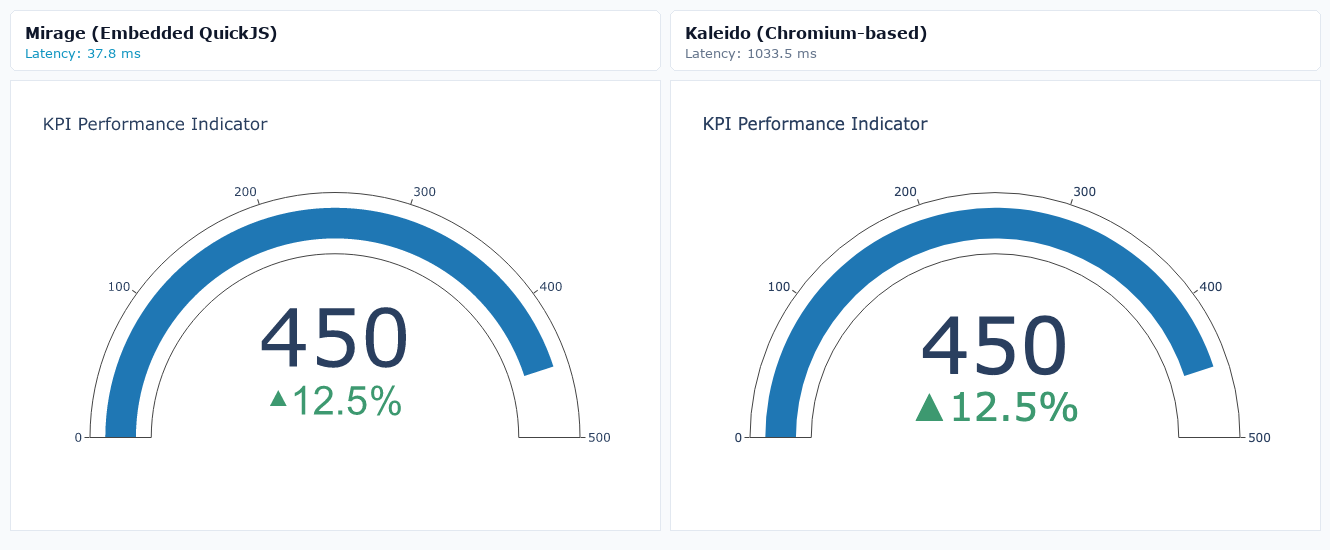

KPI Performance Indicator (Mirage: 37.8ms | Kaleido: 1033.5ms)

Hierarchical

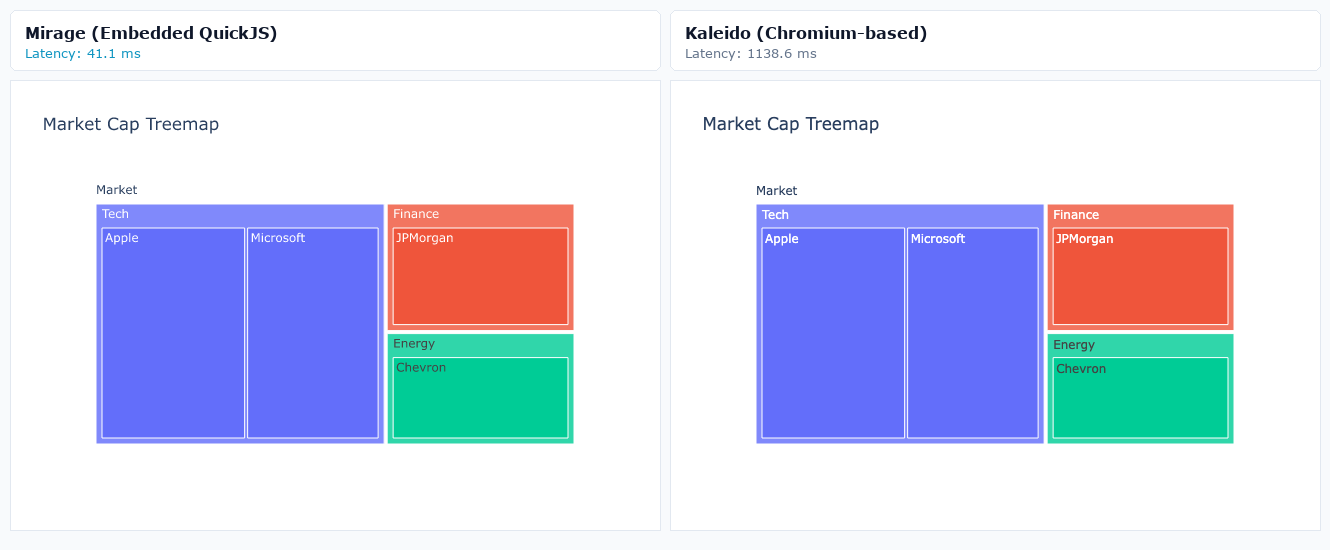

Market Cap Treemap (Mirage: 41.1ms | Kaleido: 1138.6ms)

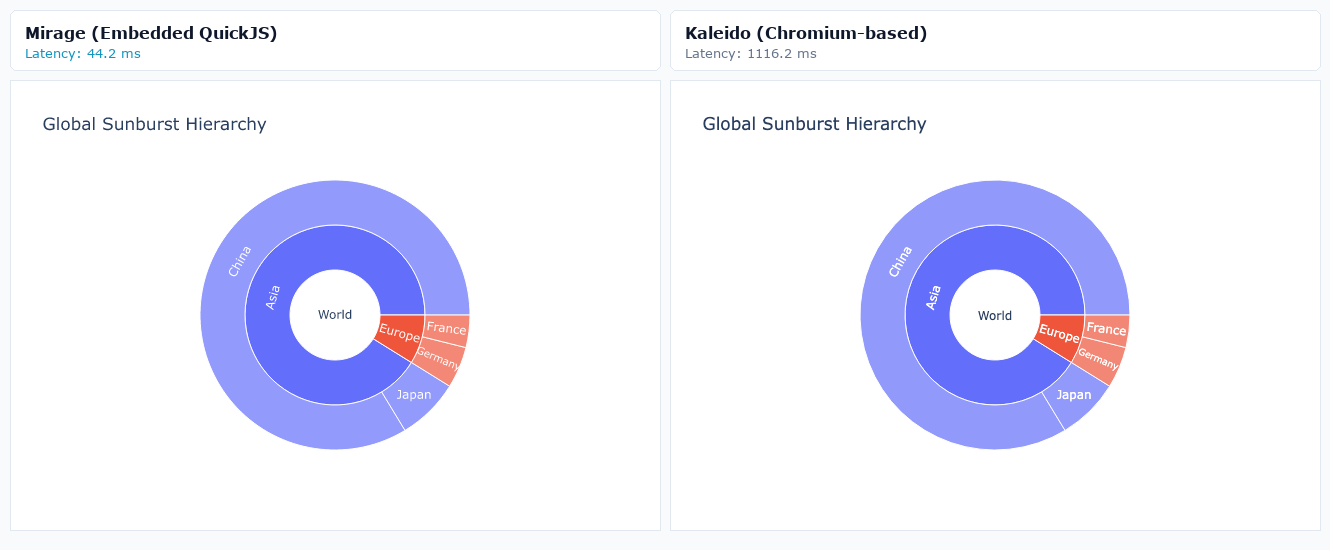

Global Sunburst Hierarchy (Mirage: 44.2ms | Kaleido: 1116.2ms)

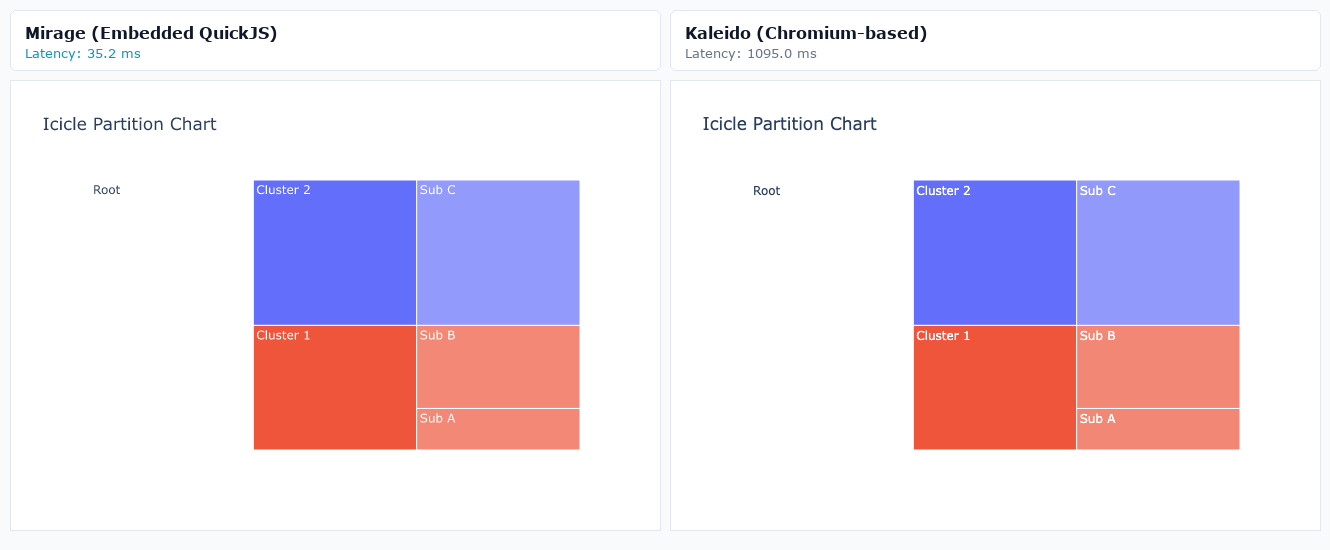

Icicle Partition Chart (Mirage: 35.2ms | Kaleido: 1095.0ms)

Radial & Polar

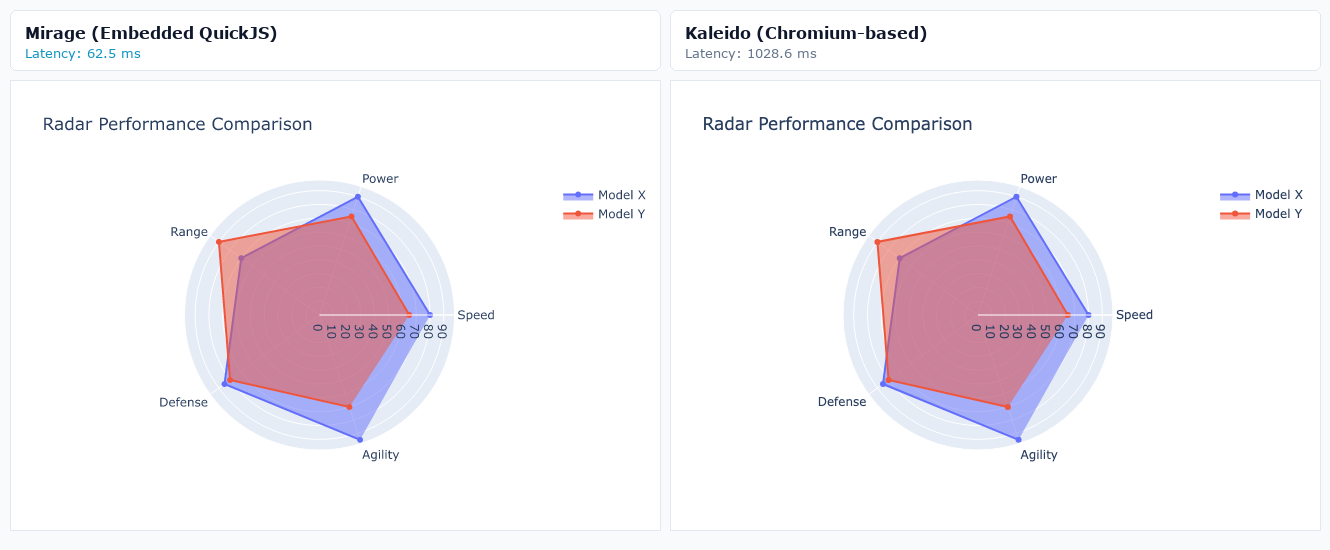

Radar Performance Comparison (Mirage: 62.5ms | Kaleido: 1028.6ms)

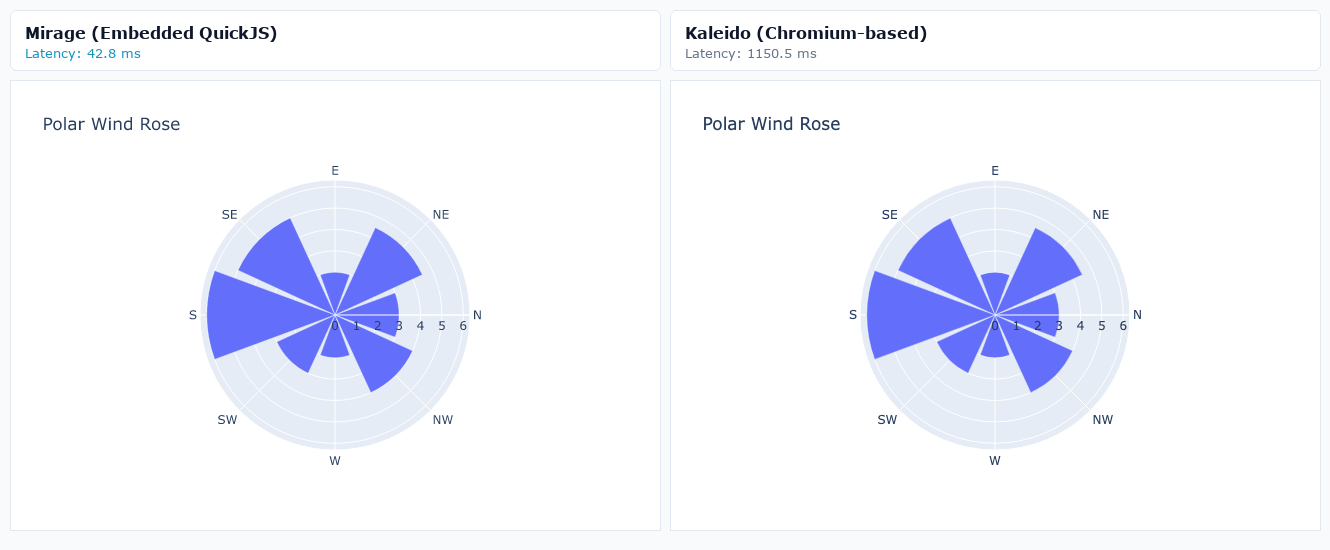

Polar Wind Rose (Mirage: 42.8ms | Kaleido: 1150.5ms)

Specialized Diagrams

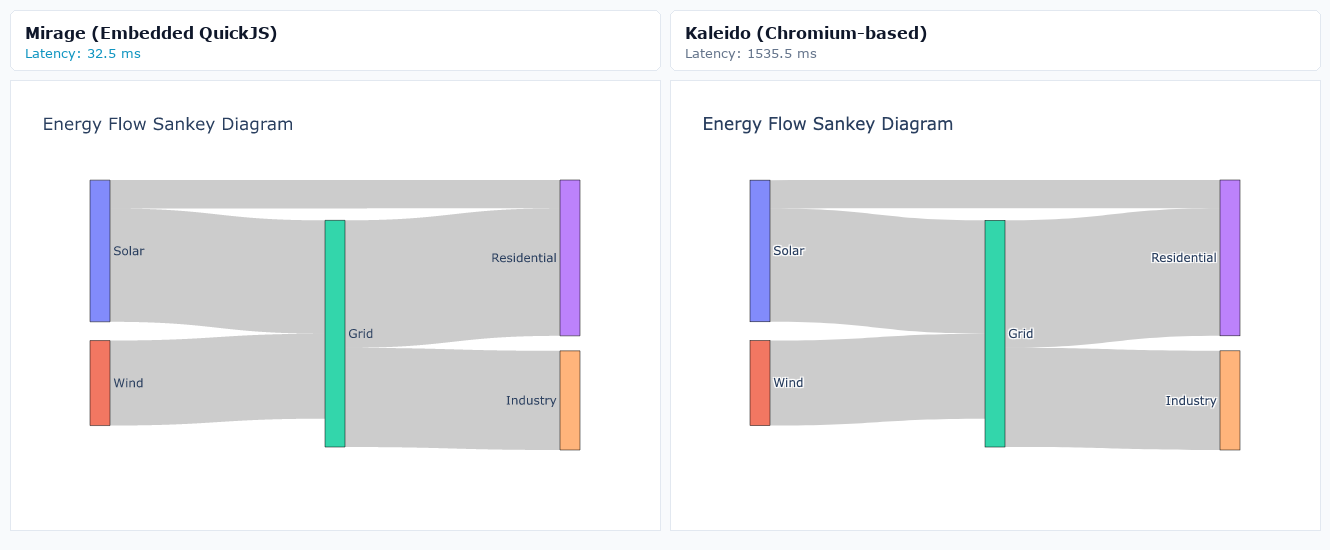

Energy Flow Sankey Diagram (Mirage: 32.5ms | Kaleido: 1535.5ms)

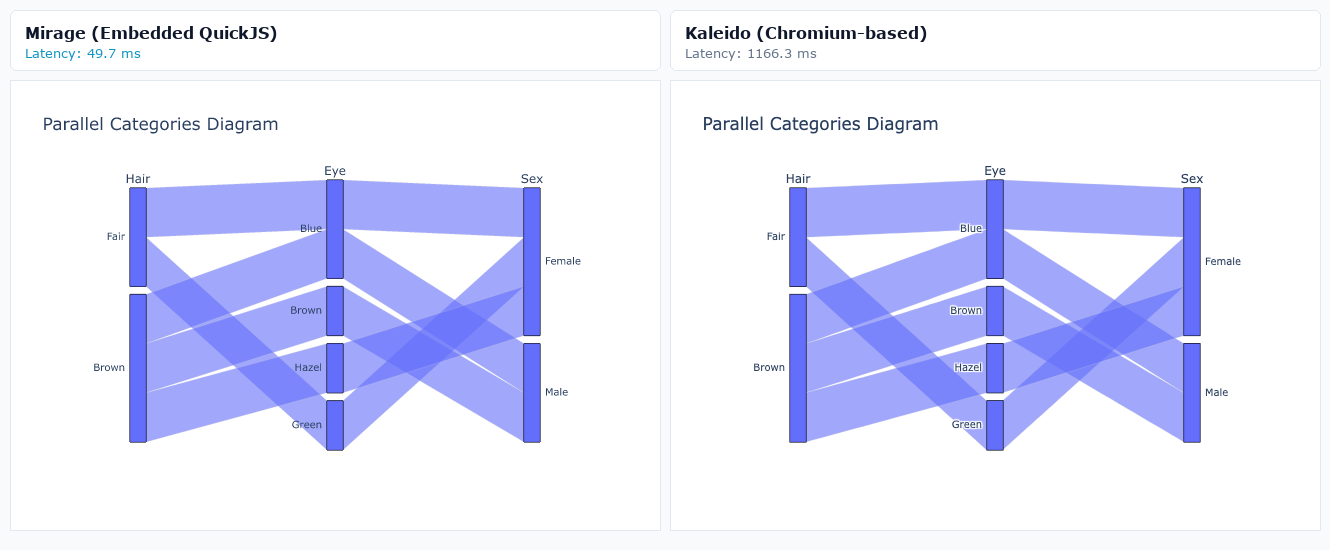

Parallel Categories Diagram (Mirage: 49.7ms | Kaleido: 1166.3ms)

Formatted Data Table (Mirage: 40.7ms | Kaleido: 1073.1ms)

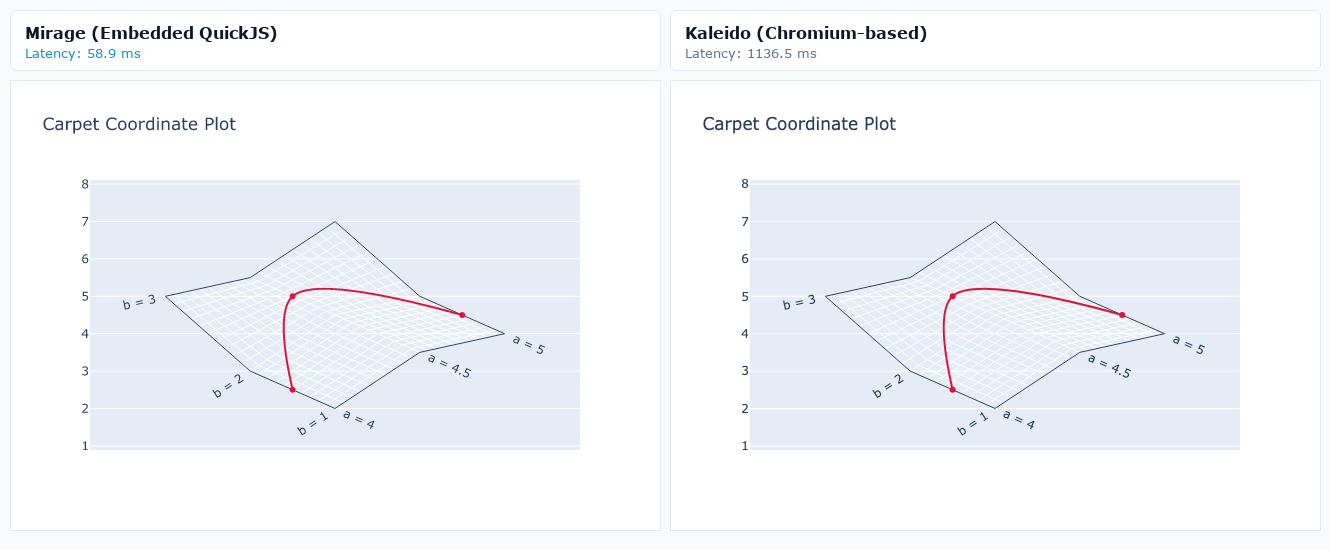

Carpet Coordinate Plot (Mirage: 58.9ms | Kaleido: 1136.5ms)

---

Supported Plotly Traces (28 Total)

Mirage includes full pure-vector support for all 28 non-WebGL Plotly trace types:

Category	Supported Traces
Core Cartesian	scatter (lines, markers, area, text, ecdf), bar (vertical, horizontal, stacked, grouped, timeline), pie (donut), box, violin, histogram, histogram2d, histogram2dcontour, contour, heatmap, scatterternary, image
Financial & Business	candlestick, ohlc, waterfall, funnel, funnelarea, indicator (gauges, KPI big numbers)
Hierarchical Partitions	treemap, sunburst, icicle
Radial / Polar	scatterpolar (radar/spider), barpolar
Specialized Diagrams & Tables	sankey, parcats (parallel categories), table, carpet, scattercarpet, contourcarpet

(Note: WebGL traces like scatter3d, surface, mesh3d, and parcoords render via GPU shader canvases and are not pure vector SVG).

---

License

MIT License. Copyright (c) 2026 Benjamin Lear.
