poof 1.5.0

poof backup - instant, secure backup to a cloud drive

% poof(1) Version 1.5.0 | Secure cloud storage backup documentation

Name

poof - 2-way secure data sync/backup/restore against cloud storage.

Synopsis

| poof command | poof [--confdir TEXT] command | poof [--poofconf TEXT] command | poof [--rcloneconf TEXT] command | poof [--help]

Description

Backup of local file system directories to cloud storage or other storage, in a secure manner, and preserving the original files' attributes for later recovery. The poof! tool offers additional security options:

• Secure delete the local file system files upon successful process completion
• Encrypt the remote copies
• Eliminates all traces of itself in the local file system

poof! leverages tried-and-true tools to perform its tasks:

• rclone - A command line program for managing files in cloud storage.

Experimental versions of poof leverage other operating system and third-party tools, discussed in this documentation. For details, see the poof GitHub repository.

Options

--help

: Prints brief usage information

--confdir

: Specifies the configuration files directory

--poofconf

: Specifies the poof configuration file name

--rcloneconf

: Specifies the rclone configuration file name

Canonical file name merges confdir/poofconf or confdir/rcloneconf.

Options are never used in production mode. They were defined for initial rollout, testing, etc. but the correct way of running poof! is by letting it determine the optimal config file system locations on its own.

Commands

backup

: Backup to remote without wiping out the local data.

cconfig

: Ensure that the rclone-poof.conf file exists; creates it if not present.

config

: Ensure that the poof.conf file exists; creates it if not present.

cryptoggle

: Toggle remote target encryption ON/OFF.

download

: Download the files from the cloud storage into their corresponding directories.

econfig

: Generate the encrypted rclone configuration scaffold.

lconfig

: Set poof to run every 6 hours via launchd (macOS)

lpurge

: Purge poof from launchd and ~/Library/LaunchAgents (macOS)

neuter

: Neuter this poof installation by deleting its configuration and executables.

paths

: Output the platform-specific paths to the poof configuration files.

upload

: Upload to remote and wipe out the local data.

verify

: Verify the poof and rclone tool configurations.

version

: Print the software version and quit.

The config and cconfig commands also output their associated configuration file to the console, and make a copy to the clipboard.

Supported Storage

S3

: AWS Simple Storage Service

The development team is evaluating other storage systems and plan to extend support in poof! backup 2.0, expected to be released in mid 2024.Q2.

Files

poof.conf

: Cloud storage remote specification, paths to backup/upload, bucket and file system information.

rclone-poof.conf

: rclone cloud storage specification for clear and encrypted backups configuration and secrets.

These files location is system-dependent.

On macOS: $HOME/Library/Application Support/poof

On Linux: $HOME/.config/poof

One-time setup

Use pip or pip3 to install in the current Python scope (system or virtual environment):

IMPORTANT - the package name was poof-backup until 01.Dec.2021. Remove that package and replace with poof by itself. Check if this is the case by running poof version - 1.2.7 was the last one published under the old name.

pip3 install poof

Installing rclone

Install rclone in your system via https://rclone.org/install/

rclone makes an identical copy of directories and their contents to the desired cloud storage, including the correct time stamps and permissions. It's a more reliable mechanism than building that logic in poof.

Configuration

The poof configuration for rclone is specific to this tool. rclone users may have other configurations that in no way conflict with poof and vice versa.

For the first time poof configuration, run:

poof verify

poof validates that all component and configuration requirements are satisfied:

installed rclone? - PoofStatus.OK
exists poof.conf? - PoofStatus.MISSING_CONFIG_FILE

Generate a new, basic poof configuration file and validate its contents:

poof config  && poof verify

Results in:

installed rclone? - PoofStatus.OK
exists poof.conf? - PoofStatus.OK
exists rclone-poof.conf? - PoofStatus.MISSING_CONFIG_FILE

The rclone configuration file for poof is still missing. Generate a simple cloud storage rclone configuration file:

poof cconfig && poof verify

The verification fails because poof must have at least one directory to backup in addition to the backup of its own configuration, which defaults to unittest until overridden by the user.

Verification fails because poof must have a minimum of two directories to backup or upload to the cloud storage:

• A poof configuration backup directory
• One end-user backup directory

In most cases, Documents ought to be the first end-user directory.

List the configuration paths to make the necessary updates:

poof paths

Shows these paths on a Mac:

poof.conf = /Users/joe-user/Library/Application Support/poof/poof.conf
rclone-poof.conf = /Users/joe-user/Library/Application Support/poof/rclone-poof.conf

It shows these paths on Linux:

poof.conf = /home/joe-user/.config/poof/poof.conf
rclone-poof.conf = /home/joe-user/.config/poof/rclone-poof.conf

Enter the full path(s) to each directory you wish to back up, no ~ or $HOME. In poof.conf:

{
  "bucket": "poofbackup-joe-user-206ce7879351",
  "confFile": "/Users/joe-user/Library/Application Support/poof/poof.conf",
  "paths": {
    "/Users/joe-user/Documents": "Documents",
    "/Users/joe-user/Downloads": "Downloads",
    "/Users/joe-user/Library/Application Support/poof": "poof-config"
  },
  "remote": "poof-backup"
}

Last, configure the appropriate credentials in rclone.conf for the cloud storage intended for backup. This example uses an Amazon S3 configuration, replace the bogus credentials with your own.

Verify the configuation one last time:

poof verify

Will show that poof is ready for normal operations:

installed rclone? - PoofStatus.OK
exists poof.conf? - PoofStatus.OK
exists rclone-poof.conf? - PoofStatus.OK
configuration appears to be valid and has valid credentials

IMPORTANT

poof creates or updates snapshots of the latest file system contents in the local file system or the cloud storage.

Restoring data from the cloud storage is a destructive operation in the target file system. This is by design because poof clones and synchronizes the source file system to the targets. Backups are never incremental -- they are always snapshots.

Regular backups

poof validates its own configuration before backing up/uploading or restoring data. It will fail if its own configuration or any of its required tools configurations are invalid.

Run poof backup as often as needed or required to copy all the directories in the poof configuration to the cloud storage. It may automated via cron or launchd.

Upload

Run poof upload when there is need to sync the local file system directories, then removes all the local files and directories (local directories wipe).

Restore

To restore a backup from the cloud to the local file system:

1. Validate the configuration
2. Run poof download

The file system synchronization process may take from a few minutes to several hours, depending on the number of files involved, the lengt of the files, and the connection speed.

Encrypted backups/uploads

poof leverages rclone encrypted remotes, if they are defined and available, beginning with version 1.2.0. Future releases will implement crypt configuration generators from within poof, for now this relies on rclone until automation, key storage, and operational security issues are resolved.

Encryption details:

1. File content encryption uses NaCl SecretBox
2. File and directory names are separated by '/', padded to a multiple of 16 bytes, then encrypted with EME and AES with a 256-bit key.

Implications:

• File and directory names with the same exact name will encrypt the same way
• File and directory names which start the same won't have a common prefix
• All names are encrypted to lower case alphanumeric strings
• Padding characters (e.g. =) are stripped
• Supports case-insensitve remotes (e.g. Windows)

The rclone Crypt documentation provides a thorough discussion of how the crypt remote implementation works.

Pre-requisites

1. Working poof configuration
2. Working rclone configuration for poof with a working type crypt remote

Sample poof.conf:

{
  "bucket": "poofbackup-joe-user-206ce7879351",
  "confFile": "/Users/joe-user/Library/Application Support/poof/poof.conf",
  "paths": {
    "/Users/joe-user/CryptoWallet": "CryptoWallet",
    "/Users/joe-user/Documents": "Documents",
    "/Users/joe-user/Downloads": "Downloads",
    "/Users/joe-user/Library/Application Support/poof": "poof-conf"
  },
  "remote": "poof-backup"
}

Sample valid rclone-poof.conf. The [poof-crypt[ section was generated using rclone configuration for the password. Notice that the remote definition uses the target bucket in poof.conf:

[poof-backup]
type = s3
provider = AWS
env_auth = false
access_key_id = BOGUS-KEY-USE-YOURS
secret_access_key = BOGUS-SECRET-KEY-USE-YOURS
region = eu-west-1
location_constraint = eu-west-1
acl = private
storage_class = STANDARD_IA
chunk_size = 8M
upload_concurrency = 2
server_side_encryption = AES256

[poof-crypt]
type = crypt
remote = poof:poofbackup-joe-user-206ce7879351
password = BOGUS-PASSWORD
password2 = BOGUS-PASSWORD2

Enabling and disabling encryption

Enabling and disabling encryption is accomplished by editing the remote attribute in the poof configuration file, to point at the poof-crypt remote instead of the poof-backup remote.

{
  "bucket": "poofbackup-joe-user-206ce7879351",
  "confFile": "/Users/joe-user/Library/Application Support/poof/poof.conf",
  "paths": {
    "/Users/joe-user/CryptoWallet": "CryptoWallet",
    "/Users/joe-user/Documents": "Documents",
    "/Users/joe-user/Downloads": "Downloads",
    "/Users/joe-user/Library/Application Support/poof": "poof-conf"
  },
  "remote": "poof-crypt"
}

Running the upload or backup commands copies the files and directories to the cloud storage using encrypted directory and file names, and encrypting the files to prevent unauthorized viewing by the cloud storage provider:

poof backup

Disabling encryption only requires to point the remote back to the cloud storage remote definition, instead of the encrypted remote.

Effects on backup/upload and download

File and directory names are preserved, as in the cleartext backup, in the local file system.

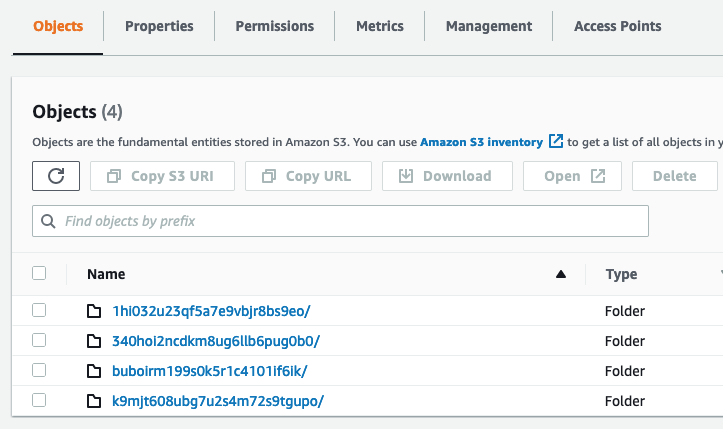

File and directory names are encrypted in the cloud storage target. File names are transparent to poof and rclone - listing the encypted cloud file system names with valid credentials shows them in cleartext on the client, but they are obfuscated in the remote as described at the beginning of this section.

**https://raw.githubusercontent.com/poof-backup/poof/master/assets/sample-S3-dir-list.png**

Operational security

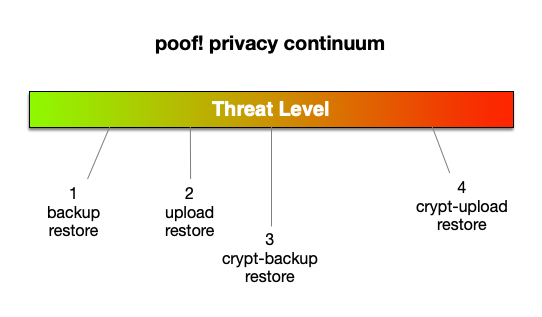

poof! operates within a privacy continuum that ranges from simple data backup and restore for safekeeping, to full target encryption and self-destruction in case of risk of local system compromise.

An expanded description of the operational considerations and workflows is available via https://github.com/poof-backup/poof/blob/master/ops-docs/index.md

The poof! model covers 4 data security threat levels: https://raw.githubusercontent.com/poof-backup/poof/master/assets/backup-continuum.png

Level 1: backup and restore

As a user, I want to make periodic backups of one or more local file system directories, and trust or otherwise have no privacy concerns regarding the cloud storage provider.

Level 2: upload and restore

As a user, I need to make a backup of my local directories but need to wipe them out upon completion. I trust or otherwise have no privacy concerns regarding the cloud storage provider.

Examples:

• Bought a new computer and must move the data directories from the old to the new system
• The current system must be surrendered to a distrusted third-party like a repair shop

Configuration info for threat levels 1 and 2

The poof.conf and rclone-poof.conf configuration files are uploaded to the cloud if the poof! configuration file is included as part of the configuration. These files are stored in cleartext in the cloud storage, and can be viewed or downloaded by anyone with access permissions.

Level 3: crypt backup, restore

As a user, I want to make periodic backups of one or more local system directories, and do not trust the cloud storage provider.

In this situation, the user may distrust the storage provider and wants to prevent their data from being mined or otherwise accessed without authorization.

Level 4: crypt upload, restore

As a user, I need to make a backup of my local directories but need to wipe them out upon completion. I do not trust the cloud storage provider.

• Personal or business sensitive data is stored in one or more directories managed by poof!
• Bought a new computer and must move the data directories from the old to the new system
• The current system must be surrendered to a distrusted third-party like a repair shop
• The cloud storage provider is known or suspected to inspect or mine storage contents or to grant access to third-parties to do so

Configuration info for threat levels 3 and 4

The poof! configuration files are stored in cleartext in the local file system, but are encrypted in the cloud storage if they are present in the poof.conf configuration file.

In the case of a level 4 threat, poof upload will also wipe out its own configuration, and remove itself and all its dependencies from the local file system. rclone is left alone because there may be other legitimate uses for it other than poof integration.

Preserving the poof! configuration for threat levels 3 and 4

The config and cconfig commands display the current configuration and copy the configuration files to the clipboard. The user may then store them in a separate, secure, unrelated system for later restoring the files. For example, this command:

poof config

Displays the configuration:

{
  "bucket": "poofbackup-joe-user-206ce7879351",
  "confFile": "/Users/joe-user/Library/Application Support/poof/poof.conf",
  "paths": {
    "/Users/joe-user/CryptoWallet": "CryptoWallet",
    "/Users/joe-user/Documents": "Documents",
    "/Users/joe-user/Downloads": "Downloads",
    "/Users/joe-user/Library/Application Support/poof": "poof-conf"
  },
  "remote": "poof-crypt"
}

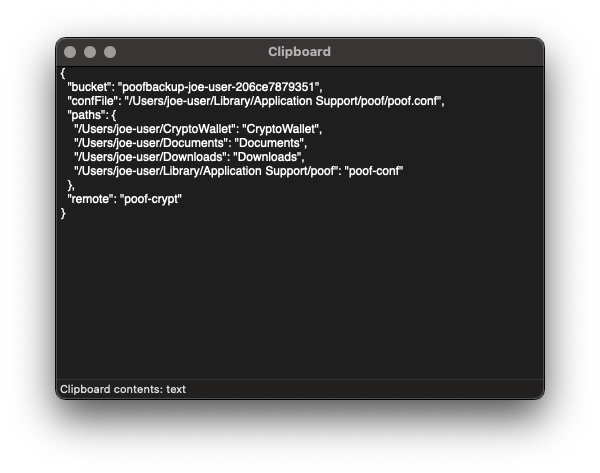

The configuration file also available in the clipboard. You may verify this by pasting into any text editor, or using your GUI's tools for viewing the clipboard.

Generate these files, store them in a safe place, separate from the cloud storage holding your backups or the system that you backed up, and use them to restore your data to a secure, safe system, when the threat level drops.

Running poof on a schedule

poof can be configured to run via scheduler, whether manually or using its built-in commands. Setting up the scheduler using poof commands guarantees that all configuration files are in the pre-defined locations that poof knows, and will wipe them out upon execution of the neuter command, to eliminate traces of itself.

launchd (macOS only)

• lconfig displays or generates a new launchd configuration file, including the corresponding .plist file and enabling the configuration for the current user via launchctl commands.
• lpurge disables the poof schedule, and deletes the .plist file and any temporary log files associated with the scheduler output.

crond (Linux, other UNIX-like OS)

Not implemented as of version 1.2.10.

Bugs

See GitHub issues: https://github.com/poof-backup/poof/issues

Files

• $HOME/Library/Application Support/poof/poof.conf
• $HOME/Library/Application Support/poof/rclone-poof.conf
• $HOME/Library/LaunchAgents/org.pypi.poof.plist
• /tmp/6CC9-4821-827B-8596B684ECA9/com.apple.ContentStoreAgent-$USER-err.dat
• /tmp/6CC9-4821-827B-8596B684ECA9/com.apple.ContentStoreAgent-$USER-out.dat

Author

Eugene "pr3d4t0r" Ciurana and the poof backup contributors <poof.project AT cime.net>

See also

crontab(1) rclone(1) launchctl(1) launchd(8)
