Project description

OpenHand

PyV PyPI Linting GitHub

OpenHand app view

The OpenHand application uses the excellent full-body pose estimator OpenPose from CMU Perceptual Computing Lab to ease hand keypoints datasets creation and real-time pose classification.

Installation

Using PyPi

Simply run the following command to install the whole package in the desired Python environment:

pip install pose-classification-kit[app]

If you don't plan to use the application but just want access to the datasets and pre-trained models:

pip install pose-classification-kit

From source

Ensure that Poetry is installed for Python 3.7 and above on your system.

  1. Git clone the repository - git clone https://github.com/ArthurFDLR/pose-classification-kit.git

  2. Create an adequate venv virtual environment - python -m poetry install

  3. You should now be able to run the application - poetry run pose-classification-app

Even if OpenHand classifier can run without OpenPose, it must be installed on your system to allow real-time hand gesture classification.

  1. Follow OpenPose installation instructions.

  2. Once the installation is completed, change the variable OPENPOSE_PATH ( .\pose-classification-kit\config.py) to the location of the OpenPose installation folder on your system.

Note: TensorFlow 2.4.0 is installed by default (can be changed through Poetry). GPU support thus requires CUDA 11.0, which might conflict with OpenPose requirements. However, classification models available in the application are relatively light. Modern CPUs will handle these models' inference process flawlessly.

Under the hood

Features extraction

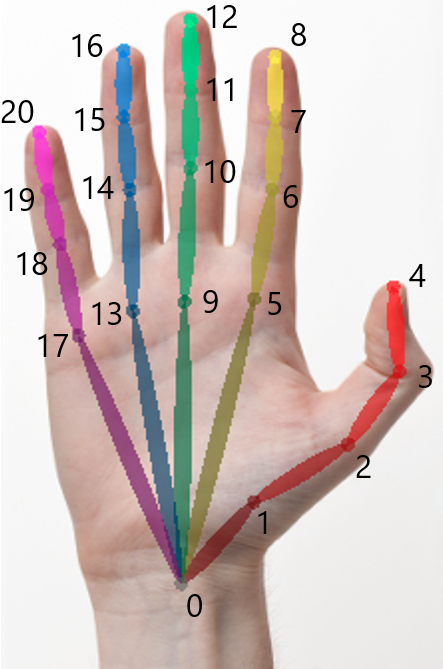

The 21 hand keypoints (2D) used as input for this classifier are produced by OpenPose. The hand output format is as follow:

More information are available here. Please note that even though OpenHand focuses on hand keypoints, OpenPose requires the whole body to be analyzed to generate hand data. Furthermore, keypoints coordinates are given in the frame of reference of the image fed to OpenPose. Thus, the coordinates have to be normalized. I addition to x, y coordinates, the accuracy of detection of each key points is provided.

Keypoints normalization

OpenPose outputs have to be formatted and normalized before classification analysis. Coordinates are normalized relative to finger length and the center of gravity of the hand.

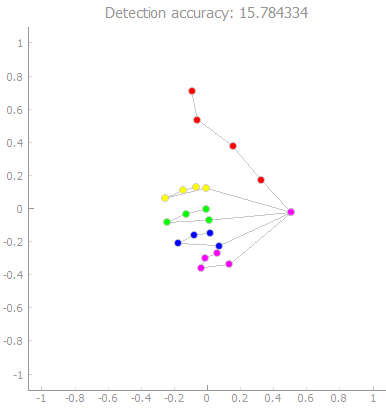

  • Scaling: First, the length of each fingers - defined as a set of lines of the same color, see above - is calculated. The euclidian distances of all segments of a finger are sumed - e.g. . Then, every coordinates composing the hand are divided by the greater finger length.

  • Centering: Keypoints are centered relative to the center of mass of the hand which, in this case, is simply defined as .

Click to show code

handKeypoints = np.array(op.Datum().handKeypoints)[handID, self.personID]

lengthFingers = [np.sqrt((handKeypoints[0,0] - handKeypoints[i,0])**2 + (handKeypoints[0,1] - handKeypoints[i,1])**2) for i in [1,5,9,13,17]] #Initialized with the length of the first segment of each fingers.
for i in range(3): #Add length of other segments for each fingers
    for j in range(len(lengthFingers)):
        lengthFingers[j] += np.sqrt((handKeypoints[1+j*4+i+1, 0] - handKeypoints[1+j*4+i, 0])**2 + (handKeypoints[1+j*4+i+1, 1] - handKeypoints[1+j*4+i, 1])**2)
normMax = max(lengthFingers)

handCenterX = handKeypoints.T[0].sum() / handKeypoints.shape[0]
handCenterY = handKeypoints.T[1].sum() / handKeypoints.shape[0]
outputArray = np.array([(handKeypoints.T[0] - handCenterX)/normMax,
                        -(handKeypoints.T[1] - handCenterY)/normMax,
                        (handKeypoints.T[2])])

Dataset creation - 11090 samples for 27 categories

🚧 Out-dated section, will be updated soon 🚧

The dataset is composed of several classes consisting of two text files, one for each hand. The dataset is structured as follow:

.\AppHandClassifier\Datasets
│
└───class_label_1
│   └───left_hand
│   │       data.txt
│   └───right_hand
│           data.txt
│
└───class_label_2
│   └───left_hand
│   │       data.txt
│   └───right_hand
│           data.txt
.
.

The first line of a data.txt file contains the set's characteristics:

  • Class label
  • Hand identifier (0 for the left hand, 1 for the right hand)
  • The minimum accuracy of detection

To add comments, begin a line with ##. A sample is (at least) composed of 3 lines: a header giving the detection accuracy, x coordinates, y coordinates.

Click to show examples - First lines of 'Super' set for right hand

Super,1,13.0
## Data generated the 2020-07-28 labeled Super (right hand) with a global accuracy higher than 13.0, based on OpenPose estimation.
## Data format: Coordinates x, y, and accuracy of estimation a

#14.064389
x:-0.47471642 -0.38345036 -0.27814367 -0.17283674 -0.16581643 -0.07455035 0.24136995 0.26243138 0.18520646 -0.060509484 0.24136995 0.17116559 0.05883807 -0.095611796 0.22732908 0.14308357 0.030756325 -0.10965267 0.1220224 0.10798126 0.02373602
y:-0.120350584 0.12536536 0.38512218 0.6238177 0.8203904 0.13238579 0.12536536 0.097283475 0.09026304 -0.07822783 -0.043125518 -0.029084647 -0.015043774 -0.2467187 -0.19757552 -0.16247334 -0.14843246 -0.3801074 -0.36606652 -0.30990276 -0.30288246
a:0.4513099 0.52159405 0.73779285 0.7362725 0.8151489 0.8092662 0.74224406 0.4387765 0.23850155 0.797209 0.79372936 0.59578335 0.44275257 0.81076413 0.9635796 0.647649 0.5396069 0.80517197 0.8936012 0.7543843 0.52925146

#15.550782
x:-0.4933955 -0.3817585 -0.23523489 -0.109643176 -0.053824674 0.008971046 0.23224507 0.13456275 0.043857645 0.001993833 0.24619977 0.13456275 0.015948527 -0.025915554 0.22526786 0.113630846 0.001993833 -0.053824674 0.12060806 0.07874425 -0.0049836473
y:-0.113298275 0.13090765 0.36813638 0.5914105 0.779798 0.109975755 0.102998406 0.137885 0.14486235 -0.07841181 -0.06445711 -0.0225933 -0.015615954 -0.23888998 -0.19702616 -0.16213956 -0.16911678 -0.3575045 -0.350527 -0.30168596 -0.2947085
a:0.59823513 0.6402868 0.81965464 0.87657 0.9046949 0.83729064 0.8742925 0.47936943 0.43094704 0.82496655 0.87384015 0.65166384 0.5838103 0.8670102 0.9759184 0.6943432 0.5715823 0.81283325 0.8954963 0.71702033 0.62095624

Note that a training set of 150 samples per hand and per pose seems enough to yield good classification results. A couple of minutes of recording with the provided tool is enough to generate enough data for a pose.

Pose classifier models

Classification models available in the application are stored in .\Models. Each model sub-folder contains two HDF5 files containing the model's architecture and weights values. While both models usually share the same architecture, they are trained to analyze the right or the left hand. Besides, a text file class.txt provides labels associated with the classifiers' one-hot encoded output.

.\AppHandClassifier\Models
│
└───model_1
|       class.txt
│       model_1_left.h5
|       model_1_right.h5
│
└───model_2
|       class.txt
│       model_2_left.h5
|       model_2_right.h5
.
.

See OpenHand-Models repository for more details about model creation.

User guide

🚧 Out-dated section, will be updated soon 🚧

Real-time pose classification

The video feed of the selected camera is fed to OpenPose at all times. The analysis results are displayed on the left side of the application. You have to choose one of the available models in the drop-down at the bottom of the hand-analysis window. Hand keypoints extracted from the video feed by OpenPose are automatically normalized and fed to the classifier.

Create and manipulate datasets

First, you either have to load or create a new set of samples for a specific label and hand side. To do so, respectively choose Open (Ctrl+O) or Create new (Ctrl+N) in Dataset of the menu bar. You have to specify the hand side, the label, and the newly created samples set' accuracy threshold. The accuracy threshold defines the minimum accuracy of hand keypoints detection from OpenPose of any sample in the set. This accuracy is displayed on top of hand keypoints graphs.

Now that a set is loaded in the application, you can record new samples from your video feed or inspect the set and delete inadequate samples. When your done, save the set through Dataset -> Save (Ctrl+S).

Additional scripts

Some functionalities are currently unavailable through the GUI:

  • You can export all dataset samples from .\Dataset in a single CSV file - make dataset-csv (or poetry run python .\pose-classification-kit\scripts\dataset_export.py)
  • You can generate videos similar to this one (.\pose-classification-kit\scripts\video_creation.py might need some modification to fit your use case) - make video-overlay (or poetry run python .\pose-classification-kit\scripts\video_creation.py)

Project details


Download files

Download the file for your platform. If you're not sure which to choose, learn more about installing packages.

Files for pose-classification-kit, version 1.1.5
Filename, size File type Python version Upload date Hashes
Filename, size pose_classification_kit-1.1.5-py3-none-any.whl (24.2 MB) File type Wheel Python version py3 Upload date Hashes View
Filename, size pose-classification-kit-1.1.5.tar.gz (23.7 MB) File type Source Python version None Upload date Hashes View
