pragmatiq

pragmatiq is a developer-friendly implementation of ideas described in the PRAGMA paper (arXiv:2604.08649) by Ostroukhov et al. It turns user histories made of timestamped key-value events into embeddings that downstream teams can use for probes, LoRA fine-tuning, graph-based AML experiments, and serving.

The repository includes the full stack: a deterministic synthetic banking data generator, tokenizer, padding-free PyTorch model, training pipeline, batch embedding, ONNX/Triton serving, notebooks, and a Streamlit demo. It is GPU-first and CPU-complete: every command picks a CUDA device when one is visible (bf16 at inference, bf16-mixed in training, flash-attn's varlen kernel when installed) and runs the same code in fp32 on a CPU when none is — slower, never a different result contract.

pragmatiq is an independent implementation inspired by the PRAGMA paper (arXiv 2604.08649). It is not affiliated with or endorsed by Revolut.

Contents

• Why this exists
• Quickstart
• What is included
• Architecture
• Repository map
• Workflows
• Using your own data
• Hardware
• Running on GPU
• Extending pragmatiq
• AML over the transfer graph
• Synthetic data realism
• Model sizes
• PRAGMA+Nemotron text-embedding variant
• Defaults where the paper is silent
• Serving with Triton
• Streamlit demo
• Observability
• Notebooks
• Development
• Citation
• License

Why this exists

The PRAGMA paper (arXiv:2604.08649) describes a practical foundation-model recipe for heterogeneous banking behavior: transactions, app sessions, trades, communications, profiles, and transfer relationships. The paper does not ship reference code.

pragmatiq provides an open implementation that researchers, ML engineers, and data scientists can run, inspect, adapt, and benchmark. The goal is not to claim novelty over PRAGMA. The goal is to make the implementation path concrete.

Quickstart

Requirements

pip install "pragmatiq[train]"
pragmatiq quickstart --n-users 2000 --max-steps 80   # the fast path: a few minutes
pragmatiq quickstart                                 # the reference run (50k users, 400 steps)
pragmatiq info                                       # what device / precision / extras this machine will use

The train extra brings in Lightning, which pretraining (and therefore quickstart) runs on; a plain pip install pragmatiq is the slim inference core for embedding with an already-trained run. pragmatiq info prints the versions, the resolved device (cuda when visible, else cpu), whether flash-attn is importable, and which extras are installed; pragmatiq --version prints the package version.

Or from a clone of the repo (for development):

git clone https://github.com/dynamiq-ai/pragmatiq.git && cd pragmatiq
pip install -e ".[dev,full]"

quickstart runs the synthetic pipeline end to end on whatever device pragmatiq info reports:

1. generate synthetic users and event histories,
2. fit the key-value-time tokenizer,
3. pretrain a nano masked-language model,
4. embed users,
5. run a gradient-boosting credit-risk probe against a raw-count baseline.

The fast path (--n-users 2000 --max-steps 80) is the right first run on a laptop; the default is the reference run whose timings the Hardware table records.

The plain pip install pragmatiq is the slim inference core: validating, tokenizing, embedding with a trained run, the gradient-boosting probe, and LoRA fine-tuning all work without any extra. Training needs .[train] — pretraining runs on Lightning. The other extras add focused tooling: .[serve] for slim ONNX/Triton export and serving (no Lightning / torch-geometric / transformers), .[aml] for the GraphSAGE transfer-graph ablation (torch-geometric), .[text] for the frozen Nemotron text encoder, .[tracking] for Weights & Biases and TensorBoard mirrors, .[data] for the synthetic realism report (matplotlib), .[demo] for the Streamlit demo, and .[full] for all of them.

The same workflow is available from Python:

from pragmatiq import api

result = api.quickstart(n_users=2000, max_steps=80)
print(result["message"])

The CLI is intentionally thin. Commands parse arguments, then call public functions in pragmatiq/api.py, so notebook and production callers use the same library surface.

What is included

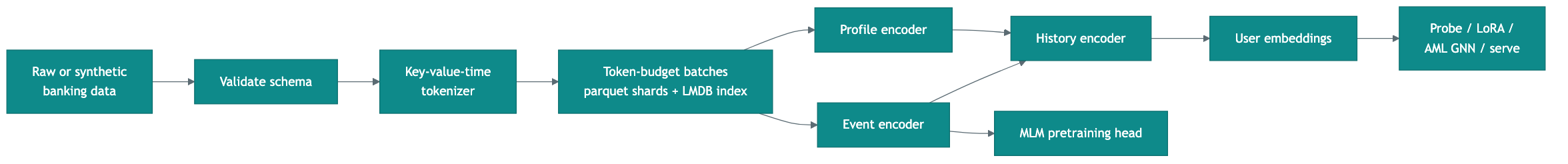

Architecture

At a high level, pragmatiq follows the PRAGMA recipe:

• Key and value embeddings share one table, also reused for tied MLM logits.
• Continuous time positions use the paper's 8 * ln(1 + delta_t / 8) transform.
• Events are encoded independently, then combined with profile information in a bidirectional history encoder.
• Masking combines token, whole-event, and key-level masks; [UNK] replacements are excluded from MLM loss.
• Checkpoints include model, optimizer, scheduler, sampler position, RNG states, tokenizer hash, and resolved config.
• Registries let users customize heads, maskers, and value encoders without forking the library.

See docs/architecture.md for a teaching-grade walkthrough of the encoders, temporal encoding, and objective, and MODEL_CARD.md for the objective and limitations write-up.

Paper fidelity

What follows the PRAGMA paper, and what pragmatiq adds on top:

Repository map

pragmatiq/
├── pragmatiq/               # the library — all logic lives here
│   ├── api.py               # public functions: synthesize / tokenize / pretrain / ... (api.__all__)
│   ├── cli.py               # Typer CLI (parses args, calls api.py, nothing else)
│   ├── registry.py          # @register_head / @register_masker / @register_value_encoder
│   ├── validate.py          # data-contract validation with actionable errors
│   ├── core/                # device + precision resolution (env.py), errors, progress bars
│   ├── data/                # schema, tokenizer, sharding, collation, synthetic generator (v2)
│   ├── models/              # encoders, varlen attention (layers.py), MLM head, LoRA, AML GNN
│   ├── training/            # pretrainer, masking, Muon+AdamW, autoconfig, probe, finetuner
│   ├── inference/           # batch embedder, ONNX export, serving runtime + contract, benchmarks
│   └── runs/                # run directories, metric logging, run comparison
├── configs/                 # pretrain / tokenizer / synthetic / finetune YAMLs
├── notebooks/               # 01–04 guided walkthroughs (see Notebooks below)
├── apps/demo/app.py         # Streamlit demo
├── deploy/                  # Triton model repo (+ config.cpu.pbtxt), docker-compose(.cpu).yaml, Prometheus
├── scripts/                 # runpod_launch.py, gpuval/ (GPU validation legs), benchmarks/, baselines/, gates/
└── tests/                   # the spec in executable form — useful usage examples

The tests/ directory doubles as living documentation: for example tests/test_tokenizer.py shows the tokenizer contract end to end, and tests/test_training.py demonstrates bit-exact checkpoint resume.

Workflows

The quickstart is the best first run. Use the commands below when you want to drive each stage explicitly.

1. Generate and tokenize data

pragmatiq synth generate --out data/synth --config configs/data/synthetic.yaml
pragmatiq tokenize data/synth --out data/tokenized --n-workers 8

The generator takes --n-users, --seed, and --n-workers; the same seed produces byte-identical output for any worker count. To fit generator priors to aggregate statistics a bank can share (no raw data), use pragmatiq synth calibrate --stats configs/data/aggregates.example.yaml.

2. Pretrain and embed

pragmatiq pretrain data/tokenized --name demo --model-size small --config configs/pretrain.yaml
pragmatiq embed data/tokenized --run runs/demo --out embeddings.parquet

Inspect and compare runs at any point:

pragmatiq runs list
pragmatiq runs compare demo other-run

3. Evaluate task signal

probe is the fastest check (a gradient-boosting head on frozen embeddings). Use fine-tuning when you want supervised adapter training on a labeled task; on a GPU the fine-tuner sizes its token budget from the device memory and reports per-epoch epoch_stats (batches, tokens, seconds, tokens/s) so a slow epoch is visible, not silent.

pragmatiq probe data/tokenized --run runs/demo --label data/synth/labels/default_12m.parquet
pragmatiq finetune data/tokenized --run runs/demo --label data/synth/labels/default_12m.parquet \
  --config configs/finetune/credit.yaml

The probe head is gradient boosting by default (HistGradientBoostingClassifier; --probe-model logistic or lightgbm switch it), which captures the non-linear structure of a learned embedding better than a linear head. Both ROC-AUC and PR-AUC are reported — PR-AUC is the honest headline on the low-prevalence risk tasks — and the raw-count baseline uses the same classifier, so the gap reflects the representation, not the model family. On the default synthetic book the pragmatiq probe beats that baseline. When a label table carries an eval_ts column, histories are truncated at it before embedding — for both the probe and the baseline — so metrics are forecasts, never hindcasts.

The embedding's value is not specific to credit. The multi-task probe benchmark (scripts/benchmarks/multitask_probe.py) probes every user-level task against the same raw-count baseline. The table below is written by that script's --write flag, carries a provenance stamp, and is refused if it would replace a larger-scale result. Event-level fraud/recurring (transaction/series-level) and comm_uplift (a treatment-effect task — see pragmatiq uplift) are evaluated by their own paths, not this user-embedding probe.

_{provenance: n_users=50000, model=small, steps=2000, seed=0, commit=cc48149}

Event staleness

In production the event feed lags: the embedding you score at 09:00 was built from events that stopped arriving some time earlier. The paper checks that task metrics barely move when the most recent window of history is missing (§3.4.2). pragmatiq probe --staleness-window 6h (or api.probe(..., staleness_window="6h")) drops the last 6 hours before every user's eval point, for the probe and the baseline alike; scripts/benchmarks/staleness_probe.py sweeps 0 / 1h / 6h / 1d / 3d and writes the table below with --write.

_{provenance: n_users=50000, model=small, steps=2000, seed=0, commit=fd60311}

Using your own data

pragmatiq trains on a small parquet contract — four files, strict dtypes (enforced by pragmatiq validate, defined in pragmatiq/data/schema.py):

The subsections below walk through producing each file from a typical bank data warehouse.

Events: one row per event, fields as a string map

Every event is (user_id, ts, source, fields). source must be one of transaction, app, trading, communication. fields is a flat map<string,string>: stringify everything — the tokenizer decides per key whether a field is numeric (percentile-binned into 64 buckets + a zero bucket), categorical (one token per value up to 1000 distinct values), or free text (byte-level BPE). A flattening export looks like this (Trino/Spark-flavored SQL):

-- one row per event, sorted so each user's rows are adjacent and time-ordered
CREATE TABLE export.events AS
SELECT * FROM (
    SELECT CAST(t.customer_id AS VARCHAR)        AS user_id,
           t.booked_at                           AS ts,
           'transaction'                         AS source,
           MAP(ARRAY['amount', 'currency', 'mcc', 'merchant', 'channel'],
               ARRAY[CAST(t.amount AS VARCHAR), t.currency,
                     CAST(t.mcc AS VARCHAR), t.merchant_name, t.channel]) AS fields
    FROM dwh.card_transactions t

    UNION ALL

    SELECT CAST(a.customer_id AS VARCHAR),
           a.event_time,
           'app',
           MAP(ARRAY['screen', 'action', 'os'],
               ARRAY[a.screen, a.action, a.os])
    FROM dwh.app_events a
)
ORDER BY user_id, ts;

The ORDER BY (user_id, ts) is not cosmetic: pragmatiq validate errors on out-of-time-order events within a user and warns when one user's rows appear in non-adjacent blocks (they would tokenize as multiple records). Different sources can carry completely different field keys — that heterogeneity is the point of the key-value scheme.

Profiles: static attributes plus lifelong milestones

One row per user: attributes holds static key-values (country, age band, plan), lifelong holds dated milestones (account opened, KYC passed, first card), and as_of is the snapshot timestamp:

CREATE TABLE export.profiles AS
SELECT CAST(c.customer_id AS VARCHAR)                      AS user_id,
       CURRENT_TIMESTAMP                                   AS as_of,
       MAP(ARRAY['country', 'age_band', 'plan'],
           ARRAY[c.country, c.age_band, c.plan])           AS attributes,
       ARRAY[ROW('account_opened', c.opened_at),
             ROW('kyc_passed',     c.kyc_at)]              AS lifelong
FROM dwh.customers c;

Transfers and labels

transfers.parquet is the directed money-flow edge list consumed by the AML GNN — only needed for graph experiments.

Forecast label tables are (user_id, eval_ts, label):

CREATE TABLE export.labels_default_12m AS
SELECT CAST(customer_id AS VARCHAR)            AS user_id,
       observation_date                        AS eval_ts,  -- when the decision was made
       CAST(defaulted_within_12m AS TINYINT)   AS label
FROM risk.default_outcomes;

Why eval_ts matters. pragmatiq probe truncates each user's history at their eval_ts before embedding, so the embedding only sees what the bank knew at decision time and the reported AUC is a genuine forecast, not a hindcast on data that already contains the outcome. The AML task is the deliberate exception: mule detection is membership classification over observed activity, so labels/aml.parquet uses (user_id, observed_through, label) and the full horizon rather than a forecast cut (see MODEL_CARD.md).

Validate, tokenize, pretrain

pragmatiq validate data/mybank
pragmatiq tokenize data/mybank --out data/mybank-tokenized --n-workers 8
pragmatiq pretrain data/mybank-tokenized --name mybank-v1 --model-size small

validate catches dtype mismatches, null ids, null timestamps, unknown sources, timestamp ordering problems, non-contiguous user rows, and cardinality pathologies — each finding is a human-readable string with a concrete fix, and the command exits nonzero on errors. Events must be grouped by user and ascending in ts; sort by (user_id, ts) before tokenizing (a user whose rows are split apart is refused rather than silently fragmented). tokenize --n-workers N parallelizes encoding across processes with a byte-identical guarantee: shard files are identical for any worker count.

To rehearse this path against sparse data before pointing it at a real feed, generate synthetic data with missing_field_rate > 0 (a WorldConfig knob): that fraction of event fields is dropped deterministically, so you can confirm the validate → tokenize → train flow tolerates missing fields.

Time zones and the calendar features

pragmatiq derives the hour-of-day, day-of-week and day-of-month calendar features from each event's timestamp, and by default treats timestamps as UTC. If your data is in a local zone — so the behavioural day/night, weekend and payday structure is local — set calendar_tz in the tokenizer config to an IANA zone:

# tokenizer.yaml passed via `pragmatiq tokenize --config`
calendar_tz: Europe/London   # default: UTC

or programmatically, api.tokenize(raw, out, config={"calendar_tz": "Europe/London"}). Pass timezone-aware timestamps so the instant itself is correct; only the wall-clock calendar features are localized (DST included). calendar_tz is folded into the tokenizer content hash, so a checkpoint refuses to load against a tokenizer fitted with a different zone.

Tokenizer knobs for real books

Two TokenizerConfig fields exist only for real-scale data and never bind on the synthetic book:

• max_counter_distinct (default 1_000_000) bounds the value table fit() keeps per key. A continuous numeric key (amounts, balances) would otherwise grow that table to one entry per distinct value; once a key that has only ever parsed as a number exceeds the bound, new values stop being inserted (its classification cannot change). A key that saturates and then stops looking numeric raises with a pointer to force_numeric / force_categorical — silently routing it to BPE would hide the problem.
• max_events_per_user (default 6500) is recorded in the shard manifest and applied when a batch is collated, after any eval-point truncation, so a heavy user's probe or fine-tune batch holds the most recent events before its eval point rather than a prefix of the globally most recent ones. Shards keep the full history.

[UNK] and when to refit the tokenizer

At inference time, keys and values not seen during tokenizer fitting map to [UNK] with a logged warning instead of raising KeyError. That makes drift visible instead of fatal — but a rising [UNK] rate is a signal, not a feature.

• Reuse a tokenizer (pragmatiq tokenize newdata --tokenizer-dir data/mybank-tokenized/tokenizer ...) whenever you tokenize new data for an existing trained model. This is mandatory, not just convenient: checkpoints embed the tokenizer content hash and PragmaModel.from_pretrained() refuses to load against a mismatched tokenizer.
• Refit a tokenizer (the default, no --tokenizer-dir) when you are starting a new pretraining run — new bank, new event sources, or enough drift that [UNK] warnings are frequent. A refit changes the vocabulary, so it always implies pretraining a new model with it.

Hardware

The table below is written by the GPU validation run (scripts/gpuval/, results in docs/benchmarks/gpu-validation-1.1.0.json) and lists, per model preset, the peak VRAM and pretraining throughput measured on the validation hardware, plus the quickstart timings and the serving request rate. It is the source for every performance number in this README; where a number is missing below, it has not been measured on this build.

Hardware: NVIDIA A100-SXM4-80GB × 8, torch 2.8.0+cu128, flash-attn 2.8.3, CUDA 12.8. Data: 50000 synthetic users, 300 pretrain steps, model small. Run 1.1.0 on 2026-09-14T23:47:52.

• bf16 vs fp32: embed 127 vs 74 users/s; probe ROC-AUC 0.613 vs 0.572 (|Δ| = 0.0413); mean embedding cosine 0.999999.
• flash-attn vs SDPA max abs diff: 0.00e+00 (tolerance 1e-02).
• pragmatiq quickstart --n-users 2000 --max-steps 80: 311 s.

Acceptance: 15/16 checks passed. Evidence: docs/benchmarks/gpu-validation-1.1.0.json.

Running on GPU

pragmatiq is GPU-first: every entry point defaults to device="auto", which resolves to CUDA when a device is visible and to CPU otherwise — PragmaModel.from_pretrained(run), api.embed, api.probe, api.finetune, BatchEmbedder, benchmark, the Triton backend. Pin the choice with PRAGMATIQ_DEVICE=cpu (or cuda:1) instead of threading a flag through every call; an explicit device="cpu" argument is always honoured as given.

PRAGMATIQ_INFERENCE_PRECISION=fp32 forces fp32 inference on CUDA (for an A/B against the bf16 path); bf16 on a CPU device is downgraded to fp32. PRAGMATIQ_DISABLE_FLASH=1 forces the SDPA path on CUDA — useful for the deterministic run and for measuring what the kernel buys.

flash-attn is optional but recommended. When flash-attn is importable on CUDA and the forward runs in bf16/fp16 (the default at inference and in training), varlen attention calls flash_attn_varlen_func directly on the packed, padding-free token stream. Everywhere else — CPU, fp32 on CUDA, PRAGMATIQ_DISABLE_FLASH=1 — pragmatiq falls back to PyTorch SDPA over length-bucketed padded blocks built from cu_seqlens with a deterministic scatter (a single long history does not pad the whole batch to its width). The two paths agree to fp32 atol 1e-4 (the padding-equivalence test) and to bf16 precision (~1e-2) against each other on CUDA (checked on every GPU validation run). flash-attn ships CUDA-specific wheels, so install the wheel that matches your torch and CUDA build rather than pip install flash-attn from source; the RunPod image pragmatiq validates on pairs runpod/pytorch 2.8 with the flash_attn-2.8.3 cu12 / torch 2.8 / cp311 wheel (the exact URL is the constant in scripts/runpod_launch.py). pragmatiq info reports whether the kernel is available.

The trainer is built on Lightning Fabric and auto-detects CUDA: on GPU it trains in bf16-mixed precision, on CPU in fp32 — no flags needed, pragmatiq pretrain is the same command on both. pragmatiq pretrain defaults to --config auto, which sizes the batch and schedule from the data and the device (see Scaling hands-off); pragmatiq pretrain ... --show-config prints the resolved plan (api.pretrain_plan) without training. Batches are collated on a prefetch thread and pinned (prefetch_batches, default 2) so the GPU is not waiting on the host.

Knobs that matter

All defaults live in configs/pretrain.yaml and map 1:1 onto TrainConfig in pragmatiq/training/pretrainer.py; any key can be overridden via --config or programmatically through api.pretrain(..., key=value).

Scaling to 1M–26M records, hands-off

Pointing pragmatiq at a large book should not require tuning the batch or schedule. Pass config="auto" (or --config auto) and it sizes token_budget, grad_accum_steps, max_steps, and warmup_steps from the shard index (user count, token distribution) and the target device, with an explainable rationale logged at startup:

pragmatiq pretrain data/tokenized --name big --model-size medium --config auto

api.pretrain("data/tokenized", "big", model_size="medium", config="auto")

Explicit overrides still win (api.pretrain(..., config="auto", grad_accum_steps=8)), and autoconfigure is callable directly to inspect the plan. The three levers it sets are also usable by hand:

• Gradient accumulation decouples the effective batch from device memory. grad_accum_steps micro-batches accumulate before one clip + optimizer step, so a stable batch is reached on a memory-bound GPU without raising token_budget. With the default 1 the trajectory is byte-identical to no accumulation.
• Multi-node DDP is devices (per-node) × num_nodes. The rank sampler shards the data per global rank with a per-rank masking seed, so adding ranks trains disjoint slices in lockstep.
• Truncation caps (set on the tokenizer: max_event_tokens=24, max_profile_tokens=200 at encode time; max_events_per_user=6500 at collate time, after the eval-point cut) keep heavy-tailed real histories tractable; they do not bind at synthetic scale.

Resume semantics

pragmatiq pretrain data/tokenized --name demo --resume auto

--resume auto picks up runs/demo/checkpoints/last.pt if it exists. Checkpoints capture the model, both optimizers, the LR scheduler, the sampler position, all RNG states (torch, numpy, CUDA, and the masking generator), the tokenizer hash, and the resolved config — so an interrupted run resumed mid-flight reproduces the exact batch and masking stream of an uninterrupted one (this is tested bit-exactly). Resuming with a different tokenizer is refused with a clear error.

Determinism

From a fixed seed, CPU runs are byte-identical — weight init, dropout, the masking stream, and shard/worker output are all seeded (CI-enforced for the generator and the resume test). GPU kernels use a different reduction order, so CPU and GPU outputs are never bit-identical to each other — pick one target and compare against itself.

The opt-in deterministic: true flag makes the GPU path reproducible on fixed hardware. It enables torch.use_deterministic_algorithms, the cuDNN deterministic path, flash-attn's deterministic backward, and (because bf16 backward on CUDA has no deterministic implementation upstream) trains in fp32 instead of bf16-mixed. With it on:

• GPU forward / embedding is reproducible run-to-run on the same hardware.
• GPU training is bit-exact in fp32 (same seed → same loss curve).
• GPU bf16 training is not bit-exact — the SDPA/flash bf16 backward stays nondeterministic upstream. Leaving deterministic: false keeps the default bf16-mixed path; a deterministic bf16 run is run-to-run stable to ~1e-3.

The flag is off by default, so default performance and behaviour are unchanged; turn it on only when you need a reproducible GPU run and can accept the fp32 throughput cost.

Multi-GPU and renting a GPU

Fabric launches DDP across all visible CUDA devices automatically — no flag changes, just run on a multi-GPU host. Each rank trains a disjoint, equal-sized shard of every epoch's batches (so the gradient all-reduce covers the full epoch once) with an independent masking stream, and only rank 0 writes checkpoints and metrics. For multi-node jobs set num_nodes (and devices per node) in the config; the rank sharding and per-rank masking extend across the whole world. Pair this with grad_accum_steps and config: auto (see Scaling to 1M–26M records) for a large, stable effective batch without per-device OOM.

Measured pretraining throughput per preset, single-GPU and DDP scaling, is in the Hardware table; every run also logs its own tokens/s in runs/<name>/metrics.jsonl, so measure on your own data.

scripts/runpod_launch.py is a turnkey path for validating on a rented A100/H100: it creates a RunPod pod via the REST API, syncs the repo over SSH (no GitHub required), installs the matching flash-attn wheel, and runs the GPU validation legs in scripts/gpuval/ (pretrain throughput and memory per preset, a full fine-tune with per-epoch stats, flash-vs-SDPA equivalence, bf16-vs-fp32 embeddings, resume, export on the GPU image, serving request rates, an optional multi-GPU sweep), writing the JSON the Hardware table renders:

export RUNPOD_API_KEY=...
python scripts/runpod_launch.py --gpu "NVIDIA A100 80GB PCIe" --run-name a100-smoke
python scripts/runpod_launch.py --terminate <pod_id>

Extending pragmatiq

Heads, maskers, and value encoders are resolved by name through pragmatiq/registry.py, so you can plug in your own without forking. Register a component with the matching decorator and reference it by name in a config.

import torch.nn as nn
from pragmatiq.registry import register_head

@register_head("ranking")
class RankingHead(nn.Module):
    """A custom task head on the user embedding z_h[USR] -> [n_users, n_classes]."""

    def __init__(self, dim: int, n_classes: int = 2) -> None:
        super().__init__()
        self.net = nn.Sequential(nn.Linear(dim, dim), nn.GELU(), nn.Linear(dim, n_classes))

    def forward(self, user_repr):
        return self.net(user_repr)

Select it in a fine-tune config and run as usual:

# myhead.yaml
head: ranking
n_classes: 2
lora_rank: 8

pragmatiq finetune data/tokenized --run runs/mybank-v1 \
  --label data/mybank/labels/churn.parquet --config myhead.yaml

Registration is an import side effect, so import the module that defines your component before finetune/get_head runs (keep it in a package your config or entry point imports). @register_masker(name) and @register_value_encoder(name) work the same way, referenced by the masker and value_encoder config keys.

AML over the transfer graph

Money laundering through mule rings is a relational problem: a mule is defined by who they transact with (fan-in of small credits, layering inside the ring, shared cash-out), not only by their own behavior. pragmatiq ships a transfer-graph extension that tests exactly how much of that signal a graph recovers. The AML GNN path needs the aml extra (pip install "pragmatiq[aml]"), which brings in torch-geometric.

The pieces

• TransferGraphBuilder (pragmatiq/models/gnn.py) turns transfers.parquet plus frozen pragmatiq user embeddings into a PyG graph: nodes are embedded users, directed edges are money flows (kept only between users that have features), edge attributes are amount and log-recency, node features are the embeddings, and node labels mark mules.
• AmlGNN is a 2–3 layer GraphSAGE node classifier with two deliberate design choices. Sum aggregation: mule detection hinges on fan-in, and mean aggregation normalizes degree away — sum keeps it, so message passing can recover the structural signal regardless of which node features are used. A raw-feature skip to the head: each node's own features are projected and concatenated with the graph representation before classification (with residual conv layers), because without it the stack over-smooths and loses the per-user signal an isolated probe already has.

The four-arm ablation

pragmatiq gnn (and api.gnn) runs four setups on identical, stratified train/val/test splits shared across arms, over multiple seeds:

The synthetic mule rings are multi-hop layered laundering chains. Money mules are modeled as ordinary recruited accounts with no distinctive individual behavior, and their amounts and counterparty degree are drawn to match ordinary accounts — so 1-hop degree is not a trivial oracle ((d), a degree-only logistic baseline, reaches only 0.604). The laundering legs are written to the transfer ledger (transfers.parquet), not the card-event stream; the discriminative signal is the multi-hop layering chain in that ledger.

The gated claim — relational recovery. A GraphSAGE over the transfer graph recovers money-mule rings that a probe on the isolated per-user embedding cannot: (c) 0.622 ≫ (a) 0.480 on the current book (five seeds, full scale), so the AML signal lives in the multi-hop transfer structure an isolated embedding misses. This is what gate_6 gates, at both CI and full scale, by more than the cross-seed noise.

Reported, not gated. Message passing adds over the same hand-crafted features without a graph ((c) 0.622 > (d) 0.597), but by less than the per-seed spread (± 0.043), so the claim is reported rather than gated. The learned per-user embedding adds a little over the isolated probe ((b) 0.572 > (a) 0.480) and does not beat hand-crafted features ((b) 0.572 < (c) 0.622). The isolated embedding sits near chance, so the model does not capture the multi-hop laundering signal in the per-user representation; recovering it in a learned representation is the open challenge. This is consistent with the PRAGMA paper's own observation that AML is a setting where the model underperforms because it processes user histories in isolation — the GNN here is pragmatiq's honest extension that probes that gap, not a "the learned embedding wins" result. See MODEL_CARD.md and notebooks/04_aml_gnn.ipynb.

Running it

pip install -e ".[aml]"
pragmatiq gnn data/tokenized --run runs/demo \
  --transfers data/synth/transfers.parquet \
  --aml-label data/synth/labels/aml.parquet \
  --seeds 0,1,2 --epochs 150

The command embeds users with the trained run, builds the graph, fits each arm per seed, and prints per-arm mean ± std ROC-AUC plus a verdict dict. notebooks/04_aml_gnn.ipynb is the interactive version of the same experiment.

Latest results

The table below is auto-written by write_aml_report in pragmatiq/models/gnn.py on a passing full run (opt-in via PRAGMATIQ_WRITE_RESULTS=1). Generated tables carry a provenance stamp (node/edge/mule counts, seeds, epochs, git commit), and the writer refuses to overwrite a larger-scale result with a smaller-scale one — a CI-scale run can never masquerade as a full-scale result.

Relational recovery (gated): True — a GraphSAGE over the transfer graph recovers money-mule rings that a probe on isolated pragmatiq embeddings cannot ((c) > (a) = True, by more than the cross-seed noise), so the AML signal lives in the multi-hop transfer structure an isolated per-user embedding misses. Money mules are degree- and volume-matched to ordinary accounts, so the signal is the multi-hop layering chain, not 1-hop degree.

Reported, not gated: message passing over the same hand-crafted features beats the no-graph control by more than the cross-seed noise ((c) > (d) = False); the learned per-user embedding adds a little over the isolated probe ((b) > (a) = True) but does not beat hand-crafted features ((b) > (c) = False). The isolated embedding sits near chance, so on this synthetic book the model does not capture the multi-hop laundering signal on its own — recovering it in a learned per-user representation is the open challenge (see MODEL_CARD.md).

_{provenance: n_nodes=12000, n_edges=344388, n_mules=607, seeds=[0, 1, 2, 3, 4], epochs=150, commit=cbe83c6}

Synthetic data realism

The generator (pragmatiq/data/synthetic/) is an agent-based simulator, and its output is what every gate and result table in this README is measured on, so its realism is a first-class concern. Beyond the persona / lifecycle / episode machinery described in MODEL_CARD.md, the book has these properties; the constants are # GUESS values, held in pragmatiq/data/synthetic/config.py and simulator.py:

Every seed still produces byte-identical output for any worker count (CI-enforced); the fingerprint differs from 1.0.x for the same seed, so result tables regenerated on this generator are not comparable to earlier ones.

Model sizes

These sizes are the presets in ModelConfig.preset (pragmatiq/models/pragmatiq.py), selected with --model-size. Any architecture field (e.g. rope_base, dropout) can be overridden by passing it in the pretrain config. The test suite checks the model and MLM head parameter counts against the nominal sizes.

PRAGMA+Nemotron text-embedding variant

The paper describes a variant in which high-cardinality text fields (merchant names, device ids, free-text memos) are not split into BPE pieces. Instead a frozen text model maps each value's full string to a single vector, and the MLM objective reconstructs that continuous vector with MSE rather than predicting sub-word ids. On its text-heavy tasks the paper reports a meaningful credit lift at a modest latency cost, so pragmatiq ships it as a switchable option — off by default, so the BPE path is byte-identical to a build without it.

It is switchable from the data step alone. Tokenize in embed mode and pretrain auto-builds the matching frozen encoder and MSE reconstruction head — no model flags:

pip install -e ".[text]"     # adds transformers (the frozen embedder)
pragmatiq tokenize data/synth --out data/tokenized --config configs/data/tokenizer_nemotron.yaml
pragmatiq pretrain data/tokenized --name nemo --model-size medium   # text branch auto-wired

• Encoders are resolved by name from the registry (@register_text_encoder): the production nemotron embedder (frozen, mean-pooled, no_grad), and a deterministic, dependency-free hash stand-in so the whole path — embed-mode tokenization, the text input projection, the MSE branch, and masking that routes text to reconstruction — is exercised on CPU in CI without downloading a multi-GB model.
• Objective: masked text tokens are reconstructed by a Linear(3d → text_dim) head against the frozen vector; the loss is CE + λ·MSE (text_loss_weight, default 1.0). Ordinary tokens keep the cross-entropy MLM objective.
• Serving handles both variants — build the Triton image with PRAGMATIQ_TRITON_EXTRAS=nemotron (see Serving with Triton).

Paper-silent (# GUESS) hyperparameters

The paper leaves some engineering details unspecified. pragmatiq treats these as documented defaults, exposes every one in config, and marks source-level choices with # GUESS. Defaults are written into each run's run.yaml / meta.json at training time, so shipped checkpoints embed their values reproducibly regardless of future default changes. Changing a default is a MINOR (not breaking) change per the stability policy; the checkpoint-format and tokenizer-hash guards ensure already-shipped checkpoints always load identically.

The table below lists all 13 # GUESS source markers, resolved to 9 unique hyperparameters (some values appear in both the dataclass and the optimizer or masker call-site).

The synthetic generator carries its own # GUESS constants (FX rates, payday mix, market-hours curves); they are listed in Synthetic data realism.

Serving with Triton

The production serving path is a Triton python backend that runs the native varlen PyTorch model — the exact no-padding forward used in training, not an approximation. The model repository lives at deploy/triton/model_repository/pragmatiq_embedder/: config.pbtxt declares the interface and 1/model.py loads PragmaModel.from_pretrained(run_dir) once at startup and serves embed_records for every request.

One-command deploy + smoke

scripts/deploy_serving.sh is the turnkey path: it builds the serving image, boots tritonserver with your run mounted, waits for readiness, then sends a real embedding request and verifies the [n_users, dim] response. With nvidia-smi on the host it serves on CUDA in bf16; without it, the script overlays deploy/triton/config.cpu.pbtxt (KIND_CPU) and sets PRAGMATIQ_SERVE_CPU=1 so the same image boots CPU-only.

pragmatiq pretrain data/tokenized --name demo            # any trained run works
bash scripts/deploy_serving.sh --run runs/demo           # default model
bash scripts/deploy_serving.sh --run runs/nemo --variant nemotron   # Nemotron variant

Bring the full stack up

deploy/docker-compose.yaml starts four services: Triton, Prometheus, Grafana, and the Streamlit demo. The Triton service builds from deploy/triton/Dockerfile, which installs pragmatiq into Triton's Python (the python backend imports it; the stock image cannot run the model) while leaving the image's CUDA build of torch untouched. Point PRAGMATIQ_RUN at a trained run directory — the one with checkpoints/ and tokenizer/ — mounted read-only at /models/run:

export PRAGMATIQ_RUN=$PWD/runs/demo
docker compose -f deploy/docker-compose.yaml up -d --build
# Nemotron variant serving: PRAGMATIQ_TRITON_EXTRAS=nemotron docker compose ... up -d --build

The Triton service has a readiness healthcheck (/v2/health/ready) and reserves the host's GPUs (NVIDIA container toolkit). On a CPU-only host use deploy/docker-compose.cpu.yaml instead — same services, the KIND_CPU config mounted over the default and PRAGMATIQ_SERVE_CPU=1:

docker compose -f deploy/docker-compose.cpu.yaml up -d --build

The serving image installs pragmatiq into the NGC Triton 25.06 image (torch 2.8) with every runtime dependency read from pyproject.toml, so the image cannot drift from the package.

Device policy inside the backend (pragmatiq.inference.serve.resolve_serve_device): PRAGMATIQ_SERVE_CPU=1 wins, else a Triton KIND_GPU instance pins its assigned GPU, else CUDA when visible, else CPU. Requests are validated (each record needs a string user_id and an events list) and capped: PRAGMATIQ_SERVE_MAX_RECORDS (default 1024 users per request) rejects oversized payloads with a clear error, and PRAGMATIQ_SERVE_TOKEN_BUDGET (default 16384) splits a request into forward passes of at most that many tokens. PRAGMATIQ_INFERENCE_PRECISION=fp32 pins fp32 serving.

Request format

One request carries a JSON array of plain user records — the same dicts PragmaModel.embed_records accepts (user_id, events as {ts, source, fields} objects with ts in microseconds since epoch, optional attributes and lifelong). The response is the [n_users, dim] fp32 embedding matrix. Batching happens inside the model: the varlen forward packs all users in the request with no padding, which is why config.pbtxt sets max_batch_size: 0 and uses a 2-instance group for request-level concurrency instead of Triton dynamic batching (the trade-off is documented in the config file).

curl -s localhost:8000/v2/models/pragmatiq_embedder/infer \
  -H 'Content-Type: application/json' \
  -d @- <<'JSON'
{
  "inputs": [{
    "name": "records_json",
    "shape": [1],
    "datatype": "BYTES",
    "data": ["[{\"user_id\": \"u1\", \"events\": [{\"ts\": 1718200000000000, \"source\": \"transaction\", \"fields\": {\"amount\": \"42.50\", \"currency\": \"GBP\", \"merchant\": \"TESCO\"}}], \"attributes\": {\"country\": \"GB\"}, \"lifelong\": []}]"]
  }]
}
JSON

Unseen keys or values in a request map to [UNK] with a logged warning — serving never raises KeyError on vocabulary drift.

Benchmarking

pragmatiq benchmark data/tokenized --run runs/demo --device cuda

benchmark measures local batch-embedding throughput (users/s, tokens/s, the precision used, and a USD-per-million-users estimate) and writes benchmark_results.md in the current directory (--out to move it; --precision fp32 for the fp32 A/B), which also includes the ready-to-run perf_analyzer command for sweeping p50/p95/p99 latency vs concurrency against the live Triton endpoint (latency percentiles need a real endpoint, so that half is emitted as a command rather than executed).

The ONNX export

pragmatiq export (requires the serve extra) writes a dense reformulation of the model: the same weights run over padded tensors, so the exported graph reproduces the native embeddings (validated against onnxruntime on export and shape-dynamic in the user/event/token axes). The Triton python backend stays the high-throughput path because it runs the native varlen model and skips the padding the dense graph materializes — a deployment choice, not a fidelity gap. Pick Triton for throughput, ONNX for portability.

Streamlit demo

apps/demo/app.py is a small Streamlit app over a trained run and a generated dataset: pick a synthetic user in the sidebar and see their event timeline (recent transactions with amount/merchant), their embedding computed live via embed_records (the raw embedding and its norm — attach fine-tuned heads for calibrated fraud/credit/churn scores), and their ego transfer graph (all transfers in and out of the selected user).

pip install -e ".[demo]"
pragmatiq quickstart          # writes runs/quickstart/{raw,tok,runs/quickstart}
PRAGMATIQ_OUT=runs/quickstart streamlit run apps/demo/app.py

PRAGMATIQ_OUT (default runs/quickstart) is a quickstart output directory; the demo derives the raw data (<out>/raw), the tokenized shards (<out>/tok) and the trained run (<out>/runs/quickstart) from it. The demo also runs as the demo service in deploy/docker-compose.yaml on port 8501.

Observability

Every training run always writes runs/<name>/metrics.jsonl — one JSON object per logged step (total and per-masking-type losses, MLM accuracy, grad norm, LR factor, tokens/sec, GPU memory) — plus run.yaml, meta.json, and a copy of the tokenizer. On top of that:

• Console: long phases (synth, tokenize, embed) show tqdm progress bars in terminals and notebooks, and rate-limited log lines when output is piped (CI, nohup). Pretraining prints a one-line heartbeat every log_every steps (step, loss, mlm_acc, tokens/sec, ETA); disable with verbose: false in the pretrain config or pragmatiq --quiet .... Progress and logs go to stderr — stdout stays a single parseable JSON document.
• Parallelism without nondeterminism: synth generate --n-workers and tokenize --n-workers fan out across processes but produce byte-identical output for any worker count (CI-enforced), so you can scale CPU phases freely without losing reproducibility.
• TensorBoard: pip install -e ".[tracking]", then tensorboard --logdir runs/<name>/tb. The mirror is on whenever the tensorboard package is installed; otherwise it is a silent no-op.
• Weights & Biases: pip install -e ".[tracking]", then set wandb: true (and optionally wandb_project) in the pretrain config, or pass --wandb to pragmatiq pretrain.

Notebooks

The notebooks are the guided tour; each one runs top to bottom on a laptop CPU and picks up a GPU automatically when one is visible.

Development

pip install -e ".[dev,full]"

CI installs .[dev,full], and the full test suite exercises the optional extras (Lightning, torch-geometric, transformers, matplotlib, …) — install the same combination for a green local run. Run the fast local checks before opening a PR:

ruff check .
mypy pragmatiq
pytest tests/ -x -q

Every change is gated in CI: lint, types, the full suite on Python 3.11 and 3.12, a slim-install serving boundary, packaging smoke, the supply-chain scan, and every acceptance gate in scripts/gates/:

bash scripts/gates/run_full_validation.sh runs them all; set PRAGMATIQ_GATE_FULL=1 for full-scale runs. GPU validation (scripts/gpuval/, launched through scripts/runpod_launch.py) is run before each release and its JSON is committed under docs/benchmarks/. See CONTRIBUTING.md for the development workflow.

Citation

If you use pragmatiq, cite this repository and the PRAGMA paper that inspired it:

• Software citation metadata: CITATION.cff
• Reference paper: PRAGMA: Revolut Foundation Model, arXiv:2604.08649

License

Apache-2.0. See LICENSE and NOTICE.
