pricehub 0.0.7

Pricehub: Unified Python Package for Collecting OHLC Prices from Binance, Bybit, and Coinbase APIs into a DataFrame

PriceHub: Unified Python Package for Collecting OHLC Prices from Binance, Bybit, Coinbase, OKX, Kraken, and KuCoin APIs into a DataFrame

It supports multiple markets, including spot and futures, and provides flexible timestamp inputs and a wide range of intervals.

Effective trading begins with thorough data analysis, visualization, and backtesting. This package simplifies access to such data, providing a unified solution for retrieving OHLC information across various broker APIs.

Contents

• Supported Brokers
• Key Features
• Supported Intervals
• Installation
• Function Reference
• Example Usage
  • Save data to CSV, Excel, Parquet files
  • Retrieve OHLC data from Binance Spot for a 6-hour interval
  • Retrieve OHLC data from Bybit Spot for a 1-day interval
  • Retrieve OHLC data from KuCoin Spot for a 1-hour interval
  • Retrieve OHLC data from KuCoin Futures for a 1-hour interval
  • Plot Close 1d data with matplotlib: BTCUSDT Futures on Binance for the last year
  • Plot OHLC 1w data with plotly: BTCUSDT Spot on Binance for the last five years
  • Create custom intervals 10m for SOLUSDT Spot on Bybit for the last month

Supported Brokers

• Binance Spot
• Binance Futures
• Bybit Spot
• Bybit Linear (Futures)
• Bybit Inverse
• Coinbase Spot
• OKX Spot
• OKX Futures
• Kraken Spot
• KuCoin Spot
• KuCoin Futures

Key Features

• Unified Interface: Supports multiple brokers and markets (spot, futures) with a single interface.
• Unified Intervals: Use the same interval format across all brokers.
• Timestamp Flexibility: Accepts timestamps (start, end) in various formats (int, float, string, Arrow, pandas, datetime).
• No Credential Requirement: Fetch public market data without authentication.
• Extended Date Ranges: This package will paginate and collect all data across large date ranges.
• All fields from official API: Retrieve all fields available in the official API (e.g., Number of trades, Taker buy base asset volume).

Supported Intervals

(depends on the broker)

• Seconds: 1s
• Minutes: 1m, 3m, 5m, 15m, 30m
• Hours: 1h, 2h, 4h, 6h, 12h
• Days: 1d, 3d
• Weeks: 1w
• Months: 1M

---

Installation

pip install pricehub

Function Reference

def get_ohlc(broker: SupportedBroker, symbol: str, interval: Interval, start: Timestamp, end: Timestamp) -> pd.DataFrame

Retrieves OHLC data for the specified broker, symbol, interval, and date range.

• Parameters:

  • broker: The broker to fetch data from (e.g., binance_spot, bybit_spot, okx_futures, kraken_spot).
  • symbol: The trading pair symbol (e.g., BTCUSDT).
  • interval: The interval for OHLC data (1m, 1h, 1d, etc.).
  • start: Start time of the data (supports various formats).
  • end: End time of the data (supports various formats).

• Returns:

  • pandas.DataFrame: A DataFrame containing OHLC data.

---

Example Usage

Save data to CSV, Excel, Parquet files

from pricehub import get_ohlc
df = get_ohlc("binance_spot", "BTCUSDT", "1d", "2024-10-01", "2024-10-05")
df.to_csv("btcusdt_1d_2024-10-01_2024-10-05.csv") # Save to CSV
df.to_excel("btcusdt_1d_2024-10-01_2024-10-05.xlsx") # Save to Excel
df.to_parquet("btcusdt_1d_2024-10-01_2024-10-05.parquet") # Save to Parquet, requires 'pyarrow', 'fastparquet'

Retrieve OHLC data from Binance Spot for a 6-hour interval

from pricehub import get_ohlc

df = get_ohlc(
    broker="binance_spot",
    symbol="BTCUSDT",
    interval="6h",
    start="2024-10-01",
    end="2024-10-02"
)
print(df)

                        Open     High      Low    Close      Volume              Close time  Quote asset volume  Number of trades  Taker buy base asset volume  Taker buy quote asset volume  Ignore
Open time
2024-10-01 00:00:00  63309.0  63872.0  63000.0  63733.9   39397.714 2024-10-01 05:59:59.999        2.500830e+09          598784.0                    19410.785                  1.232417e+09     0.0
2024-10-01 06:00:00  63733.9  64092.6  63683.1  63699.9   32857.923 2024-10-01 11:59:59.999        2.100000e+09          446330.0                    15865.753                  1.014048e+09     0.0
2024-10-01 12:00:00  63700.0  63784.0  61100.0  62134.1  242613.990 2024-10-01 17:59:59.999        1.512287e+10         2583155.0                   112641.347                  7.022384e+09     0.0
2024-10-01 18:00:00  62134.1  62422.3  60128.2  60776.8  114948.208 2024-10-01 23:59:59.999        7.031801e+09         1461890.0                    54123.788                  3.312086e+09     0.0
2024-10-02 00:00:00  60776.7  61858.2  60703.3  61466.7   51046.012 2024-10-02 05:59:59.999        3.133969e+09          668558.0                    27191.919                  1.669187e+09     0.0

Retrieve OHLC data from Bybit Spot for a 1-day interval

from pricehub import get_ohlc

df = get_ohlc(
    broker="bybit_spot",
    symbol="ETHUSDT",
    interval="1d",
    start=1727740800.0, # Unix timestamp in seconds for "2024-10-01"
    end=1728086400000, # Unix timestamp in ms for "2024-10-05"
)
print(df)

               Open     High      Low    Close        Volume      Turnover
Open time
2024-10-01  2602.00  2659.31  2413.15  2447.95  376729.77293  9.623060e+08
2024-10-02  2447.95  2499.82  2351.53  2364.01  242498.88477  5.914189e+08
2024-10-03  2364.01  2403.50  2309.75  2349.91  242598.38255  5.716546e+08
2024-10-04  2349.91  2441.82  2339.15  2414.67  178050.43782  4.254225e+08
2024-10-05  2414.67  2428.69  2389.83  2414.54  106665.69595  2.573030e+08

Retrieve OHLC data from KuCoin Spot for a 1-hour interval

from pricehub import get_ohlc

df = get_ohlc(
    broker="kucoin_spot",
    symbol="BTC-USDT",
    interval="1h",
    start="2024-10-01",
    end="2024-10-02"
)
print(df)

Retrieve OHLC data from KuCoin Futures for a 1-hour interval

from pricehub import get_ohlc

df = get_ohlc(
    broker="kucoin_futures",
    symbol="XBTUSDTM",
    interval="1h",
    start="2024-10-01",
    end="2024-10-02"
)
print(df)

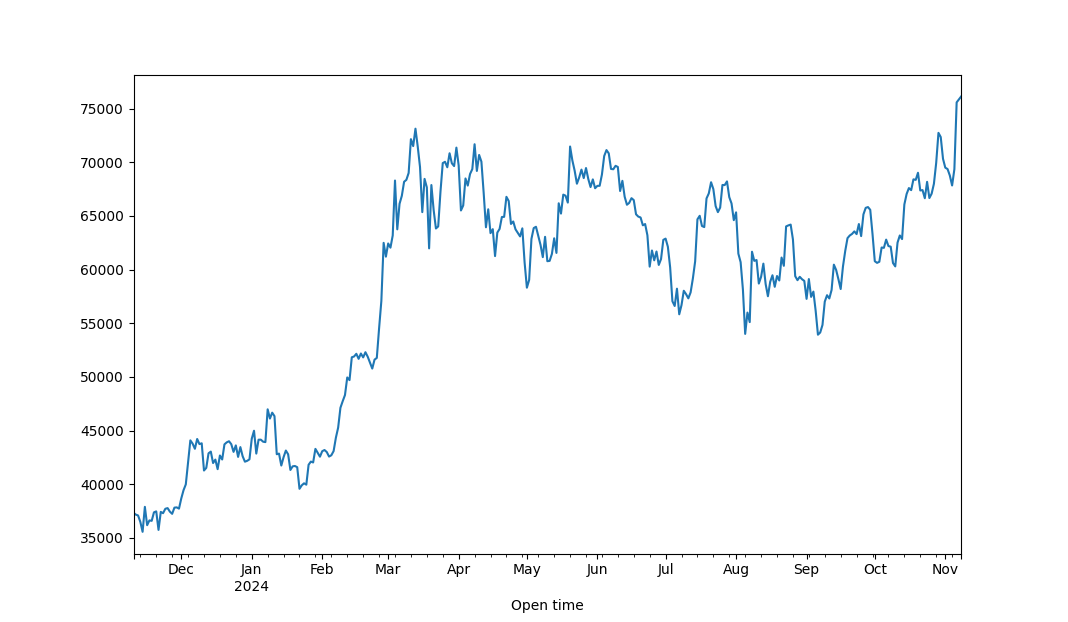

Plot Close 1d data with matplotlib: BTCUSDT Futures on Binance for the last year

from datetime import datetime, timedelta

import matplotlib.pyplot as plt
from pricehub import get_ohlc

now = datetime.now()
df = get_ohlc("binance_futures", "BTCUSDT", "1d", now - timedelta(days=365), now)
df["Close"].plot()
plt.show()

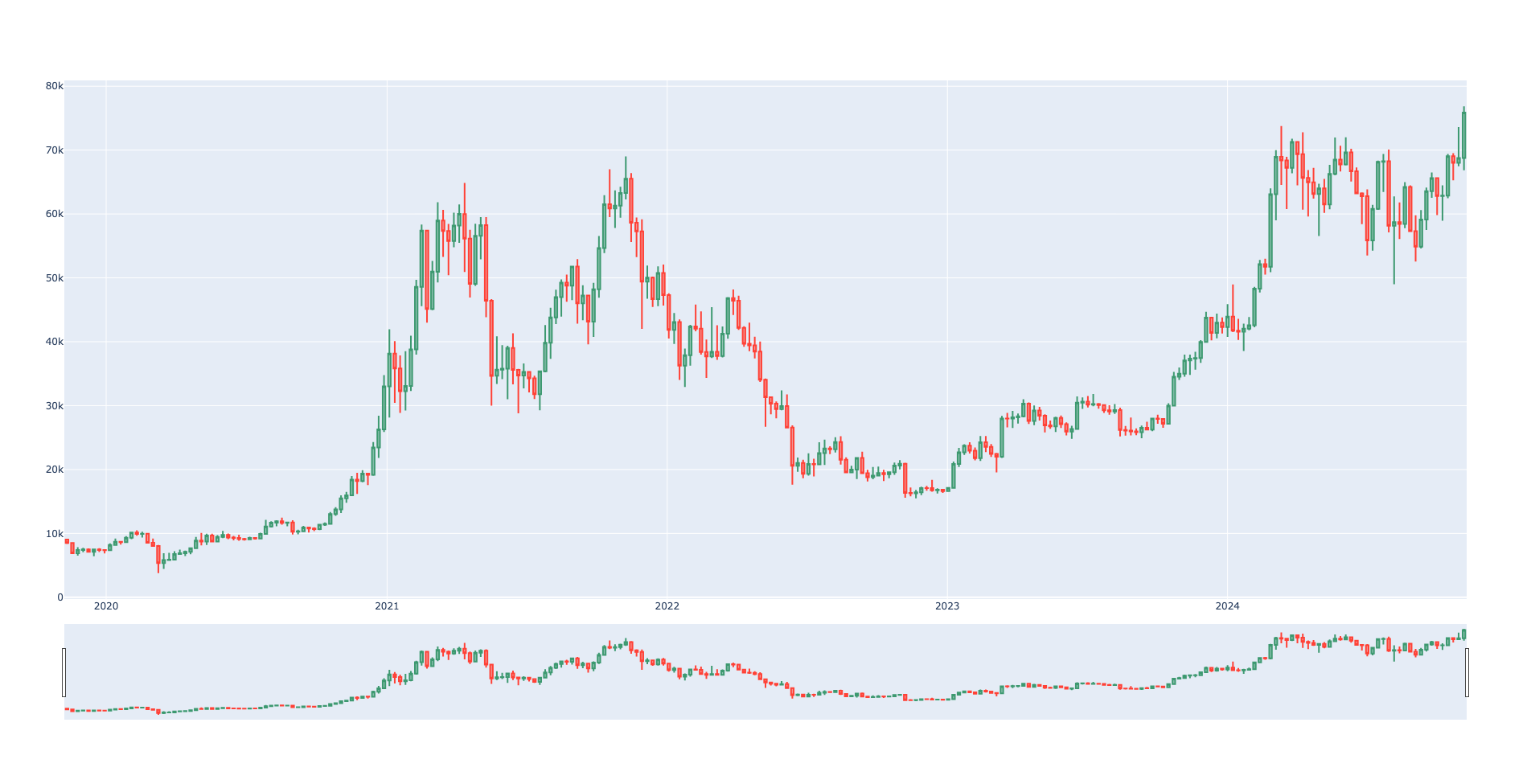

Plot OHLC 1w data with plotly: BTCUSDT Spot on Binance for the last five years

from datetime import datetime, timedelta
import plotly.graph_objects as go
from pricehub import get_ohlc

now = datetime.now()
df = get_ohlc("binance_spot", "BTCUSDT", "1w", now - timedelta(days=365 * 5), now)

fig = go.Figure(data=go.Candlestick(x=df.index, open=df['Open'], high=df['High'], low=df['Low'], close=df['Close']))

fig.update_layout()
fig.show()

Create custom intervals 10m for SOLUSDT Spot on Bybit for the last month

from datetime import datetime, timedelta
from pricehub import get_ohlc
now = datetime.now()
df = get_ohlc("bybit_spot", "SOLUSDT", "5m", now - timedelta(days=31), now)
df_10m = (
    df.resample(
        "10min",
    ).agg(
        {
            "Open": "first",
            "High": "max",
            "Low": "min",
            "Close": "last",
            "Volume": "sum",
        }
    )
)
print(df.head())
print(df_10m.head())

#5m
                      Open    High     Low   Close    Volume      Turnover
Open time
2024-11-07 17:40:00  194.13  194.66  194.03  194.54  3391.378  6.592576e+05
2024-11-07 17:45:00  194.54  195.48  194.44  195.41  6075.927  1.184312e+06
2024-11-07 17:50:00  195.41  195.71  195.06  195.69  4073.276  7.961276e+05
2024-11-07 17:55:00  195.69  196.16  195.59  195.93  8774.224  1.719060e+06
2024-11-07 18:00:00  195.93  196.83  195.73  196.34  5075.807  9.973238e+05

#10m
                       Open    High     Low   Close     Volume
Open time
2024-11-07 17:40:00  194.13  195.48  194.03  195.41   9467.305
2024-11-07 17:50:00  195.41  196.16  195.06  195.93  12847.500
2024-11-07 18:00:00  195.93  196.83  194.66  195.29  12506.671
2024-11-07 18:10:00  195.29  196.13  194.70  195.58  20437.030
2024-11-07 18:20:00  195.58  196.00  194.84  195.81  16388.688
