# Procgen Benchmark

#### [Blog Post][Paper]

16 simple-to-use procedurally-generated gym environments which provide a direct measure of how quickly a reinforcement learning agent learns generalizable skills. The environments run at high speed (thousands of steps per second) on a single core.

We ran a competition in 2020 which used these environments to measure sample efficiency and generalization in RL. You can learn more here.

These environments are associated with the paper Leveraging Procedural Generation to Benchmark Reinforcement Learning (citation). The code for running some experiments from the paper is in the train-procgen repo. For those familiar with the original CoinRun environment, be sure to read the updated CoinRun description below as there have been subtle changes to the environment.

Compared to Gym Retro, these environments are:

• Faster: Gym Retro environments are already fast, but Procgen environments can run >4x faster.
• Randomized: Gym Retro environments are always the same, so you can memorize a sequence of actions that will get the highest reward. Procgen environments are randomized so this is not possible.
• Customizable: If you install from source, you can perform experiments where you change the environments, or build your own environments. The environment-specific code for each environment is often less than 300 lines. This is almost impossible with Gym Retro.

Supported platforms:

• Windows 10
• macOS 10.14 (Mojave), 10.15 (Catalina)
• Linux (manylinux2010)

Supported Pythons:

• 3.7 64-bit
• 3.8 64-bit
• 3.9 64-bit
• 3.10 64-bit

Supported CPUs:

• Must have at least AVX

## Installation

First make sure you have a supported version of python:

# run these commands to check for the correct python version
python -c "import sys; assert (3,7,0) <= sys.version_info <= (3,10,0), 'python is incorrect version'; print('ok')"
python -c "import platform; assert platform.architecture()[0] == '64bit', 'python is not 64-bit'; print('ok')"


To install the wheel:

pip install procgen


If you get an error like "Could not find a version that satisfies the requirement procgen", please upgrade pip: pip install --upgrade pip.

To try an environment out interactively:

python -m procgen.interactive --env-name coinrun


The keys are: left/right/up/down + q, w, e, a, s, d for the different (environment-dependent) actions. Your score is displayed as "episode_return" in the lower left. At the end of an episode, you can see your final "episode_return" as well as "prev_level_complete" which will be 1 if you successfully completed the level.

To create an instance of the gym environment:

import gym
env = gym.make("procgen:procgen-coinrun-v0")


To create an instance of the gym3 (vectorized) environment:

from procgen import ProcgenGym3Env
env = ProcgenGym3Env(num=1, env_name="coinrun")


### Docker

A Dockerfile is included to demonstrate a minimal Docker-based setup that works for running random agent.

docker build docker --tag procgen
docker run --rm -it procgen python3 -m procgen.examples.random_agent_gym


There is a second Dockerfile to demonstrate installing from source:

docker build . --tag procgen --file docker/Dockerfile.dev
docker run --rm -it procgen python -c "from procgen import ProcgenGym3Env; env = ProcgenGym3Env(num=1, env_name='coinrun'); print(env.observe())"


## Environments

The observation space is a box space with the RGB pixels the agent sees in a numpy array of shape (64, 64, 3). The expected step rate for a human player is 15 Hz.

The action space is Discrete(15) for which button combo to press. The button combos are defined in env.py.

If you are using the vectorized environment, the observation space is a dictionary space where the pixels are under the key "rgb".

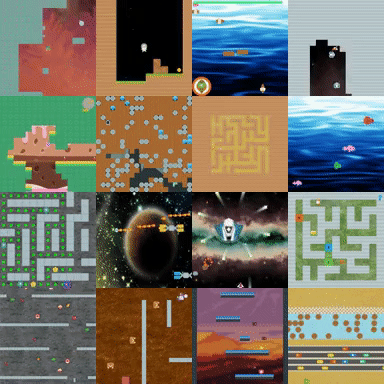

Here are the 16 environments:

Image Name Description

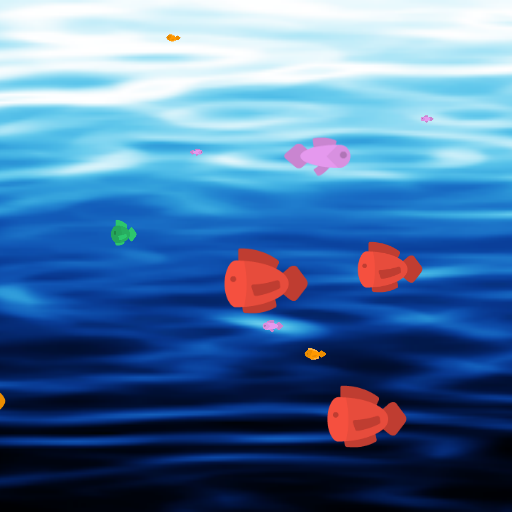

bigfish The player starts as a small fish and becomes bigger by eating other fish. The player may only eat fish smaller than itself, as determined solely by width. If the player comes in contact with a larger fish, the player is eaten and the episode ends. The player receives a small reward for eating a smaller fish and a large reward for becoming bigger than all other fish, at which point the episode ends.

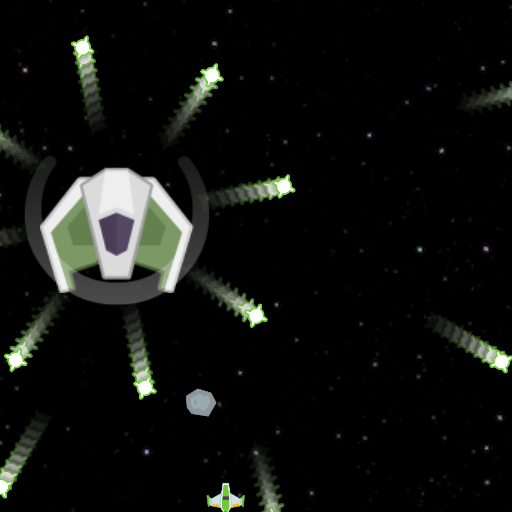

bossfight The player controls a small starship and must destroy a much bigger boss starship. The boss randomly selects from a set of possible attacks when engaging the player. The player must dodge the incoming projectiles or be destroyed. The player can also use randomly scattered meteors for cover. After a set timeout, the boss becomes vulnerable and its shields go down. At this point, the players projectile attacks will damage the boss. Once the boss receives a certain amount of damage, the player receives a reward, and the boss re-raises its shields. If the player damages the boss several times in this way, the boss is destroyed, the player receives a large reward, and the episode ends.

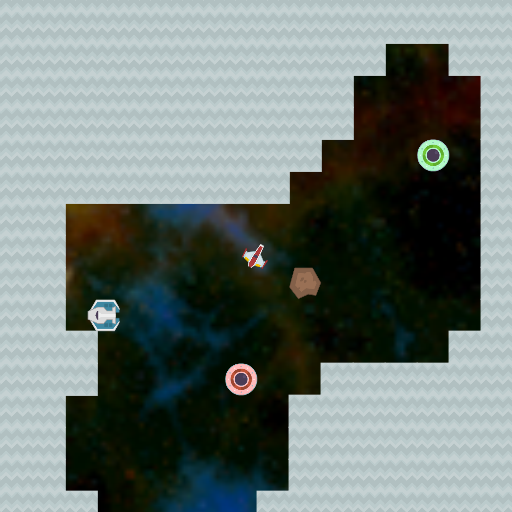

caveflyer The player must navigate a network of caves to reach the exit. Player movement mimics the Atari game “Asteroids”: the ship can rotate and travel forward or backward along the current axis. The majority of the reward comes from successfully reaching the end of the level, though additional reward can be collected by destroying target objects along the way with the ship's lasers. There are stationary and moving lethal obstacles throughout the level.

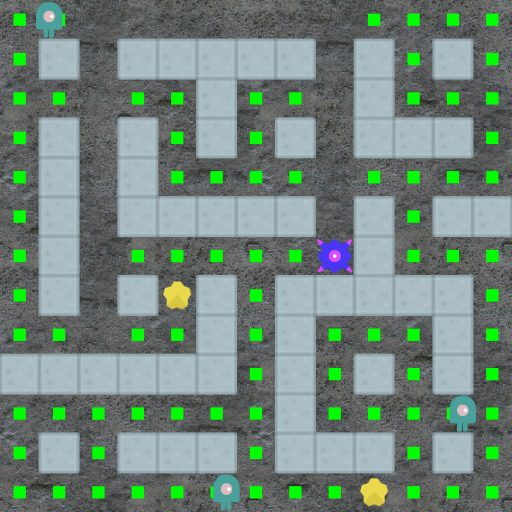

chaser Inspired by the Atari game “MsPacman”. Maze layouts are generated using Kruskal’s algorithm, and then walls are removed until no dead-ends remain in the maze. The player must collect all the green orbs. 3 large stars spawn that will make enemies vulnerable for a short time when collected. A collision with an enemy that isn’t vulnerable results in the player’s death. When a vulnerable enemy is eaten, an egg spawns somewhere on the map that will hatch into a new enemy after a short time, keeping the total number of enemies constant. The player receives a small reward for collecting each orb and a large reward for completing the level.

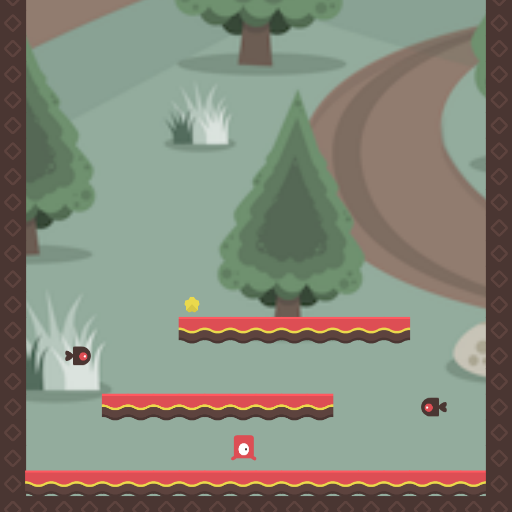

climber A simple platformer. The player must climb a sequence of platforms, collecting stars along the way. A small reward is given for collecting a star, and a larger reward is given for collecting all stars in a level. If all stars are collected, the episode ends. There are lethal flying monsters scattered throughout the level.

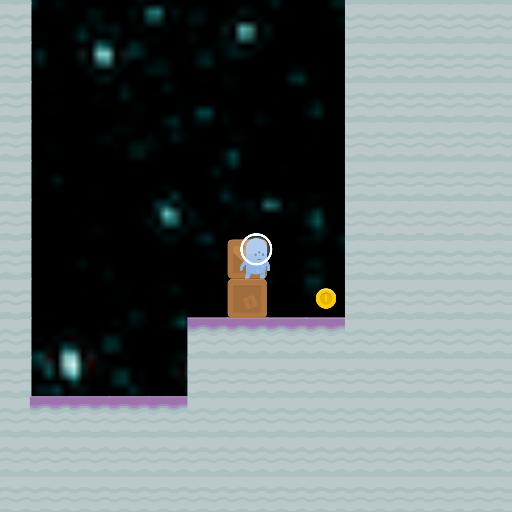

coinrun A simple platformer. The goal is to collect the coin at the far right of the level, and the player spawns on the far left. The agent must dodge stationary saw obstacles, enemies that pace back and forth, and chasms that lead to death. Note that while the previously released version of CoinRun painted velocity information directly onto observations, the current version does not. This makes the environment significantly more difficult.

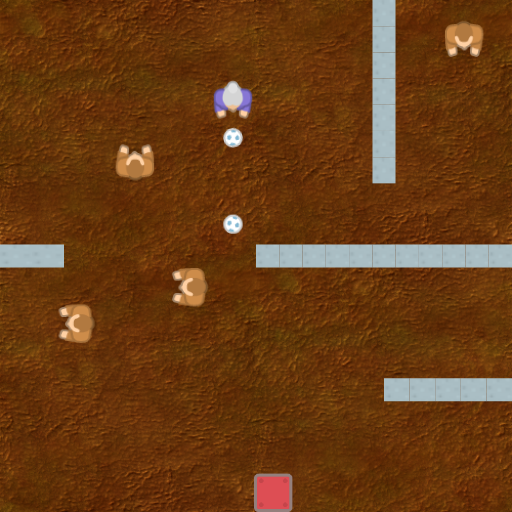

dodgeball Loosely inspired by the Atari game “Berzerk”. The player spawns in a room with a random configuration of walls and enemies. Touching a wall loses the game and ends the episode. The player moves relatively slowly and can navigate throughout the room. There are enemies which also move slowly and which will occasionally throw balls at the player. The player can also throw balls, but only in the direction they are facing. If all enemies are hit, the player can move to the unlocked platform and earn a significant level completion bonus.

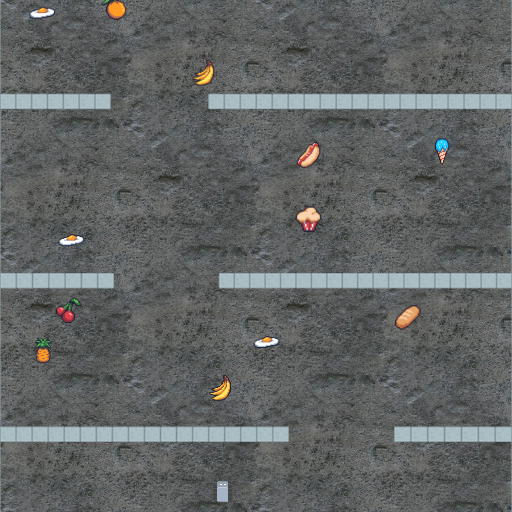

fruitbot A scrolling game where the player controls a robot that must navigate between gaps in walls and collect fruit along the way. The player receives a positive reward for collecting a piece of fruit, and a larger negative reward for mistakenly collecting a non-fruit object. Half of the spawned objects are fruit (positive reward) and half are non-fruit (negative reward). The player receives a large reward if they reach the end of the level. Occasionally the player must use a key to unlock gates which block the way.

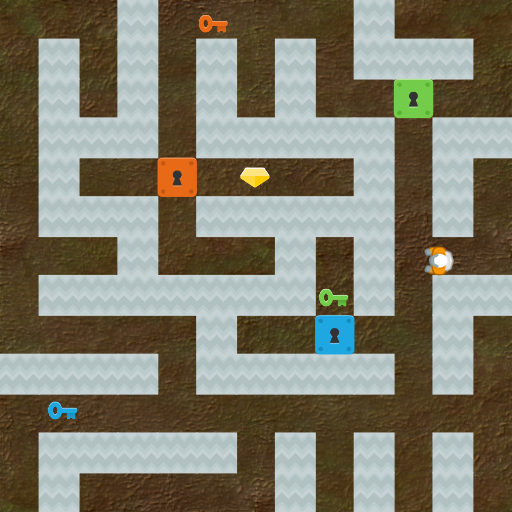

heist The player must steal the gem hidden behind a network of locks. Each lock comes in one of three colors, and the necessary keys to open these locks are scattered throughout the level. The level layout takes the form of a maze, again generated by Kruskal's algorithm. Once the player collects a key of a certain color, the player may open the lock of that color. All keys in the player's possession are shown in the top right corner of the screen.

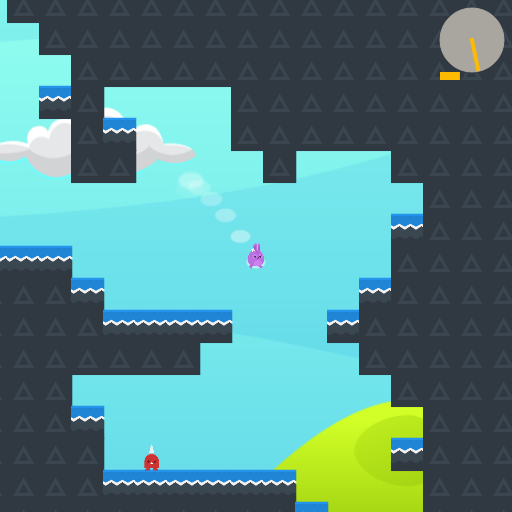

jumper A platformer with an open world layout. The player, a bunny, must navigate through the world to find the carrot. It might be necessary to ascend or descend the level to do so. The player is capable of “double jumping”, allowing it to navigate tricky layouts and reach high platforms. There are spike obstacles which will destroy the player on contact. The screen includes a compass which displays direction and distance to the carrot. The only reward in the game comes from collect the carrot, at which point the episode ends. Due to a bug that permits the player to spawn on top of critical objects (an obstacle or the goal), ~7% of levels will terminate after a single action, the vast majority of which will have 0 reward.

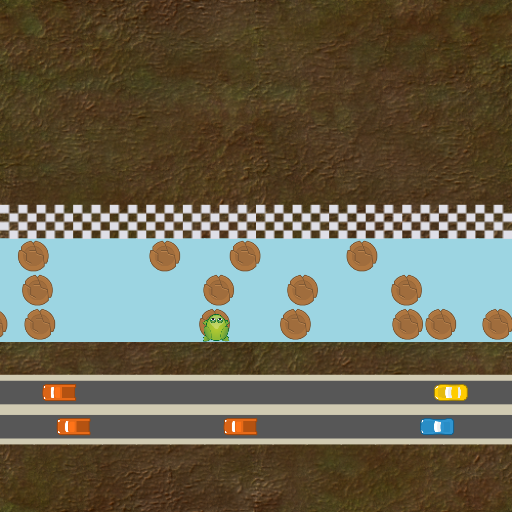

leaper Inspired by the classic game “Frogger”. The player must cross several lanes to reach the finish line and earn a reward. The first group of lanes contains cars which must be avoided. The second group of lanes contains logs on a river. The player must hop from log to log to cross the river. If the player falls in the river, the episode ends.

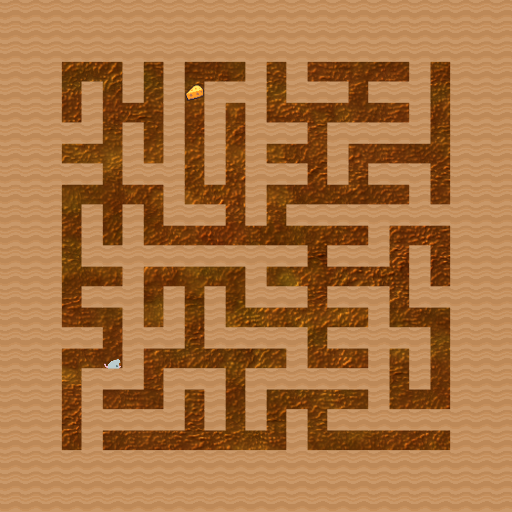

maze The player, a mouse, must navigate a maze to find the sole piece of cheese and earn a reward. Mazes are generated by Kruskal's algorithm and range in size from 3x3 to 25x25. The maze dimensions are uniformly sampled over this range. The player may move up, down, left or right to navigate the maze.

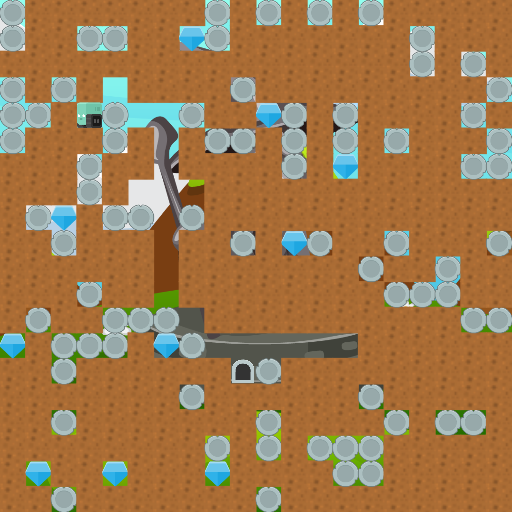

miner Inspired by the classic game “BoulderDash”. The player, a robot, can dig through dirt to move throughout the world. The world has gravity, and dirt supports boulders and diamonds. Boulders and diamonds will fall through free space and roll off each other. If a boulder or a diamond falls on the player, the game is over. The goal is to collect all the diamonds in the level and then proceed through the exit. The player receives a small reward for collecting a diamond and a larger reward for completing the level.

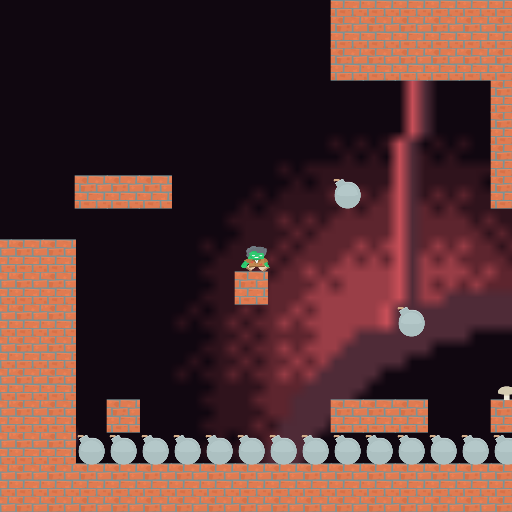

ninja A simple platformer. The player, a ninja, must jump across narrow ledges while avoiding bomb obstacles. The player can toss throwing stars at several angles in order to clear bombs, if necessary. The player's jump can be charged over several timesteps to increase its effect. The player receives a reward for collecting the mushroom at the end of the level, at which point the episode terminates.

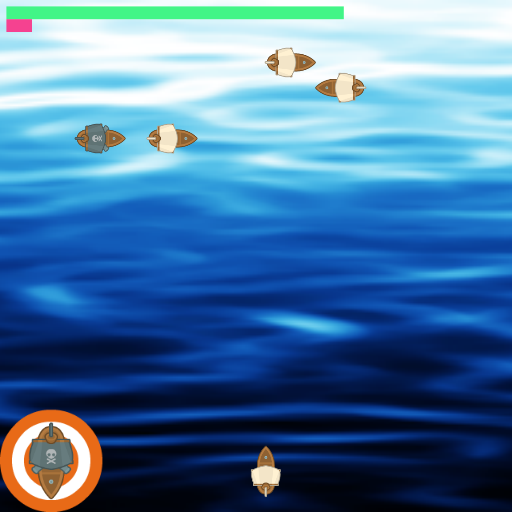

plunder The player must destroy enemy pirate ships by firing cannonballs from its own ship at the bottom of the screen. An on-screen timer slowly counts down. If this timer runs out, the episode ends. Whenever the player fires, the timer skips forward a few steps, encouraging the player to conserve ammunition. The player must take care to avoid hitting friendly ships. The player receives a positive reward for hitting an enemy ship and a large timer penalty for hitting a friendly ship. A target in the bottom left corner identifies the color of the enemy ships to target.

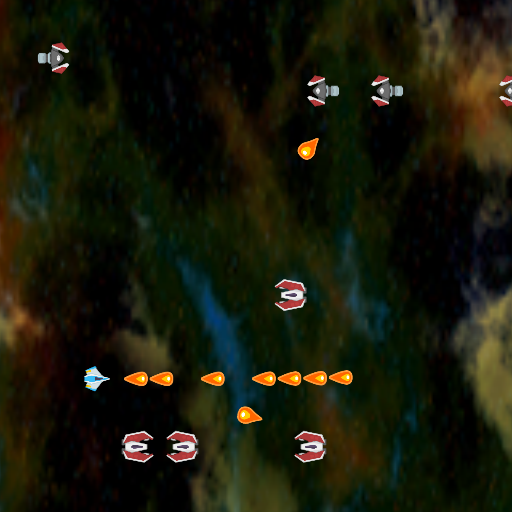

starpilot A simple side scrolling shooter game. Relatively challenging for humans to play since all enemies fire projectiles that directly target the player. An inability to dodge quickly leads to the player's demise. There are fast and slow enemies, stationary turrets with high health, clouds which obscure player vision, and impassable meteors.

## Known Issues

• bigfish - It is possible for the player to occasionally become trapped along the borders of the environment.
• caveflyer - In ~0.5% of levels, the player spawns next to an enemy and will die in a single step regardless of which action is taken.
• jumper - In ~7% of levels, the player will spawn on top of an enemy or the goal, resulting in the episode terminating after a single step regardless of which action is taken.
• miner - There is a low probability of unsolvable level configurations, with either a diamond or the exit being unreachable.

Rather than patch these issues, we plan to keep the environments in their originally released form, in order to ease the reproducibility of results that are already published.

## Environment Options

• env_name - Name of environment, or comma-separate list of environment names to instantiate as each env in the VecEnv.
• num_levels=0 - The number of unique levels that can be generated. Set to 0 to use unlimited levels.
• start_level=0 - The lowest seed that will be used to generated levels. 'start_level' and 'num_levels' fully specify the set of possible levels.
• paint_vel_info=False - Paint player velocity info in the top left corner. Only supported by certain games.
• use_generated_assets=False - Use randomly generated assets in place of human designed assets.
• debug=False - Set to True to use the debug build if building from source.
• debug_mode=0 - A useful flag that's passed through to procgen envs. Use however you want during debugging.
• center_agent=True - Determines whether observations are centered on the agent or display the full level. Override at your own risk.
• use_sequential_levels=False - When you reach the end of a level, the episode is ended and a new level is selected. If use_sequential_levels is set to True, reaching the end of a level does not end the episode, and the seed for the new level is derived from the current level seed. If you combine this with start_level=<some seed> and num_levels=1, you can have a single linear series of levels similar to a gym-retro or ALE game.
• distribution_mode="hard" - What variant of the levels to use, the options are "easy", "hard", "extreme", "memory", "exploration". All games support "easy" and "hard", while other options are game-specific. The default is "hard". Switching to "easy" will reduce the number of timesteps required to solve each game and is useful for testing or when working with limited compute resources.
• use_backgrounds=True - Normally games use human designed backgrounds, if this flag is set to False, games will use pure black backgrounds.
• restrict_themes=False - Some games select assets from multiple themes, if this flag is set to True, those games will only use a single theme.
• use_monochrome_assets=False - If set to True, games will use monochromatic rectangles instead of human designed assets. best used with restrict_themes=True.

Here's how to set the options:

import gym
env = gym.make("procgen:procgen-coinrun-v0", start_level=0, num_levels=1)


Since the gym environment is adapted from a gym3 environment, early calls to reset() are disallowed and the render() method does not do anything. To render the environment, pass render_mode="human" to the constructor, which will send render_mode="rgb_array" to the environment constructor and wrap it in a gym3.ViewerWrapper. If you just want the frames instead of the window, pass render_mode="rgb_array".

For the gym3 vectorized environment:

from procgen import ProcgenGym3Env
env = ProcgenGym3Env(num=1, env_name="coinrun", start_level=0, num_levels=1)


To render with the gym3 environment, pass render_mode="rgb_array". If you wish to view the output, use a gym3.ViewerWrapper.

If you are using the gym3 interface, you can save and load the environment state:

from procgen import ProcgenGym3Env
env = ProcgenGym3Env(num=1, env_name="coinrun", start_level=0, num_levels=1)
states = env.callmethod("get_state")
env.callmethod("set_state", states)


This returns a list of byte strings representing the state of each game in the vectorized environment.

## Notes

• You should depend on a specific version of this library (using ==) for your experiments to ensure they are reproducible. You can get the current installed version with pip show procgen.
• This library does not require or make use of GPUs.
• While the library should be thread safe, each individual environment instance should only be used from a single thread. The library is not fork safe unless you set num_threads=0. Even if you do that, Qt is not guaranteed to be fork safe, so you should probably create the environment after forking or not use fork at all.

# Install from Source

If you want to change the environments or create new ones, you should build from source. You can get miniconda from https://docs.conda.io/en/latest/miniconda.html if you don't have it, or install the dependencies from environment.yml manually. On Windows you will also need "Visual Studio 16 2019" installed.

git clone git@github.com:openai/procgen.git
cd procgen
conda env update --name procgen --file environment.yml
conda activate procgen
pip install -e .
# this should say "building procgen...done"
python -c "from procgen import ProcgenGym3Env; ProcgenGym3Env(num=1, env_name='coinrun')"
# this should create a window where you can play the coinrun environment
python -m procgen.interactive


The environment code is in C++ and is compiled into a shared library exposing the gym3.libenv C interface that is then loaded by python. The C++ code uses Qt for drawing.

# Create a new environment

Once you have installed from source, you can customize an existing environment or make a new environment of your own. If you want to create a fast C++ 2D environment, you can fork this repo and do the following:

• Copy src/games/bigfish.cpp to src/games/<name>.cpp
• Replace BigFish with <name> and "bigfish" with "<name>" in your cpp file
• Add src/games/<name>.cpp to CMakeLists.txt
• Run python -m procgen.interactive --env-name <name> to test it out

This repo includes a travis configuration that will compile your environment and build python wheels for easy installation. In order to have this build more quickly by caching the Qt compilation, you will want to configure a GCS bucket in common.py and setup service account credentials.

# Add information to the info dictionary

To export game information from the C++ game code to Python, you can define a new info_type. info_types appear in the info dict returned by the gym environment, or in get_info() from the gym3 environment.

To define a new one, add the following code to the VecGame constructor here: vecgame.cpp

{
struct libenv_tensortype s;
strcpy(s.name, "heist_key_count");
s.scalar_type = LIBENV_SCALAR_TYPE_DISCRETE;
s.dtype = LIBENV_DTYPE_INT32;
s.ndim = 0,
s.low.int32 = 0;
s.high.int32 = INT32_MAX;
info_types.push_back(s);
}


This lets the Python code know to expect a single integer and expose it in the info dict.

void observe() override {
Game::observe();
int32_t key_count = 0;
for (const auto& has_key : has_keys) {
if (has_key) {
key_count++;
}
}
*(int32_t *)(info_bufs[info_name_to_offset.at("heist_key_count")]) = key_count;
}


This populates the heist_key_count info value each time the environment is observed.

If you run the interactive script (making sure that you installed from source), the new keys should appear in the bottom left hand corner:

python -m procgen.interactive --env-name heist

# Changelog

See CHANGES for changes present in each release.

# Contributing

See CONTRIBUTING for information on contributing.

# Citation

Please cite using the following bibtex entry:

@article{cobbe2019procgen,
title={Leveraging Procedural Generation to Benchmark Reinforcement Learning},
author={Cobbe, Karl and Hesse, Christopher and Hilton, Jacob and Schulman, John},
journal={arXiv preprint arXiv:1912.01588},
year={2019}
}
