ProtSpace

PyPI version Python 3.10+ License: MIT Downloads DOI (preprint) DOI (JMB)

ProtSpace maps the embedding space of protein language models (pLMs) to reveal relationships that sequence similarity misses. This Python package prepares your data — embed sequences, project to 2D, overlay biological annotations (UniProt, InterPro, AlphaFold/TED, ML predictions), and transfer labels from the nearest neighbour in embedding space (EAT) — then bundles everything into a .parquetbundle you explore interactively at protspace.app, nothing uploaded. Similarity matrices are supported as input too.

  • Multiple projections: linear and non-linear dimensionality reduction (PCA, UMAP, t-SNE, and more)
  • Automatic annotations: UniProt, InterPro, Taxonomy, TED domains, and Biocentral predictions
  • Quality metrics (opt-in): annotation-based cluster-validity + faithfulness (local & global) via --stats
  • Annotation transfer (EAT): fill missing annotations from the nearest reference proteins in embedding space via protspace transfer
  • Structure viewer: Integrated protein structure visualization
  • Export: PNG, PDF, SVG, HTML

🌐 Try Online

ProtSpace web app: fast 2D explorer optimized for large datasets — drag & drop the .parquetbundle this package produces and it is parsed in your browser, nothing uploaded. Small FASTA files can also be dropped directly and prepared for you. Source lives in the same repo under apps/web/.

🚀 Google Colab Notebooks

Note: Use Chrome or Firefox for best experience.

  1. Generate Protein Embeddings: Open Embeddings In Colab

  2. Prepare ProtSpace Bundle: Open Preparation In Colab

  3. Transfer Annotations (EAT): Open Transfer In Colab

📦 Installation

pip install protspace

Optional extras

Extra Install Needed for
local pip install "protspace[local]" on-device embedding (--backend local) instead of the Biocentral API
similarity pip install "protspace[similarity]" MMseqs2 sequence-similarity projections (-s/--similarity)
frontend pip install "protspace[frontend]" the local Dash viewer (protspace serve)

Upgrading an existing install: -s/--similarity used to work out of the box because MMseqs2 shipped in the base install. It now lives in the similarity extra, so add pip install "protspace[similarity]" if you use that flag. Nothing else changes: the base install got smaller, and on macOS and Linux the extra installs from a prebuilt wheel rather than compiling from source.

🎯 Quick Start

1. Prepare data

# From HDF5 embeddings
protspace prepare -i embeddings.h5 -m pca2,umap2 -o output

# From FASTA (auto-embeds via Biocentral API)
protspace prepare -i sequences.fasta -e prot_t5 -m pca2 -o output

# Multi-model comparison (compare across pLMs)
protspace prepare -i sequences.fasta -e prot_t5,esm2_650m,ankh_base -m pca2,umap2 -o output

# Combine datasets (same embedding name → proteins are unioned)
protspace prepare -i species_a.h5:prot_t5 -i species_b.h5:prot_t5 -m umap2 -o output

2. Explore results

Open the generated .parquetbundle at protspace.app/explore — it is read locally in your browser.

3. Power-user workflow (individual steps)

protspace embed -i sequences.fasta -e prot_t5 -e esm2_3b -o embeddings/
protspace project -i embeddings/prot_t5.h5 -i embeddings/esm2_3b.h5 -m pca2,umap2 -o projections/
protspace annotate -i embeddings/prot_t5.h5 -a default -o annotations.parquet
protspace stats -i embeddings/prot_t5.h5 -p projections/ -o statistics.parquet   # optional: quality metrics
protspace bundle -p projections/ -a annotations.parquet -s statistics.parquet -o output.parquetbundle
protspace transfer -b output.parquetbundle -e embeddings/prot_t5.h5 -t superfamily -o transferred.parquetbundle   # optional: fill gaps via EAT

Or compute quality metrics inline during prepare with --stats (opt-in): annotation-based cluster-validity + faithfulness per projection. See the CLI Reference.

Fill missing annotation values from the nearest annotated protein in embedding space with protspace transfer — Embedding Annotation Transfer (EAT).

📊 Example Output

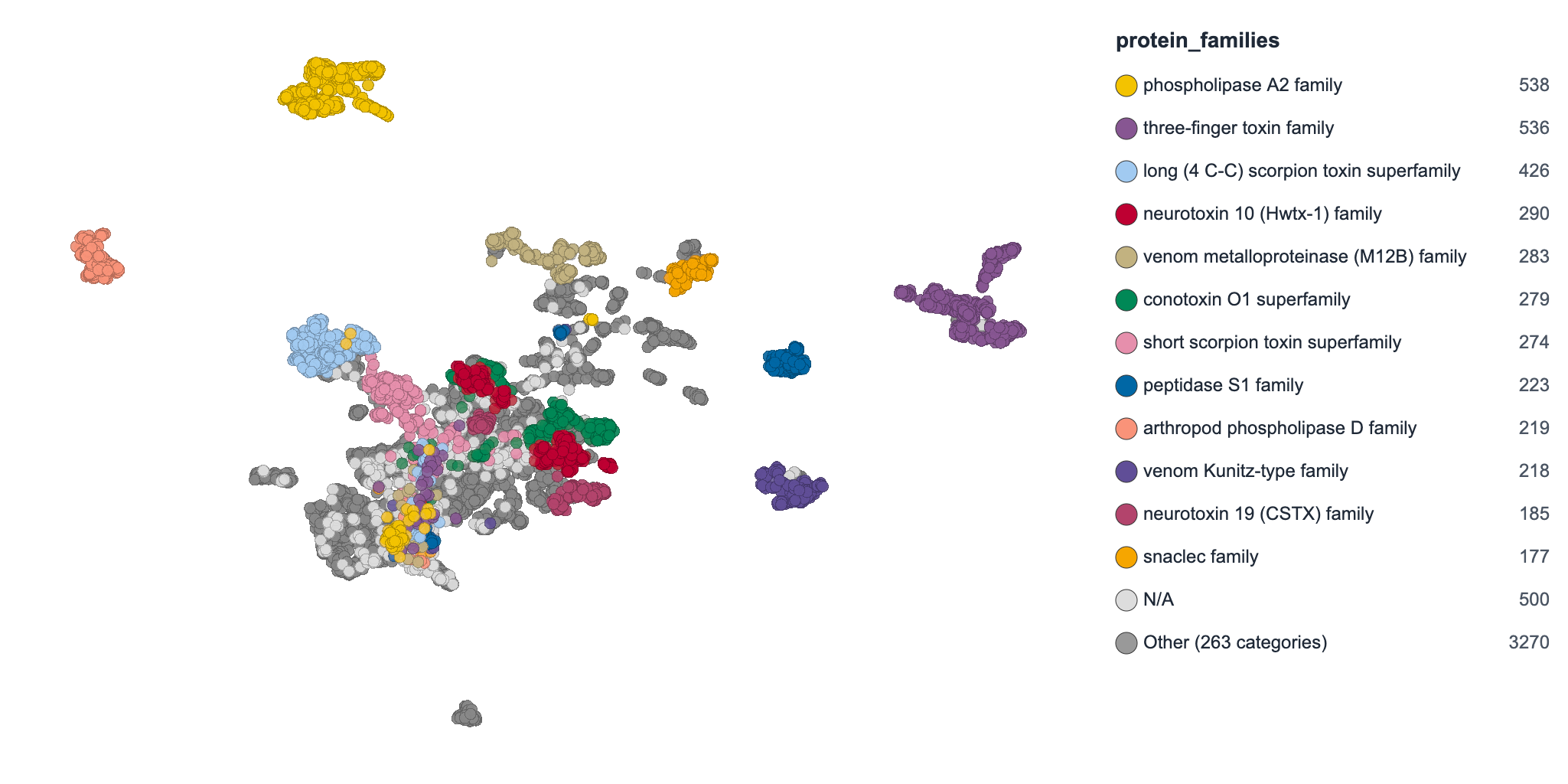

2D Example

✨ Annotations

Use -a to color-code proteins by UniProt, InterPro, Taxonomy, TED domain, and Biocentral prediction annotations. Groups (default, all, uniprot, interpro, taxonomy, ted, biocentral) and individual names can be mixed freely. If -a is omitted, the default group is used.

protspace prepare -i data.h5 -m pca2                              # default annotations
protspace prepare -i data.h5 -a default,interpro,kingdom -m pca2  # mix groups + individual

📖 Documentation

Full documentation lives at protspace.app/docs:

🧩 Where this fits

protspace is the data-preparation half of ProtSpace. It lives in the protspace monorepo alongside the web explorer:

Piece What it does
protspace (this package, apps/protspace/) Embed, project, annotate, bundle — produces .parquetbundle
Web explorer (apps/web/) Opens a .parquetbundle at protspace.app/explore

Issues and pull requests for both go to github.com/tsenoner/protspace.

📝 Citation

If you use ProtSpace, please cite the web application preprint (latest):

Senoner T, Vahidi P, Olenyi T, Senoner F, Sisman G, Kahl E, Rost B, Koludarov I. ProtSpace: Protein Universe in Your Browser. bioRxiv, 2026. doi:10.64898/2026.05.04.722720

The original, peer-reviewed ProtSpace publication:

Senoner T, Olenyi T, Heinzinger M, Spannagl A, Bouras G, Rost B, Koludarov I. ProtSpace: A Tool for Visualizing Protein Space. Journal of Molecular Biology, 437(15), 168940, 2025. doi:10.1016/j.jmb.2025.168940
