pwconn 0.6.0

Manage Pipewire connections via a TUI

pwconn -- manage Pipewire connections via TUI

pwconn serves the same basic function as qpwgraph: it allows you to view, create, and remove connections between Pipewire apps. It is a UI wrapper on the command-line utils pw-cli, pw-link, and aconnect.

It is under development and not that pretty yet, but if you want to play around with it most of the functionality is there.

Requirements:

• 'uv' for build/install (I wanted to give it a try, seems ok but jury is still out)
• alsa-tools from your Linux distribution, for the aconnect tool
• pw-utils from your Linux distribution, for the pw-cli and pw-link tools.

Build/install

The options are:

• Install latest release from PyPI: pip install pwconn
• Launch the project from the source tree with uv run pwconn
• Install from source locally
  • Build wheel with uv build
  • Optional: create and activate a virtualenv for the install
    • python3 -m venv <destination>
    • . <destination>/bin/activate
  • Install the wheel with pip install dist/pwconn-0.1.0-py3-none-any.whl
  • Launch as pwconn

Usage

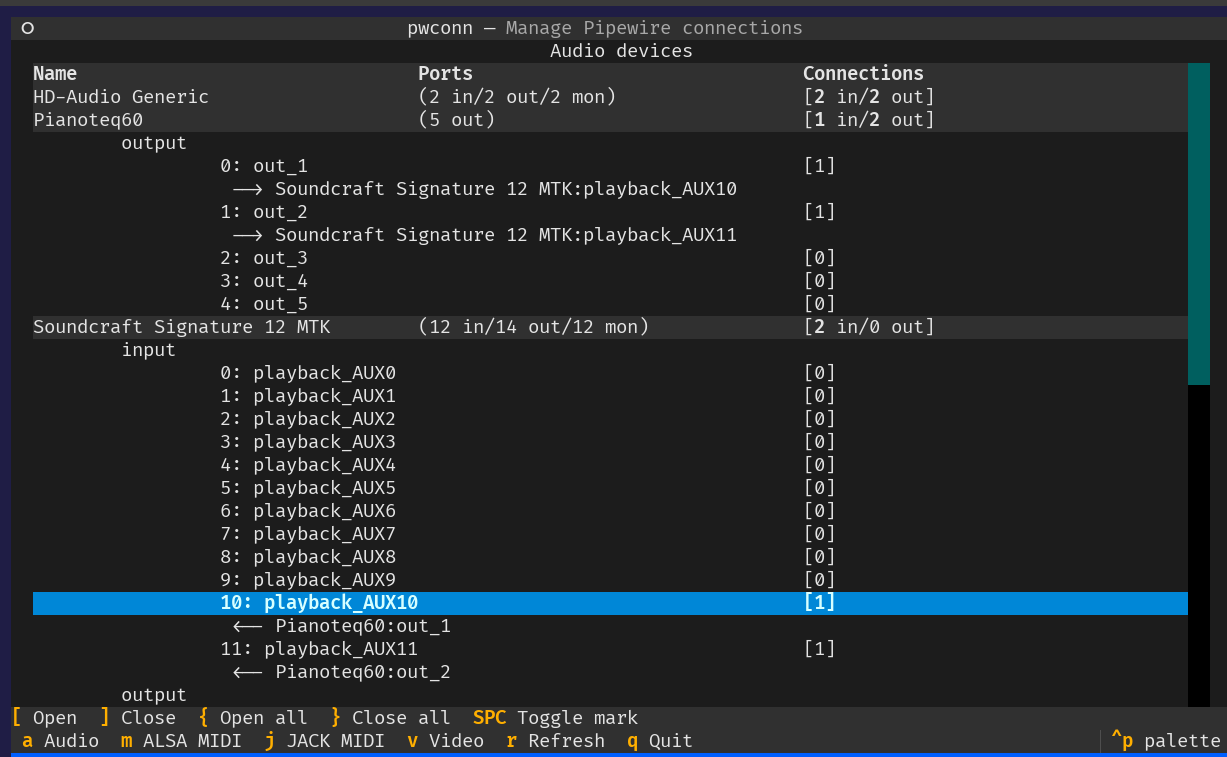

• The main UI is a list of Pipewire devices of a single kind (audio, JACK MIDI, ALSA MIDI, or video).

• Select a line in the list by up and down arrow keys or mouse click

• Keyboard commands are listed at the bottom of the screen

• The keys [, ], {, and } expand and collapse. Devices expand to show ports, and ports expand to show connections

• The keys "a", "j", "m", and "v" switch which kind of device is displayed

• When a port is selected, the space key will "mark" it.

• To make one or more connections, mark all of the connection endpoints and press "c". If there are multiple ins and outs selected it will make a reasonable choice of connections which is generally OK. If not, make the connections one at a time.

• To disconnect, select a link (from either "end") and type "d"

• If a "connect" or "disconnect" action does not appear to do anything, this is probably an error in the underlying operation that isn't reflected in the UI. In particular, ALSA MIDI connections may not be deleteable by a process that did not create them.
