Project description

py-netty :rocket:

An event-driven TCP networking framework.

Ideas and concepts under the hood are build upon those of Netty, especially the IO and executor model.

APIs are intuitive to use if you are a Netty alcoholic.

Features

callback based application invocation
non blocking IO
recv/write is performed only in IO thread
adaptive read buffer
low/higher water mark to indicate writability (default low water mark is 32K and high water mark is 64K)
all platform supported (linux: epoll, mac: kqueue, windows: select)

Installation

pip install py-netty

Getting Started

Start an echo server:

from py_netty import ServerBootstrap
ServerBootstrap().bind(address='0.0.0.0', port=8080).close_future().sync()

Start an echo server (TLS):

from py_netty import ServerBootstrap
ServerBootstrap(certfile='/path/to/cert/file', keyfile='/path/to/cert/file').bind(address='0.0.0.0', port=9443).close_future().sync()

As TCP client:

from py_netty import Bootstrap, ChannelHandlerAdapter


class HttpHandler(ChannelHandlerAdapter):
    def channel_read(self, ctx, buffer):
        print(buffer.decode('utf-8'))


remote_address, remote_port = 'www.google.com', 80
b = Bootstrap(handler_initializer=HttpHandler)
channel = b.connect(remote_address, remote_port).sync().channel()
request = f'GET / HTTP/1.1\r\nHost: {remote_address}\r\n\r\n'
channel.write(request.encode('utf-8'))
input() # pause
channel.close()

As TCP client (TLS):

from py_netty import Bootstrap, ChannelHandlerAdapter


class HttpHandler(ChannelHandlerAdapter):
    def channel_read(self, ctx, buffer):
        print(buffer.decode('utf-8'))


remote_address, remote_port = 'www.google.com', 443
b = Bootstrap(handler_initializer=HttpHandler, tls=True, verify=True)
channel = b.connect(remote_address, remote_port).sync().channel()
request = f'GET / HTTP/1.1\r\nHost: {remote_address}\r\n\r\n'
channel.write(request.encode('utf-8'))
input() # pause
channel.close()

TCP port forwarding:

from py_netty import ServerBootstrap, Bootstrap, ChannelHandlerAdapter, EventLoopGroup


class ProxyChannelHandler(ChannelHandlerAdapter):

    def __init__(self, remote_host, remote_port, client_eventloop_group):
        self._remote_host = remote_host
        self._remote_port = remote_port
        self._client_eventloop_group = client_eventloop_group
        self._client = None

    def _client_channel(self, ctx0):

        class __ChannelHandler(ChannelHandlerAdapter):
            def channel_read(self, ctx, bytebuf):
                ctx0.write(bytebuf)

            def channel_inactive(self, ctx):
                ctx0.close()

        if self._client is None:
            self._client = Bootstrap(
                eventloop_group=self._client_eventloop_group,
                handler_initializer=__ChannelHandler
            ).connect(self._remote_host, self._remote_port).sync().channel()
        return self._client

    def exception_caught(self, ctx, exception):
        ctx.close()

    def channel_read(self, ctx, bytebuf):
        self._client_channel(ctx).write(bytebuf)

    def channel_inactive(self, ctx):
        if self._client:
            self._client.close()


proxied_server, proxied_port = 'www.google.com', 443
client_eventloop_group = EventLoopGroup(1, 'ClientEventloopGroup')
sb = ServerBootstrap(
    parant_group=EventLoopGroup(1, 'Acceptor'),
    child_group=EventLoopGroup(1, 'Worker'),
    child_handler_initializer=lambda: ProxyChannelHandler(proxied_server, proxied_port, client_eventloop_group)
)
sb.bind(port=8443).close_future().sync()

Event-driven callbacks

Create handler with callbacks for interested events:

from py_netty import ChannelHandlerAdapter


class MyChannelHandler(ChannelHandlerAdapter):
    def channel_active(self, ctx: 'ChannelHandlerContext') -> None:
        # invoked when channel is active (TCP connection ready)
        pass

    def channel_read(self, ctx: 'ChannelHandlerContext', msg: Union[bytes, socket.socket]) -> None:
        # invoked when there is data ready to process
        pass

    def channel_inactive(self, ctx: 'ChannelHandlerContext') -> None:
        # invoked when channel is inactive (TCP connection is broken)
        pass

    def channel_registered(self, ctx: 'ChannelHandlerContext') -> None:
        # invoked when the channel is registered with a eventloop
        pass

    def channel_unregistered(self, ctx: 'ChannelHandlerContext') -> None:
        # invoked when the channel is unregistered from a eventloop
        pass

    def channel_handshake_complete(self, ctx: 'ChannelHandlerContext') -> None:
        # invoked when ssl handshake is complete, this only applies to client side
        pass

    def channel_writability_changed(self, ctx: 'ChannelHandlerContext') -> None:
        # invoked when pending data > high water mark or < low water mark
        pass

    def exception_caught(self, ctx: 'ChannelHandlerContext', exception: Exception) -> None:
        # invoked when there is any exception raised during process
        pass

Benchmark

Test is performed using echo client/server mechanism on a 1-Core 2.0GHz Intel(R) Xeon(R) Platinum 8452Y with 4GB memory, Ubuntu 22.04. (Please see bm_echo_server.py for details.)

3 methods are tested:

BIO (Traditional thread based blocking IO)
Asyncio (Python built-in async IO)
NIO (py-netty with 1 eventloop)

3 metrics are collected:

Throughput (of each connection) to indicate overall stability
Average throughput (of all connections) to indicate overall performance

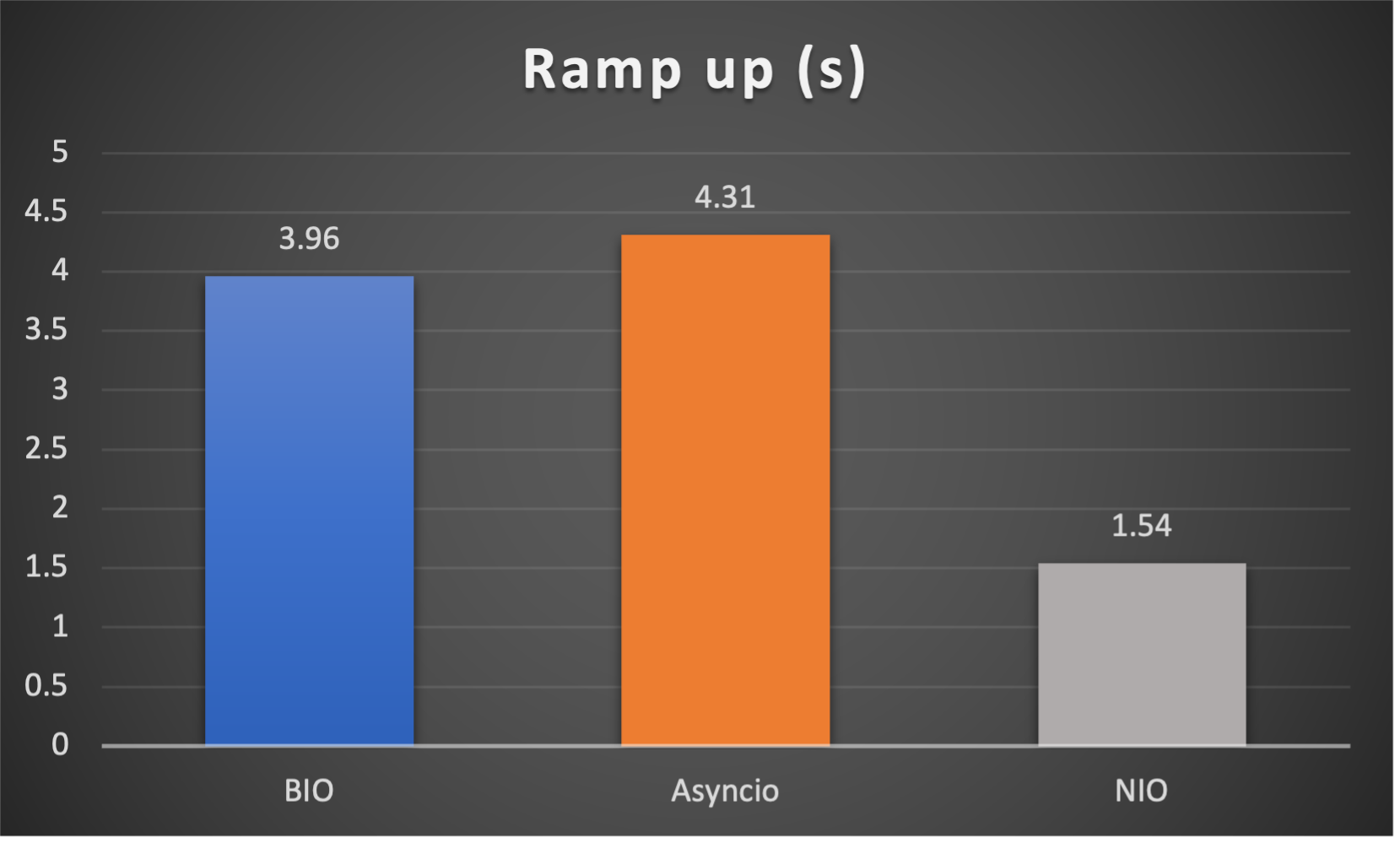

Ramp up time (seconds consumed after all connections established) to indicate responsiveness
