pyEllipse 0.1.3

Tools for creating and analyzing confidence ellipses, including Hotelling's T-squared ellipses for multivariate statistical analysis and data visualization.

pyEllipse

A Python package for computing Hotelling's T² statistics and generating confidence ellipse/ellipsoid coordinates for multivariate data analysis and visualization.

Overview

pyEllipse provides three main functions for analyzing multivariate data:

1. hotelling_parameters - Calculate Hotelling's T² statistics and ellipse parameters
2. hotelling_coordinates - Generate Hotelling's ellipse/ellipsoid coordinates from PCA/PLS scores
3. confidence_ellipse - Compute confidence ellipse/ellipsoid coordinates from raw data with grouping support

Installation

pip install pyEllipse

Usage Examples

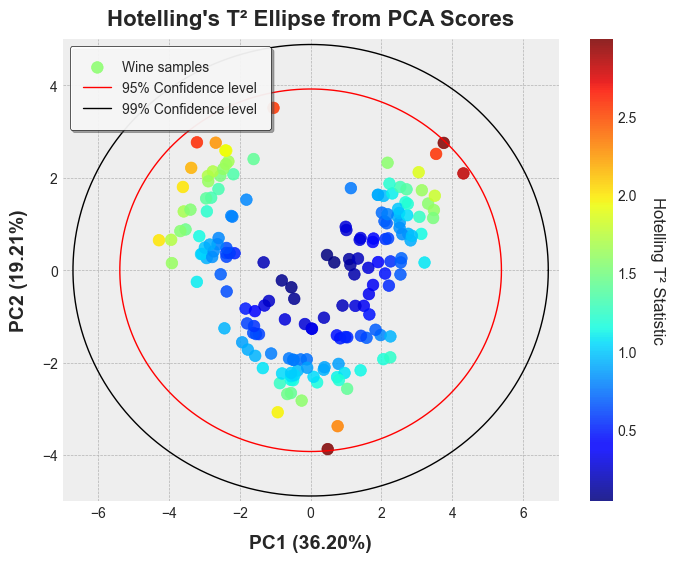

Example 1: Hotelling's T² statistic and confidence ellipse from PCA Scores

import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
from mpl_toolkits.mplot3d import Axes3D
from sklearn.preprocessing import StandardScaler
from sklearn.decomposition import PCA
from pathlib import Path
from pyEllipse import hotelling_parameters, hotelling_coordinates, confidence_ellipse

def load_wine_data():
    """Load wine dataset and add cultivar labels"""
    wine_df = pd.read_csv('data/wine.csv')

    # Add cultivar labels based on standard Wine dataset structure
    cultivar = []
    for i in range(len(wine_df)):
        if i < 59:
            cultivar.append('Cultivar 1')
        elif i < 130:
            cultivar.append('Cultivar 2')
        else:
            cultivar.append('Cultivar 3')

    wine_df['Cultivar'] = cultivar
    return wine_df

wine_df = load_wine_data()
X = wine_df.drop('Cultivar', axis=1)
y = wine_df['Cultivar']

# Perform PCA
pca = PCA()
SS = StandardScaler()
X = SS.fit_transform(X)
pca_scores = pca.fit_transform(X)
explained_var = pca.explained_variance_ratio_

plt.style.use('bmh')
# Calculate T² statistics
results = hotelling_parameters(pca_scores, k=2)
t2 = results['Tsquared'].values

# Generate ellipse coordinates for plotting
ellipse_95 = hotelling_coordinates(pca_scores, pcx=1, pcy=2, conf_limit=0.95)
ellipse_99 = hotelling_coordinates(pca_scores, pcx=1, pcy=2, conf_limit=0.99)

# Plot the PCA scores with Hotelling's T² ellipse
plt.figure(figsize=(8, 6))
scatter = plt.scatter(
    pca_scores[:, 0], pca_scores[:, 1],
    c=t2, cmap='jet', alpha=0.85, s=70, label='Wine samples'
    )
cbar = plt.colorbar(scatter)
cbar.set_label('Hotelling T² Statistic', rotation=270, labelpad=20)

plt.plot(ellipse_95['x'], ellipse_95['y'], 'r-', linewidth=1, label='95% Confidence level')
plt.plot(ellipse_99['x'], ellipse_99['y'], 'k-', linewidth=1, label='99% Confidence level')
plt.xlim(-1000, 1000)
plt.ylim(-50, 60)
plt.xlabel(f'PC1 ({explained_var[0]*100:.2f}%)', fontsize=14, labelpad=10, fontweight='bold')
plt.ylabel(f'PC2 ({explained_var[1]*100:.2f}%)', fontsize=14, labelpad=10, fontweight='bold')
plt.title("Hotelling's T² Ellipse from PCA Scores", fontsize=16, pad=10, fontweight='bold')
plt.legend(
    loc='upper left', fontsize=10, frameon=True, framealpha=0.9,
    edgecolor='black', shadow=True, facecolor='white', borderpad=1
    )
plt.show()

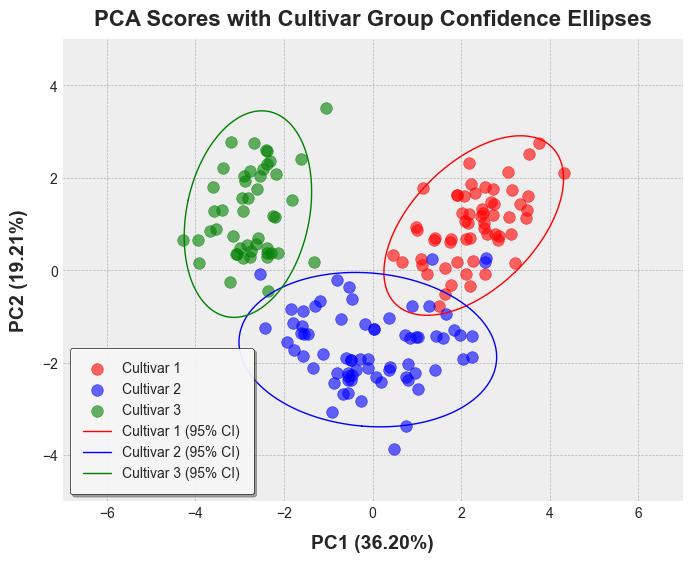

Example 2: Grouped Confidence Ellipses

wine_df['PC1'] = pca_scores[:, 0]
wine_df['PC2'] = pca_scores[:, 1]

colors = ['red', 'blue', 'green']
cultivars = wine_df['Cultivar'].unique()
color_map = {cultivar: color for cultivar, color in zip(cultivars, colors)}
point_colors = wine_df['Cultivar'].map(color_map)

# Plott PCA scores with confidence ellipses for each cultivar
plt.figure(figsize=(8, 6))

for i, cultivar in enumerate(cultivars):
    mask = wine_df['Cultivar'] == cultivar
    plt.scatter(
        wine_df.loc[mask, 'PC1'], wine_df.loc[mask, 'PC2'], # type: ignore
        c=colors[i], alpha=0.6, s=70, label=cultivar
        )

ellipse_coords = confidence_ellipse(
    data=wine_df,
    x='PC1',
    y='PC2',
    group_by='Cultivar',
    conf_level=0.95,
    robust=True,
    distribution='hotelling'
)

for i, cultivar in enumerate(cultivars):
    ellipse_data = ellipse_coords[ellipse_coords['Cultivar'] == cultivar]
    plt.plot(
        ellipse_data['x'], ellipse_data['y'],
        color=colors[i], linewidth=1, linestyle='-', label=f'{cultivar} (95% CI)'
        )

plt.xlim(-1000, 1000)
plt.ylim(-50, 60)
plt.xlabel(f'PC1 ({explained_var[0]*100:.2f}%)', fontsize=14, labelpad=10, fontweight='bold')
plt.ylabel(f'PC2 ({explained_var[1]*100:.2f}%)', fontsize=14, labelpad=10, fontweight='bold')
plt.title("PCA Scores with Cultivar Group Confidence Ellipses", fontsize=16, pad=10, fontweight='bold')
plt.legend(
    loc='upper left', fontsize=10, frameon=True, framealpha=0.9,
    edgecolor='black', shadow=True, facecolor='white', borderpad=1
    )
plt.show()

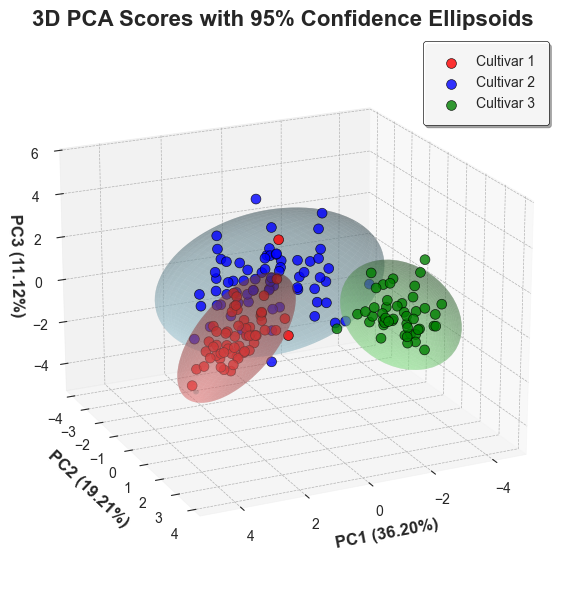

Example 3: Grouped 3D Confidence Ellipsoids

wine_df['PC1'] = pca_scores[:, 0]
wine_df['PC2'] = pca_scores[:, 1]
wine_df['PC3'] = pca_scores[:, 2]

colors = ['red', 'blue', 'green']
light_colors = ['lightcoral', 'lightblue', 'lightgreen']
cultivars = wine_df['Cultivar'].unique()

ellipse_coords = confidence_ellipse(
    data=wine_df,
    x='PC1',
    y='PC2',
    z='PC3',
    group_by='Cultivar',
    conf_level=0.95,
    robust=True,
    distribution='hotelling'
)

fig = plt.figure(figsize=(10, 6), facecolor='white')
ax = fig.add_subplot(111, projection='3d', facecolor='white')

for i, cultivar in enumerate(cultivars):
    mask = wine_df['Cultivar'] == cultivar
    ax.scatter(
        wine_df.loc[mask, 'PC1'],
        wine_df.loc[mask, 'PC2'],
        wine_df.loc[mask, 'PC3'], # type: ignore
        c=colors[i],
        alpha=0.8,
        s=50,
        label=cultivar,
        edgecolors='black',
        linewidth=0.5
        )

    ellipse_data = ellipse_coords[ellipse_coords['Cultivar'] == cultivar]
    n_points = int(np.sqrt(len(ellipse_data)))

    x_2d = ellipse_data['x'].values.reshape(n_points, -1)
    y_2d = ellipse_data['y'].values.reshape(n_points, -1)
    z_2d = ellipse_data['z'].values.reshape(n_points, -1)

    ax.plot_surface(
        x_2d,
        y_2d,
        z_2d,
        color=light_colors[i],
        alpha=0.4,
        linewidth=0,
        antialiased=True
        )

ax.set_xlabel(f'PC1 ({explained_var[0]*100:.2f}%)', fontsize=12, labelpad=5, fontweight='bold')
ax.set_ylabel(f'PC2 ({explained_var[1]*100:.2f}%)', fontsize=12, labelpad=5, fontweight='bold')
ax.set_zlabel(f'PC3 ({explained_var[2]*100:.2f}%)', fontsize=12, labelpad=1, fontweight='bold')
ax.set_title('3D PCA Scores with 95% Confidence Ellipsoids', fontsize=16, fontweight='bold')
ax.legend(
    loc='upper right', fontsize=10, frameon=True, framealpha=0.9,
    edgecolor='black', shadow=True, facecolor='white', borderpad=1
    )
ax.grid(True, alpha=0.3, color='gray')
ax.view_init(elev=20, azim=65)
plt.tight_layout()
plt.show()

Key Differences Between Functions

Feature	hotelling_parameters	hotelling_coordinates	confidence_ellipse
Input	Component scores	Component scores	Raw data
Purpose	T² statistics	Plot coordinates	Plot coordinates
Grouping	--	--	Yes
Robust	--	--	Yes
2D/3D	2D only for ellipse params	Both	Both
Distribution	Hotelling only	Hotelling only	Normal or Hotelling
Use Case	Outlier detection, QC	Visualizing PCA	Exploratory data analysis

When to Use Each Function

Use hotelling_parameters when:

• You need T² statistics for outlier detection
• You want confidence cutoff values
• You're performing quality control or process monitoring
• You need ellipse parameters (semi-axes lengths)

Use hotelling_coordinates when:

• You have PCA/PLS component scores
• You want to visualize confidence regions on score plots
• You need precise control over which components to plot
• You're creating publication-quality figures from multivariate models

Use confidence_ellipse when:

• You're working with raw data (not scores)
• You need to compare multiple groups
• You want robust estimation for outlier-resistant analysis
• You need flexibility in distribution choice (normal vs Hotelling)

References

1. Hotelling, H. (1931). The generalization of Student's ratio. Annals of Mathematical Statistics, 2(3), 360-378.
2. Brereton, R. G. (2016). Hotelling's T-squared distribution, its relationship to the F distribution and its use in multivariate space. Journal of Chemometrics, 30(1), 18-21.
3. Raymaekers, J., & Rousseeuw, P. J. (2019). Fast robust correlation for high dimensional data. Technometrics, 63(2), 184-198.
4. Jackson, J. E. (1991). A User's Guide to Principal Components. Wiley.
