Simplifies driver development for Amazon's IOT-Core service

Project description

pyIOT

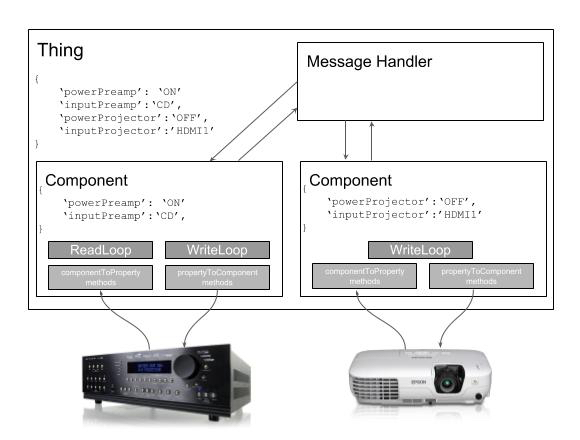

pyIOT Diagram

A python module to simplify writing device drivers for the Amazon AWS IOT service

pyIOT abstracts the AWS IOT-Core service handling all of the communications between it and our device. To implement a pyIOT application, you only need to specify how to convert from the protocol of your device into the properties that you want to expose to IOT-Core and vice-versa. This enables IOT-Core applications to be written in a handful of lines of code.

Here's an example pyIOT application for a simple relay...

import serial
import pyIOT

class Relay(Component):
  @Component.componentToProperty('relayState', '^RELAY(ON|OFF)$')
  def toRelayState(self, property, value):
      val = { 'ON': True, 'OFF': False }.get(value)
      if val: return val
      raise ValueError('{0} is not a valid value for property {1}'.format(value, property))

  @Component.propertyToComponent('relayState', 'RELAY{0}')
  def fromRelayState(self, value):
      val = { True: 'ON', False: 'OFF' }.get(value)
      if val: return val
      raise ValueError('{0} is not a valid relayState'.format(value))

  def queryStatus(self):
    return 'RELAY?\n'

try:
  ser = serial.Serial('/dev/ttyUSB0',9600, timeout=0.5)
  relayComponent = Relay(name = 'RelayComponent1', stream = ser, synchronous=True)

  relayThing = Thing(endpoint='<your endpoint>', thingName='relayOne', rootCAPath='root-CA.crt', certificatePath='relayOne.crt',
    privateKeyPath='relayOne.private.key', region='us-east-1', components=relayComponent)
  relayThing.start()
except KeyboardInterrupt:
  relayComponent.exit()

Features

  • Handles all communications between AWS IOT-Core and your device
  • Optionally allows several components to be combined into a single IOT device
  • Supports synchronous and asynchronous components
  • Easily interfaces with serial and network driven components
  • Allows custom communication methods including GPIO driven applications

Documentation

For more details on pyIOT and its usage, please consult the documenation at https://pyiot.readthedocs.io

Project details


Release history Release notifications

Download files

Download the file for your platform. If you're not sure which to choose, learn more about installing packages.

Files for pyIOT, version 0.1.1
Filename, size & hash File type Python version Upload date
pyIOT-0.1.1-py3-none-any.whl (18.7 kB) View hashes Wheel py3
