A real-time task space capacity calculation module for robotic manipulators and human musculoskeletal models

## Project description

# An efficient task-space capacity calculation package for robotics and biomechanics

📢 New version of the pycapacity package is out - version v2.1! - see full changelog

## About

## What is `pycapacity`

?

Python package `pycapacity`

provides a set of tools for evaluating task space physical ability metrics for humans and robots, based on polytopes and ellipsoids.
The aim of `pycapacity`

is to provide a set of efficient tools for their evaluation in an easy to use framework that can be easily integrated with standard robotics
and biomechanics libraries. The package implements several state of the art algorithms for polytope evaluation that bring many of the
polytope metrics to the few milliseconds evaluation time, making it possible to use them in online and interactive applications.

The package can be easily interfaced with standard libraries for robotic manipulator rigid body simulation such as `robotic-toolbox`

or `pinocchio`

, as well as human musculoskeletal model biomechanics
softwares `opensim`

and `biorbd`

. The package can also be used with the Robot Operating System (`ROS`

).

The package additionally implements a set of visualization tools for polytopes and ellipsoids based on the
Python package `matplotlib`

intended for fast prototyping and quick and interactive visualization.

See full API documentation and docs.

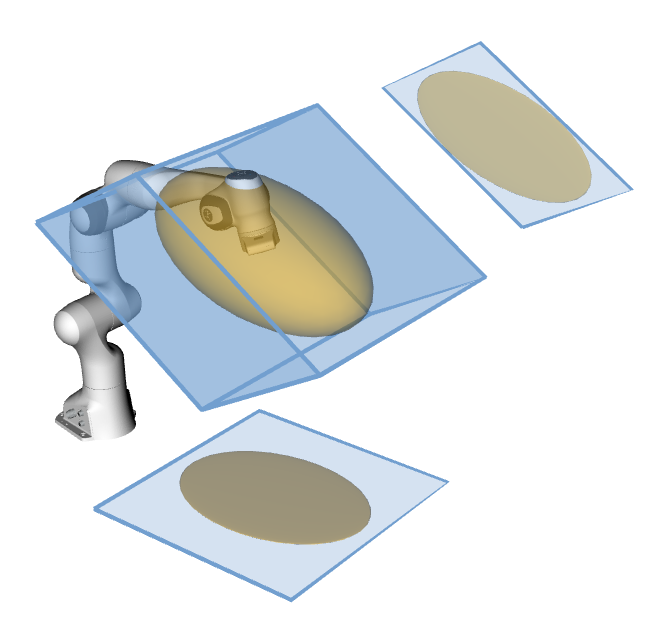

## Robotic manipulator capacity metrics

For the robotic manipulators the package integrates several velocity, force and acceleration capacity calculation functions based on ellipsoids:

- Velocity (manipulability) ellipsoid

`E_vel = {dx | dx = J.dq, ||dq||<1 }`

- Acceleration (dynamic manipulability) ellipsoid

`E_acc = {ddx | ddx = J.M^(-1).t, ||t||<1 }`

- Force ellipsoid

`E_for = {f | J^T.f = t, ||t||<1 }`

And polytopes:

- Velocity polytope

`P_vel = {dx | dx = J.dq, dq_min < dq < dq_max}`

- Acceleration polytope

`P_acc = {ddx | ddx = J.M^(-1).t, t_min < t < t_max}`

- Force polytope

`P_for = {f | J^T.f = t, t_min < t < t_max}`

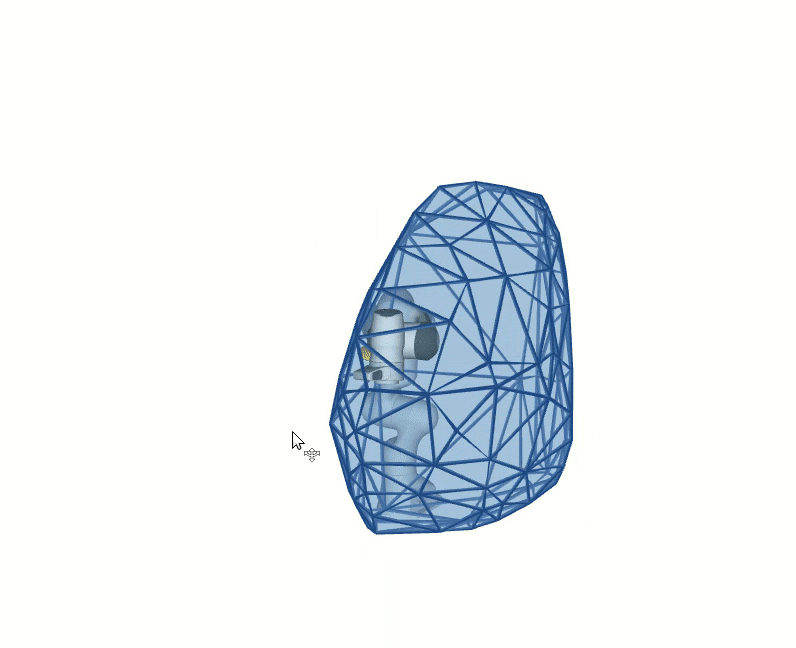

**NEW**📢: Reachable space of the robot with the horizon`T`

`P_x = {x | x = JM(-1)tT^2/2, t_min < t < t_max, dq_min < M^(-1)tT < dq_max, q_min < M^(-1)tT^2/2 < q_max}`

- Force polytopes
*Minkowski sum and intersection*

Where `J`

is the robot jacobian matrix, `f`

is the vector of cartesian forces,`dx`

and `ddx`

are vectors fo cartesian velocities and accretions, `dq`

is the vector of the joint velocities and `t`

is the vector of joint torques.

Reachable space polytope approximation is based on this paper:

**Approximating robot reachable space using convex polytopes**

by Skuric, Antun, Vincent Padois, and David Daney.

In: Human-Friendly Robotics 2022: HFR: 15th International Workshop on Human-Friendly Robotics. Cham: Springer International Publishing, 2023.

The force polytope functions have been implemented according to the paper:

**On-line force capability evaluation based on efficient polytope vertex search**

by A.Skuric, V.Padois and D.Daney

Published on ICRA2021

The force polytope functions have been implemented according to the paper:

**On-line force capability evaluation based on efficient polytope vertex search**

by A.Skuric, V.Padois and D.Daney

Published on ICRA2021

And the velocity and acceleration polytopes are resolved using the *Hyper-plane shifting method*:

**Characterization of Parallel Manipulator Available Wrench Set Facets**

by Gouttefarde M., Krut S.

In: Lenarcic J., Stanisic M. (eds) Advances in Robot Kinematics: Motion in Man and Machine. Springer, Dordrecht (2010)

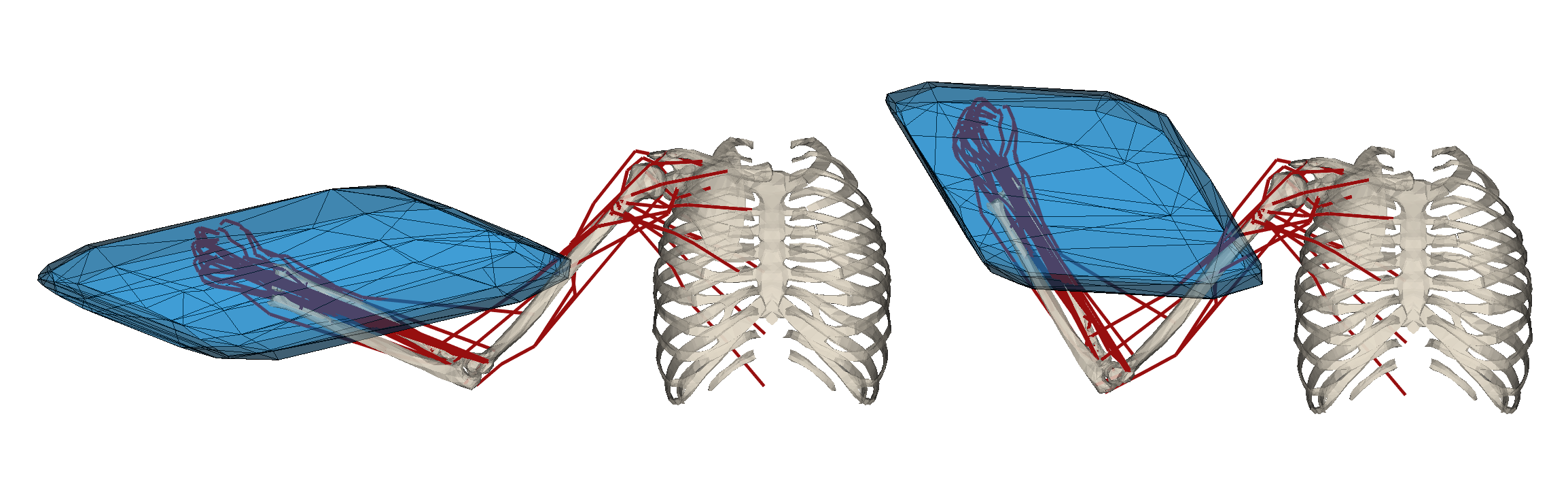

## Human musculoskeletal models capacity metrics

For the human musculoskeletal models this package implements the ellipsoid and polytope evaluation functions. The implemented ellipsoids are:

- Velocity (manipulability) ellipsoid

`E_vel = {dx | dx = J.dq, dl = L.dq, ||dl||<1 }`

- Acceleration (dynamic manipulability) ellipsoid

`E_acc = {ddx | ddx = J.M^(-1).N.F, ||F||<1 }`

- Force ellipsoid

`E_for = {f | J^T.f = N.F, ||F||<1 }`

And polytopes:

- Velocity polytope

`P_vel = {dx | dx = J.dq, dl = L.dq dl_min < dl < dl_max}`

- Acceleration polytope

`P_acc = {ddx | ddx = J.M^(-1).N.F, F_min < F < F_max}`

- Force polytope

`P_for = {f | J^T.f = N.F, F_min < F < F_max}`

Where `J`

is the model's jacobian matrix, `L`

si the muscle length jacobian matrix, `N= -L^T`

is the moment arm matrix, `f`

is the vector of cartesian forces,`dx`

and `ddx`

are vectors fo cartesian velocities and accretions, `dq`

is the vector of the joint velocities, `t`

is the vector of joint torques, `dl`

is the vector of the muscle stretching velocities and `F`

is the vector of muscular forces.

The force and velocity polytope functions have been implemented according to the paper:

**On-line feasible wrench polytope evaluation based on human musculoskeletal models: an iterative convex hull method**

by A.Skuric, V.Padois, N.Rezzoug and D.Daney

Submitted to RAL & ICRA2022

And the acceleration polytopes are resolved using the *Hyper-plane shifting method*:

**Characterization of Parallel Manipulator Available Wrench Set Facets**

by Gouttefarde M., Krut S.

In: Lenarcic J., Stanisic M. (eds) Advances in Robot Kinematics: Motion in Man and Machine. Springer, Dordrecht (2010)

## Polytope evaluation algorithms

There are three methods implemented in this paper to resolve all the polytope calculations:

- Hyper-plane shifting method (HPSM)
- Iterative convex hull method (ICHM)
- Vertex enumeration algorithm (VEPOLI2)

All of the methods are implemented in the module `pycapacity.algorithms`

and can be used as standalone functions. See in docs for more info.

### Hyper-plane shifting method (HPSM)

**Characterization of Parallel Manipulator Available Wrench Set Facets**

by Gouttefarde M., Krut S.

In: Lenarcic J., Stanisic M. (eds) Advances in Robot Kinematics: Motion in Man and Machine. Springer, Dordrecht (2010)

This method finds the half-space representation of the polytope of a class:

```
P = {x | x = By, y_min <= y <= y_max }
```

To find the vertices of the polytope after finding the half-space representation `Hx <= d`

an convex-hull algorithm is used.

The method is a part of the `pycapacity.algorithms`

module `hyper_plane_shift_method`

, See in docs for more info.

### Iterative convex-hull method (ICHM)

**On-line feasible wrench polytope evaluation based on human musculoskeletal models: an iterative convex hull method**

by A.Skuric, V.Padois, N.Rezzoug and D.Daney

Submitted to RAL & ICRA2022

This method finds both vertex and half-space representation of the class of polytopes:

```
P = {x | Ax = By, y_min <= y <= y_max }
```

And it can be additionally extended to the case where there is an additional projection matrix `P`

making a class of problems:

```
P = {x | x= Pz, Az = By, y_min <= y <= y_max }
```

The method is a part of the `pycapacity.algorithms`

module `iterative_convex_hull_method`

. See the docs for more info

### Vertex enumeration algorithm (VEPOLI2)

**On-line force capability evaluation based on efficient polytope vertex search**

by A.Skuric, V.Padois and D.Daney

Published on ICRA2021

This method finds vertex representation of the class of polytopes:

```
P = {x | Ax = y, y_min <= y <= y_max }
```

To find the half-space representation (faces) of the polytope after finding the vertex representation an convex-hull algorithm is used.

The method is a part of the `pycapacity.algorithms`

module `vertex_enumeration_vepoli2`

. See the docs for more info

## Installation

All you need to do to install it is:

```
pip install pycapacity
```

And include it to your python project

```
import pycapacity.robot
# and/or
import pycapacity.human
#and/or
import pycapacity.algorithms
#and/or
import pycapacity.visual
```

Other way to install the code is by installing it directly from the git repo:

```
pip install git+https://github.com/auctus-team/pycapacity.git
```

## Package API docs

See full docs at the link

### Modules

### Functions

Robot metrics

`robot.acceleration_ellipsoid`

: acceleration ellipsoid calculation (dynamic manipulability ellipsoid)`robot.acceleration_polytope`

: Acceleration polytope calculating function`robot.force_ellipsoid`

: force manipulability ellipsoid calculation`robot.force_polytope`

: Force polytope representing the capacities of the two robots in a certain configuration`robot.force_polytope_intersection`

: Force polytope representing the intersection of the capacities of the two robots in certain configurations.`robot.force_polytope_sum`

: Force polytope representing the minkowski sum of the capacities of the two robots in certain configurations.`robot.velocity_ellipsoid`

: velocity manipulability ellipsoid calculation`robot.velocity_polytope`

: Velocity polytope calculating function

Human metrics

`human.acceleration_polytope`

: A function calculating the polytopes of achievable accelerations`human.force_polytope`

: A function calculating the polytopes of achievable foreces based`human.joint_torques_polytope`

: A function calculating the polytopes of achievable joint torques`human.torque_to_muscle_force`

: A function calculating muscle forces needed to create the joint torques tau`human.velocity_polytope`

: A function calculating the polytopes of achievable velocity based

Algorithms

`algorithms.hyper_plane_shift_method`

: Hyper plane shifting method implementation used to solve problems of a form:`algorithms.iterative_convex_hull_method`

: A function calculating the polytopes of achievable x for equations form:`algorithms.vertex_enumeration_vepoli2`

: Efficient vertex enumeration algorithm for a problem of a form:

Visualisation tools

`visual.plot_polytope`

: Polytope faces plotting function in 2d and 3d`visual.plot_ellipsoid`

: Polytope faces plotting function in 2d and 3d`visual.plot_polytope_faces`

: Polytope faces plotting function in 2d and 3d`visual.plot_polytope_vertex`

: Polytope vertices plotting function in 2d and 3d

## Code examples

See `demo_notebook.ipynb`

for more examples of how ot use the module.

### Randomised serial robot example

```
"""
A simple example program for 3d force polytope
evaluation of a randomised 6dof robot
"""
import pycapacity.robot as capacity # robot capacity module
import numpy as np
m = 3 # 3d forces
n = 6 # robot dof
J = np.array(np.random.rand(m,n)) # random jacobian matrix
t_max = np.ones(n) # joint torque limits max and min
t_min = -np.ones(n)
f_poly = capacity.force_polytope(J,t_min, t_max) # calculate the polytope vertices and faces
print(f_poly.vertices) # display the vertices
# plotting the polytope
import matplotlib.pyplot as plt
from pycapacity.visual import * # pycapacity visualisation tools
fig = plt.figure(4)
# draw faces and vertices
plot_polytope(polytope=f_poly, plot=plt, label='force polytope', vertex_color='blue', edge_color='blue', alpha=0.2)
plt.legend()
plt.show()
```

### Randomised muslucoskeletal model example

```
"""
A simple example program for 3d force polytope
evaluation of a randomised 30 muscle 7dof
human musculoskeletal model
"""
import pycapacity.human as capacity # robot capacity module
import numpy as np
L = 30 # number of muscles
m = 3 # 3d forces
n = 6 # number of joints - dof
J = np.array(np.random.rand(m,n))*2-1 # random jacobian matrix
N = np.array(np.random.rand(n,L))*2-1 # random moment arm matrix
F_max = 100*np.ones(L) # muscle forces limits max and min
F_min = np.zeros(L)
f_poly = capacity.force_polytope(J,N, F_min, F_max, 0.1) # calculate the polytope vertices and faces
print(f_poly.vertices) # display the vertices
# plotting the polytope
import matplotlib.pyplot as plt
from pycapacity.visual import * # pycapacity visualisation tools
fig = plt.figure(4)
# draw faces and vertices
plot_polytope(polytope=f_poly, plot=plt, label='force polytope', vertex_color='blue', edge_color='blue', alpha=0.2)
plt.legend()
plt.show()
```
