# PyDEns

**PyDEns** is a framework for solving Ordinary and Partial Differential Equations (ODEs & PDEs) using neural networks. With **PyDEns** one can solve

- PDEs & ODEs from a large family including heat-equation, poisson equation and wave-equation
- parametric families of PDEs
- PDEs with trainable coefficients.

This page outlines main capabilities of **PyDEns**. To get an in-depth understanding we suggest you to also read the tutorial.

## Getting started with **PyDEns**: solving common PDEs

Let's solve poisson equation

using simple feed-forward neural network. Let's start by importing `Solver`

-class along with other needed libraries:

```
from pydens import Solver, NumpySampler
import numpy as np
import torch
```

You can now set up a **PyDEns**-model for solving the task at hand. For this you need to supply the equation into a `Solver`

-instance. Note the use of differentiation token `D`

:

```
# Define the equation as a callable.
def pde(f, x, y):
return D(D(f, x), x) + D(D(f, y), y) - 5 * torch.sin(np.pi * (x + y))
# Supply the equation, initial condition, the number of variables (`ndims`)
# and the configration of neural network in Solver-instance.
solver = Solver(equation=pde, ndims=2, boundary_condition=1,
layout='fa fa fa f', activation='Tanh', units=[10, 12, 15, 1])
```

Note that we defined the architecture of the neural network by supplying `layout`

, `activation`

and `units`

parameters. Here `layout`

configures the sequence of layers: `fa fa fa f`

stands for `f`

ully connected architecture with four layers and three `a`

ctivations. In its turn, `units`

and `activation`

cotrol the number of units in dense layers and activation-function. When defining neural network this way use `ConvBlock`

from `BatchFlow`

.

It's time to run the optimization procedure

```
solver.fit(batch_size=100, niters=1500)
```

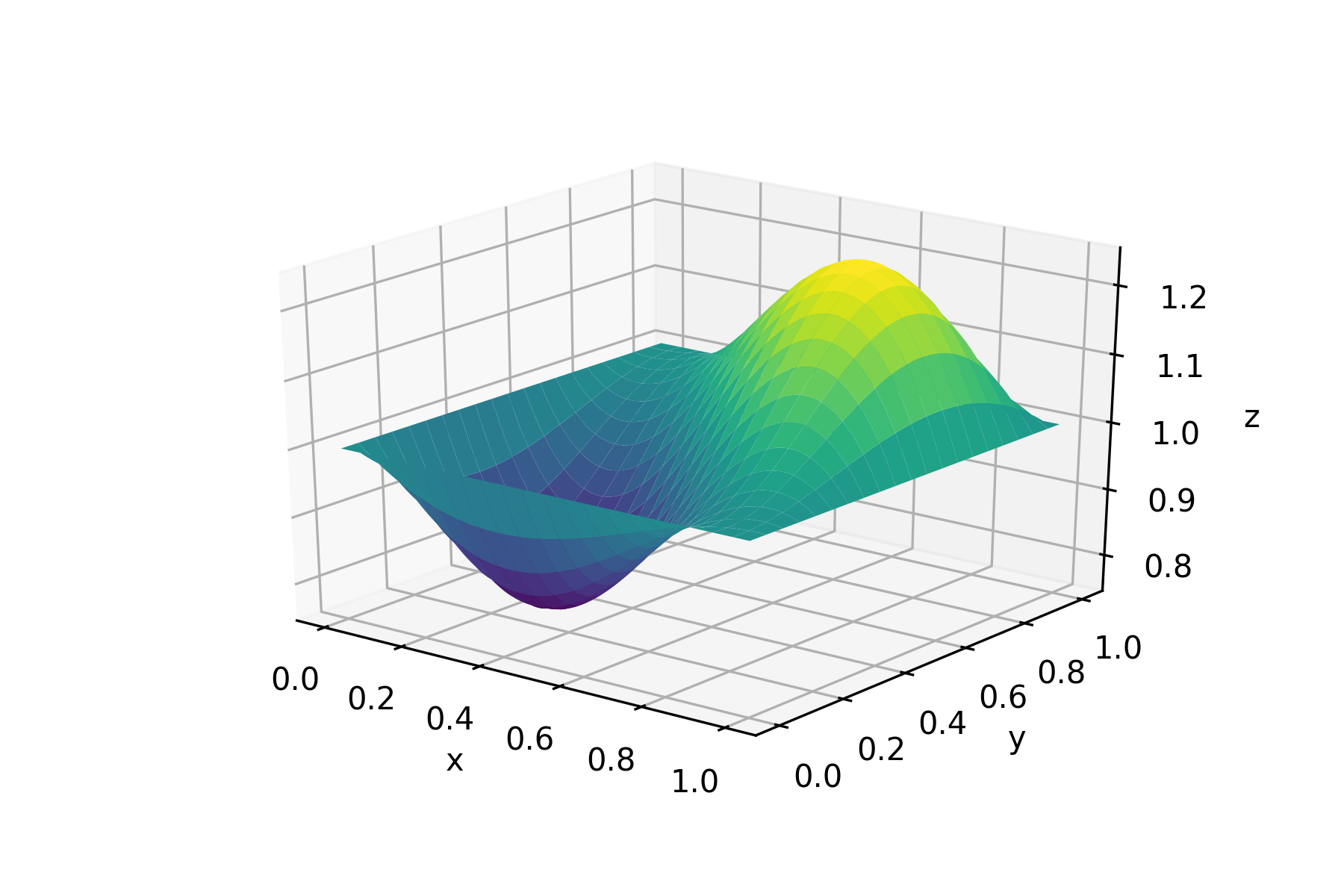

in a fraction of second we've got a mesh-free approximation of the solution on **[0, 1]X[0, 1]**-square:

## Going deeper into **PyDEns**-capabilities

**PyDEns** allows to do much more than just solve common PDEs: it also deals with (i) parametric families of PDEs and (ii) PDEs with trainable coefficients.

### Solving parametric families of PDEs

Consider a *family* of ordinary differential equations

Clearly, the solution is a **sin** wave with a phase parametrized by ϵ:

Solving this problem is just as easy as solving common PDEs. You only need to introduce parameter `e`

in the equation and supply the number of parameters (`nparams`

) into a `Solver`

-instance:

```
def odeparam(f, x, e):
return D(f, x) - e * np.pi * torch.cos(e * np.pi * x)
# One for argument, one for parameter
s = NumpySampler('uniform') & NumpySampler('uniform', low=1, high=5)
solver = Solver(equation=odeparam, ndims=1, nparams=1, initial_condition=1)
solver.fit(batch_size=1000, sampler=s, niters=5000, lr=0.01)
# solving the whole family takes no more than a couple of seconds!
```

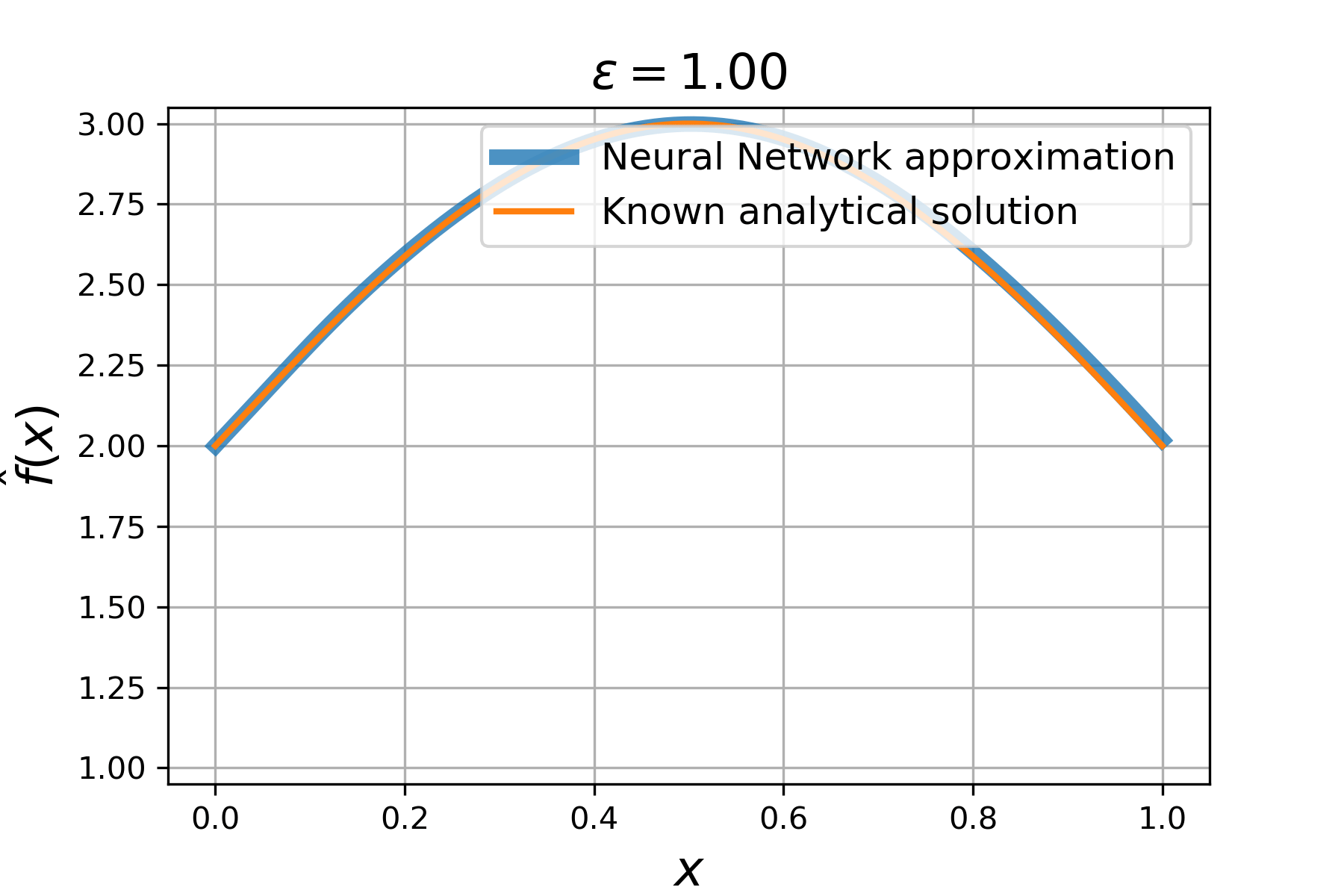

Check out the result:

### Solving PDEs with trainable coefficients

With **PyDEns** things can get even more interesting! Assume that the *initial state of the system is unknown and yet to be determined*:

Of course, without additional information, the problem is undefined. To make things better, let's fix the state of the system at some other point:

Setting this problem requires a slightly more complex configuring. Note the use of `V`

-token, that stands for trainable variable, in the initial condition of the problem. Also pay attention to the additional constraint supplied into the `Solver`

instance. This constraint binds the final solution to zero at `t=0.5`

:

```
def odevar(u, t):
return D(u, t) - 2 * np.pi * torch.cos(2 * np.pi * t)
def initial(*args):
return V('init', data=torch.Tensor([3.0]))
solver = Solver(odevar, ndims=1, initial_condition=initial,
constraints=lambda u, t: u(torch.tensor([0.5])))
```

When tackling this problem, `pydens`

will not only solve the equation, but also adjust the variable (initial condition) to satisfy the additional constraint.
Hence, model-fitting comes in two parts now: (i) solving the equation and (ii) adjusting initial condition to satisfy the additional constraint. Inbetween
the steps we need to freeze layers of the network to adjust only the adjustable variable:

```
solver.fit(batch_size=150, niters=100, lr=0.05)
solver.model.freeze_layers(['fc1', 'fc2', 'fc3'], ['log_scale'])
solver.fit(batch_size=150, niters=100, lr=0.05)
```

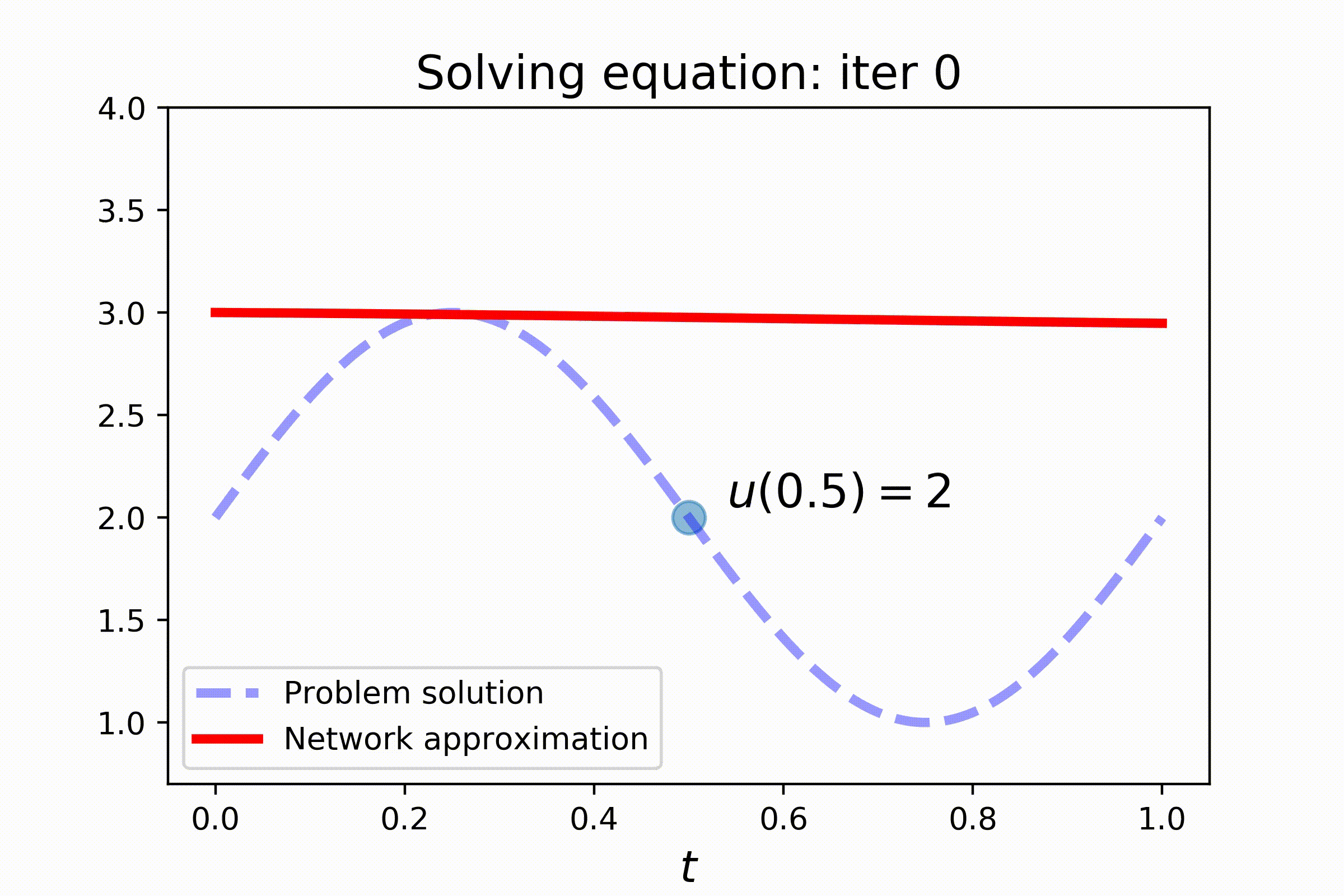

Check out the results:

## Installation

First of all, you have to manually install pytorch, as you might need a certain version or a specific build for CPU / GPU.

### Stable python package

With modern pipenv

```
pipenv install pydens
```

With old-fashioned pip

```
pip3 install pydens
```

### Development version

```
pipenv install git+https://github.com/analysiscenter/pydens.git
```

```
pip3 install git+https://github.com/analysiscenter/pydens.git
```

### Installation as a project repository:

Do not forget to use the flag `--recursive`

to make sure that `BatchFlow`

submodule is also cloned.

```
git clone --recursive https://github.com/analysiscenter/pydens.git
```

In this case you need to manually install the dependencies.

## Citing PyDEns

Please cite **PyDEns** if it helps your research.

```
Roman Khudorozhkov, Sergey Tsimfer, Alexander Koryagin. PyDEns framework for solving differential equations with deep learning. 2019.
```

```
@misc{pydens_2019,
author = {Khudorozhkov R. and Tsimfer S. and Koryagin. A.},
title = {PyDEns framework for solving differential equations with deep learning},
year = 2019
}
```
