pyfastkron 1.0

No project description provided

FastKron

FastKron is a fast library for computing Generalized Matrix Kronecker-Matrix Multiplication (GeMKM) and Generalized Kronecker-Matrix Matrix Multiplication (GeKMM) on NVIDIA GPUs and X86 CPUs. FastKron contains specialized algorithms and implementations of GeMKM and GeKMM rather than using existing linear algebra operations. FastKron avoids extra transposes and adds more optimizations including fusion of multiple kernels. Therefore, FastKron performs orders of magnitude better than baseline GPyTorch, NVIDIA cuTensor, and HPTT. Fastkron provides a C++ library and a Python library for Numpy and PyTorch autograd functions. FastKron provides fast implementations for float and double data type, while Numpy/PyTorch functions uses Shuffle algorithm for other types.

For more details look Fast Kronecker Matrix-Matrix Multiplication on GPUs.

Performance

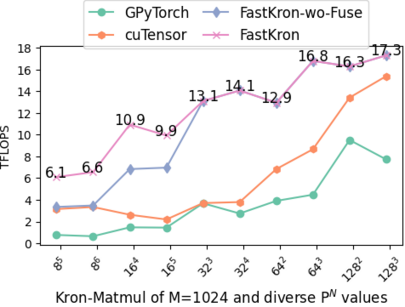

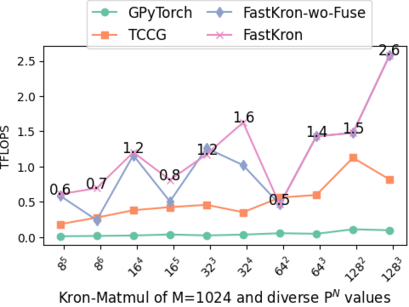

We compare FastKron's GeMKM with state-of-the-art baselines of existing algorithms. GPyTorch implements the traditional shuffle algorithm that uses matrix multiplication and transpose. GPyTorch runs on NVIDIA GPUs and x86 CPUs. NVIDIA cuTensor and TCCG (https://github.com/HPAC/tccg) are tensor contraction engines for NVIDIA GPUs and x86 CPUs respectively. Graphs below shows the performance of FastKron against these baselines. FastKron obtains upto 90% of the maximum FLOPs of a NVIDIA Tesla A100 and same FLOPs as Intel MKL of an AMD EPYC 7742 64-Core with AVX256.

[[TODO: Update]]

NVIDIA A100 SXM 80GB	AMD 7742 64-Core with AVX2

The graphs above multiplies a matrix of shape [M, P^N] with a Kronecker Product of N matrices of size [P, Q]. FastKron performs significantly better than existing baselines. For more information see documents/performance.md

Hardware and OS Support

	Linux	WSL2	Windows	Mac
x86	:white_check_mark:	:white_check_mark:	:snake:	:snake:
ARM	:snake:	:snake:	:snake:	:snake:
AVX256	:white_check_mark:	:white_check_mark:	:snake:	:snake:
AVX512	:white_check_mark:	:white_check_mark:	:snake:	:snake:
SM50+ CUDA cores	:white_check_mark:	:white_check_mark:	:snake:	:snake:
SM80+ Tensor cores	:x:	:x:	:snake:	:snake:
AMD RoCM	:snake:	:snake:	:snake:	:snake:

FastKron supports optimized implementations for AVX256 and AVX512 CPUs and NVIDIA GPUs. x86 CPUs older than GLIBC x86-64-v2, ARM CPUs, AMD GPUs, Windows, and Mac OS are not supported in C++ API but PyFastKron fallbacks to the shuffle algorithm in Numpy or PyTorch. The future roadmap is as follows in terms of priority: Windows, SM80+ Double Tensor cores, AMD GPUs, ARM CPUs.

Example

The directory example/ pinclude examples of using FastKron's CUDA and x86 backend using both C++ and Python. Before using an example, follow below instructions to build FastKron.

Installation

PyFastKron can be installed using pip.

pip install pyfastkron

PyFastKron's CUDA backend is built with CUDA 12.3 but is compatible with CUDA 11.8 and above.

Build

Build the C++ library, libFastKron.so, to use with C++ programs or the Python library, PyFastKron, to use with PyTorch or Numpy programs.

Required Pre-requisites

On Ubuntu :

sudo apt update && sudo apt install gcc linux-headers-$(uname -r) make g++ git python3-dev wget unzip python3-pip build-essential devscripts debhelper fakeroot intel-mkl cmake

CUDA Pre-requisite

Install CUDA 11+ from https://developer.nvidia.com/cuda/ .

Clone repository

Clone repository with submodules using

git clone --recurse-submodules https://github.com/abhijangda/fastkron.git

If already cloned and want to only clone submodules, use

git submodule update --init --recursive

libFastKron

Build FastKron as C++ library using below commands:

cd build/
cmake ..
make -j

To install run make install

By default both x86 and CUDA backends are built. use CMAKE option -DENABLE_CUDA=OFF to disable CUDA backend or -DENABLE_X86=OFF to disable x86 backend.

Run X86 CPU tests using

make run-x86-tests

Run CUDA tests using

make run-cuda-tests

PyFastKron

Install PyFastKron using pip

pip install .

To disable a backend add --config-settings=cmake.define.ENABLE_<backend>=OFF as argument to above command.

Run tests using

pytest

Documentation

FastKron C++ API: documents/api.md

FastKron Python API: documents/api.md

Kernel Tuning: documents/autotuning.md

Performance: documents/performance.md

Multi-GPU: documents/multigpu.md

Contributing:

Citation

@inproceedings{10.1145/3627535.3638489,
author = {Jangda, Abhinav and Yadav, Mohit},
title = {Fast Kronecker Matrix-Matrix Multiplication on GPUs},
year = {2024},
isbn = {9798400704352},
publisher = {Association for Computing Machinery},
address = {New York, NY, USA},
url = {https://doi.org/10.1145/3627535.3638489},
doi = {10.1145/3627535.3638489},
booktitle = {Proceedings of the 29th ACM SIGPLAN Annual Symposium on Principles and Practice of Parallel Programming},
pages = {390–403},
numpages = {14},
keywords = {graphics processing units, CUDA, kronecker product, linear algebra},
location = {Edinburgh, United Kingdom},
series = {PPoPP '24}
}
