Python frontend to CGAL's mesh generation capabilities

## Project description

Create high-quality meshes with ease.

pygalmesh is a Python frontend to CGAL's 2D and 3D mesh generation capabilities. pygalmesh makes it easy to create high-quality 2D, 3D volume meshes, periodic volume meshes, and surface meshes.

### Examples

#### 2D meshes

CGAL generates 2D meshes from linear constraints.

import numpy as np
import pygalmesh

points = np.array([[0.0, 0.0], [1.0, 0.0], [1.0, 1.0], [0.0, 1.0]])
constraints = [[0, 1], [1, 2], [2, 3], [3, 0]]

mesh = pygalmesh.generate_2d(
points,
constraints,
max_edge_size=1.0e-1,
num_lloyd_steps=10,
)
# mesh.points, mesh.cells


The quality of the mesh isn't very good, but can be improved with optimesh.

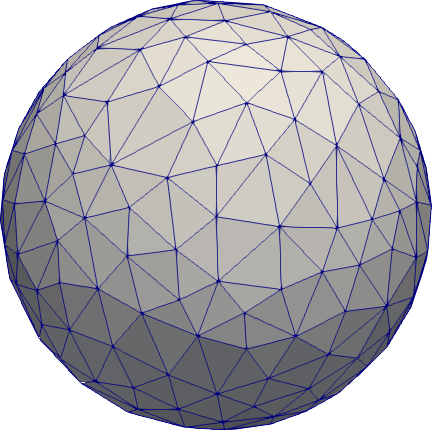

#### A simple ball

import pygalmesh

s = pygalmesh.Ball([0, 0, 0], 1.0)

# mesh.points, mesh.cells, ...


You can write the mesh with

mesh.write("out.vtk")


You can use any format supported by meshio.

The mesh generation comes with many more options, described here. Try, for example,

mesh = pygalmesh.generate_mesh(
)

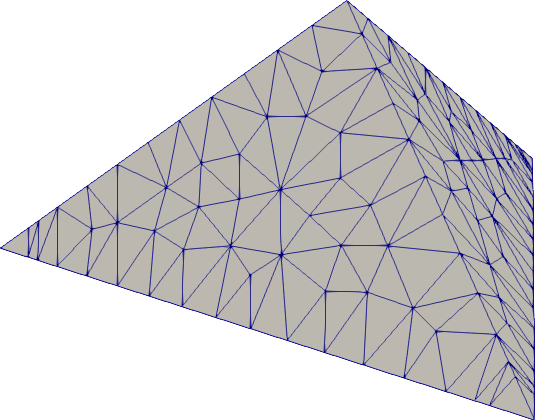

#### Other primitive shapes

pygalmesh provides out-of-the-box support for balls, cuboids, ellipsoids, tori, cones, cylinders, and tetrahedra. Try for example

import pygalmesh

s0 = pygalmesh.Tetrahedron(
[0.0, 0.0, 0.0], [1.0, 0.0, 0.0], [0.0, 1.0, 0.0], [0.0, 0.0, 1.0]
)
mesh = pygalmesh.generate_mesh(
s0,
max_edge_size_at_feature_edges=0.1,
)

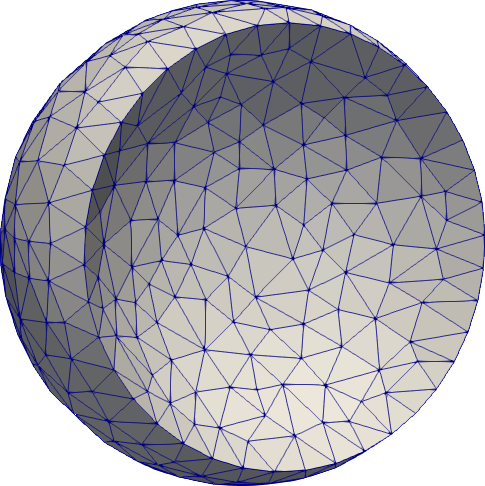

#### Domain combinations

Supported are unions, intersections, and differences of all domains. As mentioned above, however, the sharp intersections between two domains are not automatically handled. Try for example

import pygalmesh

displacement = 0.5
s0 = pygalmesh.Ball([displacement, 0, 0], radius)
s1 = pygalmesh.Ball([-displacement, 0, 0], radius)
u = pygalmesh.Difference(s0, s1)


To sharpen the intersection circle, add it as a feature edge polygon line, e.g.,

import numpy as np
import pygalmesh

displacement = 0.5
s0 = pygalmesh.Ball([displacement, 0, 0], radius)
s1 = pygalmesh.Ball([-displacement, 0, 0], radius)
u = pygalmesh.Difference(s0, s1)

max_edge_size_at_feature_edges = 0.15
n = int(2 * np.pi * a / max_edge_size_at_feature_edges)
alpha = np.linspace(0.0, 2 * np.pi, n + 1)
alpha[-1] = alpha[0]
circ = a * np.column_stack([np.zeros(n + 1), np.cos(alpha), np.sin(alpha)])

mesh = pygalmesh.generate_mesh(
u,
extra_feature_edges=[circ],
max_edge_size_at_feature_edges=max_edge_size_at_feature_edges,
min_facet_angle=25,
)


Note that the length of the polygon legs are kept in sync with max_edge_size_at_feature_edges of the mesh generation. This makes sure that it fits in nicely with the rest of the mesh.

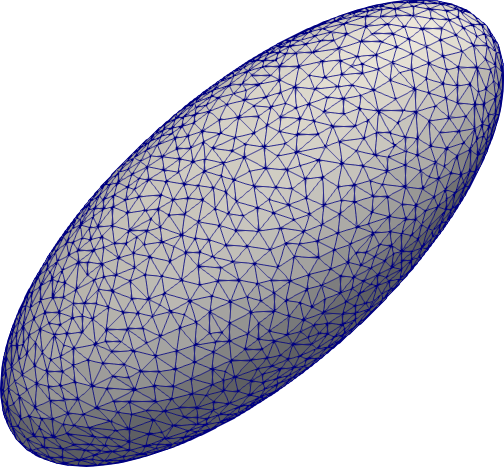

#### Domain deformations

You can of course translate, rotate, scale, and stretch any domain. Try, for example,

import pygalmesh

s = pygalmesh.Stretch(pygalmesh.Ball([0, 0, 0], 1.0), [1.0, 2.0, 0.0])



#### Extrusion of 2D polygons

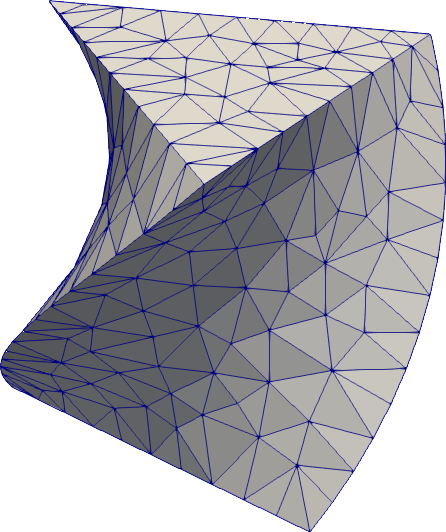

pygalmesh lets you extrude any polygon into a 3D body. It even supports rotation alongside!

import pygalmesh

p = pygalmesh.Polygon2D([[-0.5, -0.3], [0.5, -0.3], [0.0, 0.5]])
max_edge_size_at_feature_edges = 0.1
domain = pygalmesh.Extrude(
p,
[0.0, 0.0, 1.0],
0.5 * 3.14159265359,
max_edge_size_at_feature_edges,
)
mesh = pygalmesh.generate_mesh(
domain,
max_edge_size_at_feature_edges=max_edge_size_at_feature_edges,
verbose=False,
)


Feature edges are automatically preserved here, which is why an edge length needs to be given to pygalmesh.Extrude.

#### Rotation bodies

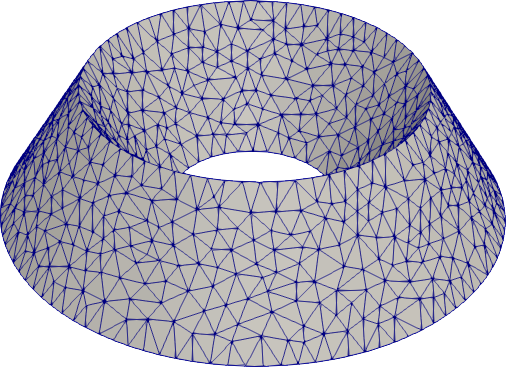

Polygons in the x-z-plane can also be rotated around the z-axis to yield a rotation body.

import pygalmesh

p = pygalmesh.Polygon2D([[0.5, -0.3], [1.5, -0.3], [1.0, 0.5]])
max_edge_size_at_feature_edges = 0.1
domain = pygalmesh.RingExtrude(p, max_edge_size_at_feature_edges)
mesh = pygalmesh.generate_mesh(
domain,
max_edge_size_at_feature_edges=max_edge_size_at_feature_edges,
verbose=False,
)


#### Your own custom level set function

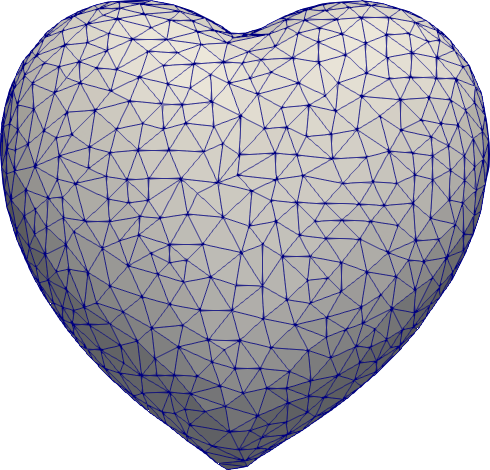

If all of the variety is not enough for you, you can define your own custom level set function. You simply need to subclass pygalmesh.DomainBase and specify a function, e.g.,

import pygalmesh

class Heart(pygalmesh.DomainBase):
def __init__(self):
super().__init__()

def eval(self, x):
return (
(x[0] ** 2 + 9.0 / 4.0 * x[1] ** 2 + x[2] ** 2 - 1) ** 3
- x[0] ** 2 * x[2] ** 3
- 9.0 / 80.0 * x[1] ** 2 * x[2] ** 3
)

return 10.0

d = Heart()


Note that you need to specify the square of a bounding sphere radius, used as an input to CGAL's mesh generator.

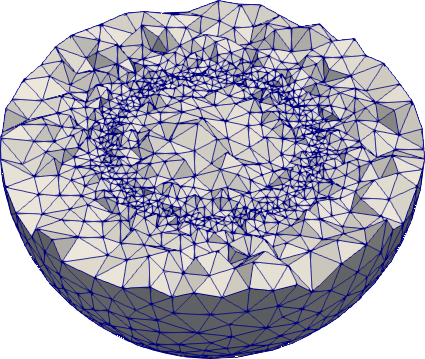

#### Local refinement

Use generate_mesh with a function (regular or lambda) as max_cell_circumradius. The same goes for max_edge_size_at_feature_edges, max_radius_surface_delaunay_ball, and max_facet_distance.

import numpy as np
import pygalmesh

mesh = pygalmesh.generate_mesh(
pygalmesh.Ball([0.0, 0.0, 0.0], 1.0),
min_facet_angle=30.0,
max_facet_distance=0.025,
max_cell_circumradius=lambda x: abs(np.sqrt(np.dot(x, x)) - 0.5) / 5 + 0.025,
)


#### Surface meshes

If you're only after the surface of a body, pygalmesh has generate_surface_mesh for you. It offers fewer options (obviously, max_cell_circumradius is gone), but otherwise works the same way:

import pygalmesh

s = pygalmesh.Ball([0, 0, 0], 1.0)
mesh = pygalmesh.generate_surface_mesh(
s,
min_facet_angle=30.0,
max_facet_distance=0.1,
)


Refer to CGAL's documentation for the options.

#### Periodic volume meshes

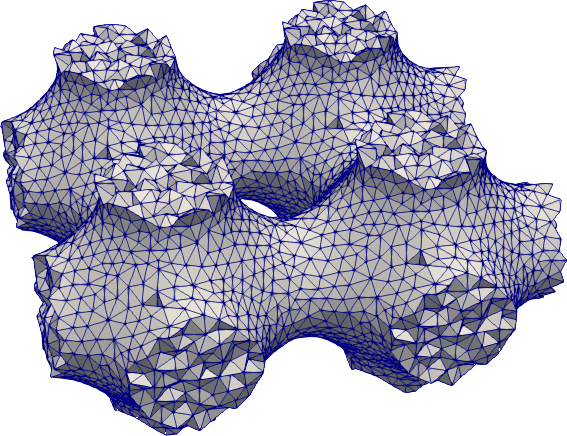

pygalmesh also interfaces CGAL's 3D periodic mesh generation. Besides a domain, one needs to specify a bounding box, and optionally the number of copies in the output (1, 2, 4, or 8). Example:

import numpy as np
import pygalmesh

class Schwarz(pygalmesh.DomainBase):
def __init__(self):
super().__init__()

def eval(self, x):
x2 = np.cos(x[0] * 2 * np.pi)
y2 = np.cos(x[1] * 2 * np.pi)
z2 = np.cos(x[2] * 2 * np.pi)
return x2 + y2 + z2

mesh = pygalmesh.generate_periodic_mesh(
Schwarz(),
[0, 0, 0, 1, 1, 1],
min_facet_angle=30,
max_facet_distance=0.025,
number_of_copies_in_output=4,
# odt=True,
# lloyd=True,
verbose=False,
)


#### Volume meshes from surface meshes

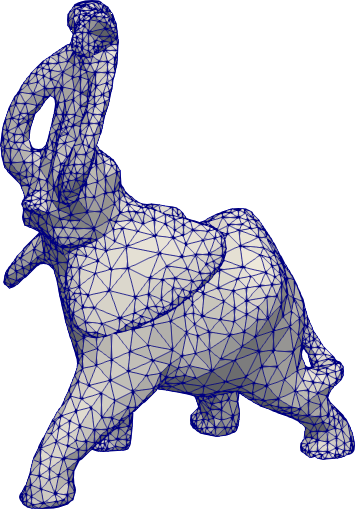

If you have a surface mesh at hand (like elephant.vtu), pygalmesh generates a volume mesh on the command line via

pygalmesh volume-from-surface elephant.vtu out.vtk --cell-size 1.0 --odt


(See pygalmesh volume-from-surface -h for all options.)

In Python, do

import pygalmesh

mesh = pygalmesh.generate_volume_mesh_from_surface_mesh(
"elephant.vtu",
min_facet_angle=25.0,
max_facet_distance=0.008,
verbose=False,
)


#### Meshes from INR voxel files

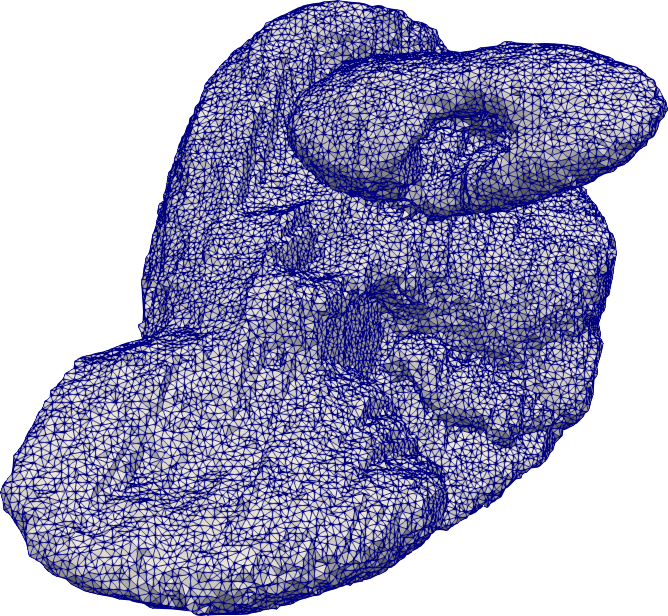

It is also possible to generate meshes from INR voxel files, e.g., here either on the command line

pygalmesh from-inr skull_2.9.inr out.vtu --cell-size 5.0 --odt


(see pygalmesh from-inr -h for all options) or from Python

import pygalmesh

mesh = pygalmesh.generate_from_inr(
"skull_2.9.inr",
verbose=False,
)


#### Meshes from numpy arrays representing 3D images

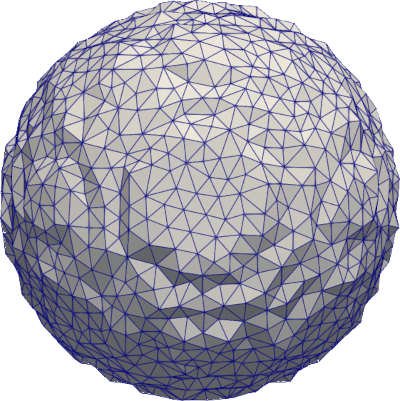

pygalmesh can help generating unstructed meshes from 3D numpy int arrays specifying the subdomains. Subdomains with key 0 are not meshed.

import pygalmesh
import numpy as np

x_ = np.linspace(-1.0, 1.0, 50)
y_ = np.linspace(-1.0, 1.0, 50)
z_ = np.linspace(-1.0, 1.0, 50)
x, y, z = np.meshgrid(x_, y_, z_)

vol = np.empty((50, 50, 50), dtype=np.uint8)
idx = x**2 + y**2 + z**2 < 0.5**2
vol[idx] = 1
vol[~idx] = 0

voxel_size = (0.1, 0.1, 0.1)

mesh = pygalmesh.generate_from_array(
)
mesh.write("ball.vtk")

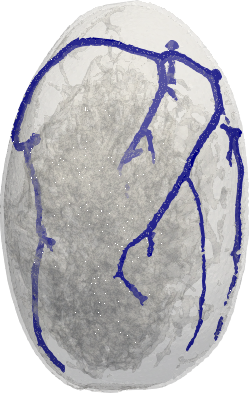

The code below creates a mesh from the 3D breast phantom from Lou et al available here. The phantom comprises four tissue types (background, fat, fibrograndular, skin, vascular tissues). The generated mesh conforms to tissues interfaces.

import pygalmesh
import meshio

with open("MergedPhantom.DAT", "rb") as fid:
vol = np.fromfile(fid, dtype=np.uint8)

vol = vol.reshape((722, 411, 284))
voxel_size = (0.2, 0.2, 0.2)

mesh = pygalmesh.generate_from_array(
)
mesh.write("breast.vtk")


In addition, we can specify different mesh sizes for each tissue type. The code below sets the mesh size to 1 mm for the skin tissue (label 4), 0.5 mm for the vascular tissue (label 5), and 2 mm for all other tissues (default).

mesh = pygalmesh.generate_from_array(
vol,
voxel_size,
max_facet_distance=0.2,
max_cell_circumradius={"default": 2.0, 4: 1.0, 5: 0.5},
)

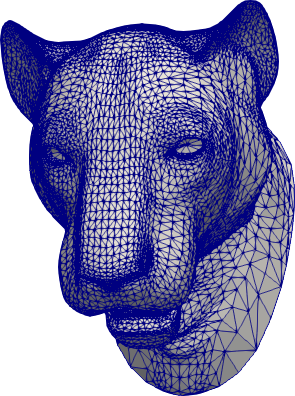

#### Surface remeshing

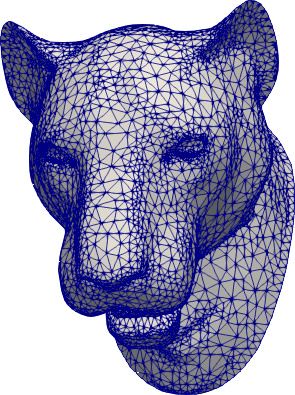

pygalmesh can help remeshing an existing surface mesh, e.g., lion-head.off. On the command line, use

pygalmesh remesh-surface lion-head.off out.vtu -e 0.025 -a 25 -s 0.1 -d 0.001


(see pygalmesh remesh-surface -h for all options) or from Python

import pygalmesh

mesh = pygalmesh.remesh_surface(
max_edge_size_at_feature_edges=0.025,
min_facet_angle=25,
max_facet_distance=0.001,
verbose=False,
)


### Installation

For installation, pygalmesh needs CGAL and Eigen installed on your system. They are typically available on your Linux distribution, e.g., on Ubuntu

sudo apt install libcgal-dev libeigen3-dev


On MacOS with homebrew,

brew install cgal eigen


After that, pygalmesh can be installed from the Python Package Index, so with

pip install -U pygalmesh


#### Troubleshooting

If pygalmesh fails to build due to fatal error: 'Eigen/Dense' file not found you will need to create a symbolic link for Eigen to be detected, e.g.

cd /usr/local/include
sudo ln -sf eigen3/Eigen Eigen


It's possible that eigen3 could be in /usr/include instead of /usr/local/install.

#### Manual installation

For manual installation (if you're a developer or just really keen on getting the bleeding edge version of pygalmesh), there are two possibilities:

• Get the sources, type python3 setup.py install. This does the trick most the time.
• As a fallback, there's a CMake-based installation. Simply go cmake /path/to/sources/ and make.

### Testing

To run the pygalmesh unit tests, check out this repository and type

pytest


### Background

CGAL offers two different approaches for mesh generation:

1. Meshes defined implicitly by level sets of functions.
2. Meshes defined by a set of bounding planes.

pygalmesh provides a front-end to the first approach, which has the following advantages and disadvantages:

• All boundary points are guaranteed to be in the level set within any specified residual. This results in smooth curved surfaces.
• Sharp intersections of subdomains (e.g., in unions or differences of sets) need to be specified manually (via feature edges, see below), which can be tedious.

On the other hand, the bounding-plane approach (realized by mshr), has the following properties:

• Smooth, curved domains are approximated by a set of bounding planes, resulting in more of less visible edges.
• Intersections of domains can be computed automatically, so domain unions etc. have sharp edges where they belong.

See here for other mesh generation tools.
