pyisomme

Installation

pip install pyisomme

PDF report export is optional. Install the PDF extra and its Chromium browser binary once after installing or updating pyisomme:

pip install "pyisomme[pdf]"
python -m playwright install chromium

Features

• Read/write ISO-MME (compressed/uncompressed)
• Modify Channel and calculate Injury Risk Values (HIC, a3ms, DAMAGE, OLC, BrIC, NIJ, ...)
• Calculate dummy head trajectories from head centre-of-gravity acceleration and rotational-velocity measurements
• Plot Curves and compare multiple ISO-MMEs
• Create PowerPoint, HTML, and PDF reports:
  • Curve Correlation
  • Euro NCAP: Frontal 50 km/h, Frontal MPDB, Side Barrier, Side Pole, and Side FarSide
  • FMVSS: 208 and 214
  • IIHS: Frontal Small Overlap, Frontal Moderate Overlap, and Side Impact
  • UN: Frontal 50 km/h R137, Frontal 56 km/h ODB R94, Side Pole R135, and Side Barrier R95
• Display Limit bars in plots
• Compare performance of left-hand-drive vehicle with right-hand-drive vehicle
• Command-line tools for listing, merging, editing, converting, plotting, and reporting ISO-MME data

Command Line Interface (CLI)

Installing the package provides the pyisomme command. The equivalent python -m pyisomme form is also supported.

pyisomme --help
pyisomme <command> --help

Describe a channel code:

pyisomme code 11HEADCG00H3ACXD

Code: 11HEADCG00H3ACXD
Test Object: Vehicle 1
Position: Front left
Main Location: Head
Fine Location 1: Center of Gravity
Fine Location 2: Not defined
Fine Location 3: Hybrid III Mid-Sized Adult Male Dummy
Physical Dimension: Acceleration
Direction: Longitudinal
Filter Class: CFC 60
Default unit: m / s2

Edit channel codes

pyisomme set TEST1.mme TEST2.zip --fine-location-3 H3 -c '11HEAD000000ACXP' '13CHST000000DSXP'

Convert channel values and units (e.g. 0.04 m becomes 40 mm)

pyisomme convert TEST1.mme TEST2.zip --unit mm -c '13CHST0000H3DSXP'

Merge multiple ISO-MME containers:

pyisomme merge ./iso_merged.zip ./iso_1/v1.mme ./iso_2.zip ./iso_3.tar.gz

Resample from 0 to 100 ms with a 1 ms step and linear interpolation:

pyisomme merge ./resampled.mme ./iso_1/v1.mme --resample 0 0.001 0.1

Plot a calculated resultant head acceleration with filter class A / 1000 Hz:

pyisomme plot ./iso_1/v1.mme --codes '24HEAD??????ACRA' --xlim 0 100 --calculate

Create HTML, PDF, and PowerPoint reports in one run using only data from 0 to 200 ms. Repeat -o/--output for every desired format; the format is inferred from the output file extension.

pyisomme report EuroNCAP_Frontal_MPDB data/nhtsa/09203 --crop 0 0.2 \
  -o out/report.html \
  -o out/report.pdf \
  -o out/report.pptx

Python Examples

• Read ISO-MME

• Write ISO-MME

• Signal deriviation/integration

• Add/Subtract/Multiply/Divide Signals

• Apply cfc-filter

• Plotting

• Report

Example Report

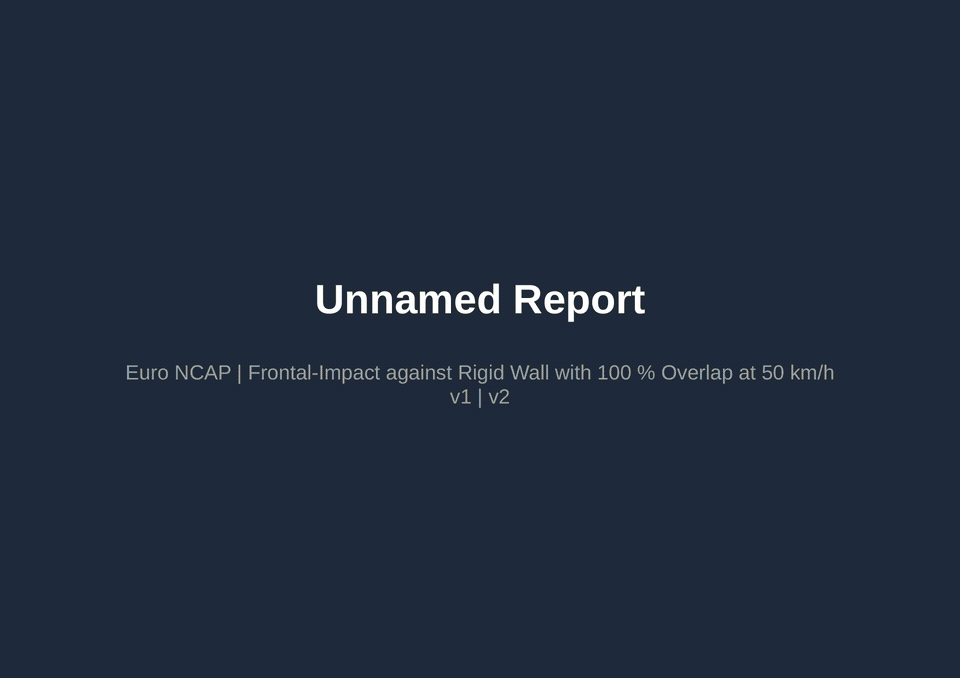

Animated preview of Euro NCAP frontal 50 km/h and IIHS frontal small overlap PDF reports generated with pyisomme (using synthetic data):

View the generated HTML and PDF reports

Limitations

• Only test-info (.mme), channel-info (.chn) and channel data files (.001/.002/...) are supported. All other files (videos, photos, txt-files) will be ignored when reading and writing.
• Writing methods do not ask before overwriting. In particular, set and convert rewrite every supplied ISO-MME container in place after validating all inputs and selections.
