pykantui

A terminal kanban board where card movement is decoupled from the store behind it. The same board widgets drive a local JSON file or a live Jira project — moving a card left or right in Jira executes a workflow transition.

Quick start

python -m venv .venv
.\.venv\Scripts\python.exe -m pip install -e ".[dev,jira]"
.\.venv\Scripts\kbn.exe demo

python -m venv .venv
./.venv/bin/python -m pip install -e ".[dev,jira]"
./.venv/bin/kbn demo

demo opens a throwaway board with sample cards and touches nothing on disk. Once the venv is on your PATH the command is just kbn, which is how the rest of this page writes it.

Contents

• Driving the board — keys, movement, confirmation, collapsing
• The top bar — search, filtering, sorting
• Shaping the board — columns as configuration
• Cards from the command line
• Backends and Jira
• Where things are stored
• How it is built — layout, actions, the write path
• Develop and Recording the demo

Driving the board

Navigation and movement are deliberately different keys: lowercase moves the cursor, uppercase moves the card.

Mouse drag works too, with the drop position taken from card midpoints.

Movement modes

• adjacent — H/L commits to the neighbouring column immediately.
• jump — H/L highlights a candidate column and waits 1.2 s for enter. Pressing H/L again walks the highlight further, so crossing three columns is one backend write instead of three. That matters against Jira, where each write is an HTTP round-trip.

Move confirmation

Changing a card's column asks first. enter/y approves, escape/n cancels. Nothing is written until you approve, so cancelling leaves both the board and the store untouched.

                 Move this card?

             Wire up the Jira backend
                 Ready  →  Doing

              [ Move ]    [ Cancel ]

The dialog names the side effect when there is one: moving into the finish column marks the task finished, into the reset column clears the dates, and on a read-only backend the move writes to Jira.

It applies to column moves only. J/K reordering does not ask, and neither does a move the dependency gate is going to refuse — you get the "blocked" toast instead of a pointless question.

Turn it off with c at runtime or --no-confirm at launch.

Collapsing columns

z shrinks the focused card's column to a 5-cell strip showing the count and the name read downward; the columns left open share the freed width. Click the « in a header to collapse, click the strip to reopen, or press Z to expand everything.

╭──────────────────────────╮╭──────────────────────────╮╭───╮
│           Ready        « ││           Doing        « ││ » │
│ Wire up the Jira backend ││ Read the reference clone ││   │
│ Add a settings screen    ││                          ││ 1 │
│ Ship 0.1.0               ││                          ││   │
│                          ││                          ││ D │
│                          ││                          ││ O │
│                          ││                          ││ N │
│                          ││                          ││ E │
╰──────────────────────────╯╰──────────────────────────╯╰───╯

A collapsed column is hidden, not closed:

• It stays a move target. L into a collapsed Done still files the card and the strip's count goes up. Focus stays on a visible card rather than following the card somewhere you cannot see.
• Navigation skips it. h/l step over collapsed columns.
• Its cards are untouched. Nothing is archived or dropped.
• The last open column will not collapse — you would be left with no board.

The JSON backend persists the state, so a board you left with Done collapsed opens that way. Jira keeps it for the session only.

The top bar

One bar, three levels. F2 cycles them, or click the caret at the right.

 ≡                                                       20 cards  ▾    collapsed
 ≡  search…   Filter  Sort  Columns  View  Help          20 cards  ▾    toolbar
 ≡  search…   Filter  Sort  Columns  View  Help          20 cards  ▴    expanded
 ┌ Project ──┐ ┌ Type ─────┐ ┌ Status ───┐ ┌ Assignee ─┐
 ┌ Key ──┐ ┌ From ──┐ ┌ Until ─┐ ┌ Sort ─┐ [ ] Sprint  ┌ JQL ────┐ [Search]
 ┌ State ────┐ ┌ Saved ────┐  ⇵ Reverse   + Save   Clear   New card   Refresh

The level you leave it at is saved and comes back next time. The count shows at every level, reading 9 of 27 · overdue when something is filtering — a filter you forgot about is never invisible, even with the bar collapsed.

Fields that need a live query behind the board — Sprint and JQL — are disabled rather than hidden on a local board. A field that vanishes is harder to reason about than one that is visibly not applicable.

Every dropdown has a shortcut that opens the panel and jumps straight to it:

Filtering

Conditions are cumulative: Overdue plus Has notes means both, not either. Clear resets the filter and the sort together.

Blocked is computed once per refresh from the whole task list rather than asked per card, so filtering a Jira board is one request, not one per card.

Sorting

Manual · Title · Due · Age · Priority, with a Reverse toggle. Sorting is a view: it never writes positions, so the order you arranged by hand survives underneath and comes back exactly when you pick Manual again.

The trade is that J/K reordering is disabled while a sort is on — there is nowhere for it to write. The binding greys out rather than failing on press.

Shaping the board

Columns are configuration, not code. They live in one file that both backends read, so a card means the same thing locally and in Jira:

kbn columns                      # what the board looks like now
kbn columns add Blocked --after "In Progress" --statuses "BLOCKED, ON ICE"
kbn columns count 8              # grow or shrink to 8 visible columns
kbn columns move Done 1          # reorder
kbn columns rename Waiting "On Hold"
kbn columns role finish Shipped  # which column means finished
kbn columns remove Waiting       # its cards move left; use --move-to to choose
kbn columns hide Archive         # keep it as a target without showing it
kbn columns reset --yes          # back to the defaults below

Columns are addressed by id (#3), name ("Needs Review") or 1-based position — whichever is handier. Nothing assumes a column count: one column works, twelve works.

Boards already open pick changes up on r. Run kbn columns add ... in one terminal, press r in another, and the board rebuilds with the new shape. No restart, however many are open.

Roles are stored as column ids, not positions, so reordering never silently changes which column means "done". Deleting a role column clears the role rather than leaving it dangling. config.json is meant to be edited by hand, so a value that is not one of ours falls back to the default instead of raising — a typo in the file is never the reason the board will not open.

Widths

Columns share the available width while they fit and stop shrinking at 20 cells, after which the board scrolls sideways. That floor is why a ten- or twelve-column board stays usable in an 80-column terminal. Collapsing a column hands its width back to the rest.

Defaults

The starting shape, written out on first run from core/workflows.py:

Needs Review is a stage of the work, so it sits in the flow between In Progress and Done. Waiting is a parked state — blocked on someone else, or missing information — which is why it is not on the straight line to Done.

Neither stamps a date. Work under review or on hold is not un-started and not finished, so a card in either keeps the start date it already had and picks straight back up when it moves on.

The dependency gate only guards In Progress and Done. A blocked card can sit in Needs Review or Waiting; it cannot be claimed as started or done.

Cards from the command line

kbn task add "Write the docs"                    # one card in the first column
kbn task add Task --count 30 --column "To Do"    # Task 01 .. Task 30
kbn task add "Ship it" --column Done --description "the details"
kbn task rm 4 7 9                                # delete by id
kbn task clear "To Do" --yes                     # empty a column

Counts are zero-padded to the width of the total, so 30 cards come out Task 01 … Task 30 and sort in the order you meant. Columns are addressed the same way as in kbn columns. Editing a card is still the TUI's job (e).

Backends

Backend is the whole contract: four abstract methods plus optional writes. Anything store-specific rides in Task.metadata rather than becoming a domain field.

Every capability only some stores have is a method with a default on the base class, not an attribute the UI goes looking for. The app asks the backend questions — writable, supports_reorder, supports_query, query_text(), sprint_only() — and never rummages through its attributes to guess.

Jira

Columns are not Jira board columns. A board is a saved JQL query plus a {status name -> column id} map held on this side, so it works against any project without the Agile board API.

kbn jira --init                 # writes jira.json
kbn jira                        # once base_url and api_token are filled in

--init writes jira.json owner-only from the moment it exists, because the next thing you do is paste an API token into it. Fill in base_url and api_token, adjust jql, and add rows to column_mapping for any status your project has that is not listed. The token can also live in auth.json as jira_token if you would rather keep it apart.

Reading a scrum board

Issues come from a raw JQL query, from a scrum or kanban board, or from that board's open sprint:

kbn jira --list-boards            # your boards and their ids
kbn jira --list-sprints 42        # that board's sprints and their ids
kbn jira --board 42               # everything on board 42
kbn jira --board 42 --sprint      # only the open sprint
kbn jira --board 42 --sprint 118  # a named sprint by id

The flags override jira.json for one run; set source, board_id and sprint in the file to make it the default. --board uses the board's own filter, so what you see matches what Jira shows you.

sprint: "active" is resolved on every fetch, not pinned at startup — the board follows a sprint rollover instead of quietly going stale. If no sprint is open you get an empty board and a warning naming the board, rather than silence.

Whichever source you use, the columns are still yours — the status map from kbn columns, not Jira's board configuration. A board with six Jira columns can be read into your five, and moving a card is still a workflow transition.

Matching statuses and transitions

Status names match ignoring case and spacing, so TO DO, To Do and to do are the same status. That matters: an exact-match lookup fails silently, piling every unmatched card into one column with no error. Anything genuinely unmapped lands in fallback_column and raises a startup warning naming the statuses, rather than disappearing into To Do unannounced.

Moving a card fetches the issue's available transitions, maps each transition's destination status back through column_mapping, and picks the one whose column id matches the target. It compares ints, not status names — several statuses share a column here, and name comparison silently picks the wrong transition when they do. A transition to CANCEL is a valid way of reaching Done; any of the four paused statuses is a valid way of reaching Waiting. If nothing matches, the move is refused with a message listing what Jira actually offered, and the board does not change.

Where things are stored

On Linux and macOS the base is $XDG_DATA_HOME or ~/.local/share. PYKANTUI_HOME overrides the lot, which is how the tests and the demo board never touch anything real. Every write goes to a temp file and is renamed over the target, so an interrupted save leaves the old file intact rather than half of a new one.

How it is built

src/pykantui/
  api/        clients for the services a board can sit on (the Jira REST surface)
  cli/        argument parsing and dispatch, nothing else
  commands/   one module per kbn subcommand: columns, tasks, jira
  config/     where data lives (paths.py) and the saved board shape (board.py)
  core/       board logic no screen or store owns: actions, filters, workflows
  models/     the domain objects and the enums they are built from
  pages/      full-screen views pushed over the board: detail, edit, menu, confirm
  sync/       the task stores and the Backend contract they satisfy
  tui/        the app, its themes, and the widgets on the board
tools/        dev scripts: gif and screenshot rendering

Dependencies run one way. models depends on nothing, core on models, config on both, sync on those, and tui/pages on everything below. api knows nothing about columns — it takes connection details and hands back a client.

What a click means

Every clickable thing has to say what it stands for, and the only channel a widget id or an option id gives you is a string. So there is a wire format, "kind:value" — parsed into an Action at the boundary and never picked apart again:

Action.parse("sort:due")                       # Action(kind=ActionKind.SORT, value="due")
Action.of(ActionKind.ACT, Act.CLEAR).chip_id   # "chip-act-clear"
Action.from_chip_id("chip-act-clear")          # back again

core/actions.py holds the vocabulary — ActionKind, Menu, Act, ViewToggle, ColumnCommand, HelpTopic — as enums, so a misspelled action is a parse that returns None at one known place rather than a branch that silently never fires. The app dispatches with a single match over ActionKind, which the type checker can see through.

The board re-renders only when the view actually changed. Re-syncing a dropdown to the value it already holds posts a Changed event, and rebuilding for that drops the focused card — which at startup means the first key press after opening goes nowhere.

How a move works

Keyboard and mouse both converge on KanbanBoard.request_move, and every column move goes through it:

1. check dependencies (Task.can_move_to) — refuse with a toast if blocked,
2. ask for confirmation, and stop here if cancelled,
3. hand off to commit_move, the only function that writes a move,
4. write to the backend,
5. bail out with a toast if the write failed — the board is untouched, so there is nothing to roll back,
6. only then move the widget and restack the columns.

request_move is a Textual worker rather than a plain coroutine, because awaiting a modal needs one. That matters in tests: a bare pilot.pause() can return before the move has landed, so tests/test_board_tui.py has a settle helper that also drains workers.

Develop

.\.venv\Scripts\python.exe -m ruff check .
.\.venv\Scripts\python.exe -m mypy
.\.venv\Scripts\python.exe -m unittest discover -s tests -t .

Baseline: ruff clean, mypy strict clean (51 files), 338 tests OK.

Pass -t . so tests is imported as a package. Its __init__.py does two things that only work if it is: it points PYKANTUI_HOME at a throwaway directory for the whole run, so a test that forgets to sandbox itself cannot rewrite your real board, and it quietens the asyncio logger that IsolatedAsyncioTestCase turns to debug — booting a Textual app trips its slow-callback warning constantly and buries the results.

The TUI suites are slow because each test boots a real Textual app under the pilot; run them by module while iterating. Check the test count, not just the verdict: a module that fails to import is reported as one error and the suite still ends with a summary line.

Recording the demo

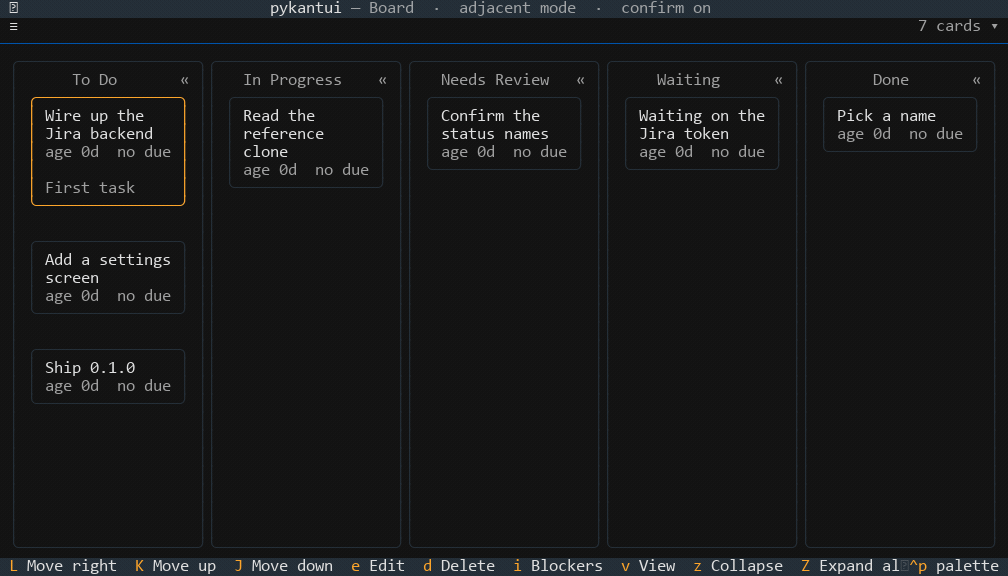

The gif at the top is generated, not captured by hand:

.\.venv\Scripts\python.exe -m pip install pillow
.\.venv\Scripts\python.exe tools\gif.py          # assets/demo.gif

tools/gif.py runs the app under Textual's pilot against a throwaway in-memory board, reads each screen straight off the compositor as styled cells, draws it with Pillow, and stitches the frames with ffmpeg. No terminal recorder, no browser and no pty, which is why it runs the same on a laptop and in CI. Edit the SCRIPT list at the top of the file to change what the demo does.

tools/screenshots.py does the same for stills, writing SVGs — text, so they render crisply at any size and a diff shows what actually changed instead of a wall of binary.

tools/demo.tape is a vhs script for the same demo, kept for anyone who has vhs working: it needs ttyd and a headless Chromium, which is exactly the machinery tools/gif.py avoids.

License

MIT.
