pylinkage 0.9.0

Create and optimize kinematic planar linkages in Python

Pylinkage

Pylinkage lets you design planar linkage mechanisms by specifying the motion you need. Tell it where you want a coupler point to go, and it finds mechanism dimensions automatically using classical synthesis theory (Burmester, Freudenstein) and metaheuristic optimization (PSO, differential evolution). You can then simulate, analyze, visualize, and export to DXF or STEP for fabrication.

from pylinkage.synthesis import path_generation
from pylinkage.visualizer import plot_kinematic_linkage

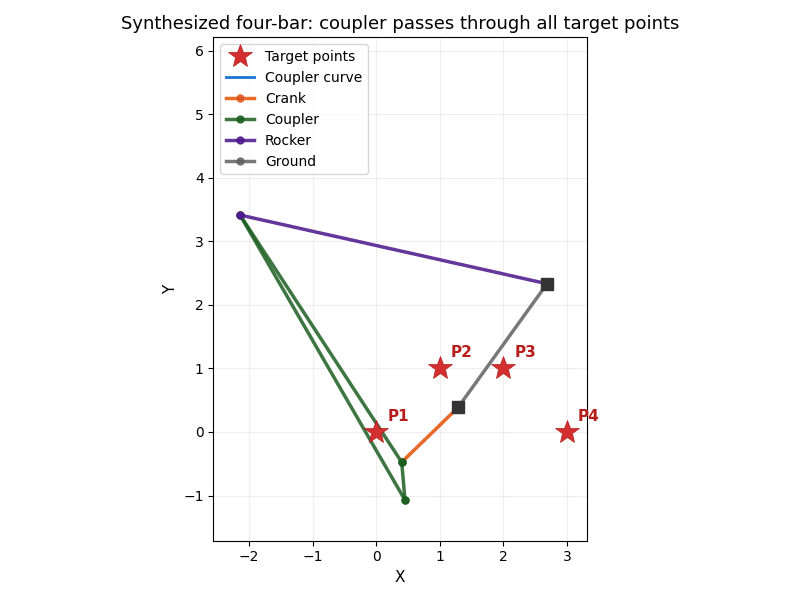

# "I need a coupler that passes through these four points"
result = path_generation([(0, 0), (1, 1), (2, 1), (3, 0)])
plot_kinematic_linkage(result.solutions[0])

Installation

pip install pylinkage            # Core only: define, simulate, and build linkages
pip install pylinkage[full]      # Everything: all optional backends included

Install only what you need:

Extra	What it adds
numba	JIT-compiled solvers (1.5-2.5M steps/sec)
scipy	Differential evolution optimizer, synthesis solvers
symbolic	SymPy-based closed-form expressions and gradient optimization
viz	Matplotlib visualization and animation
plotly	Interactive HTML visualization
svg	Publication-quality SVG export via drawsvg

Extras can be combined: pip install pylinkage[viz,scipy,numba]

For development:

git clone https://github.com/HugoFara/pylinkage.git
cd pylinkage
uv sync  # or pip install -e ".[full,dev]"

Quick Start

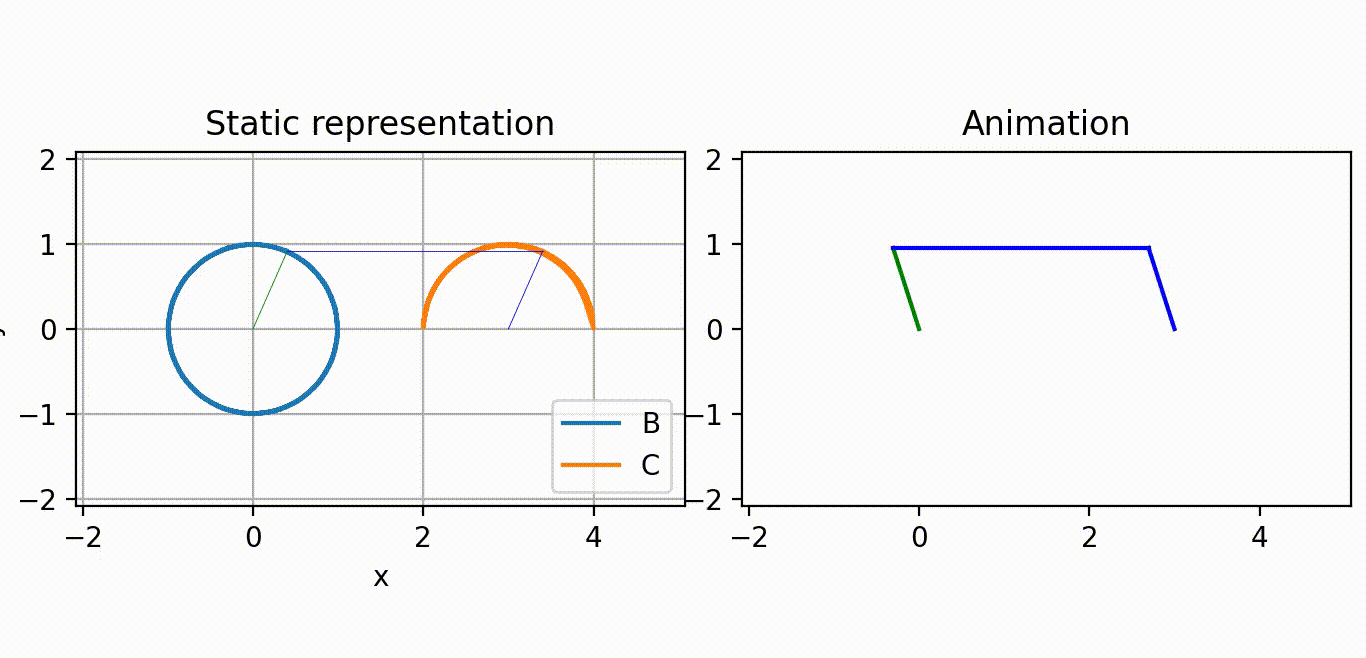

Define and Visualize a Four-Bar Linkage

Using the component-based API (recommended). Visualization requires pip install pylinkage[viz].

from pylinkage.components import Ground
from pylinkage.actuators import Crank
from pylinkage.dyads import RRRDyad
from pylinkage.simulation import Linkage
from pylinkage.visualizer import plot_kinematic_linkage

# Define ground pivots
O1 = Ground(0, 0, name="O1")
O2 = Ground(3, 0, name="O2")

# Create crank (motor-driven input)
crank = Crank(anchor=O1, radius=1.0, angular_velocity=0.31, name="crank")

# Create rocker via RRR dyad (circle-circle intersection)
rocker = RRRDyad(
    anchor1=crank.output,
    anchor2=O2,
    distance1=3.0,
    distance2=1.0,
    name="rocker"
)

my_linkage = Linkage([O1, O2, crank, rocker], name="Four-Bar")
plot_kinematic_linkage(my_linkage)

Alternative: Links-First Builder

For a more mechanical engineering-oriented approach, use MechanismBuilder to define links with their lengths first, then connect them:

from pylinkage.mechanism import MechanismBuilder

# Define links by their lengths, then connect with joints
mechanism = (
    MechanismBuilder("four-bar")
    .add_ground_link("ground", ports={"O1": (0, 0), "O2": (4, 0)})
    .add_driver_link("crank", length=1.0, motor_port="O1", omega=0.1)
    .add_link("coupler", length=3.5)
    .add_link("rocker", length=3.0)
    .connect("crank.tip", "coupler.0")
    .connect("coupler.1", "rocker.0")
    .connect("rocker.1", "ground.O2")
    .build()
)

# Joint positions are computed automatically from link lengths
for positions in mechanism.step():
    print(positions)

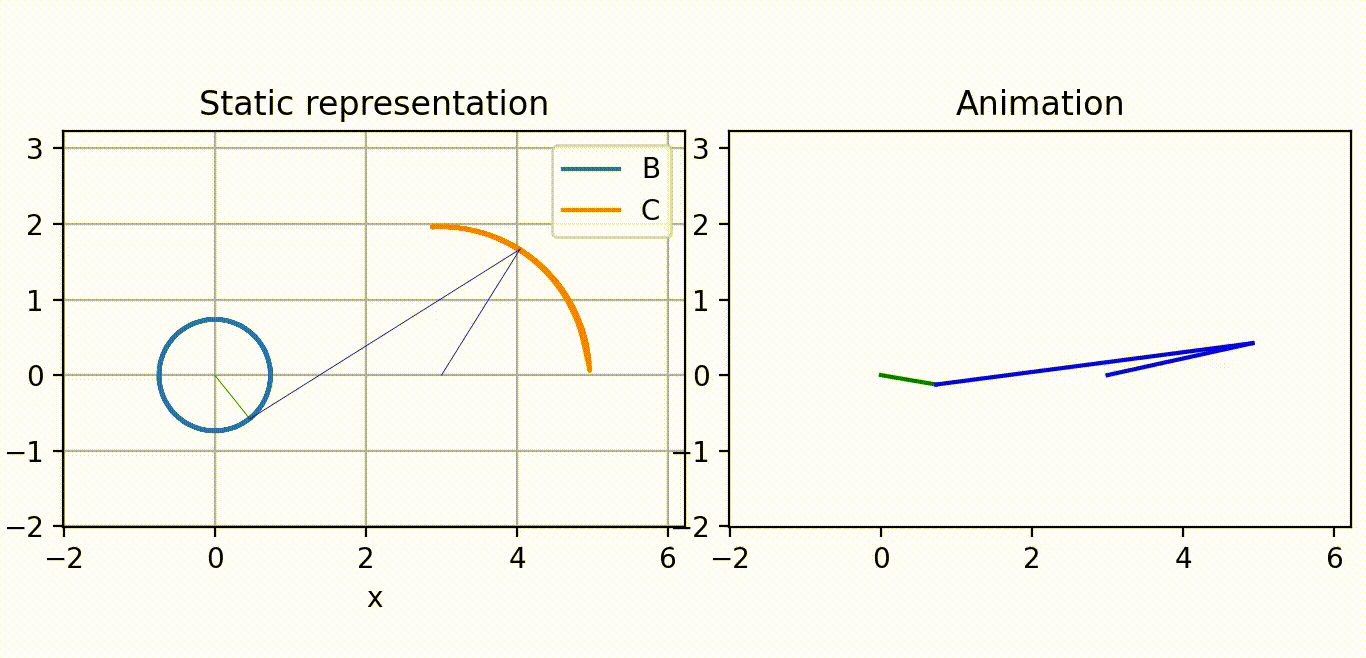

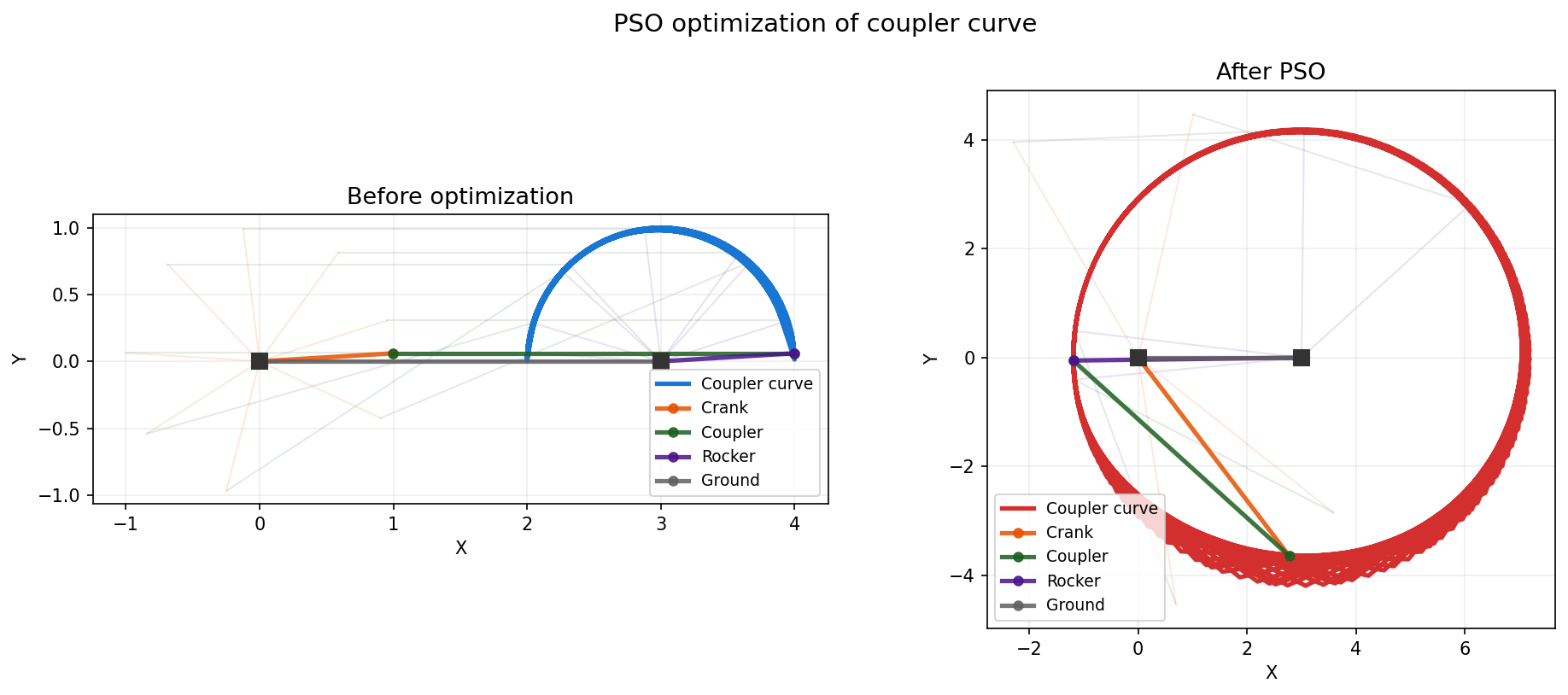

Optimize with PSO

PSO is built-in (no extra needed).

import pylinkage as pl

@pl.kinematic_minimization
def fitness(loci, **_):
    tip_locus = tuple(x[-1] for x in loci)
    return pl.bounding_box(tip_locus)[0]  # Minimize min_y

bounds = pl.generate_bounds(my_linkage.get_num_constraints())
ensemble = pl.particle_swarm_optimization(
    eval_func=fitness, linkage=my_linkage, bounds=bounds, order_relation=min
)
best = ensemble.top(1)[0]
my_linkage.set_num_constraints(best.dimensions)

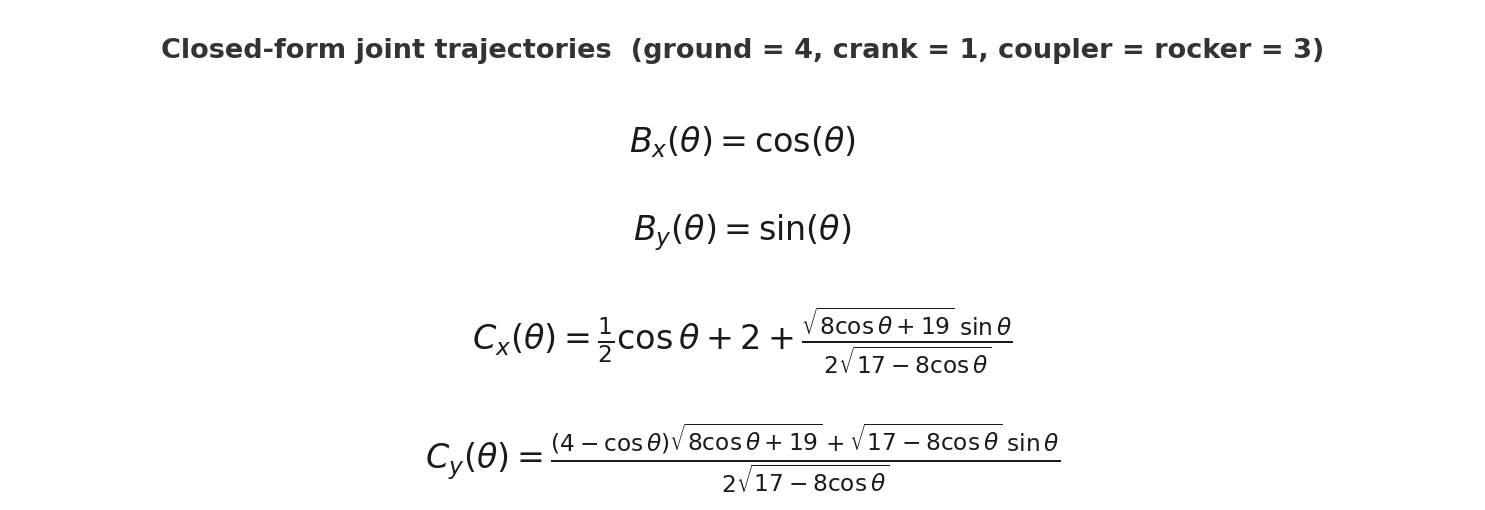

Symbolic Analysis

Requires pip install pylinkage[symbolic]. Get closed-form trajectory expressions:

from pylinkage.symbolic import fourbar_symbolic, compute_trajectory_numeric
import numpy as np

linkage = fourbar_symbolic(ground_length=4, crank_length=1, coupler_length=3, rocker_length=3)
params = {"L1": 1.0, "L2": 3.0, "L3": 3.0}
trajectories = compute_trajectory_numeric(linkage, params, np.linspace(0, 2*np.pi, 100))

Tutorials

The docs/notebooks/ directory contains hands-on tutorials that walk through each major feature:

#	Notebook	What you'll learn
01	Straight-Line Synthesis	Design a mechanism that traces a straight line from scratch
02	Optimize a Coupler Curve	Use PSO to shape a four-bar coupler path
03	Tolerance Analysis	Monte Carlo analysis for manufacturing variation
04	Cam-Follower Timing	Design cam profiles with motion laws
05	Symbolic Coupler Curve	Closed-form trajectory expressions with SymPy
06	Function Generation	Match input/output angle relationships (Freudenstein)
07	Motion Generation	Guide a rigid body through specified poses (Burmester)
08	Velocity & Acceleration	Compute joint velocities and accelerations
09	Transmission Angle & DOF	Evaluate mechanism quality and mobility
10	Mechanism Builder	Link-first definition with MechanismBuilder
11	Multi-Objective Optimization	Pareto-optimal design with NSGA-II and scipy
12	Three Synthesis Problems	Side-by-side comparison of path, function, and motion synthesis
13	Population Abstractions	Batch simulation, ranking, and filtering of mechanism families
14	Topology Enumeration	Enumerate and synthesize across all valid topologies
15	Hypergraph Composition	Compose mechanisms hierarchically from reusable hypergraph components

What Else Can It Do?

Pylinkage also supports velocity and acceleration analysis, cam-follower mechanisms with configurable motion laws, transmission angle evaluation, Monte Carlo tolerance analysis for manufacturing, multi-objective optimization (NSGA-II/III via pymoo), and export to DXF and STEP for CNC and CAD workflows. See the tutorials for details.

Architecture

Level 0: Geometry       → Pure math primitives (numba-accelerated when installed)
Level 1: Solver         → Assur group solvers (numba-accelerated when installed)
Level 2: Components     → Ground, Crank, RRRDyad, LinearActuator, cam-followers
Level 3: Simulation     → Linkage orchestration, step(), step_fast()
Level 4: Applications   → Optimization, Synthesis, Symbolic, Visualization

Performance: With the numba extra, step_fast() achieves 1.5-2.5M steps/sec (4-7x faster than step()). Without numba, the same code runs in pure Python/NumPy.

Full module reference

Module	Purpose	Extras needed
pylinkage.components	Base components: Ground, Component	—
pylinkage.actuators	Motor drivers: Crank, LinearActuator	—
pylinkage.dyads	Assur groups: RRRDyad, RRPDyad, FixedDyad	—
pylinkage.simulation	Linkage class for simulation via step() / step_fast()	—
pylinkage.mechanism	Low-level Links+Joints model and MechanismBuilder	—
pylinkage.solver	High-performance numba-compiled simulation backend	numba
pylinkage.optimization	PSO, differential evolution, grid search	scipy (DE only)
pylinkage.synthesis	Classical synthesis: function/path/motion generation	scipy
pylinkage.symbolic	SymPy-based symbolic computation and gradient optimization	symbolic
pylinkage.visualizer	Matplotlib, Plotly, SVG, DXF, and STEP export	viz, plotly, svg
pylinkage.assur	Assur group decomposition and graph representation	—
pylinkage.hypergraph	Hierarchical component-based linkage definition	—

Requirements

• Python >= 3.10
• Core: numpy, tqdm
• Optional (via extras): numba, scipy, sympy, matplotlib, plotly, drawsvg

Related Projects

• pylinkage-editor — Visual linkage design tool with an easy-to-use interface. Draw mechanisms interactively, run synthesis from the GUI, and export results.
• leggedsnake — Dynamic walking simulation built on pylinkage. Adds pymunk physics, genetic algorithm optimization, and walking-specific fitness evaluation.

Contributing

Contributions welcome! Please see CONTRIBUTING.md and respect the CODE_OF_CONDUCT.md.
