Summary

The aim of pysewer is to provide a framework automatically generate cost-efficient sewer network layouts on minimal data requirements.

It is build around an algorithm for generation of viable sewer-network layouts. The approximated sewer network is represented by sources (households/buildings), potential pathways, and one or multiple sinks. The algorithm approximates the directed steinertree (the steiner arborescence) between all sources and the sink by using an repeated shortest path heuristic (RSPH).

Documentation

The documentation can be found at ddspot.github.io/pysewer (built by the codebase.helmholtz.cloud CI and served statically via the GitHub mirror; Helmholtz users can also use the internal Pages, which requires a Helmholtz AAI login).

An example of how to use pysewer for generating a sewer network layout can be found here: example_sewer_network_generation.

Installation

Quick install from PyPI

pip install pysewer            # core
pip install "pysewer[plot]"    # with plotting (matplotlib)

The geospatial dependencies (GDAL via rasterio/fiona/pyogrio, GEOS via shapely) come as binary wheels. For a fully pinned, reproducible environment, or if wheels are unavailable on your platform, use the conda + uv setup below.

Development install

pysewer uses a two-layer environment: the geospatial C-library stack (GDAL, PROJ, GEOS, rasterio, fiona, geopandas, shapely, …) is installed with conda/mamba from environment.yml, and the pure-Python layer (plus the editable install of pysewer itself) with uv from pyproject.toml. Never install the geospatial C-libraries with pip.

Step 1: Clone the repository and navigate to the root directory

git clone https://codebase.helmholtz.cloud/wasp/pysewer.git
cd pysewer

Step 2: Create the conda environment (native layer)

mamba env create -f environment.yml   # creates the "pysewer" env

For reproducible builds, conda-lock.yml pins the exact conda layer (regenerate with make lock).

Step 3: Install pysewer with uv (PyPI layer)

uv pip install --python "$(conda info --base)/envs/pysewer/bin/python" -e '.[dev]'

Alternatively, make env-local (see mk/env.mk) performs both steps, and on HPC/SLURM systems use source bin/bootstrap_env.sh pysewer which creates the env under /work/$USER/conda_envs and runs the uv step.

Light install (without plotting)

matplotlib is an optional dependency: import pysewer and the full preprocessing → routing → design → export chain work without it, which keeps installs small when pysewer is embedded in another tool (e.g. the Elan QGIS plugin, where QGIS already ships matplotlib). The plotting module is loaded lazily on first use; to enable it, install the plot extra:

uv pip install -e '.[plot]'      # or: pip install 'pysewer[plot]'

Calling a plotting function without matplotlib raises an ImportError that points to this extra. The conda environment above already includes matplotlib, so nothing extra is needed in the standard setup.

Please see the documentation for more details.

Input Data and data representation

The following input data is required:

• A Digital Elevation Model (DEM)
• Point Data on Building locations
• Road Network Data

Preprocessing

The main objective of sewer layout generation is to connect all buildings to a waste water treatment plant (WWTP) while keeping system cost low. The initial graph represents all potential sewer lines in our model domain.

Preprocessing comes down to:

• "connecting" buildings to the street network
• clustering of buildings surpassing a predefined threshold
• contracting the street network for more efficient graph traversal

After preprocessing, all relevant data is and stored as a MultiDiGraph to allow for asymmetric edge values (e.g. elevation profile and subsequently costs).

Graph Attributes

Node Attributes:
    "node_type": "building","wwtp"
    "elevation"
    "pumping_station": bool
    "lifting_station":bool
Edge Attributes:
    "geometry": detailed shapely line
    "length"
    "diameter"
    "pressurized": bool   # authoritative design flag (pump upstream)
    "profile"
    "private_sewer":bool
    "weight": value representing arbitrary cost function

The connection graph additionally carries a needs_pump flag per candidate edge — a terrain-feasibility input used to weight routing (pump penalty). It is stripped from the final designed network: there, pressurized (plus the pumping_station/lifting_station node flags) is the design result.

Routing Solver

The package comes with two solvers to find estimates for the underlying steiner tree problem (more specifically minimum steiner arboresence).

• RSPH
• RSPH Fast

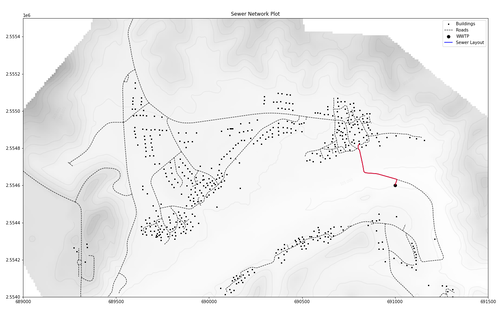

The RSPH solver iteratively connects the nearest unconnected node (in terms of distance and pump penalty) to the closest connected network node. The solver can account for multiple sinks and is therefore well suited to generate decentralized network scenarios.

The RSPH Fast solver derives the network by combining all shortest paths to a single sink. Faster, but only allows for a single sink.

Pump penalty demonstration

To validate the effect of the pump penalty logic we provide a synthetic regression in test_scripts/demo_pump_penalty_effect.py.
Running

python3 test_scripts/demo_pump_penalty_effect.py

creates a small toy network in which a pumped shortcut competes with a gravity detour.

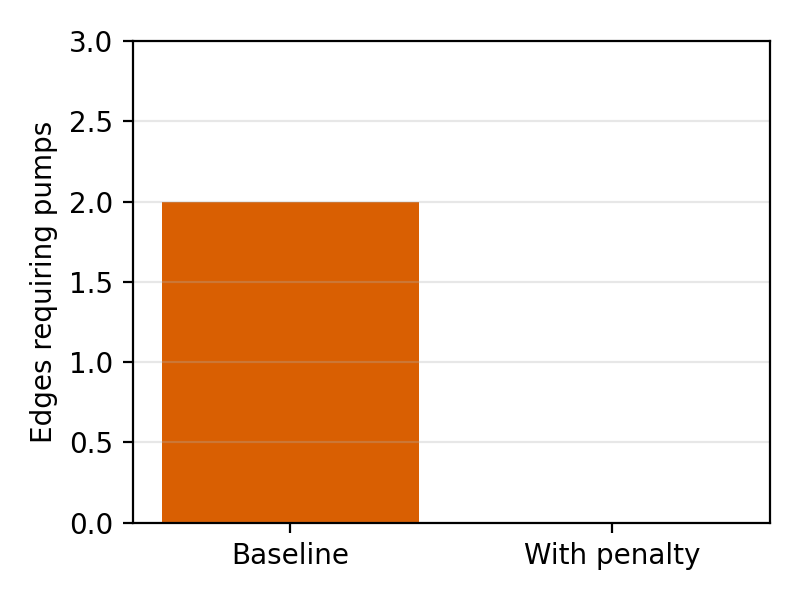

After the penalty escalation rerun, the solver switches to the gravity route and the pump count drops from two edges to zero.

The script also exports docs/pump_penalty_demo.png (when matplotlib is available) so the figure can be regenerated from source.

Hydraulic constraints & validation

Recent updates added geometric and hydraulic checks to reduce unrealistic layouts:

• Geometry (connection graph): cover must stay above min_cover (default 0.25 m); short edges are flagged if < min_pipe_length (default 2 m); excessively steep slopes are flagged (max_slope). Cover violations are recorded per edge but do not force a pump — burial depth is governed by tmin.
• Hydraulics (sizing): gravity pipes are picked to satisfy d/D ≤ max_depth_ratio (default 0.75) and velocities within [velocity_min, velocity_max] (defaults 0.7–3 m/s). Violations are recorded on edges (hydraulic_violations), along with computed velocity and d_over_D.
• Inspection: the example notebook now includes cells that summarize pump/constraint flags on the connection graph and hydraulic violations after sizing.

Profile smoothing is not applied; the checks run on the sampled profile (spacing dx). Increase dx if you want a smoother profile check.

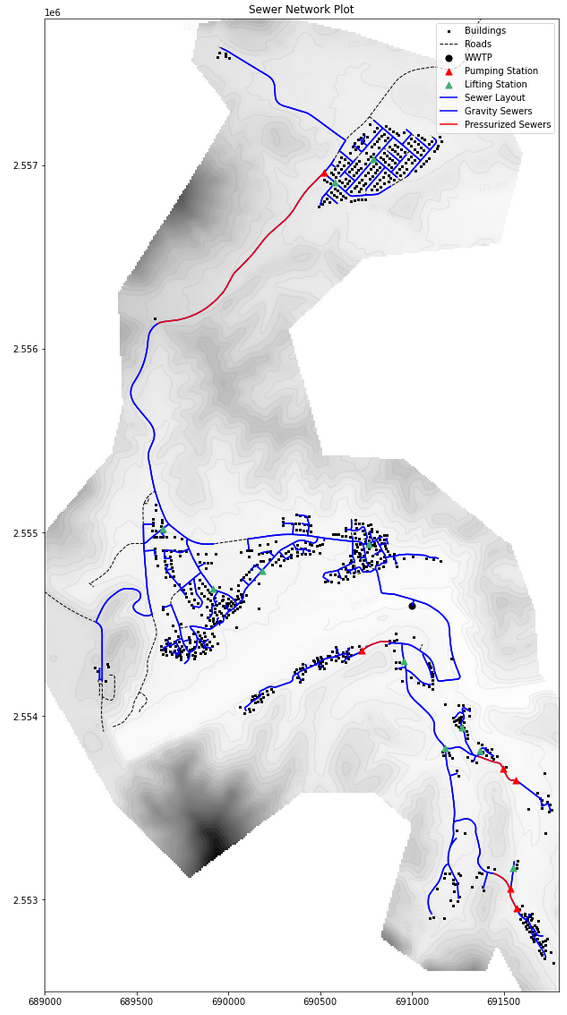

Plotting

Plotting requires matplotlib (included in the conda environment; on a light install add it via pip install 'pysewer[plot]'). The module is loaded lazily on first use.

info = pysewer.get_sewer_info(G)
info["Routing Solver"] = "RSPH"
info["Pump Penalty"] = test_model_domain.pump_penalty
fig,ax = pysewer.plot_model_domain(test_model_domain, plot_sewer=True,sewer_graph = G, info_table=info)

pysewer.plot_sewer_attributes(test_model_domain,G,attribute="peak_flow",title="Peak Flow Estimation m³/s")
plt.show()

Export

sewer_network_gdf = pysewer.get_edge_gdf(G,detailed=True)
pysewer.export_sewer_network(sewer_network_gdf, "sewer_network.gpkg")

Supported formats are GeoPackage (gpkg, default), ESRI Shapefile (shp) and GeoParquet (parquet). Multi-layer GeoPackages with an explicit layer name and CRS can be written with pysewer.write_gdf_to_gpkg(gdf, path, layer=..., crs=...).

Float attributes are rounded on export to keep the files free of floating point noise, controlled by export.round_decimals in the settings (default: 3 decimal places for all float columns and profile tuples, peak_flow: 6 since it is in m³/s, slope: 5; set to null to disable and export raw values).

Default parameters

The default or global parameters are stored in the settings.yaml file. It can be overridden with a custom settings file (e.g. example_settings.yaml) via pysewer.set_custom_config(custom_path=...) (or a dict via custom_settings_dict=...). The settings are categorized into 4 sections, namely preprocessing, optimization, plotting and export.

Set the custom config before creating the ModelDomain. The preprocessing parameters clustering and connect_buildings are consumed while the connection graph is built inside ModelDomain(...), so config overrides applied afterwards cannot affect them:

pysewer.set_custom_config(custom_path="my_settings.yaml")  # 1st
md = pysewer.ModelDomain(dem, roads, buildings)            # 2nd

Most other parameters (including pump_penalty and all optimization values) are read from the live config at the pipeline stage that uses them, so they may also be changed between stages.

The table below summaries the key default parameters and their meaning.

License

GNU GPLv3-modified-UFZ. See LICENSE for details.

How to contribute to pysewer?

Please check out how Contributing for on how to contribute to pysewer. Please note that we have created a mirror repository on Github to allow for easier contribution. The original repository is hosted on Gitlab.

Code of conduct

Please check out our Code of Conduct for details.

How to cite?

pysewer is published in the Journal of Open Source Software (JOSS). If you use pysewer in your work, please cite (see also CITATION.cff):

Sanne, M., Khurelbaatar, G., Despot, D., van Afferden, M., & Friesen, J. (2024). Pysewer: A Python Library for Sewer Network Generation in Data Scarce Regions. Journal of Open Source Software, 9(104), 6430. https://doi.org/10.21105/joss.06430
