pytorch-bsf 0.18.0

PyTorch implementation of Bézier simplex fitting

PyTorch-BSF

Fit smooth, high-dimensional manifolds to your data — from a single GPU to a multi-node cluster.

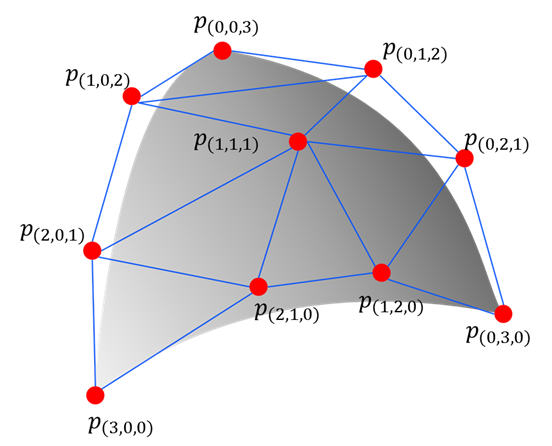

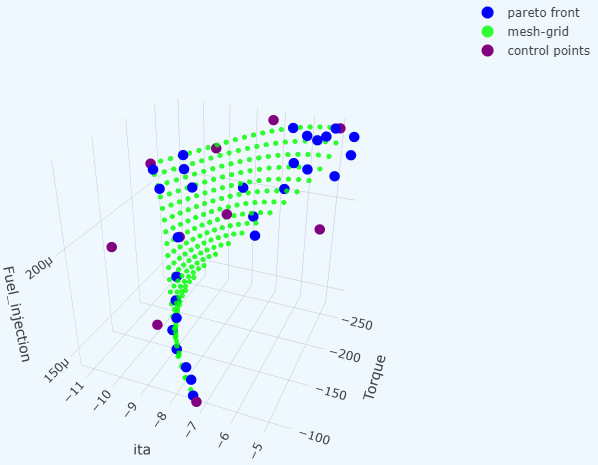

pytorch-bsf brings Bézier simplex fitting to PyTorch. A Bézier simplex is a high-dimensional generalization of the Bézier curve: where a curve models a 1-D path, a Bézier simplex can model an arbitrarily complex point cloud as a smooth parametric hyper-surface in any number of dimensions. This makes it a natural tool for representing Pareto fronts in multi-objective optimization, interpolating scattered observations, and fitting geometric structures in high-dimensional spaces.

Key features:

• Simple, Pythonic API — train a model in one line with torch_bsf.fit(), call it like any PyTorch module, and persist control points in .pt, .csv, .tsv, .json, or .yaml formats.
• Scalable Training — fully vectorized forward pass backed by PyTorch Lightning for seamless scaling from a single CPU to multi-GPU, multi-node clusters.
• Robust & Automatic Fitting — built-in smoothness regularization tames noisy data, and automatic degree selection via k-fold cross-validation removes guesswork.
• Rich ML Ecosystem — scikit-learn-compatible BezierSimplexRegressor for use in Pipeline and GridSearchCV; MLflow experiment tracking; active learning; and advanced sampling strategies (Dirichlet, Sobol).
• Ready to Run — CLI entry points, a pre-built Docker image, and a Conda/MLflow project so you can run pytorch-bsf without installing it into your local environment.

See Full Documentation and the following papers for technical details.

• Kobayashi, K., Hamada, N., Sannai, A., Tanaka, A., Bannai, K., & Sugiyama, M. (2019). Bézier Simplex Fitting: Describing Pareto Fronts of Simplicial Problems with Small Samples in Multi-Objective Optimization. Proceedings of the AAAI Conference on Artificial Intelligence, 33(01), 2304-2313. https://doi.org/10.1609/aaai.v33i01.33012304
• Tanaka, A., Sannai, A., Kobayashi, K., & Hamada, N. (2020). Asymptotic Risk of Bézier Simplex Fitting. Proceedings of the AAAI Conference on Artificial Intelligence, 34(03), 2416-2424. https://doi.org/10.1609/aaai.v34i03.5622

Quickstart

Requirements: For local installation and CLI/library usage, Python >=3.10. For Docker-only usage, only Docker is required.

First, prepare your data:

cat <<EOS > params.csv
1.00, 0.00
0.75, 0.25
0.50, 0.50
0.25, 0.75
0.00, 1.00
EOS
cat <<EOS > values.csv
0.00, 1.00
3.00, 2.00
4.00, 5.00
7.00, 6.00
8.00, 9.00
EOS

1. via Docker (No Installation Required)

Prerequisites: Docker.

A pre-built image is available on GHCR, built on continuumio/miniconda3 with PyTorch installed via the pytorch conda channel, providing Intel MKL as the BLAS backend:

docker run --rm \
  --user "$(id -u)":"$(id -g)" \
  -v "$(pwd)":/workspace \
  ghcr.io/opthub-org/pytorch-bsf \
  python -m torch_bsf \
  --params=params.csv \
  --values=values.csv \
  --degree=3

2. via MLflow (No Installation Required)

Prerequisites: Miniconda or Anaconda, and pip install mlflow.

MLflow creates a conda environment from the project's environment.yml, which uses the pytorch conda channel and Intel MKL:

mlflow run https://github.com/opthub-org/pytorch-bsf \
  -P params=params.csv \
  -P values=values.csv \
  -P degree=3

3. via CLI (After Installation)

This method is suitable when you do not need experiment tracking. If you prefer to install the package, you can run it via the command line interface.

Installation:

pip install pytorch-bsf

Execution:

python -m torch_bsf \
  --params=params.csv \
  --values=values.csv \
  --degree=3

Click to see all MLflow / CLI parameters

Parameter	Type	Default	Description
params	path	required	The parameter data file, which contains input observations for training a Bézier simplex. The file must be a CSV (.csv) or TSV (.tsv) file. Each line in the file represents an input observation, corresponding to an output observation in the same line in the value data file.
values	path	required	The value data file, which contains output observations for training a Bézier simplex. The file must be a CSV (.csv) or TSV (.tsv) file. Each line in the file represents an output observation, corresponding to an input observation in the same line in the parameter data file.
meshgrid	path	None	The meshgrid data file used for prediction after training. The file format is the same as params. If omitted, params is used as the meshgrid.
init	path	None	Load initial control points from a file. The file must be of pickled PyTorch (.pt), CSV (.csv), TSV (.tsv), JSON (.json), or YAML (.yml or .yaml). Either this option or --degree must be specified, but not both.
degree	int $(x \ge 1)$	None	Generate initial control points at random with specified degree. Either this option or --init must be specified, but not both.
freeze	list[list[int]]	None	Indices of control points to exclude from training. By default, all control points are trained.
header	int $(x \ge 0)$	0	The number of header lines in params/values files.
normalize	"none", "max", "std", "quantile"	"none"	The data normalization: "max" scales each feature such that the minimum is 0 and the maximum is 1, suitable for uniformly distributed data; "std" does so such that the mean is 0 and the standard deviation is 1, suitable for non-uniformly distributed data; "quantile" does so such that the 5-percentile is 0 and the 95-percentile is 1, suitable for data containing outliers; "none" does not perform any scaling, suitable for pre-normalized data.
split_ratio	float $(0 < x \le 1)$	1.0	The ratio of training data against validation data. When set to 1.0 (the default), all data is used for training and the validation step is skipped.
batch_size	int $(x \ge 1)$	None	The size of minibatch. The default (None) uses all records in a single batch.
max_epochs	int $(x \ge 1)$	2	The number of epochs to stop training.
smoothness_weight	float $(x \ge 0)$	0.0	The weight of smoothness penalty. Adding a small weight (e.g., 0.1) helps produce a smooth, stable manifold when fitting noisy datasets.
accelerator	"auto", "cpu", "gpu", etc.	"auto"	Accelerator to use. See PyTorch Lightning documentation.
strategy	"auto", "dp", "ddp", etc.	"auto"	Distributed strategy. See PyTorch Lightning documentation.
devices	int $(x \ge -1)$	"auto"	The number of accelerators to use. By default, use all available devices. See PyTorch Lightning documentation.
num_nodes	int $(x \ge 1)$	1	The number of compute nodes to use. See PyTorch Lightning documentation.
precision	"64-true", "32-true", "16-mixed", "bf16-mixed", etc.	"32-true"	The precision of floating point numbers.
loglevel	int $(0 \le x \le 2)$	2	What objects to be logged. 0: nothing; 1: metrics; 2: metrics and models.
enable_checkpointing	flag	False	With this flag, model files will be stored every epoch during training.
log_every_n_steps	int $(x \ge 1)$	1	The interval of training steps when training loss is logged.

4. via Python Script

This is the most flexible method, allowing you to use custom data loaders to read large-scale data and finely control logging. Train a model using the Python API fit(), and call the resulting model to predict.

import torch
import torch_bsf

# Prepare training data
ts = torch.tensor(  # parameters on a simplex
    [
        [8 / 8, 0 / 8],
        [7 / 8, 1 / 8],
        [6 / 8, 2 / 8],
        [5 / 8, 3 / 8],
        [4 / 8, 4 / 8],
        [3 / 8, 5 / 8],
        [2 / 8, 6 / 8],
        [1 / 8, 7 / 8],
        [0 / 8, 8 / 8],
    ]
)
xs = 1 - ts * ts  # values corresponding to the parameters

# Train a model
bs = torch_bsf.fit(params=ts, values=xs, degree=3)

# Predict with the trained model
t = [
    [0.2, 0.8],
    [0.7, 0.3],
]
x = bs(t)
print(f"{t} -> {x}")

Saving and Loading Models

Save a trained model and reload it later:

import torch_bsf
from torch_bsf.bezier_simplex import save, load

# Train
bs = torch_bsf.fit(params=ts, values=xs, degree=3)

# Save (supported formats: .pt, .csv, .tsv, .json, .yml/.yaml)
save("model.pt", bs)

# Load
bs = load("model.pt")

K-Fold Cross-Validation

Run k-fold cross-validation via the CLI:

python -m torch_bsf.model_selection.kfold \
  --params=params.csv \
  --values=values.csv \
  --degree=3 \
  --num_folds=5

Additional parameters for k-fold (all standard parameters are also accepted):

Parameter	Type	Default	Description
num_folds	int	5	Number of folds.
shuffle	bool	True	Whether to shuffle data before splitting.
stratified	bool	True	Whether to use stratified splitting.

The command saves per-fold meshgrid predictions as well as an ensemble mean:

• {params},{values},{num_folds}fold,meshgrid,d_{degree},r_{split_ratio},{k}.csv (per fold)
• {params},{values},{num_folds}fold,meshgrid,d_{degree},r_{split_ratio}.csv (mean over folds)

Elastic Net Grid Search

Generate a grid of 3D parameter points on the standard 2-simplex for elastic net hyperparameter search:

python -m torch_bsf.model_selection.elastic_net_grid \
  --n_lambdas=102 \
  --n_alphas=12 \
  --n_vertex_copies=10 \
  --base=10

Parameter	Type	Default	Description
n_lambdas	int	102	Number of samples along the lambda axis (log scale).
n_alphas	int	12	Number of samples along the alpha axis (linear scale).
n_vertex_copies	int	10	Number of duplicated samples at each vertex (useful for k-fold cross-validation).
base	float	10	Base of the log space.

The output is printed to stdout as CSV with three columns (one row per grid point).

Advanced Topics

The library includes several capabilities beyond basic fitting. Full documentation for each topic is linked below.

Topic	Summary
Visualization	Plot fitted 2D curves and 3D surfaces with a single call.
Advanced Sampling	Generate simplex parameter points via Dirichlet random sampling or quasi-random Sobol sequences, in addition to the default uniform grid.
Automatic Degree Selection	Automatically pick the best polynomial degree using k-fold cross-validation.
Scikit-learn Integration	BezierSimplexRegressor exposes a standard fit / predict / score API compatible with Pipeline and GridSearchCV.
Active Learning	Suggest the most informative next sampling points using Query-By-Committee or density-based strategies.

Author

OptHub Inc. and FUJITSU LIMITED

License

MIT
