pyvoro2

Documentation: https://delonecommons.github.io/pyvoro2/

pyvoro2 is a scientific Python package for computing 2D and 3D Voronoi and power/Laguerre tessellations, with particular support for periodic topology and inverse fitting of power weights from partial geometric data.

pyvoro2 0.8.0: this source describes the finalized v0.8 release contract. One exact source commit is independently reviewed and qualified with its artifacts under issue #33 before the public tag is created. The archived v0.6.3 release remains the software baseline cited by the current separator-inverse manuscript.

The v0.8 tree provides:

• standard Voronoi tessellations;
• power/Laguerre tessellations directly from mathematical weights, with the existing radius representation retained;
• a dedicated pyvoro2.planar namespace for 2D rectangular domains;
• bounded, partially periodic, and triclinic periodic 3D domains;
• explicit periodic neighbor-image shifts;
• diagnostics, validation, topology normalization, and visualization helpers;
• separator-based inverse fitting in 2D and 3D, including graph/connectivity diagnostics, hard-constraint witnesses, realized-boundary matching, and an optional realization-aware active-set loop.

The package is evolving toward a stable architecture for forward and inverse weighted tessellations. v0.8 is a feature-free maintenance and compatibility-removal release. v0.9 is reserved for functional/API stabilization and downstream readiness, 1.0 stabilizes the existing core, prescribed cell measures begin in v1.1, and mixed separator-plus-measure fitting begins in v1.2.

pyvoro2 is designed to be explicit and predictable:

• it vendors and wraps upstream Voro++ sources, including a small numeric robustness fix already accepted upstream for power/Laguerre pruning;
• 3D and planar APIs remain separate where their backends and domain support differ;
• power weights are the mathematical quantities, while Voro++ radii are a backend representation;
• algebraic inverse fit and realized geometry are reported as separate layers;
• numerical and topological failure modes are exposed through diagnostics rather than hidden fallback.

License note: pyvoro2-authored code is released under LGPLv3+ starting with version 0.6.0. Earlier versions were released under MIT. Vendored third-party code remains under its own licenses.

Quickstart

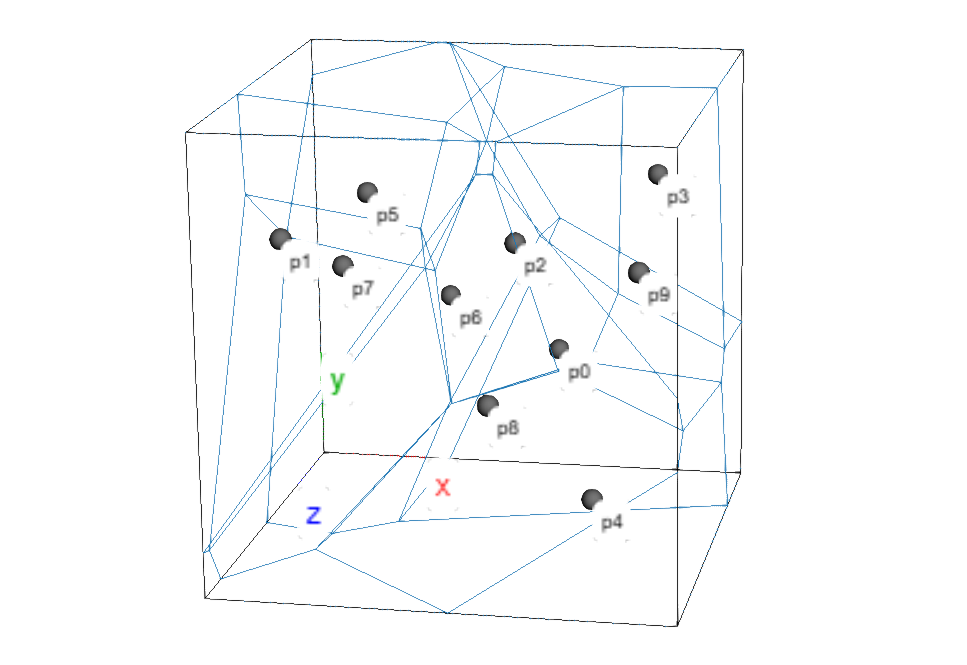

1) Standard Voronoi in a 3D box

For 3D visualization, install the optional dependency with pip install "pyvoro2[viz]".

import numpy as np
import pyvoro2 as pv
from pyvoro2.viz3d import view_tessellation

points = np.random.default_rng(0).uniform(-1.5, 1.5, size=(10, 3))
box = pv.Box(((-2, 2), (-2, 2), (-2, 2)))
result = pv.compute(points, domain=box, mode='standard')

view_tessellation(
    result.cells,
    domain=box,
    show_vertices=False,
)

2) Planar periodic workflow

import numpy as np
import pyvoro2.planar as pv2

points2d = np.array([
    [0.2, 0.2],
    [0.8, 0.25],
    [0.4, 0.8],
], dtype=float)

cell2d = pv2.RectangularCell(
    ((0.0, 1.0), (0.0, 1.0)),
    periodic=(True, True),
)
result2d = pv2.compute(
    points2d,
    domain=cell2d,
    return_diagnostics=True,
    normalize='topology',
)

diagnostics2d = result2d.require_tessellation_diagnostics()
topology2d = result2d.require_normalized_topology()

3) Power/Laguerre tessellation

The forward compute(...) APIs accept mathematical power weights directly:

weights = np.linspace(-0.2, 0.2, len(points))

result = pv.compute(
    points,
    domain=box,
    mode='power',
    weights=weights,
    include_empty=True,
)

The power function is ||x - p_i||^2 - w_i: weights have squared-length units, may be negative, and are converted to non-negative backend radii using one common global shift. Adding the same constant to every weight leaves the complete diagram unchanged. Existing radii= calls remain available, but the resulting length-unit radii are a non-unique backend representation rather than necessarily physical radii. Supply exactly one of weights= or radii= in power mode. Finite representability is necessary for conversion but does not guarantee a numerically resolvable native tessellation. Voro++ evaluates radical geometry with binary64 squared-radius arithmetic, so very large absolute radii**2 values or genuine weight ranges relative to squared coordinate/domain scales can lose geometric resolution. There is no universal safe cutoff: the onset depends on scale, geometry, platform, and compiler, and periodic power tessellations are a particularly sensitive regime. See Power diagrams for the precise distinction.

4) Periodic crystal cell with neighbor image shifts

cell = pv.PeriodicCell(
    vectors=(
        (10.0, 0.0, 0.0),
        (2.0,  9.0, 0.0),
        (1.0,  0.5, 8.0),
    )
)

result = pv.compute(points, domain=cell, return_face_shifts=True)

# result.require_boundaries() returns faces aligned with input-site order.
# Each face can include:
#   adjacent_cell  (neighbor site id)
#   adjacent_shift (which periodic image produced the face)

5) Fit weights from separator observations

import pyvoro2.inverse as inverse
import pyvoro2.inverse.separator as separator

points_pair = np.array([
    [0.0, 0.0, 0.0],
    [2.0, 0.0, 0.0],
])
pair_box = pv.Box(((-5, 5), (-5, 5), (-5, 5)))

observations = inverse.resolve_separator_observations(
    points_pair,
    [(0, 1, 0.25)],
    measurement='fraction',
    domain=pair_box,
)

fit = inverse.fit_weights_from_separators(
    points_pair,
    observations,
    model=separator.FitModel(mismatch=separator.SquaredLoss()),
)

The small pyvoro2.inverse surface is the normal fixed-observation route. Advanced models, realized-boundary checks, reports, and the experimental active-set workflow are available explicitly from pyvoro2.inverse.separator.

Numerical safety notes

Voro++ uses fixed absolute tolerances internally. pyvoro2 always rejects generator pairs whose squared distance is at most 1e-10 before native insertion; very small or very large coordinate systems can still lose geometric accuracy.

pyvoro2 does not silently rescale coordinates. Rescale explicitly when using unusual units.

A user policy can add a diagnostic range above the mandatory 1e-5 safety distance:

result = pv.compute(
    points,
    domain=cell,
    duplicate_check='raise',
    duplicate_threshold=1e-3,
)

duplicate_check='off', warn, and raise affect only safe pairs below the configured user threshold. Mandatory violations always raise. For periodic domains mandatory safety always uses certified minimum-image geometry; duplicate_wrap=False changes only the optional diagnostic metric.

Inserted generators must lie in each non-periodic half-open interval [lo, hi); periodic axes are remapped. This includes temporary ghost generators. Locate query points themselves are not inserted.

For stricter post-hoc checks, see:

• pyvoro2.validate_tessellation(..., level='strict');
• pyvoro2.validate_normalized_topology(..., level='strict');
• pyvoro2.planar.validate_tessellation(..., level='strict');
• pyvoro2.planar.validate_normalized_topology(..., level='strict').

The vendored Voro++ snapshot includes the upstream robustness fix for radical pruning in power mode. This avoids rare cross-platform cases where fully periodic power tessellations could produce a non-reciprocal face/neighbor graph under aggressive floating-point code generation.

Why use pyvoro2?

Voro++ is fast and mature, but its low-level C++ interface does not provide all of the Python-side contracts needed in scientific workflows. pyvoro2 adds:

• triclinic periodic cells and coordinate mapping in 3D;
• partially periodic orthorhombic cells for slabs and wires;
• explicit planar support through pyvoro2.planar;
• periodic image-labelled faces and edges for graph construction;
• diagnostics and normalization for reproducible topology;
• owner lookup with locate(...);
• non-inserting probe cells with ghost_cells(...);
• separator-based inverse fitting with inspectable graph, feasibility, realization, and active-set diagnostics.

Documentation overview

Installation

Most users should install a prebuilt wheel:

pip install pyvoro2

The v0.8 qualification workflow targets 20 standard GIL-enabled CPython wheels: Python 3.10, 3.11, 3.12, 3.13, and 3.14 for each of manylinux x86_64, Windows AMD64, macOS arm64, and macOS x86_64. It also builds one source distribution. Other operating systems, architectures, interpreter implementations, free-threaded CPython builds, musllinux, 32-bit targets, Windows arm64, and macOS universal2 do not have v0.8 prebuilt wheels.

Optional extras:

• pyvoro2[sparse] for optional SciPy sparse-direct static quadratic separator fitting;
• pyvoro2[viz] for 3D py3Dmol and 2D plotting;
• pyvoro2[viz2d] for 2D matplotlib plotting only;
• pyvoro2[all] for the full local notebook, docs, lint, test, and release validation stack.

Supported source builds use standard GIL-enabled CPython 3.10–3.14 and require a C++17 compiler, CMake 3.20 or newer, and Python development headers. Free-threaded CPython builds are not currently supported. Ninja is recommended because the build backend uses CMake efficiently with it. Typical toolchains are GCC or Clang on Linux, Xcode Command Line Tools on macOS, and Visual Studio Build Tools with the "Desktop development with C++" workload on Windows. These are source-build requirements, not pyvoro2 runtime dependencies.

For an editable runtime-only build:

python -m pip install --upgrade pip
python -m pip install -e .

For local repository development and all validation tools:

python -m pip install --upgrade pip
python -m pip install -e ".[all]"

See Contributing for platform notes and clean-environment verification.

Testing

The default suite includes deterministic tests and seeded fuzz/property tests with --fuzz-n=10:

pip install -e ".[test]"
pytest -q

Increased seeded fuzz coverage and the optional independent-wrapper group:

# Explicitly select fuzz tests and raise their iteration count
pytest -m fuzz --fuzz-n 100

# Independent wrapper cross-checks; requires pyvoro
pip install pyvoro
pytest -m pyvoro --fuzz-n 100

For a complete local publishability pass:

python tools/release_check.py

Project status and support

pyvoro2 is currently beta. This source describes v0.8.0, including the completed compatibility removal, Python 3.14 and wheel-matrix preparation, and the accepted bounded API-contract corrections. The v0.8 source is finalized before one exact commit and its artifacts are qualified under issue #33; any tracked correction changes that candidate. The archived v0.6.3 release remains the software baseline cited by the separator-inverse manuscript. The v0.8.0 release uses the project Git tag, GitHub Release, and package-distribution process and intentionally creates no new pyvoro2 Zenodo software-version record. Existing historical pyvoro2 and project/reproducibility Zenodo records remain valid. New inverse families begin after the stable 1.0 core. See the v0.8.0 release notes and the completed v0.8 plans.

Reproducible bugs and focused feature proposals are welcome through GitHub issues. Development is currently led by one maintainer, so support is best-effort. Contribution and decision policies are described in CONTRIBUTING.md.

AI-assisted development

The project has used the latest Chat and Codex models available at the time of development for planning, implementation support, testing, and documentation. The maintainer reviews and validates all integrated changes and remains responsible for the software and scientific claims.

See AI-assisted development for details.

License

• pyvoro2-authored code is LGPLv3+ starting with version 0.6.0;
• versions before 0.6.0 were released under MIT;
• vendored Voro++ code remains under its upstream license.

This README is auto-generated from the MkDocs sources in docs/. To update it, edit the docs pages and re-run: python tools/gen_readme.py.
