pyxflow 0.4.3

Python implementation of Vaadin Flow

PyXFlow

Build full-stack web apps in pure Python. No JavaScript. No HTML templates.

Write your code and business logic in Python. It runs on the server. The browser is just a thin client rendering standard web components: you never touch the frontend.

Under the hood, PyXFlow uses the same server-driven architecture as Vaadin Flow but entirely written in Python, and ships with 50+ Vaadin web components: enterprise-grade, accessible, and battle-tested over years.

---

from pyxflow import Route
from pyxflow.components import *

@Route("hello")
class HelloView(HorizontalLayout):
    def __init__(self):
        name = TextField("Your name")
        button = Button("Say hello", lambda e: Notification.show(f"Hello {name.value}"))
        self.add(name, button)

Features

• Server-side only -- all logic runs in Python, no JavaScript to write
• Real-time push -- update the UI from background tasks via WebSocket
• Lazy data loading -- Grid with virtual scrolling and server-side sorting
• Form validation -- Binder with validators and converters
• Theming -- Lumo and Aura themes with dark mode support
• Hot reload -- --dev mode watches for file changes

Demo

The included demo app showcases real-world patterns across 8 views:

View	Route	What it shows
About	/	Landing page with logo and architecture diagram

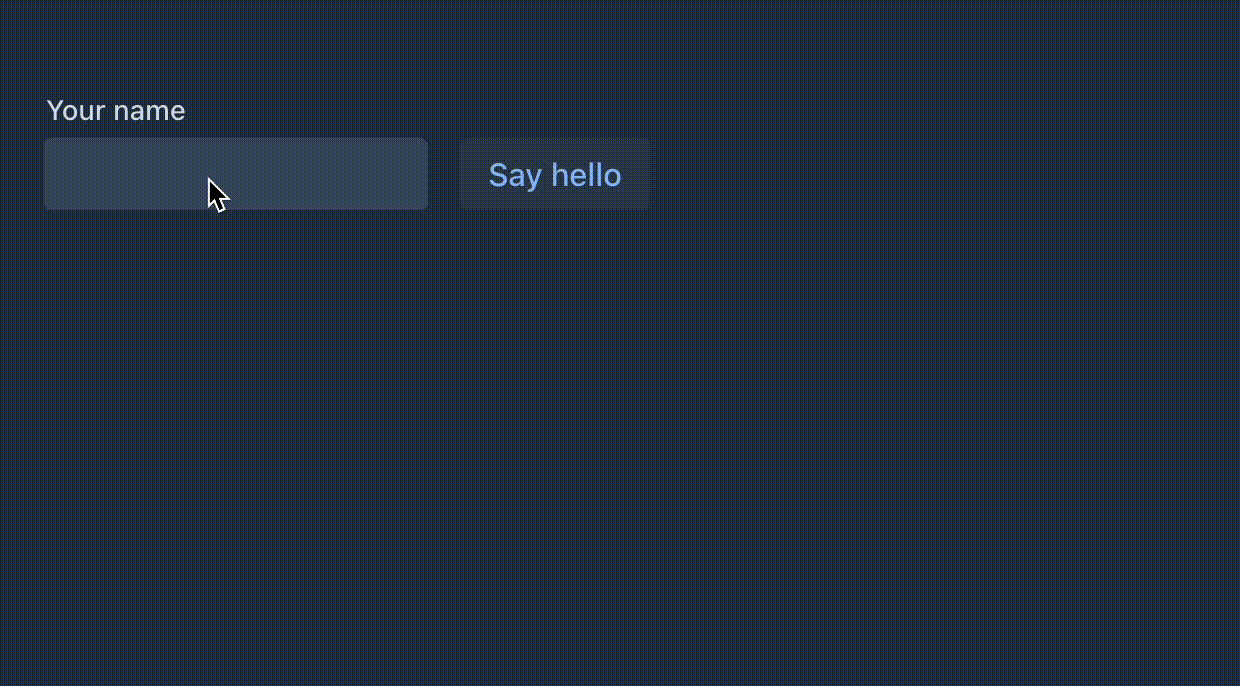

Hello	/hello	Simplest view -- TextField + Button + Notification

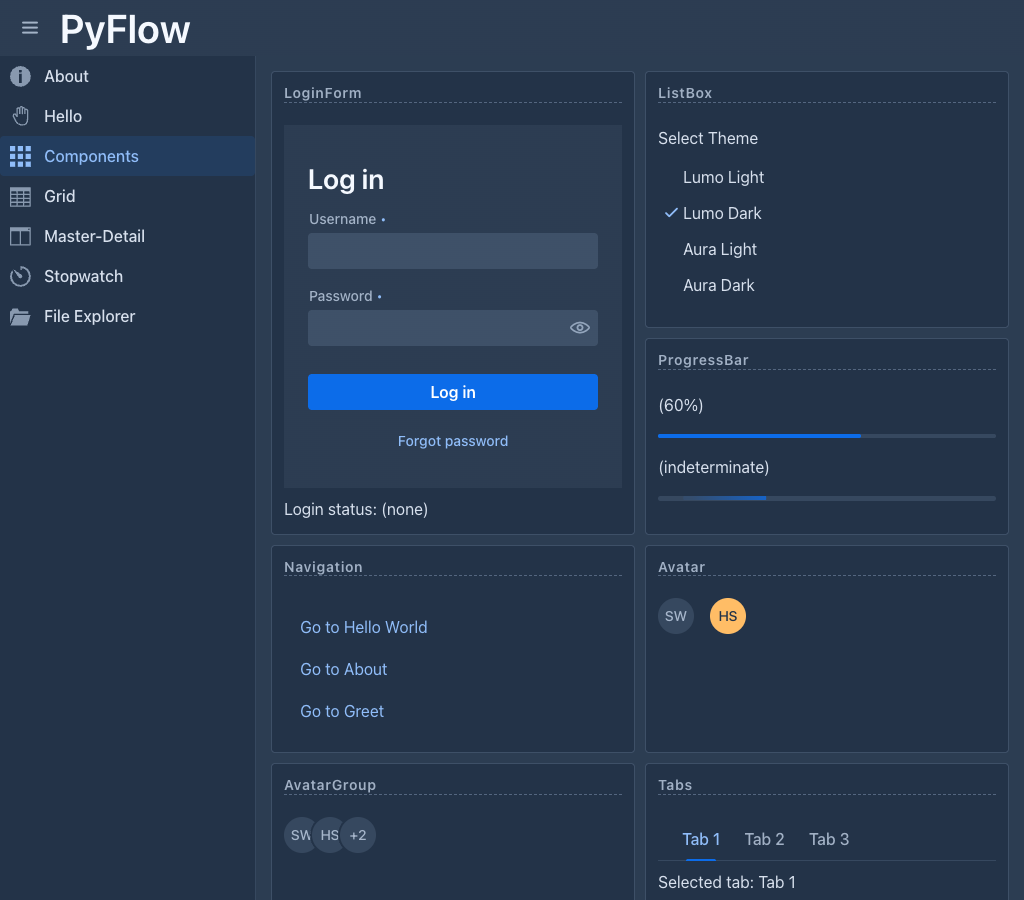

Components	/components	20+ components in a responsive CSS grid
Grid	/grid	Lazy data provider with sorting and selection (200 rows)

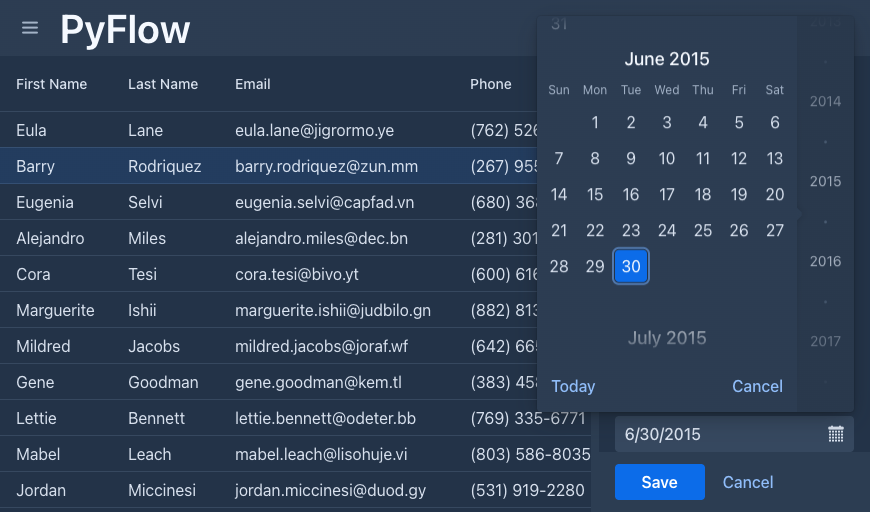

Master-Detail	/master-detail	Grid + side form with Binder validation
Responsive CRUD	/crud	Full CRUD with route parameters and FAB
Stopwatch	/push-demo	WebSocket push -- server updates UI every second
File Explorer	/file-explorer	TreeGrid + @ClientCallable for server method calls

Run the demo

git clone https://github.com/manolo/pyxflow.git
cd pyxflow
python -m venv .venv && source .venv/bin/activate
pip install -e .
python -m demo          # http://localhost:8088

Installation

pip install pyxflow

Quick start

mkdir my-app && cd my-app
python -m venv .venv
source .venv/bin/activate   # Windows: .venv\Scripts\activate
pip install pyxflow
pyxflow --setup
pyxflow
# http://localhost:8080

This scaffolds a project with views/, static/, and VSCode config:

my-app/
  views/
    main_layout.py    # AppLayout with SideNav
    hello_world.py    # Sample view with TextField + Button
  static/
    favicon.ico
    styles/
      styles.css
    images/
  .vscode/            # VSCode settings, snippets, extensions

Running

pyxflow [app_module] [options]

  app_module               Python module with views/ (auto-detected if omitted)
  --setup [app_name]       Scaffold a new project (views, static, .vscode/)
  --vscode                 Generate .vscode/ config and install recommended extensions
  --dev                    Auto-reload on source changes
  --debug                  Verbose UIDL protocol logging
  --port PORT              Server port (default: 8080)
  --host HOST              Server host (default: localhost)
  --bundle                 Generate frontend bundle

Routing

Each view is a Python class with a @Route decorator that defines the URL path. Add @Menu to include it in the navigation. PyXFlow handles client-side URL routing automatically.

from pyxflow import Route, Menu

@Route("dashboard", page_title="Dashboard", layout=MainLayout)
@Menu(title="Dashboard", order=1, icon="vaadin:dashboard")
class DashboardView(VerticalLayout):
    ...

• @Route(path) -- register a view at a URL path
• @Route(path, layout=MainLayout) -- wrap in a layout
• @Menu(title, order, icon) -- add to the navigation menu
• Route parameters: @Route("greet/:name") with on_parameter_changed(self, params)

Application shell

@AppShell marks the global app configuration: push, theme, stylesheets. Only one per app. In practice, you put it on your main layout class (AppLayout) which provides the navbar, drawer, and content area.

from pyxflow import AppShell, Push, ColorScheme, StyleSheet
from pyxflow.components import AppLayout, DrawerToggle, H1, SideNav, SideNavItem
from pyxflow.menu import get_menu_entries

@AppShell
@Push
@ColorScheme("dark")
@StyleSheet("lumo/lumo.css", "styles/styles.css")
class MainLayout(AppLayout):
    def __init__(self):
        self.add_to_navbar(DrawerToggle(), H1("My App"))
        nav = SideNav()
        for entry in get_menu_entries():
            nav.add_item(SideNavItem(entry.title, entry.path))
        self.add_to_drawer(nav)

Grid with lazy data

Grid fetches only the rows visible in the viewport. Provide a callback that returns a slice of your data and the total count -- Grid handles virtual scrolling, sorting, and pagination.

grid = Grid()
grid.add_column("name", header="Name").set_sortable(True).set_auto_width(True)
grid.add_column("email", header="Email").set_auto_width(True)
grid.set_data_provider(my_fetch)

def my_fetch(offset, limit, sort_orders):
    return items[offset:offset+limit], len(items)

Real-time push

Update the UI from business background tasks running in the server. The server pushes changes to the browser via WebSocket. Just call ui.access() from any async task.

import asyncio

@Route("live")
class LiveView(VerticalLayout):
    def __init__(self):
        self.label = Span("0")
        self.add(self.label)
        asyncio.get_event_loop().create_task(self._tick())

    async def _tick(self):
        n = 0
        while True:
            await asyncio.sleep(1)
            n += 1
            ui = self.get_ui()
            if ui:
                ui.access(lambda: self.label.set_text(str(n)))

Requires @Push on the @AppShell class.

Components

Type	Component	Description
Input	TextField	Single-line text input
Input	TextArea	Multi-line text input
Input	PasswordField	Masked password input
Input	EmailField	Email input with RFC 5322 validation
Input	NumberField	Numeric input with min/max/step
Input	IntegerField	Integer-only variant
Input	Checkbox / CheckboxGroup	Toggle and multiple selection
Input	RadioButtonGroup	Single selection from options
Input	Select	Dropdown single selection
Input	ComboBox / MultiSelectComboBox	Filterable dropdown (multi-select)
Input	DatePicker / TimePicker / DateTimePicker	Date and time selection
Input	Upload	File upload
Input	CustomField	Composite custom field
Data	Grid	Data table with sorting, selection, lazy loading, renderers
Data	TreeGrid	Hierarchical data table with expand/collapse
Layout	VerticalLayout / HorizontalLayout	Stack children vertically or horizontally
Layout	FlexLayout	CSS Flexbox layout
Layout	FormLayout	Responsive form with labels and colspan
Layout	SplitLayout	Resizable two-panel split
Layout	AppLayout	Application shell with navbar and drawer
Layout	Scroller	Scrollable container
Layout	Card	Styled card container
Layout	Details / Accordion	Collapsible sections
Layout	Dialog / ConfirmDialog	Modal dialogs
Layout	MasterDetailLayout	Master-detail pattern
Navigation	Tabs / TabSheet	Tab navigation with content panels
Navigation	SideNav	Side navigation with items
Navigation	MenuBar / ContextMenu	Hierarchical and right-click menus
Navigation	RouterLink	Client-side navigation link
Display	Button	Click listener, icon support, keyboard shortcuts
Display	Icon	Vaadin and Lumo icon sets
Display	Notification	Toast notifications with position and duration
Display	ProgressBar	Determinate and indeterminate progress
Display	Avatar / AvatarGroup	User avatars
Display	Span, H1-H6, Paragraph, Pre	Text elements
Display	Image, Anchor, IFrame	Media and links

Development

See README-DEV.md for setup, tests, project structure, and architecture.

License

Apache License 2.0
