pyxpo-drawing-canvas

A finger and pen drawing surface for pyxpo apps written in Python, with undo, redo, clear, a pen and an eraser, and export to PNG or JPEG. iOS draws with Core Graphics (Apple Pencil works like a finger), Android with android.graphics.Canvas, and the web and the desktop window with an HTML canvas. Every platform uses the same stroke format and the same smoothing curve, so strokes saved on one platform look the same on another.

import pyxpo_drawing_canvas as DrawingCanvas

DrawingCanvas.DrawingCanvas(ref=canvas, stroke_color="#222222", stroke_width=6, style={"flex": 1})

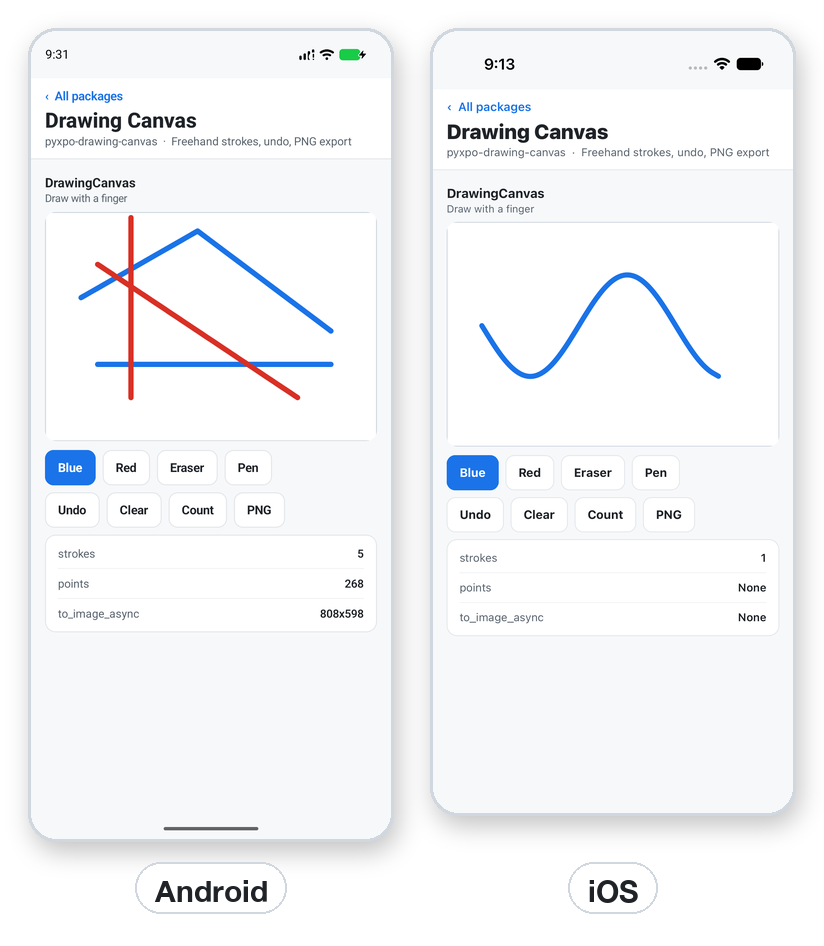

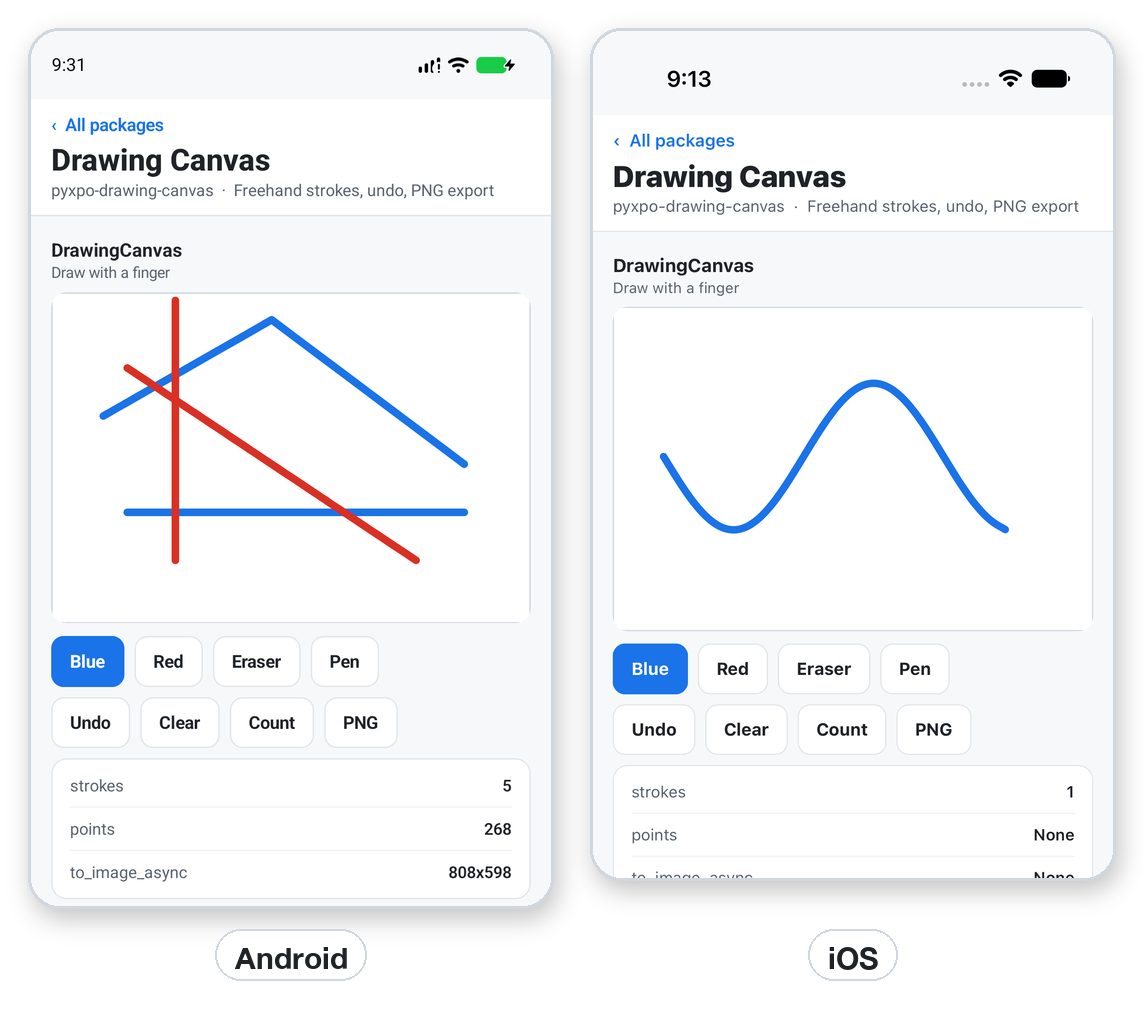

Note on the screenshots: the Android picture shows five straight lines because the strokes were made with adb swipes. The iOS picture shows a curve that the demo app seeded with set_strokes_async. A finger draws smooth curves on both.

Features

• Pen and eraser with any color and width. The eraser removes ink and leaves the page background.
• Undo, redo and clear. clear() can be undone.
• Smooth strokes. Quadratic curves through the midpoints of your touch points, drawn the same on every platform.
• Save and restore. get_strokes_async() returns plain data and set_strokes_async() puts it back.
• Export to PNG or JPEG, optionally trimmed to the ink, with a transparent background if you want.
• Change events with the stroke count and whether undo or redo is possible, for your own buttons.
• Same code on the web and the desktop window.
• camelCase too: getStrokesAsync, toImageAsync, setStrokesAsync.

Contents

Platform support

Requires Python 3.9+ and pyxpo>=0.1.0a2.

Install

pip install pyxpo-drawing-canvas

[tool.pyxpo]
modules = ["drawing-canvas"]

Rebuild the app. There are no permissions and no plugin options.

Quick start

from pyxpo import Button, Row, Text, View, component, use_async, use_ref, use_state
import pyxpo_drawing_canvas as DrawingCanvas


@component
def Sketch():
    canvas = use_ref(None)
    state, set_state = use_state({"stroke_count": 0, "can_undo": False, "can_redo": False})
    tool, set_tool = use_state("pen")
    exports, set_exports = use_state(0)
    saved, set_saved = use_state("")

    async def export():
        if exports > 0:
            image = await canvas.current.to_image_async(trim=True, padding=16)
            set_saved("Nothing to save" if image is None else "%d x %d px" % (image["width"], image["height"]))

    use_async(export, [exports])

    return View(
        DrawingCanvas.DrawingCanvas(ref=canvas, stroke_color="#222222", stroke_width=6, tool=tool,
                                    on_change=set_state, style={"flex": 1}),
        Text("%d strokes. %s" % (state["stroke_count"], saved)),
        Row(
            Button(title="Pen", on_press=lambda: set_tool("pen")),
            Button(title="Eraser", on_press=lambda: set_tool("eraser")),
            Button(title="Undo", disabled=not state["can_undo"], on_press=lambda: canvas.current.undo()),
            Button(title="Redo", disabled=not state["can_redo"], on_press=lambda: canvas.current.redo()),
            Button(title="Clear", on_press=lambda: canvas.current.clear()),
            Button(title="Export", on_press=lambda: set_exports(exports + 1)),
        ),
        style={"flex": 1},
    )

Tip: use_async(fn, deps) awaits only a real async def. Do not pass lambda: some_coroutine(): nothing awaits it.

DrawingCanvas props

A prop change applies to the next stroke and never recolors ink already on the page. ref is a use_ref(None); it holds a DrawingCanvasHandle once the canvas is mounted.

ref.current methods

• undo(), redo(): take back or apply again the last stroke or clear().
• clear(): removes every stroke. undo() brings them back.
• await get_strokes_async(): the visible strokes, oldest first.
• await set_strokes_async(strokes): replaces the drawing and empties undo and redo.
• await to_image_async(...): writes the drawing to an image file. See Export.

undo, redo and clear return at once and do not wait for the native side. Read the result from on_change.

Strokes

Each stroke is a dict:

strokes = await canvas.current.get_strokes_async()
# [{"tool": "pen", "color": 4280361249, "width": 6.0, "points": [12.0, 40.5, 14.2, 44.0, ...]}]

await canvas.current.set_strokes_async([
    {"tool": "pen", "color": "#e5322d", "width": 8, "points": [20, 20, 120, 80, 220, 20]},
])

set_strokes_async takes any pyxpo color for color and defaults tool to "pen", width to 4 and color to opaque black. It checks every stroke before it sends anything, so a bad one raises and leaves the drawing as it was. Points are in the canvas's own pt/dp, so a drawing saved on a phone shows at the same size and position on a canvas of the same size, but is not rescaled for a bigger one. Scale the points yourself if you need that.

Export

image = await canvas.current.to_image_async(format="png", trim=True, padding=16, background=False)
image["uri"]      # "file:///.../cache/....png"
image["width"], image["height"]     # pixels
image["x"], image["y"]              # the crop's top left in the view, pt/dp

The file is written to the app cache. Share it with pyxpo-sharing, save it with pyxpo-media-library, or read it with pyxpo-file-system.

Errors

Config

There is nothing to configure. The module has no permissions, no plugin options and no Info.plist texts.

Web and desktop

The canvas is an HTML canvas driven by pointer events, so a mouse, a touch screen and a pen all work. The page encodes the image and Python writes it to ~/.cache/pyxpo/drawing-canvas/ (or $XDG_CACHE_HOME/pyxpo/drawing-canvas/), so uri is a file:// path on every platform.

Recipe: a signature pad

from pyxpo import Button, Row, Text, View, component, use_async, use_ref, use_state
import pyxpo_drawing_canvas as DrawingCanvas


@component
def SignHere(on_signed):
    canvas = use_ref(None)
    inked, set_inked = use_state(False)
    submits, set_submits = use_state(0)

    async def submit():
        if submits > 0:
            image = await canvas.current.to_image_async(trim=True, padding=12, background=False)
            if image is not None:
                on_signed(image["uri"])

    use_async(submit, [submits])

    return View(
        Text("Sign in the box"),
        DrawingCanvas.DrawingCanvas(
            ref=canvas, stroke_color="#0b2a6f", stroke_width=3,
            on_change=lambda s: set_inked(s["stroke_count"] > 0),
            style={"height": 180, "borderWidth": 1, "borderColor": "#999999"}),
        Row(
            Button(title="Clear", on_press=lambda: canvas.current.clear()),
            Button(title="Done", disabled=not inked, on_press=lambda: set_submits(submits + 1)),
        ),
    )

The transparent, trimmed PNG drops cleanly onto a PDF or a form.

Production checklist

• The canvas has a size (style), because a drawing surface has no content to size itself from.
• Undo and redo buttons follow can_undo and can_redo from on_change.
• You handle None from to_image_async(trim=True) for an empty canvas.
• Saved strokes record the canvas size, if the drawing may open on a different screen.
• Exports are copied out of the cache (or shared) if you need them later. The system may clear the cache.
• Tested with a finger on a real phone, and with Apple Pencil if you support it.

Testing

Fake the native call, the link check and the view tag to test your own code without a device:

import asyncio

import pytest

import pyxpo_drawing_canvas as dc


@pytest.fixture
def handle(monkeypatch):
    calls = []

    async def fake_call(module, method, *args, **kwargs):
        calls.append((method, args))
        if method == "getStrokes":
            return [{"tool": "pen", "color": 0xFF000000, "width": 4.0, "points": [0.0, 0.0, 5.0, 5.0]}]
        if method == "toImage":
            return {"uri": "file:///tmp/a.png", "width": 20, "height": 10, "x": 0, "y": 0}
        return None

    monkeypatch.setattr(dc, "call", fake_call)
    monkeypatch.setattr(dc, "require_linked", lambda *a, **k: None)
    monkeypatch.setattr(dc, "view_tag", lambda ref: 7)
    return dc.DrawingCanvasHandle(object()), calls


def test_strokes_round_trip(handle):
    h, calls = handle
    strokes = asyncio.run(h.get_strokes_async())
    assert strokes[0]["points"] == [0.0, 0.0, 5.0, 5.0]
    asyncio.run(h.set_strokes_async([{"points": [0, 0, 10, 10], "color": "#ff0000"}]))
    method, args = calls[-1]
    assert method == "setStrokes" and args[0] == 7
    assert args[1][0]["tool"] == "pen" and args[1][0]["width"] == 4.0


def test_bad_stroke_is_rejected_before_sending(handle):
    h, calls = handle
    with pytest.raises(ValueError):
        asyncio.run(h.set_strokes_async([{"points": [1, 2, 3]}]))
    assert calls == []


def test_export_options(handle):
    h, calls = handle
    image = asyncio.run(h.to_image_async(format="jpg", trim=True, padding=8, quality=0.8))
    assert image["width"] == 20
    opts = calls[-1][1][1]
    assert opts["format"] == "jpg" and opts["trim"] is True and opts["padding"] == 8.0
    with pytest.raises(ValueError):
        asyncio.run(h.to_image_async(format="gif"))

DrawingCanvas(...) itself only builds a native view description, so a test can call it and look at the props. A bad tool or stroke_width raises ValueError while building.

Troubleshooting

FAQ

Can it draw shapes, fill areas or show a grid? Not here. pyxpo-whiteboard adds those, a marker, a color picker and a ready toolbar, and reads and writes the same stroke format.

Does it support pressure from a stylus? No. Width is fixed per stroke.

How do I change the color of a stroke I drew? You cannot. Read the strokes, change their color, and call set_strokes_async.

Is the drawing kept if the view unmounts? No. Keep the strokes yourself with get_strokes_async().

Can I draw on top of an image? Yes. Put the canvas over an Image in a View with background_color="transparent", and export with background=False.

API reference

to_image_async(format="png", trim=False, padding=0, scale=None, background=True, quality=1) returns {"uri", "width", "height", "x", "y"} or None.

License

MIT
