pyxtrackers 2026.3.3

High-performance Cython implementations of SOTA multi-object trackers

PyxTrackers

High-performance Cython implementations of state-of-the-art multi-object tracking algorithms.

PyxTrackers provides drop-in replacements for three widely used MOT trackers, reimplemented in Cython for significant speedups while maintaining numerical equivalence with the original Python implementations.

Disclaimer The Cython implementations are intended to provide the same tracking behavior as the original Python implementations. For SORT and OC-SORT, tests confirm the floating-point outputs are bit-wise identical to the original Python implementations. For ByteTrack, tests confirm the bounding boxes are within 1e-6 floating-point absolute precision error to the original Python implementations.

Supported Trackers

Tracker	Our Speedup (# objects < 80)	Description	Paper	GitHub
SORT	70-95x	Simple Online and Realtime Tracking	Bewley et al., 2016	abewley/sort
ByteTrack	25-35x	Multi-Object Tracking by Associating Every Detection Box	Zhang et al., 2022	FoundationVision/ByteTrack
OC-SORT	40-60x	Observation-Centric SORT	Cao et al., 2023	noahcao/OC_SORT

Performance

The plots below were generated by running pytest --visualize, which benchmarks all three trackers across a range of detection counts and records throughput (frames per second) for both the Python reference and Cython implementations (through import or cli).

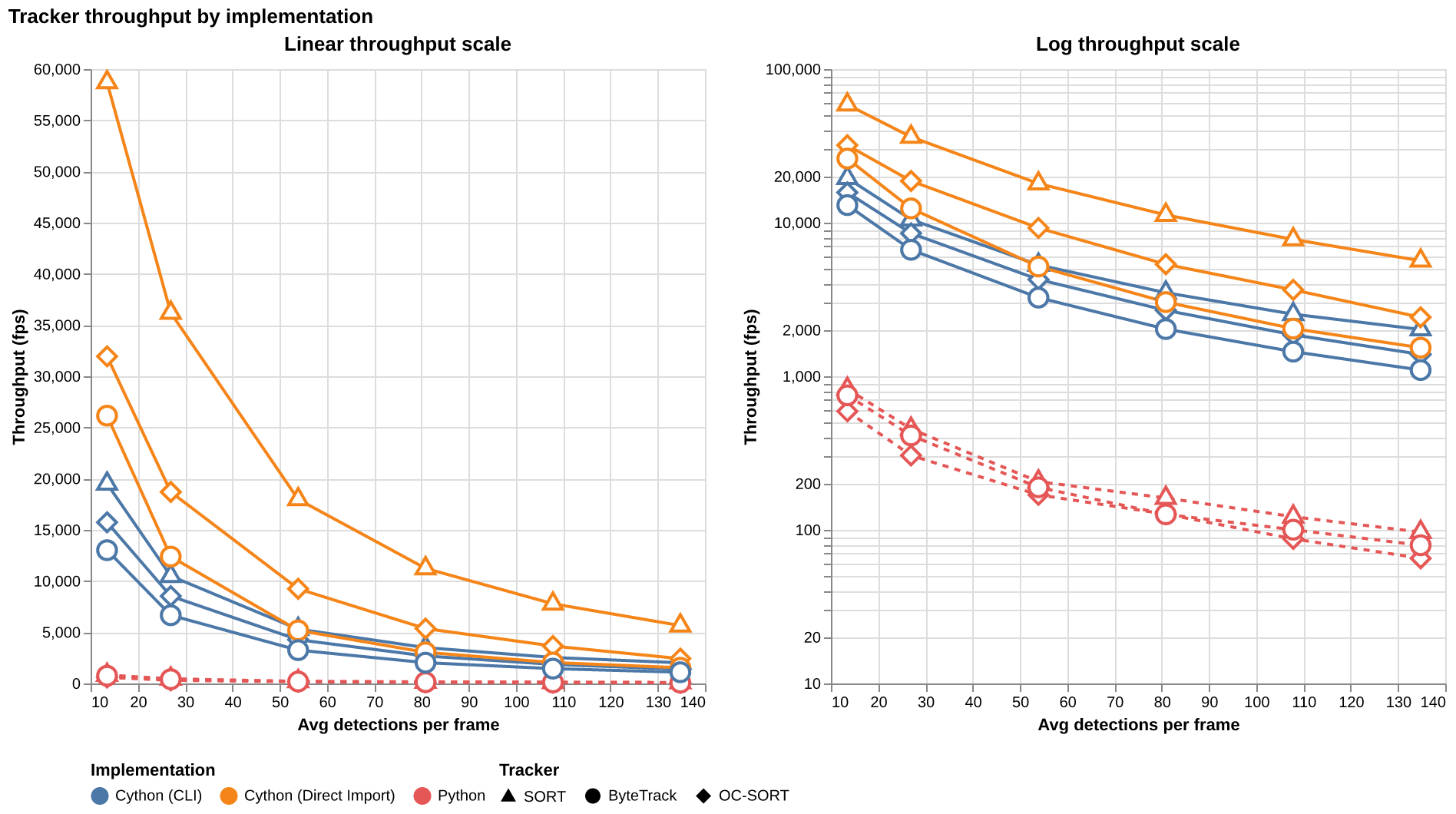

Throughput — frames processed per second as average detections per frame. Dashed lines are the original Python implementations; solid lines are the Cython reimplementations.

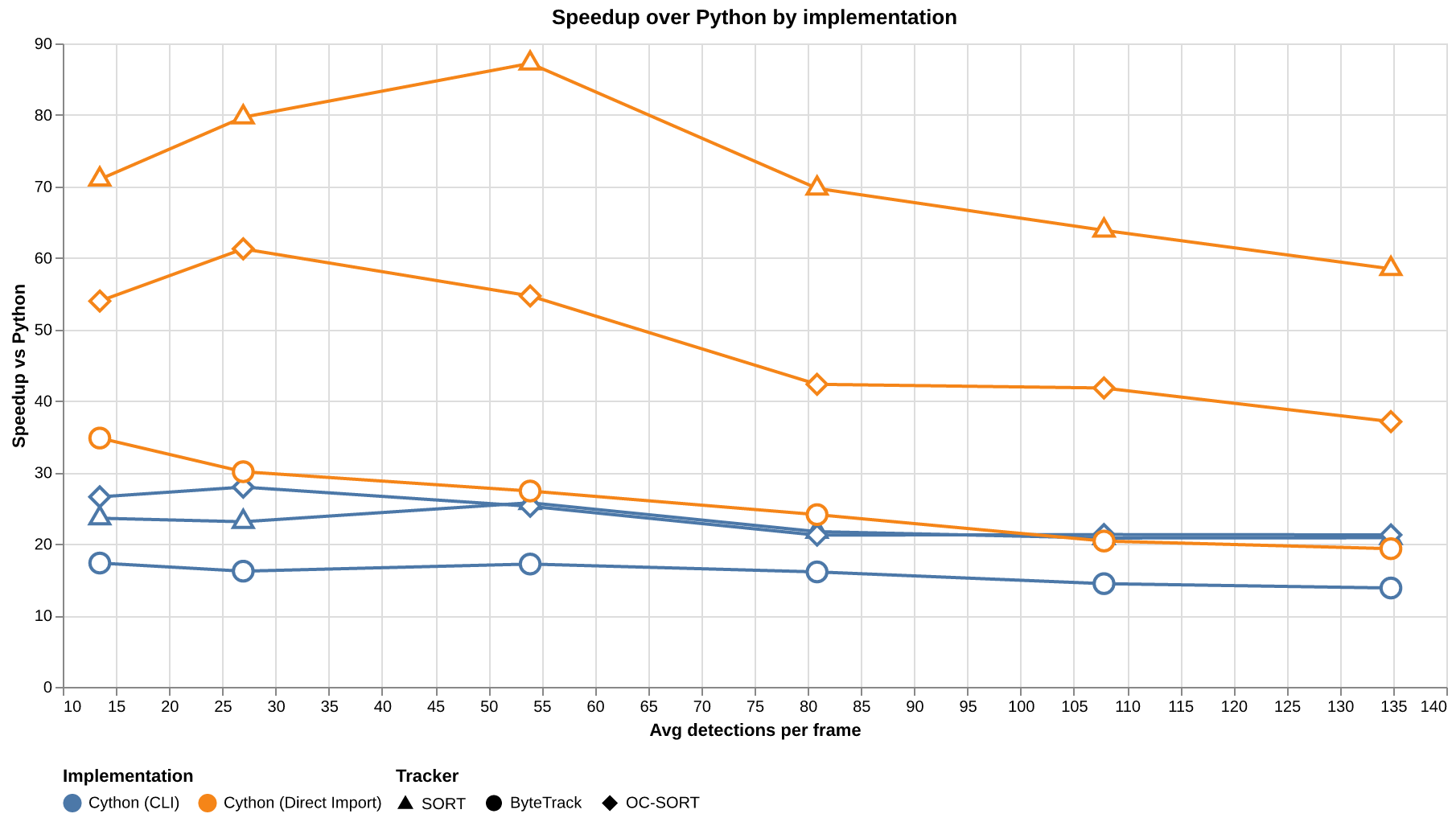

Speedup — ratio of Python time to Cython time (higher = faster).

Installation

From PyPI

pip install pyxtrackers

From source

git clone https://github.com/chanwutk/pyxtrackers.git
cd pyxtrackers
pip install -e .

Requirements

• Python >= 3.10
• NumPy >= 1.22 (Python 3.10–3.11), >= 1.26 (Python 3.12), >= 2.1 (Python 3.13+)
• A C/C++ compiler (gcc, clang, or MSVC)
• Cython >= 3.0 (build-time only)

Quick Start

import numpy as np
from pyxtrackers import Sort, BYTETracker, OCSort

# --- SORT ---
tracker = Sort(max_age=30, min_hits=3, iou_threshold=0.3)

# Detections: [[x1, y1, x2, y2, score], ...]
detections = np.array([
    [100, 100, 200, 200, 0.9],
    [300, 300, 400, 400, 0.8],
], dtype=np.float64)

# Returns: [[x1, y1, x2, y2, track_id], ...]
tracked = tracker.update(detections)

# --- ByteTrack ---
tracker = BYTETracker(track_thresh=0.5, match_thresh=0.8, track_buffer=30)
tracked = tracker.update(detections)
# Returns: [[x1, y1, x2, y2, track_id], ...]

# --- OC-SORT ---
tracker = OCSort(det_thresh=0.3)
tracked = tracker.update(detections)
# Returns: [[x1, y1, x2, y2, track_id], ...]

All three trackers share the same interface: configuration in the constructor, only detections in update().

How It Works

Each tracker is reimplemented in Cython using:

• C structs instead of Python classes for track state (zero Python object overhead)
• nogil sections for GIL-free computation in hot paths
• cdef functions for C-only internal calls with no Python dispatch overhead
• Vendored LAPJV C++ solver for linear assignment (https://github.com/gatagat/lap)
• Customized Kalman filter with fixed state space.

Kalman filter predict/update cycles, IOU computation, and the Hungarian algorithm all run at C speed.

Compiler Optimization Flags

setup.py selects compiler flags based on the platform, compiler, and build context. The table below shows exactly what is applied in each scenario:

Scenario	Base flags	Arch-specific flags	C++ standard
Linux / macOS x86_64 (source install)	-O3 -ffast-math	-march=native -mtune=native	-std=c++11
macOS ARM (source install)	-O3 -ffast-math	-mcpu=apple-m1	-std=c++11
macOS universal2 Python	-O3 -ffast-math	(none)	-std=c++11
Pre-built wheels (cibuildwheel / conda)	-O3 -ffast-math	(none)	-std=c++11
Pre-built wheels, macOS ARM	-O3 -ffast-math	-mcpu=apple-m1	-std=c++11
Windows (MSVC)	/O2 /fp:fast	(none)	/std:c++14

Key details:

• -march=native tunes the binary for the exact CPU it's compiled on. Only used for source installs — pre-built wheels omit it so they run on any CPU of that architecture.
• -mcpu=apple-m1 is the Apple ARM equivalent. Apple Clang doesn't support -march=native on ARM, so we target the M1 baseline (compatible with all M-series chips).
• Universal2 Python (CFLAGS contain both -arch arm64 and -arch x86_64) gets no arch-specific flags because the compiler runs for both architectures in one pass.
• -ffast-math / /fp:fast allows the compiler to reorder floating-point operations for speed. This is appropriate here because tracking algorithms likely not require strict IEEE 754 compliance.
• Portable vs. source builds are auto-detected via the CIBUILDWHEEL and CONDA_BUILD environment variables.

We welcome discussion on flag choices — if you have suggestions or concerns about specific flags (e.g., -ffast-math behavior, architecture targets), please open an issue.

Idea: Different installation flags for different optimization option. For example, pip install pyxtrackers[mcpu-apple-m1]

Project Structure

pyxtrackers/           # Installable Cython package
  sort/                # SORT tracker
  bytetrack/           # ByteTrack tracker
  ocsort/              # OC-SORT tracker
  cli.pyx              # Cython stdin/stdout CLI for cross-language interop
  cli_launcher.py      # Python launcher for PyInstaller entrypoint
references/            # Pure Python reference implementations (for testing)
tests/                 # Comparison tests verifying numerical equivalence
vendor/lapjv/          # Vendored C++ linear assignment solver

Development

# Setup
python -m venv .venv
source .venv/bin/activate      # Linux/macOS
# .venv\Scripts\activate       # Windows
pip install -e ".[dev]"

# After editing .py files  → no action needed, changes take effect immediately
# After editing .pyx files → rebuild the changed extensions:
python setup.py build_ext --inplace

# Run tests
pytest tests/ -v

Testing

Tests run both the Cython and Python reference implementations on identical detection sequences and verify numerical equivalence within 1e-6 pixel tolerance.

pytest                                          # All tests (skips binary-CLI tests)
pytest tests/ -v --cli-binary dist/pyxtrackers  # Include binary-CLI tests

--cli-binary takes the path to a PyInstaller-built binary. Build it first with pyinstaller pyxtrackers.spec, then pass the resulting dist/pyxtrackers (or dist/pyxtrackers.exe on Windows).

Interoperable (CLI)

PyxTrackers includes a stdin/stdout CLI that lets any language invoke tracking via pipes. After installation, the pyxtrackers command is available.

Usage

pyxtrackers <tracker> [options]

The process reads one line per frame from stdin, runs the tracker, and writes one line per frame to stdout. Empty input lines (no detections) still advance the tracker state and produce an empty output line, preserving 1:1 line correspondence.

Parsing is strict fail-fast: malformed tokens raise ValueError and terminate with a non-zero exit code.

Input format

Detections are space-separated, each with 5 comma-separated values:

x1,y1,x2,y2,score x1,y1,x2,y2,score ...

Output format

Tracked objects are space-separated, each with 5 comma-separated values:

x1,y1,x2,y2,id x1,y1,x2,y2,id ...

Examples

Pipe detections from a file:

cat detections.txt | pyxtrackers sort --min-hits 1 > tracks.txt

Inline:

echo "100,200,300,400,0.9 150,250,350,450,0.8" | pyxtrackers sort --min-hits 1

With ByteTrack and image scaling:

cat detections.txt | pyxtrackers bytetrack --track-thresh 0.5 --img-info 1080 1920 --img-size 608 1088

Cross-language integration

Any language that can spawn a subprocess and read/write its stdin/stdout can use pyxtrackers. For example, in Node.js:

const { spawn } = require('child_process');
const readline = require('readline');

const tracker = spawn('pyxtrackers', ['sort', '--min-hits', '1']);

const rl = readline.createInterface({ input: tracker.stdout });
rl.on('line', (line) => {
  // Each line: "x1,y1,x2,y2,id x1,y1,x2,y2,id ..."
  console.log('Tracks:', line);
});

// Send detections (one frame per line)
tracker.stdin.write('100,200,300,400,0.9 150,250,350,450,0.8\n');
tracker.stdin.write('105,205,305,405,0.9\n');

Roadmap

• Document code conversion process.
• Add back OC-SORT and BYTETrack's original interface.
• Publish to conda-forge.
• More rigorous testing. Multiple samples of each experiment.

License

MIT
