pyzusi3 3.1.0

Zusi3 TCP Client library with async support and no deps

WARNING

Zusi 3.5 introduced breaking changes without increasing API version, so ensure to use pyzusi 1.2.1 for Zusi 3.4 and below

pyzusi3

Library to talk to Zusi3 without any specialized purpose.

Intentionally the message parameters are taken almost word-by-word from Zusi documentation to make using the lib easier. So be prepared for some mixing of code language (english) and zusi-lib language (german).

Examples

Minimal code example

import asyncio

async def print_state(client):
    while True:
        print(client.local_state)
        asyncio.sleep(1)

tasks = []
async def main(ip, port):
    client = ZusiClient(ip, port, "pyzusi3 demo", "1.0")
    client.request_status(displays=[
            messages.FAHRPULT_ANZEIGEN.GESCHWINDIGKEIT,
            messages.FAHRPULT_ANZEIGEN.STATUS_SIFA
        ],
        programdata=[
            messages.PROGRAMMDATEN.ZUGDATEI,
            messages.PROGRAMMDATEN.ZUGNUMMER
        ]
    )

    main_task = asyncio.create_task(client.connect())
    tasks.append(main_task)

    watch_task = asyncio.create_task(print_state(client))
    tasks.append(watch_task)

if __name__ == "__main__":
    run_loop = asyncio.new_event_loop()
    run_loop.create_task(main(ZUSI_IP, ZUSI_PORT))
    run_loop.run_forever()

Interaction simulation

see interactiondemo.py

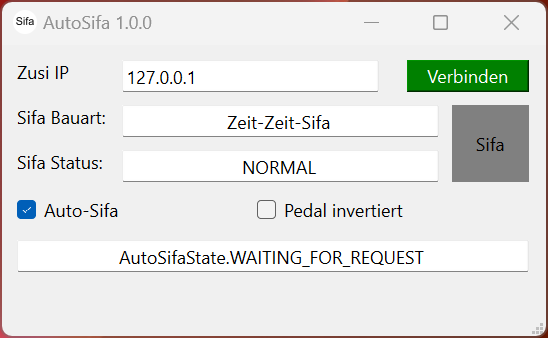

AutoSifa Tool

Can be downloaded here, built as one file python executable, digitally signed

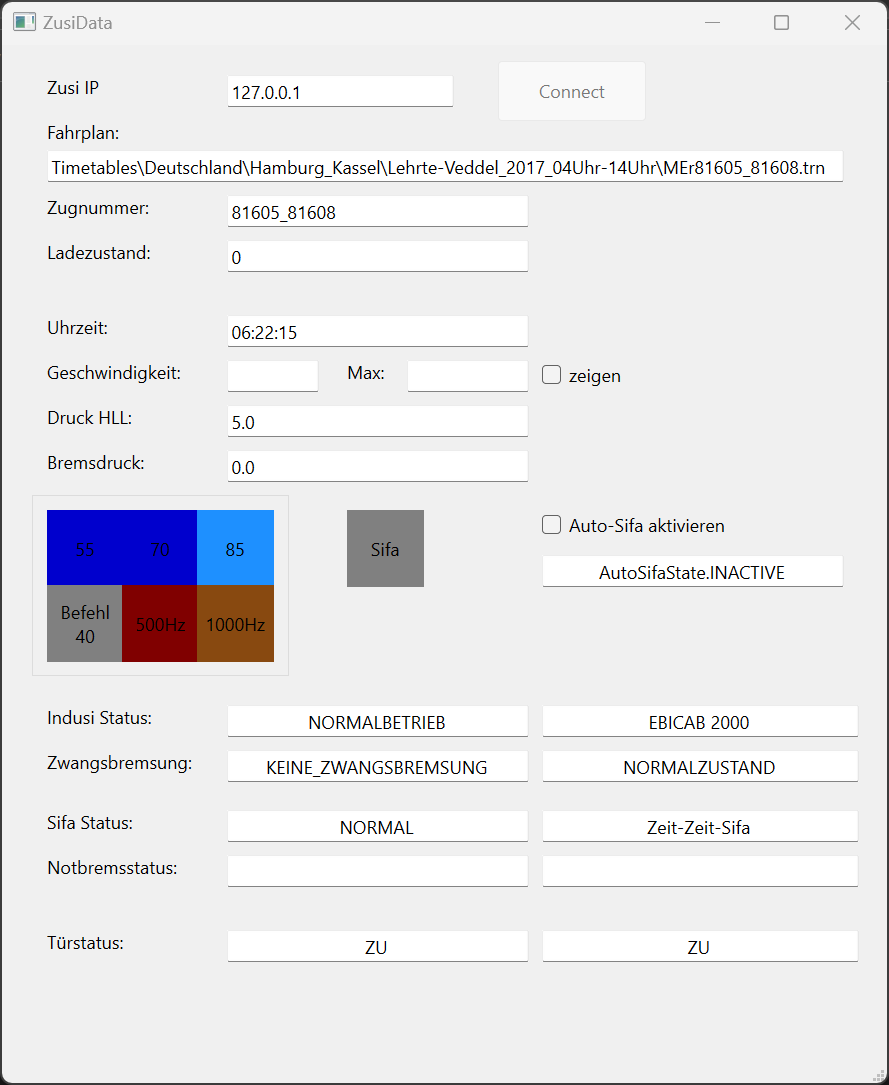

PySide6 UI
