quicksat

A first-pass satellite sizing tool, in two parts:

• Sizing works out the mass, data, delta-V and attitude agility budgets. Each budget is a table, worked out from a few input files and a reference orbit.
• Scenario and power flies the satellite through a timeline of activities on a real orbit, and checks the power: what the solar panels generate, what the equipment draws, and the battery between them. A 3D viewer shows the run.

The two parts share no input files. The budgets use a reference orbit, while the scenario needs a real orbit, with an epoch and a node. quicksat is kept simple on purpose. It gives a first-pass sizing, not a full systems engineering environment.

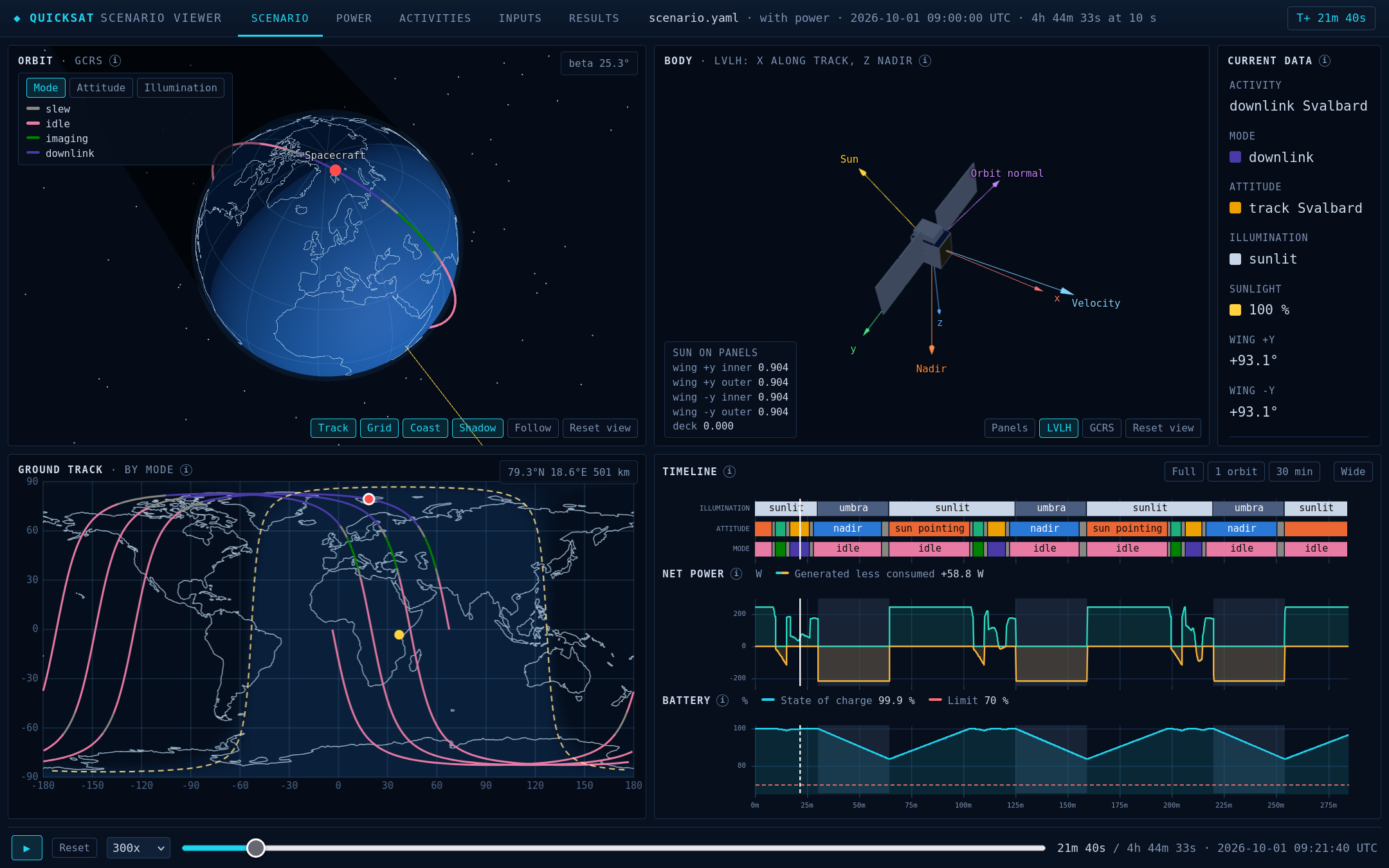

The power sample in the viewer, during the downlink to Svalbard. The wings have turned to face the sun.

Install

pip install quicksat

Then copy the samples into a folder of your own. They come from GitHub, for the version you installed, with their data, their notebooks, and the viewers and editor pages written from them:

python -m quicksat init my_satellite

The folder holds sizing/, scenario/ and power/. Where this page says sample/, read my_satellite/. The notebooks need Jupyter, such as pip install jupyterlab.

To work on quicksat itself, clone the repository, and install it from there:

conda env create -f environment.yml
conda activate quicksat
pip install -e .

Sizing

The sizing sample is a small Earth observation satellite on a 500 km sun-synchronous orbit. Its files are in sample/sizing/data/. The workflow:

1. Edit the files. Double-click sample/sizing/editor/editor.html to open the Sizing Editor in your browser. Its Setup tab takes you through every file, step by step, and the other tabs edit one budget each. Save the files, as a zip or one by one, and put them back in sample/sizing/data/. The files are YAML and CSV, with units written out, such as 750 g or 800 Mbit/s, so they can be edited by hand too.
2. Run the notebooks in sample/sizing/, in the order below. Each reads the files and builds its budget. Delta-V and agility also read the mass budget.
3. Read the tables. Each notebook ends with its budget laid out as a document, and the figures that answer the usual questions.

The sample works one satellite through each budget. The reference explains each input field, how each figure is worked out, and where the budget stops. For your own satellite, see how to initialise a satellite. How to edit and run the sizing files goes round the loop in the Sizing Editor.

Scenario and power, with the viewer

The power sample flies a 510 km sun-synchronous orbit for three orbits, with imaging, a downlink to Svalbard, and wings that turn to the sun. Its files are in sample/power/data/: the scenario, the 3D model, the power system and the consumption table. The workflow:

1. Edit the files. Double-click sample/power/editor/editor.html to open the editor in your browser. Its Setup tab takes you through every file, step by step, with an explanation of each choice. The other tabs edit the same data by theme, and a side panel shows the 3D model. Change something, such as the battery's capacity or an activity's trigger. Then save the files, as a zip or one by one, and put them back in sample/power/data/.
2. Run the budget. Run sample/power/power_budget.ipynb in Jupyter, or python -m quicksat.power sample/power/data sample/power/output from the command line. Either flies the scenario, works out the generation, the loads and the battery, and checks the budget.
3. Read the results. The notebook shows each orbit's energy, the battery's charge, and three checks. The command prints the checks only. In the sample, the lowest charge is 83.6%, above its 70% limit, and every orbit has at least 16.5 W h to spare.
4. See the run in the viewer. Both write sample/power/output/power_viewer.html. Double-click it to see the run in 3D, with the ground track, the timeline, the power and the attitude. Its Attitude tab also gives the attitude as files for other tools.

Or skip the copy and the run. python -m quicksat.editor serve sample/power/data sample/power/output starts the editor's server, on your computer only, and opens the editor in your browser. Its Create the viewer button, in the Files tab, runs the files as they are on the page and writes the viewer. Open the viewer then shows it. The server does not change the files in the folder: save them when you want to keep them. See how to edit, run and view a scenario.

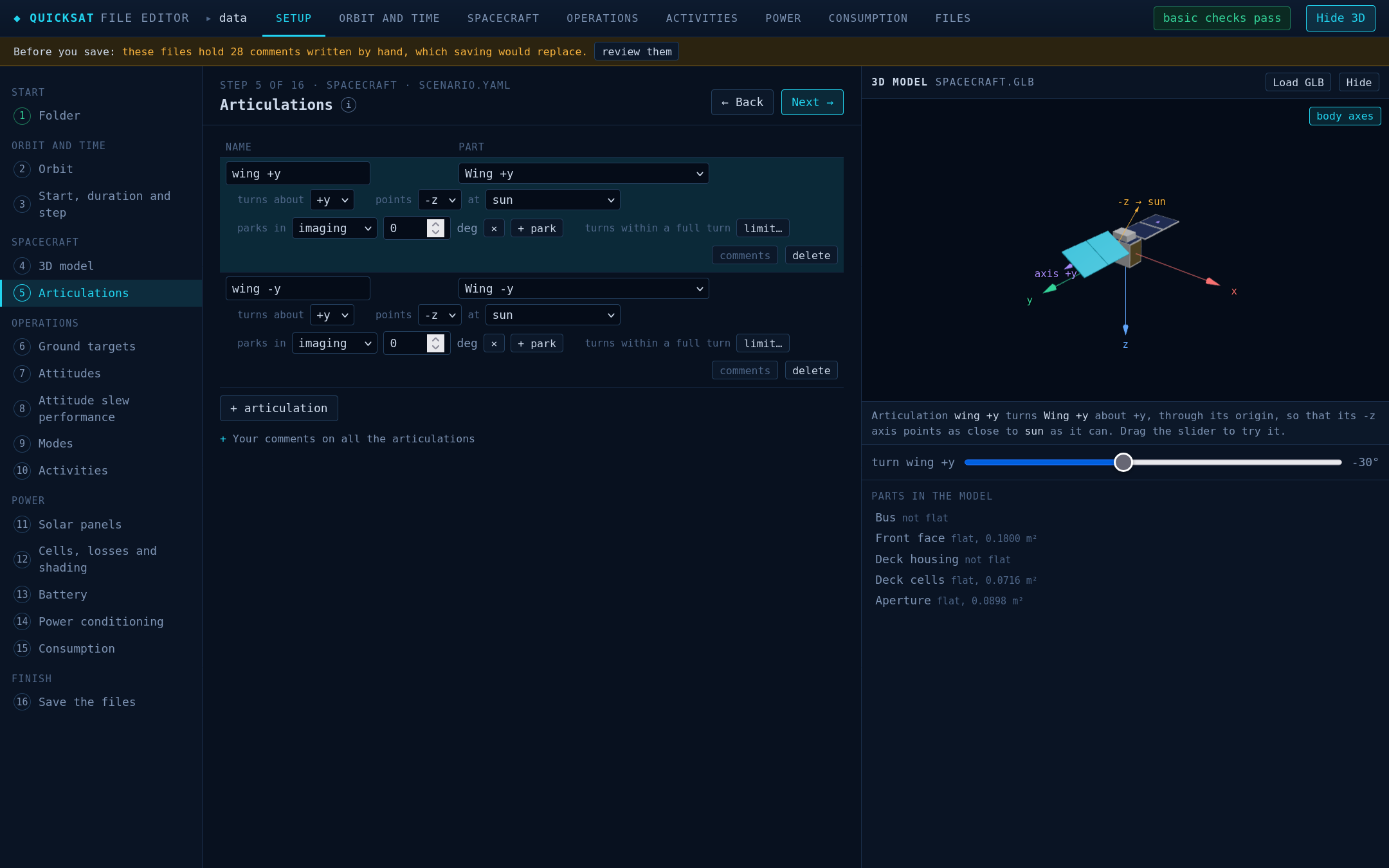

The editor's Articulations step. The selected wing shows in the 3D panel, turned with the slider.

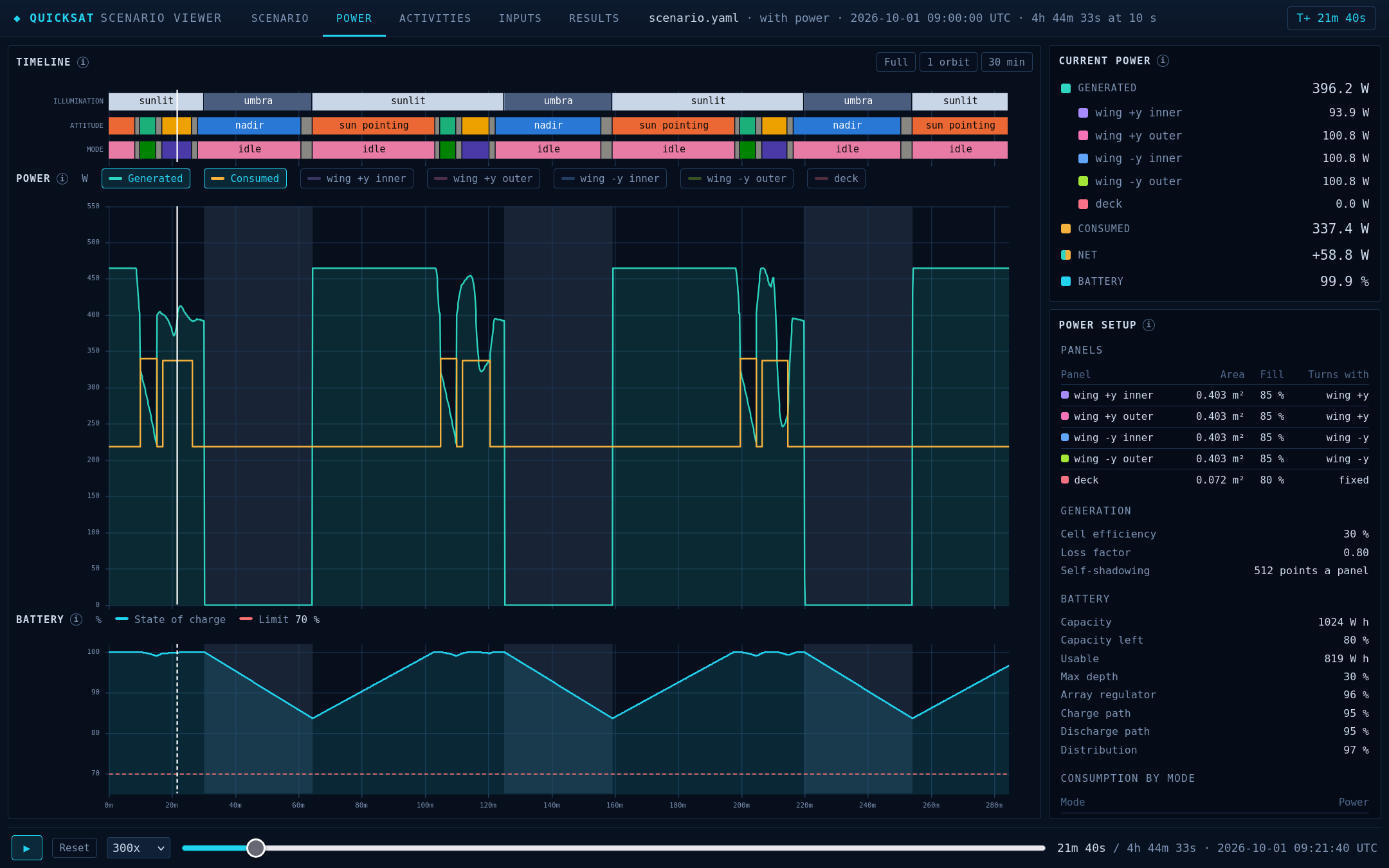

The viewer's Power tab. The power and the battery's charge follow the timeline, with the power setup beside them.

The scenario sample works the same way, for the timeline alone: sample/scenario/editor/editor.html, then sample/scenario/scenario.ipynb or python -m quicksat.scenario sample/scenario/data sample/scenario/output, then sample/scenario/output/scenario_viewer.html.

How to edit, run and view a scenario goes round this loop in full, for the samples or a folder of your own. For what each field means, see how to set up and run a scenario and how to set up and run a power budget.

The editors open with the files of the folder that their page was written for. Open a folder…, on the first Setup step, reads any other folder, and Open on a tab reads one file. Or write a page for a folder of your own. A folder with a scenario.yaml gets the Scenario Editor, and a folder of sizing files gets the Sizing Editor:

python -m quicksat.editor sample/power/data sample/power/editor

Keep your notes in comments fields. Every block of a file can hold one, and so can the file as a whole, in the sizing files too. The editors write their own help as # lines, and replace any other # comments when they save. When an editor opens a file with such comments, it lists them, and moves each one you choose into a comments field. Write a # comment on the lines above what it describes, so that it goes to the right block.
