rafm 1.1.4

rafm

rafm computes per-model measures such as expected global LDDT associated with atomic-level accuracy for AlphaFold models from pLDDT confidence scores.

Installation

You can install rafm via pip from PyPI:

$ pip install rafm

Usage

rafm –help lists all commands. Current commands are:

• plddt-stats

  Calculate stats on bounded pLDDTs from list of AlphaFold model files. in either PDB or mmCIF format.

  Options:

  • –criterion FLOAT

    The cutoff value on truncated pLDDT for possible utility. [default: 91.2]

  • –min-length INTEGER

    The minimum sequence length for which to calculate truncated stats. [default: 20]

  • –min-count INTEGER

    The minimum number of truncated pLDDT values for which to calculate stats [default: 20]

  • –lower-bound INTEGER

    The pLDDT value below which stats will not be calculated. [default: 80]

  • –upper-bound INTEGER

    The pLDDT value above which stats will not be calculated. [default: 100]

  • –file-stem TEXT

    Output file name stem. [default: rafm]

  Output columns (where NN is the bounds specifier, default: 80):

  • residues_in_pLDDT

    The number of residues in the AlphaFold model.

  • pLDDT_mean

    The mean value of pLDDT over all residues.

  • pLDDT_median

    The median value of pLDDT over all residues.

  • pLDDTNN_count

    The number of residues within bounds.

  • pLDDTNN_frac

    The fraction of pLDDT values within bounds, if the count is greater than the minimum.

  • pLDDTNNN_mean

    The mean of pLDDT values within bounds, if the count is greater than the minimum.

  • pLDDTNN_median

    The median of pLDDT values within bounds, if the count is greater than the minimum.

  • LDDT_expect

    The expectation value of global LDDT over the residues with LDDT within bounds. Only produced if default bounds are used.

  • passing

    True if the model passed the criterion, False otherwise. Only produced if default bounds are used.

  • file

    The path to the model file.

• plddt-select-residues

  Writes a tab-separated file of residues from passing models, using an input file of values selected by plddt-stats. Input options are the same as plddt-stats.

  Output columns:

  • file

    Path to the model file.

  • residue

    Residue number, starting from 0 and numbered sequentially. Note that all residues will be written, regardless of bounds set.

  • pLDDT

    pLDDT value for that residue.

• plddt-plot-dists

  Plot the distributions on the bounded pLDDT and residues in models that pass the selection criteria.

  Input Options:

  • out-file-type

    Plot file extension of a type that matplotlib understands, (e.g., ‘jpg’, ‘pdf’) [default: png]

  • residue-criterion

    Per-residue cutoff on usability (for plot only).

  Outputs:

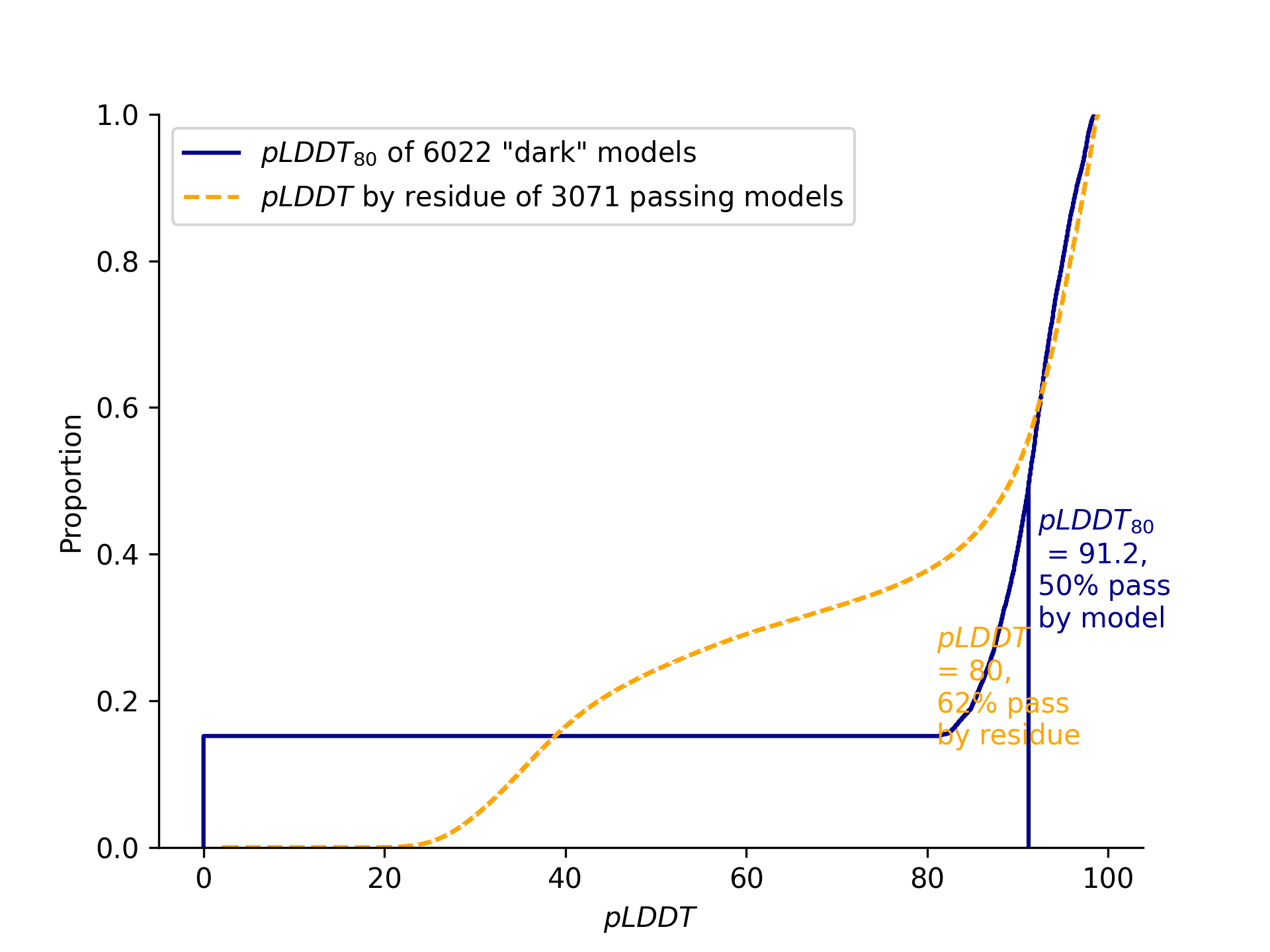

  When applied to set of “dark” genomes with no previous PDB entries, the distributions of median pLDDT scores with a lower bound of 80 and per-residue pLDDT scores with a minimum of 80 looks like this:



• stats

  Produce a set of summary stats on results of runs. See also the global stats file rafm_stats.json.

Statistical Basis

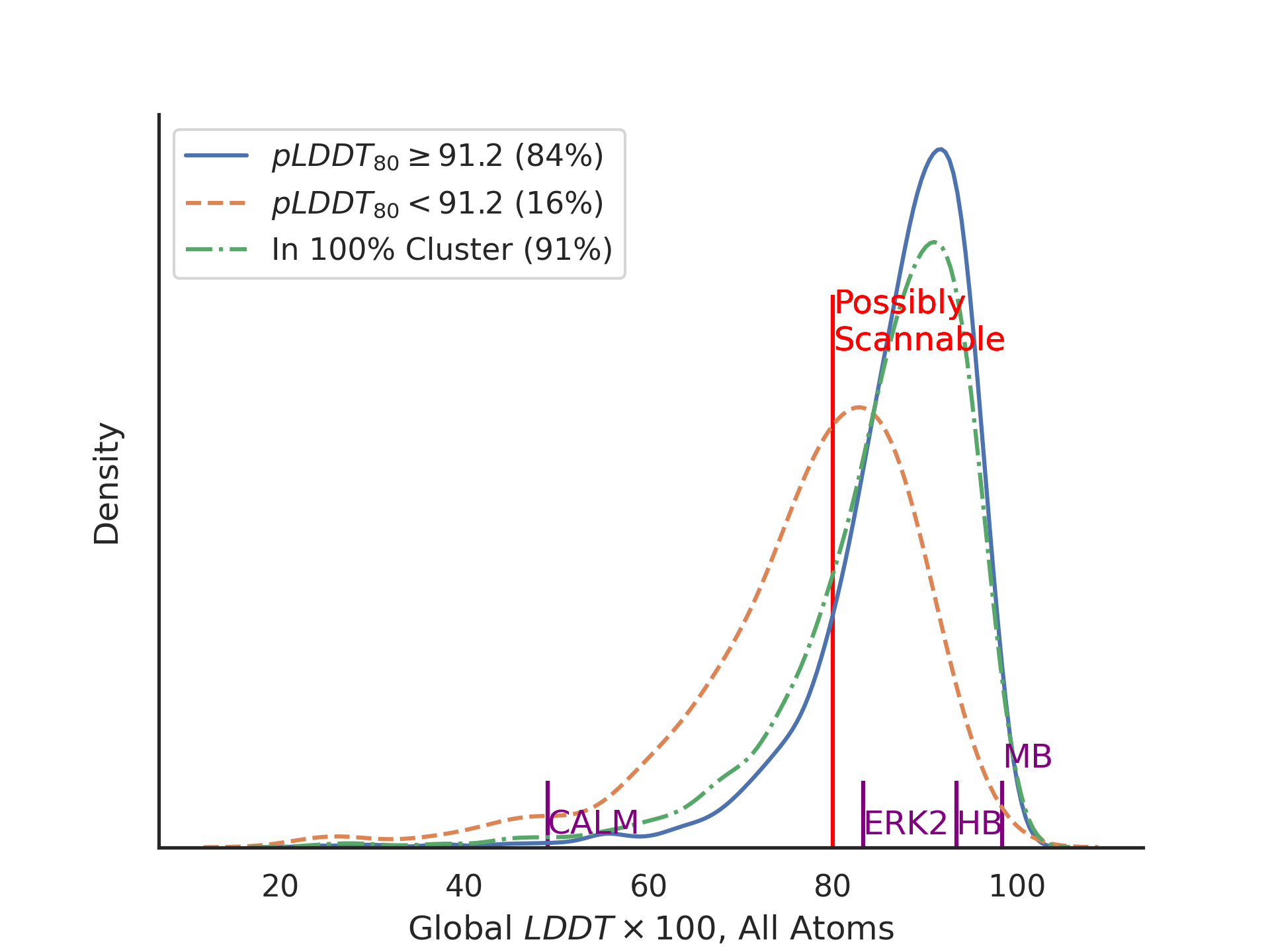

The default parameters were chosen to select for LDDT values of greater than 80 on a set of crystal structures obtained since AlphaFold was trained. The distributions of LDDT scores for the passing and non-passing sets, along with an (overlapping) set of AlphaFold model files at 100% sequence identity over at least 80% of the sequence looks like this:

The markers on the x-axis refer to the size of conformational changes observed in conformational changes in various protein crystal structures:

• CALM

  Between calcium-bound and calcium-free calmodulin (depicted in the logo image above).

• ERK2

  Between unphosphorylated and doubly-phosphorylated ERK2 kinase.

• HB

  Between R- and T-state hemoglobin

• MB

  Between carbonmonoxy- and deoxy-myoglobin

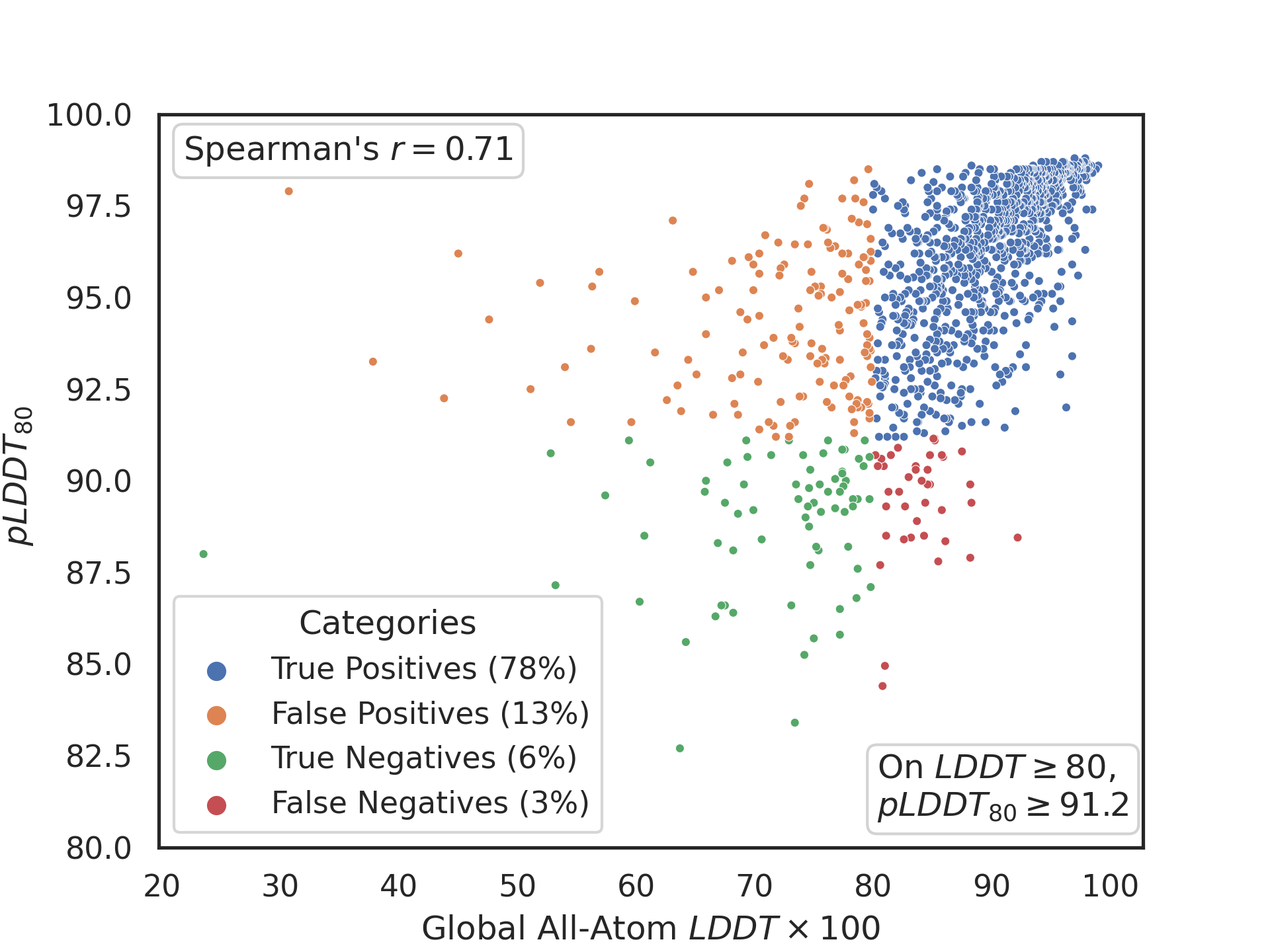

The value of LDDT >= 80 we selected as the minimum value that was likely to prove useful for virtual screening. The per-residue value of pLDDT >= 80 was also chosen as the minimum likely to give the correct side-chain rotamers for a surface defined by contacts between two residues. A choice of 91.2 as a criterion leads to the following confusion matrix versus a set of post-training crystal structures:

At a correlation coefficient of 0.71, this correlation isn’t great, but enough to demonstrate a usable sensitivity. After we fix a few problems with the alignments, it may go a bit higher but our feeling is probably not more than about 0.8. The support will get better, but the criterion on this metric seems unlikely to change.

Contributing

Contributions are very welcome. To learn more, see the Contributor Guide.

License

Distributed under the terms of the MIT license, rafm is free and open source software.

Issues

If you encounter any problems, please file an issue along with a detailed description.

Credits

This project was generated from the UNM Translational Informatics Python Cookiecutter template.

rafm was written by Joel Berendzen and Jessica Binder.
