rapidgzip 0.16.0

Parallel random access to gzip files

Rapidgzip: Parallelized Decompression of Gzip Files with Support for Fast Random Access

This repository contains the command line tool rapidgzip, which can be used for parallel decompression of almost any gzip file. Other tools, such as bgzip, can only parallelize decompression of gzip files produced by themselves. rapidgzip works with all files, especially those produced by the usually installed GNU gzip. How this works can be read in the pugz paper or in the rapidgzip paper, which builds upon the former.

The Python module provides a RapidgzipFile class, which can be used to seek inside gzip files without having to decompress them first. Alternatively, you can use this simply as a parallelized gzip decoder as a replacement for Python's builtin gzip module in order to fully utilize all your cores.

The random seeking support is the same as provided by indexed_gzip, but further speedups are realized at the cost of higher memory usage thanks to a least-recently-used cache in combination with a parallelized prefetcher.

This repository is a light-weight fork of the indexed_bzip2 repository, in which the main development takes place. This repository was created for visibility reasons and in order to keep indexed_bzip2 and rapidgzip releases and packaging separate. It will be updated at least for each release. Issues regarding rapidgzip should be opened here.

Table of Contents

1. Installation
2. Performance
   1. Scaling Benchmarks on 2xAMD EPYC CPU 7702 (2x64 cores)
   2. Scaling Benchmarks on Ryzen 3900X
   3. Benchmarks for Different Compressors
   4. Benchmarks for Different Decompressors
3. Usage
   1. Command Line Tool
   2. Python Library
   3. Via Ratarmount
   4. C++ Library
4. Citation
5. About
6. Internal Architecture
7. Tracing the Decoder

Installation

You can simply install it from PyPI:

python3 -m pip install --upgrade pip  # Recommended for newer manylinux wheels
python3 -m pip install rapidgzip
rapidgzip --help

Advanced Installations

To build from source, these packages are necessary (Debian and derivatives):

sudo apt install git gcc g++ python3 python3-dev python3-pip python3-build python3-venv nasm

Then, the latest unreleased development version can be built with:

python3 -m pip install --force-reinstall 'git+https://github.com/mxmlnkn/rapidgzip.git@main#egginfo=rapidgzip&subdirectory=python/rapidgzip'

And to build locally, you can use build and install the wheel:

git clone --recursive https://github.com/mxmlnkn/rapidgzip.git
cd rapidgzip/python/rapidgzip/
rm -rf dist
python3 -m build
python3 -m pip install --force-reinstall --user --break-system-packages dist/rapidgzip-*.whl

Performance

Following are benchmarks showing the decompression bandwidth over the number of used cores.

There are two rapidgzip variants shown: (index) and (no index). Rapidgzip is generally faster when given an index with --import-index because it can delegate the decompression to ISA-l or zlib while it has to use its own custom-written gzip decompression engine when no index exists yet. Furthermore, decompression can be parallelized more evenly and more effectively when an index exists because the serializing window propagation step is not necessary.

The violin plots show 20 repeated measurements as a single "blob". Thin blobs signal very reproducible timings, while thick blobs signal a large variance.

Scaling Benchmarks on 2xAMD EPYC CPU 7702 (2x64 cores)

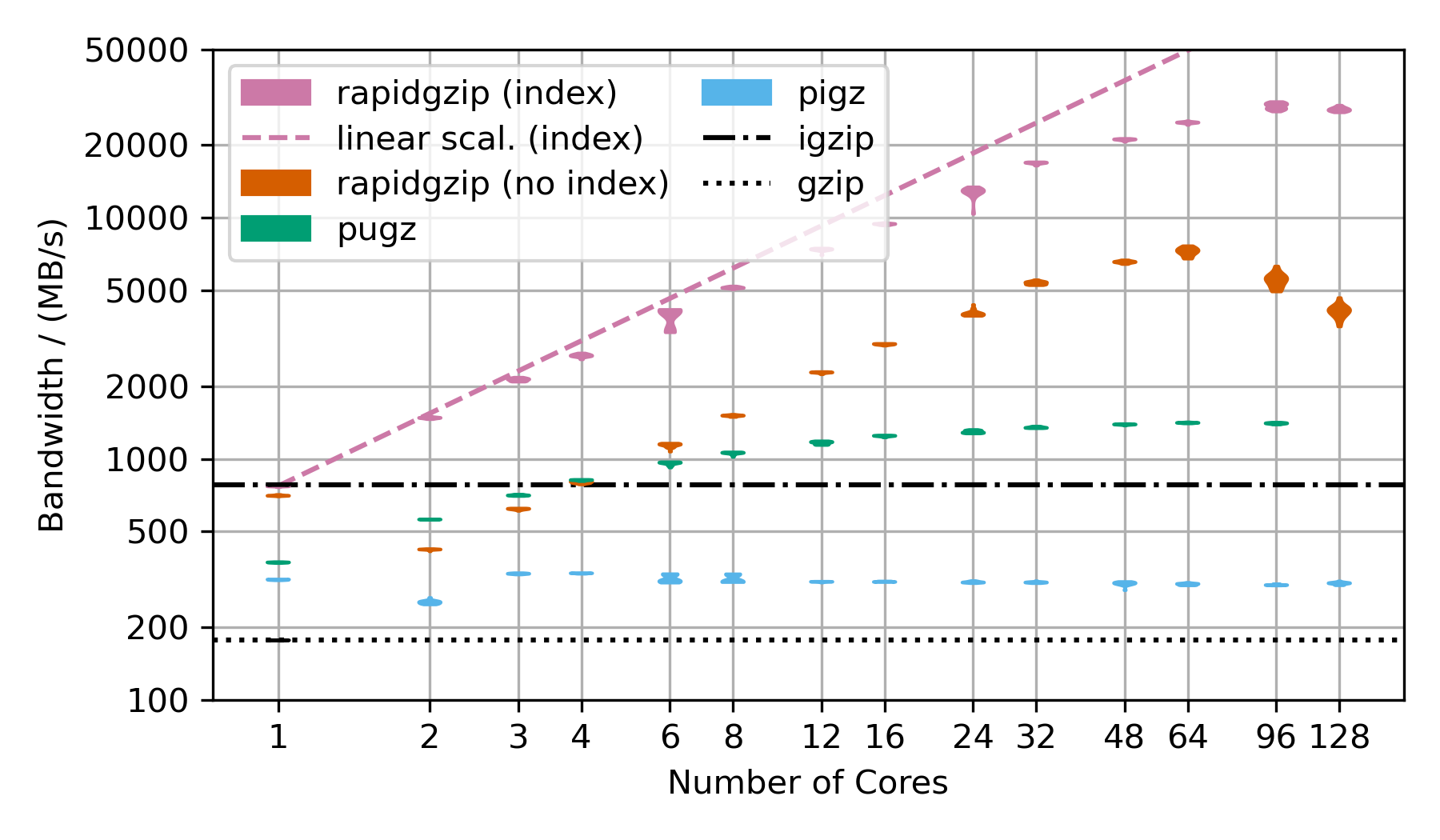

Decompression of Silesia Corpus

This benchmark uses the Silesia corpus compressed as a .tar.gz file to show the decompression performance. However, the compressed dataset is only ~69 MB, which is not sufficiently large to show parallelization over 128 cores. That's why the TAR file is repeated as often as there are number of cores in the benchmark times 2 and then compressed into a single large gzip file, which is ~18 GB compressed and 54 GB uncompressed for 128 cores.

Rapidgzip achieves up to 24 GB/s with an index and 12 GB/s without.

Pugz is not shown as a comparison because it is not able to decompress the Silesia dataset because it contains binary data, which it cannot handle.

More Benchmarks

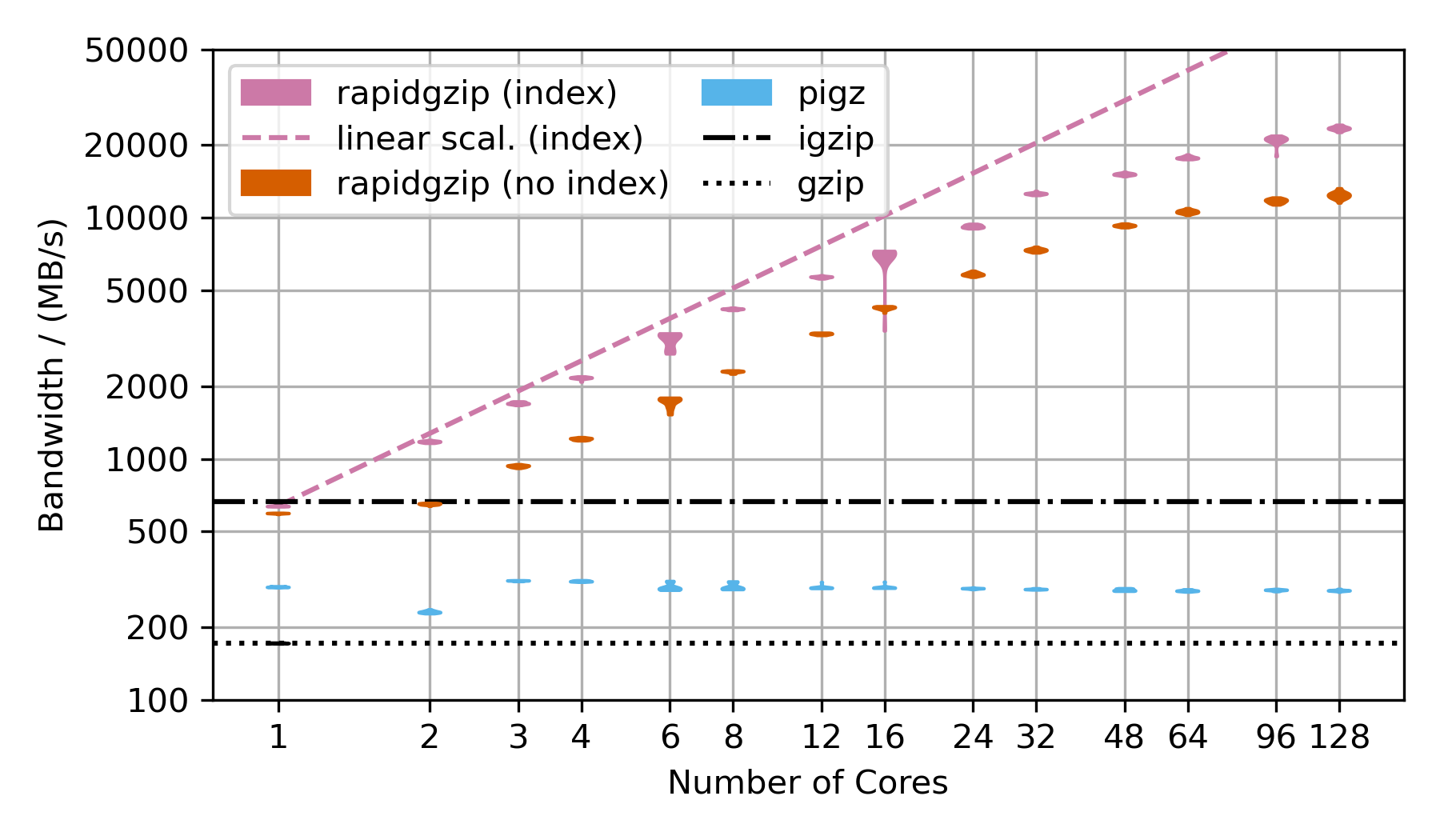

Decompression of Gzip-Compressed Base64 Data

This benchmark uses random data, that has been base64 encoded and then gzip-compressed. This is the next best case for rapidgzip after the trivial case of purely random data, which cannot be compressed and therefore can be decompressed with a simple memory copy. This next best case results in mostly Huffman-coding compressed data with only very few LZ77 back-references. Without LZ77 back-references, parallel decompression can be done more independently and therefore faster than in the case of many LZ77 back-references.

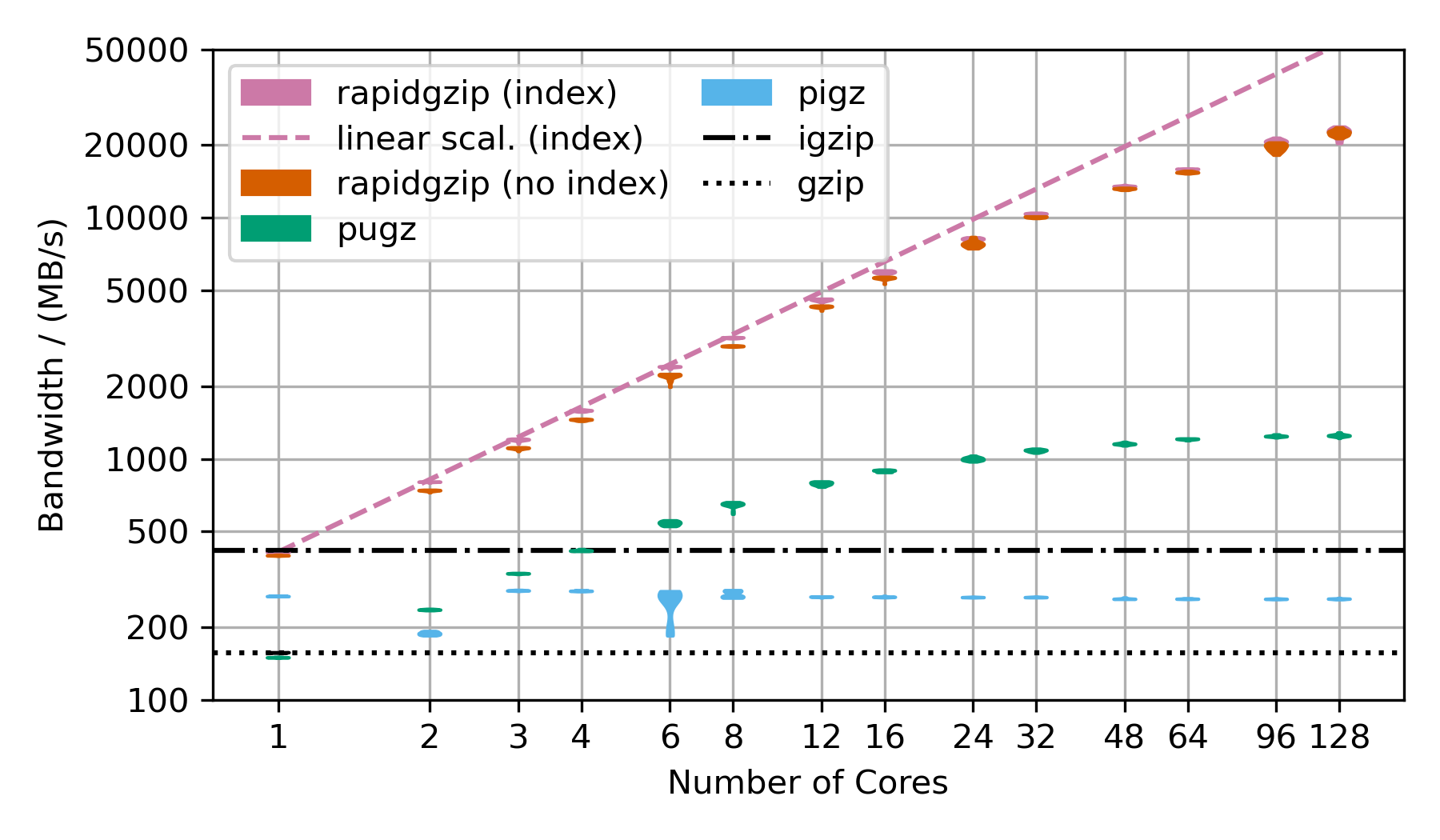

Decompression of Gzip-Compressed FASTQ Data

This benchmarks uses gzip-compressed FASTQ data. That's why the TAR file is repeated as often as there are number of cores in the benchmark to hold the decompression times roughly constant in order to make the benchmark over this large a range feasible. This is almost the worst case for rapidgzip because it contains many LZ77 back-references over very long ranges. This means that a fallback to ISA-L is not possible and it means that the costly two-staged decoding has to be done for almost all the data. This is also the reason why it fails to scale above 64 cores, i.e, to the second CPU socket. The first and second decompression stages are completely independently submitted to a thread pool, which on this NUMA architecture means, that data needs to be costly transferred from one processor socket to the other if the second step for a chunk is not done on the same processor as the first. This should be fixable by making the ThreadPool NUMA-aware.

These three scaling plots were created with rapidgzip 0.9.0, while the ones in the paper were created with 0.5.0.

Scaling Benchmarks on Ryzen 3900X

These benchmarks on my local workstation with a Ryzen 3900X that only has 12 cores (24 virtual cores), but the base frequency is much higher than the 2xAMD EPYC 7702 CPU.

Decompression With Existing Index

	4GiB-base64	4GiB-base64		20x-silesia	20x-silesia
Uncompressed Size	4 GiB			3.95 GiB
Compressed Size	3.04 GiB			1.27 GiB
Module	Bandwidth / (MB/s)	Speedup		Bandwidth / (MB/s)	Speedup
gzip	250	1		293	1
rapidgzip (0 threads)	5179	20.6		5640	18.8
rapidgzip (1 threads)	488	1.9		684	2.3
rapidgzip (2 threads)	902	3.6		1200	4.0
rapidgzip (6 threads)	2617	10.4		3250	10.9
rapidgzip (12 threads)	4463	17.7		5600	18.7
rapidgzip (24 threads)	5240	20.8		5750	19.2
rapidgzip (32 threads)	4929	19.6		5300	17.7

Decompression From Scratch

	4GiB-base64	4GiB-base64		20x-silesia	20x-silesia
Uncompressed Size	4 GiB			3.95 GiB
Compressed Size	3.04 GiB			1.27 GiB
Module	Bandwidth / (MB/s)	Speedup		Bandwidth / (MB/s)	Speedup
gzip	250	1		293	1
rapidgzip (0 threads)	5060	20.1		2070	6.9
rapidgzip (1 threads)	487	1.9		630	2.1
rapidgzip (2 threads)	839	3.3		694	2.3
rapidgzip (6 threads)	2365	9.4		1740	5.8
rapidgzip (12 threads)	4116	16.4		1900	6.4
rapidgzip (24 threads)	4974	19.8		2040	6.8
rapidgzip (32 threads)	4612	18.3		2580	8.6

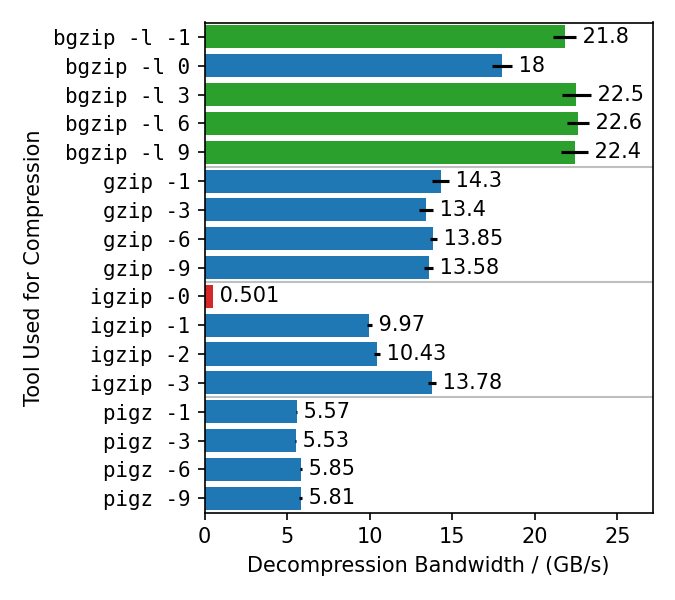

Benchmarks for Different Compressors

This benchmark compresses the enlarged Silesia TAR with different gzip implementations, each with different compression levels. Rapidgzip is then used to decompress the resulting files with 128 cores.

Rapidgzip can parallelize decompression for almost all tested cases. The only exception is files compressed with igzip -0, because these files contain only a single several gigabytes large deflate block. This is the only known tool to produce such a pathological deflate block.

The decompression bandwidth for the other compressors, varies quite a lot. The fastest decompression is reached with 22 GB/s for bgzip-compressed files because the bgzip format is directly supported, which enables rapidgzip to avoid the two-stage decompression method and also enables rapidgzip to offload all of the work to ISA-L. Files compressed with bgzip -l 0 decompress slightly slower with "only" 18 GB/s, because it creates a fully non-compressed gzip stream and therefore is more I/O bound than the other bgzip-generated files.

Decompression of pigz-generated files is the slowest with 6 GB/s as opposed to 10-14 GB/s for gzip and igzip. It is not clear why that is. It might be because pigz generates small deflate blocks and adds flush markers.

The values in this chart are higher than in table 3 in the paper because the measurements were done with rapidgzip 0.10.1 instead of version 0.5.0.

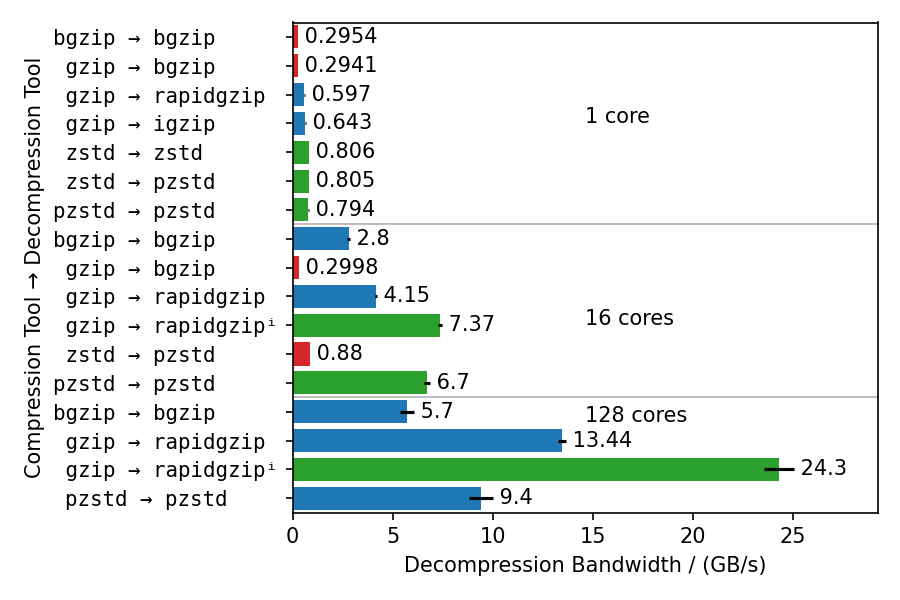

Benchmarks for Different Decompressors

These benchmarks use different compressors and different decompressors to show multiple things:

• Single-core decompression of rapidgzip is close to igzip and roughly twice as fast as bgzip, which uses zlib.
• Decompression bandwidth with ISA-L can somewhat compete with zstd and is only 25% slower.
• Both bgzip and pzstd can only parallelize decompression of files compressed with bgzip / pzstd. This especially means that files compressed with the standard zstd tool cannot be decompressed in parallel and tops out at ~800 MB/s.
• Even for bgzip-compressed files, rapidgzip is always faster than bgzip for decompression, thanks to ISA-L and better multi-threading.
• Rapidgzip scales higher than pzstd for decompression with many cores, and can be more than twice as fast when an index exists: 24.3 GB/s vs. 9.5 GB/s.

The values in this chart are higher than in table 4 in the paper because the measurements were done with rapidgzip 0.10.1 instead of version 0.5.0.

Usage

Command Line Tool

rapidgzip --help

# Parallel decoding: 1.7 s
time rapidgzip -d -c -P 0 sample.gz | wc -c

# Serial decoding: 22 s
time gzip -d -c sample.gz | wc -c

Help Output

A gzip decompressor tool based on the rapidgzip backend from ratarmount
Usage:
  rapidgzip [OPTION...] positional parameters

 Actions options:
  -d, --decompress        Force decompression. Only for compatibility. No
                          compression supported anyways.
      --import-index arg  Uses an existing gzip index.
      --export-index arg  Write out a gzip index file.
      --count             Prints the decompressed size.
  -l, --count-lines       Prints the number of newline characters in the
                          decompressed data.
      --analyze           Print output about the internal file format
                          structure like the block types.

 Advanced options:
      --chunk-size arg      The chunk size decoded by the parallel workers
                            in KiB. (default: 4096)
      --verify              Verify CRC32 checksum. Will slow down
                            decompression and there are already some
                            implicit and explicit checks like whether the
                            end of the file could be reached and whether
                            the stream size is correct.
      --no-verify           Do not verify CRC32 checksum. Might speed up
                            decompression and there are already some
                            implicit and explicit checks like whether the
                            end of the file could be reached and whether
                            the stream size is correct.
      --io-read-method arg  Option to force a certain I/O method for
                            reading. By default, pread will be used when
                            possible. Possible values: pread, sequential,
                            locked-read (default: pread)
      --index-format arg    Option to select an output index format.
                            Possible values: gztool, gztool-with-lines,
                            indexed_gzip. (default: indexed_gzip)

 Decompression options:
  -c, --stdout                  Output to standard output. This is the
                                default, when reading from standard input.
  -f, --force                   Force overwriting existing output files.
                                Also forces decompression even when piped
                                to /dev/null.
  -o, --output arg              Output file. If none is given, use the
                                input file name with '.gz' stripped or
                                '<input file>.out'. If no input is read
                                from standard input and not output file is
                                given, then will write to standard output.
  -k, --keep                    Keep (do not delete) input file. Only for
                                compatibility. This tool will not delete
                                anything automatically!
  -P, --decoder-parallelism arg
                                Use the parallel decoder. If an optional
                                integer >= 1 is given, then that is the
                                number of decoder threads to use. Note that
                                there might be further threads being
                                started with non-decoding work. If 0 is
                                given, then the parallelism will be
                                determined automatically. (default: 0)
      --ranges arg              Decompress only the specified byte ranges.
                                Example: 10@0,1KiB@15KiB,5L@20L to
                                decompress the first 10 bytes, 1024 bytes
                                at offset 15 KiB, as well as the 5 lines
                                after skipping the first 20 lines.

 Output options:
  -h, --help                   Print this help message.
  -q, --quiet                  Suppress noncritical error messages.
  -v, --verbose                Print debug output and profiling statistics.
  -V, --version                Display software version.
      --oss-attributions       Display open-source software licenses.
      --oss-attributions-yaml  Display open-source software licenses in
                               YAML format for use with Conda.

If no file names are given, rapidgzip decompresses from standard input to standard output.
If the output is discarded by piping to /dev/null, then the actual decoding step might
be omitted if neither -l nor -L nor --force are given.

Examples:

Decompress a file:
  rapidgzip -d file.gz

Decompress a file in parallel:
  rapidgzip -d -P 0 file.gz

List information about all gzip streams and deflate blocks:
  rapidgzip --analyze file.gz

Python Library

Simple open, seek, read, and close

from rapidgzip import RapidgzipFile

file = RapidgzipFile("example.gz", parallelization=os.cpu_count())

# You can now use it like a normal file
file.seek(123)
data = file.read(100)
file.close()

The first call to seek will ensure that the block offset list is complete and therefore might create them first. Because of this, the first call to seek might take a while.

Use with context manager

import os
import rapidgzip

with rapidgzip.open("example.gz", parallelization=os.cpu_count()) as file:
    file.seek(123)
    data = file.read(100)

Storing and loading the block offset map

The creation of the list of gzip blocks can take a while because it has to decode the gzip file completely. To avoid this setup when opening a gzip file, the block offset list can be exported and imported.

import os
import rapidgzip

index_path = "example.gz.gzindex"

with rapidgzip.open("example.gz", parallelization=os.cpu_count()) as file:
    file.seek(123)
    data = file.read(100)
    file.export_index(index_path)

with rapidgzip.open("example.gz", parallelization=os.cpu_count()) as file:
    file.import_index(index_path)
    file.seek(123)
    data = file.read(100)

Open a pure Python file-like object for indexed reading

import io
import os
import rapidgzip as rapidgzip

with open("example.gz", "rb") as file:
    in_memory_file = io.BytesIO(file.read())

with rapidgzip.open(in_memory_file, parallelization=os.cpu_count()) as file:
    file.seek(123)
    data = file.read(100)

Via Ratarmount

rapidgzip is the default backend in ratarmount since version 0.14.0. Then, you can use ratarmount to mount single gzip files easily.

base64 /dev/urandom | head -c $(( 4 * 1024 * 1024 * 1024 )) | gzip > sample.gz
# Serial decoding: 23 s
time gzip -c -d sample.gz | wc -c

python3 -m pip install --user ratarmount
ratarmount sample.gz mounted

# Parallel decoding: 3.5 s
time cat mounted/sample | wc -c

# Random seeking to the middle of the file and reading 1 MiB: 0.287 s
time dd if=mounted/sample bs=$(( 1024 * 1024 )) \
       iflag=skip_bytes,count_bytes skip=$(( 2 * 1024 * 1024 * 1024 )) count=$(( 1024 * 1024 )) | wc -c

C++ library

Because it is written in C++, it can of course also be used as a C++ library. rapidgzip supports streaming of uncompressed data with a predefined buffer size, although small buffer sizes decrease performance.

In order to make heavy use of templates and to simplify compiling with Python setuptools, it is header-only. The license is also permissive enough for most use cases.

Rapidgzip can be added to an existing CMake project using FetchContent, or directly via add_subdirectory

An example CMake build using FetchContent can be found here.

Citation

A paper describing the implementation details and showing the scaling behavior with up to 128 cores has been submitted to and accepted in ACM HPDC'23, The 32nd International Symposium on High-Performance Parallel and Distributed Computing. The paper can also be accessed on ACM DL or Arxiv. The accompanying presentation can be found here.

If you use this software for your scientific publication, please cite it as:

@inproceedings{rapidgzip,
    author    = {Knespel, Maximilian and Brunst, Holger},
    title     = {Rapidgzip: Parallel Decompression and Seeking in Gzip Files Using Cache Prefetching},
    year      = {2023},
    isbn      = {9798400701559},
    publisher = {Association for Computing Machinery},
    address   = {New York, NY, USA},
    url       = {https://doi.org/10.1145/3588195.3592992},
    doi       = {10.1145/3588195.3592992},
    abstract  = {Gzip is a file compression format, which is ubiquitously used. Although a multitude of gzip implementations exist, only pugz can fully utilize current multi-core processor architectures for decompression. Yet, pugz cannot decompress arbitrary gzip files. It requires the decompressed stream to only contain byte values 9–126. In this work, we present a generalization of the parallelization scheme used by pugz that can be reliably applied to arbitrary gzip-compressed data without compromising performance. We show that the requirements on the file contents posed by pugz can be dropped by implementing an architecture based on a cache and a parallelized prefetcher. This architecture can safely handle faulty decompression results, which can appear when threads start decompressing in the middle of a gzip file by using trial and error. Using 128 cores, our implementation reaches 8.7 GB/s decompression bandwidth for gzip-compressed base64-encoded data, a speedup of 55 over the single-threaded GNU gzip, and 5.6 GB/s for the Silesia corpus, a speedup of 33 over GNU gzip.},
    booktitle = {Proceedings of the 32nd International Symposium on High-Performance Parallel and Distributed Computing},
    pages     = {295–307},
    numpages  = {13},
    keywords  = {gzip, decompression, parallel algorithm, performance, random access},
    location  = {Orlando, FL, USA},
    series    = {HPDC '23},
}

About

This tool originated as a backend for ratarmount. After writing the bzip2 backend for ratarmount, my hesitation about reimplementing custom decoders for existing file formats has vastly diminished. And, while random access to gzip files did exist with indexed_gzip, it did not support parallel decompression neither for the index creation nor when the index already exists. The latter of which is trivial, when ignoring load balancing issues, but parallelizing even the index creation is vastly more complicated because decompressing data requires the previous 32 KiB of decompressed data to be known.

After implementing a production-ready version by improving upon the algorithm used by pugz, I submitted a paper. The review process was double-blind and I was unsure whether to pseudonymize Pragzip because it has already been uploaded to Github. In the end, I used "rapidgzip" during the review process and because I was not sure, which form fields should be filled with the pseudonymized title, I simply stuck with it. Rapidgzip was chosen for similar reason to pragzip, namely the P and RA are acronyms for Parallel and Random Access. As rapgzip, did not stick, I used rapidgzip, which now also contains the foremost design goal in its name: being rapidly faster than single-threaded implementations. Furthermore, the additional ID could be interpreted to stand for Index and Decompression, making "rapid" a partial backronym.

Internal Architecture

The main part of the internal architecture used for parallelizing is the same as used for indexed_bzip2.

Tracing the Decoder

Performance profiling and tracing is done with Score-P for instrumentation and Vampir for visualization. This is one way, you could install Score-P with most of the functionalities on Ubuntu 22.04.

Installation of Dependencies

Installation steps for Score-P

sudo apt-get install libopenmpi-dev openmpi-bin gcc-11-plugin-dev llvm-dev libclang-dev libunwind-dev \
                     libopen-trace-format-dev otf-trace libpapi-dev

# Install Score-P (to /opt/scorep)
SCOREP_VERSION=8.0
wget "https://perftools.pages.jsc.fz-juelich.de/cicd/scorep/tags/scorep-${SCOREP_VERSION}/scorep-${SCOREP_VERSION}.tar.gz"
tar -xf "scorep-${SCOREP_VERSION}.tar.gz"
cd "scorep-${SCOREP_VERSION}"
./configure --with-mpi=openmpi --enable-shared --without-llvm --without-shmem --without-cubelib --prefix="/opt/scorep-${SCOREP_VERSION}"
make -j $( nproc )
make install

# Add /opt/scorep to your path variables on shell start
cat <<EOF >> ~/.bashrc
if test -d /opt/scorep; then
    export SCOREP_ROOT=/opt/scorep
    export PATH=$SCOREP_ROOT/bin:$PATH
    export LD_LIBRARY_PATH=$SCOREP_ROOT/lib:$LD_LIBRARY_PATH
fi
EOF

echo -1 | sudo tee /proc/sys/kernel/perf_event_paranoid

# Check whether it works
scorep --version
scorep-info config-summary

Tracing

Results for a version from 2023-02-04

Comparison without and with rpmalloc preloaded
