rationalize-sqrt 1.7.8

command-line app for finding multipliers of square roots

△

A way to rationalize a square root to a whole number. make your square root whole.

This project is intended to be used as a simple calculator for bruteforcing and displaying different variations of irrational square-roots. I quickly built this for myself in a couple hours to fix an issue with my design work. By using this app I found a strong candidate for the side lengths of my hexagon's broken down model. When splayed out into triangles and squares each side length could be approximately represented in whole numbers.

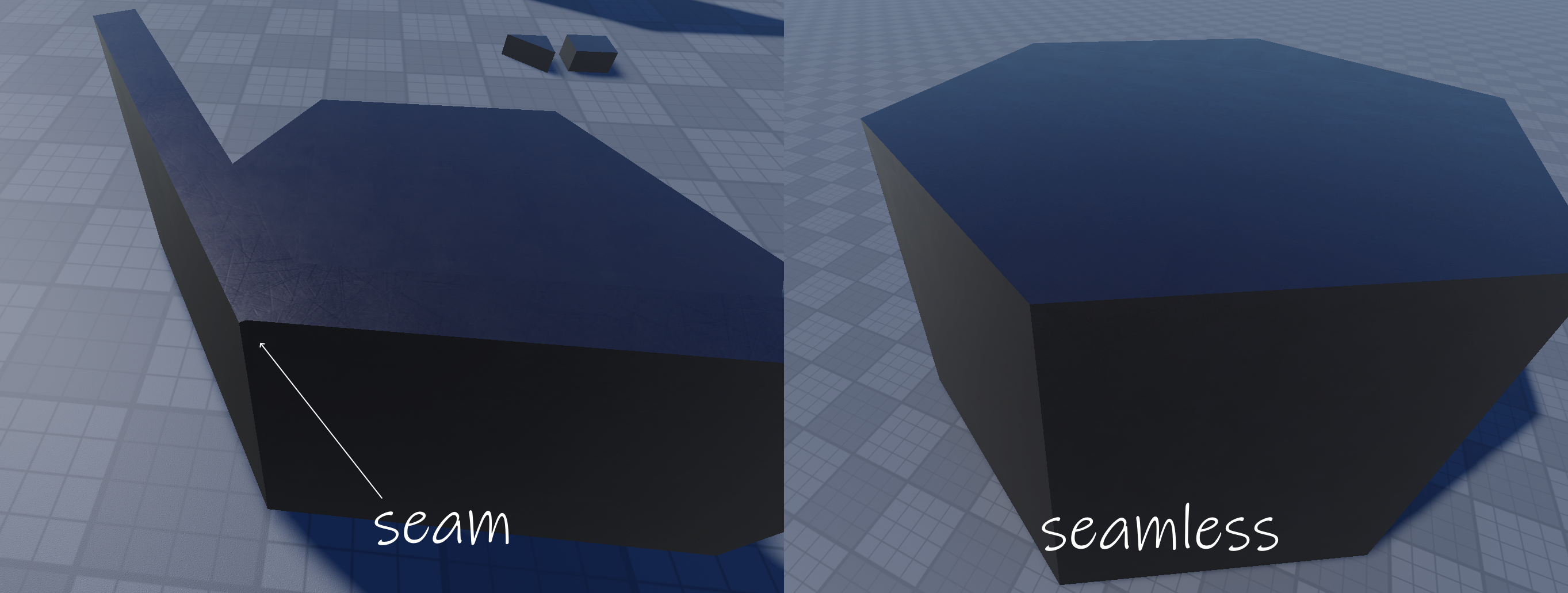

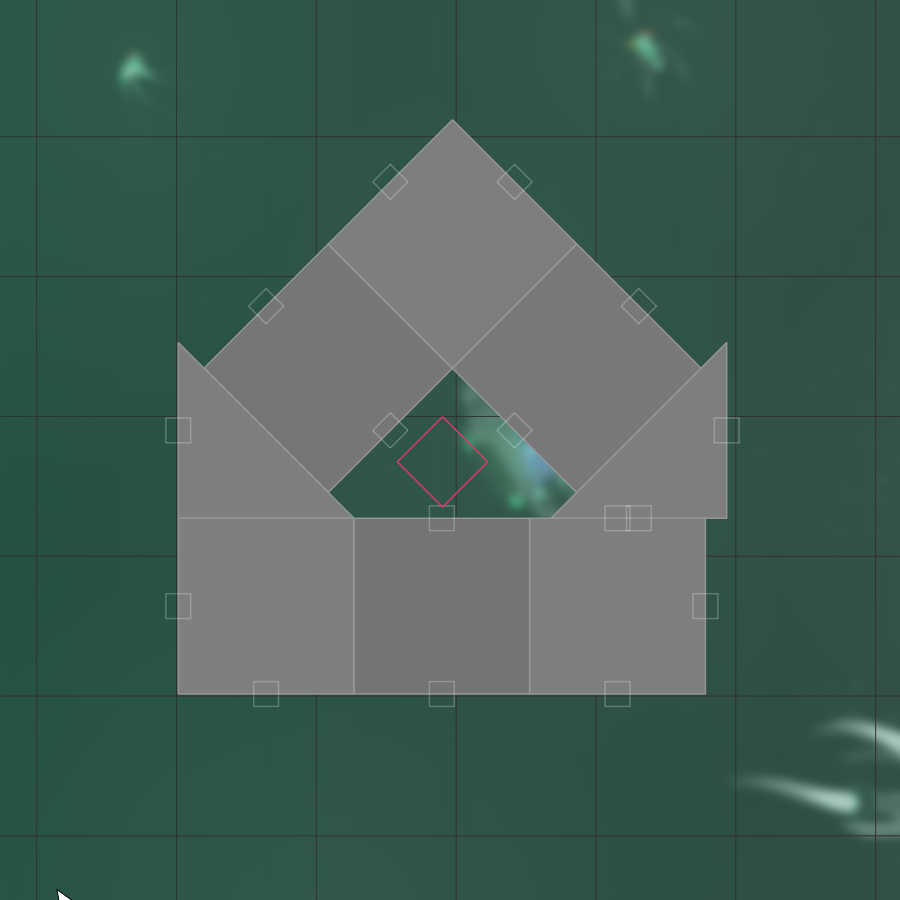

Example from game: Reassembly Unable to connect the two parts on the right together; the structure loses overall stability	Example from Roblox studio: making a hexagon with walls results in stubborn seams which can be mitigated by choosing a better scale

_{*Although it's useful for design work where exact precision isn't necessary, this may not be the solution if you're looking to replace the irrational numbers within a 30/60/90 or 45/45/90 triangle with exact whole ones.}

The Problem

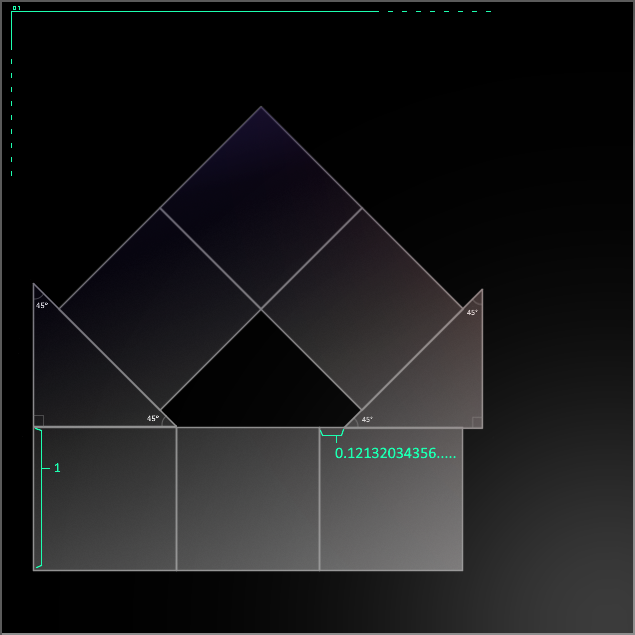

A simple issue may be encountered when arranging equally sized squares onto triangle faces. They will not align back onto the standard grid ever again. Image above shows a case where an attempt is made to align the squares back with the grid using another 45 degree right triangle.

Getting The Solution

The previous example can be broken down into a function that solves for the marked distance:

$y=\frac{3}{2}\cdot x\sqrt{2}-\ 2\cdot x$

where x is the width of a square.

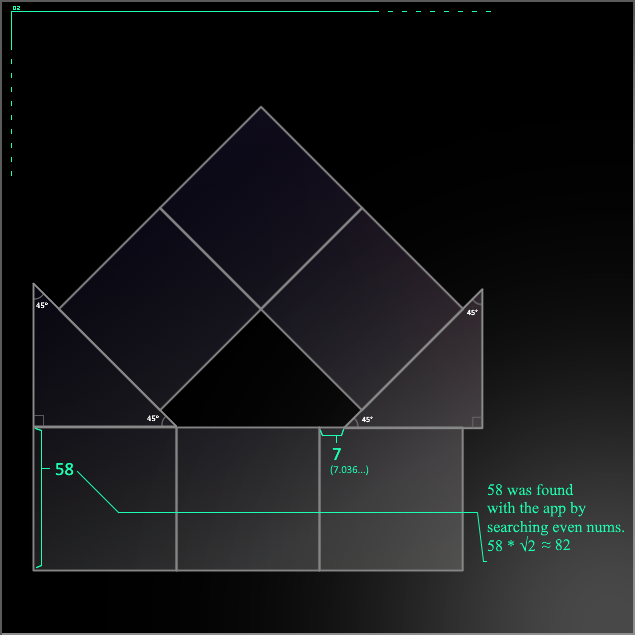

Substituting x with 58 (which I hand picked from a list my app generated), we can simplify $58\sqrt{2}$ into 82 because the real result is only two hundredths of a unit away:

$y=\frac{3}{2}\cdot82-\ 2\cdot58$

the equation then quietly resolves to 7

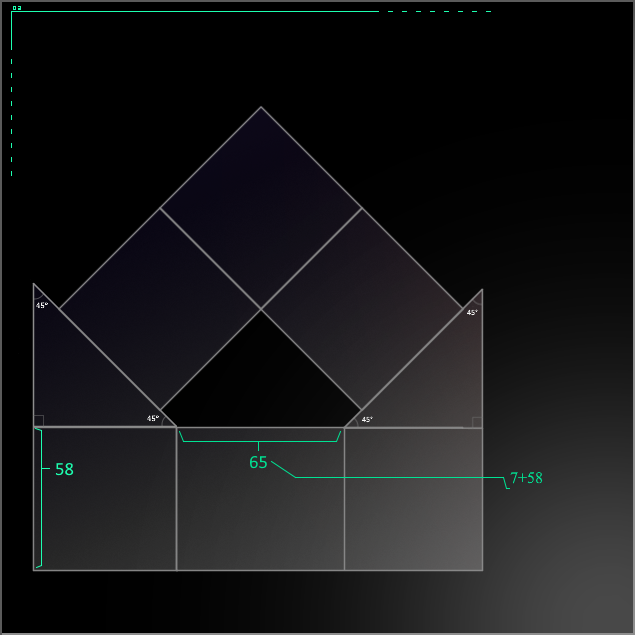

applying the solution

Finally, we can fill the gap left by the odd geometry with a rectangle that's exactly 65 units in length.

---

Installation

1. Install Python 3.14
2. Download and extract the repository into a folder
3. Run run.cmd, run advanced.cmd, or rationalize_sqrt.py through a CLI

Command-Line Arguments (WIP)

Flag	Description
--version	Show app version
--help	Shows argument list
--advanced	Runs app with extra options
--checkupdate	Check for available updates from GitHub
--no_log	Only show best output
--save_results	Save results to file
--save_folder	Set result save folder
