RedKnot

A simple dependency graph generator powered by mermaid.js

What it does

RedKnot is a dependency tree generator for your projects. It scans through the files in your project and graphs out the connections between them using mermaid.js.

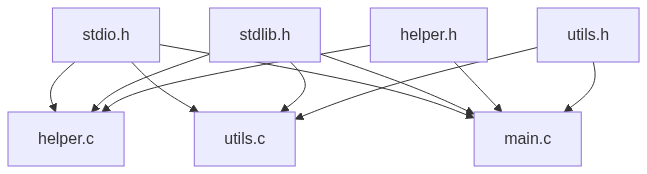

Example of a graph generated by RedKnot

Features

Currently supported languages:

RedKnot can output just the mermaid.js code as well as a simple formatted HTML document which renders the mermaid.js graph.

Installation

RedKnot can be installed via pip:

pip install redknot

You can verify the installation by running:

redknot -version

RedKnot Version 0.0.1
By Sanyam Asthana

MIT License, 2025

Usage

To use RedKnot, just run redknot in your project folder.

redknot

graph TD
stdio.h --> helper.c
stdlib.h --> helper.c
helper.h --> helper.c
stdio.h --> utils.c
stdlib.h --> utils.c
utils.h --> utils.c
stdio.h --> main.c
stdlib.h --> main.c
helper.h --> main.c
utils.h --> main.c

To save the output of RedKnot to a file, you can redirect it using the redirection operator:

redknot > file.txt

To generate an HTML file which displays the graph, you can use the -html flag:

redknot -html

        <!DOCTYPE html>
        <html lang="en">
        <head>
            <meta charset="UTF-8">
            <meta name="viewport" content="width=device-width, initial-scale=1.0">
            <title>MermaDep Graph</title>
        </head>
        <body>
            <pre class="mermaid">

				graph TD
				stdio.h --> helper.c
				stdlib.h --> helper.c
				helper.h --> helper.c
				stdio.h --> utils.c
				stdlib.h --> utils.c
				utils.h --> utils.c
				stdio.h --> main.c
				stdlib.h --> main.c
				helper.h --> main.c
				utils.h --> main.c

            </pre>

            <script type="module">
                import mermaid from 'https://cdn.jsdelivr.net/npm/mermaid@11/dist/mermaid.esm.min.mjs';
            </script>
        </body>
        </html>

To save the HTML output in an HTML file, you can redirect it using the redirection operator:

redknot -html > index.html

By default, RedKnot displays any errors while reading files as mermaid.js comments. You can disable the comments by passing the -nocomm flag. The -html flag has comments disabled by default.

Author's Notes

Usually, I would put a section of technical details here, but since this is a one-file project which was made in like 10 minutes, there are not really a lot of details I can possible give. I am working towards supporting more languages like Python and Java, and any contribution to the project would mean a lot!

License

MIT License
