Repertoire Creator

Build a chess opening repertoire on your own machine — play the moves in on a board or type the notation, annotate them, watch a live engine eval bar as you go — then publish the whole thing to Lichess as a study, or export it as a PDF.

It knows which side you play. That one fact is what turns a pile of variations into a repertoire: it can tell you which positions you have no answer for, which choices you never made, and which lines contradict each other — and it can quiz you on your own moves.

Local PGN files  ──push──▶  Lichess study
      │                          │
      ├──▶ PDF export            └── shareable, works on your phone
      └──▶ drill mode

Install

pip install repertoire-creator
repertoire serve

Optional. PDF export: pip install "repertoire-creator[pdf]".

Or take all five at once with pip install lichess-essentials. Installed this way your files live in the usual per-user folder for your platform, and the app prints the path in its startup banner. To run it from a checkout instead, see the repository README.

What it does

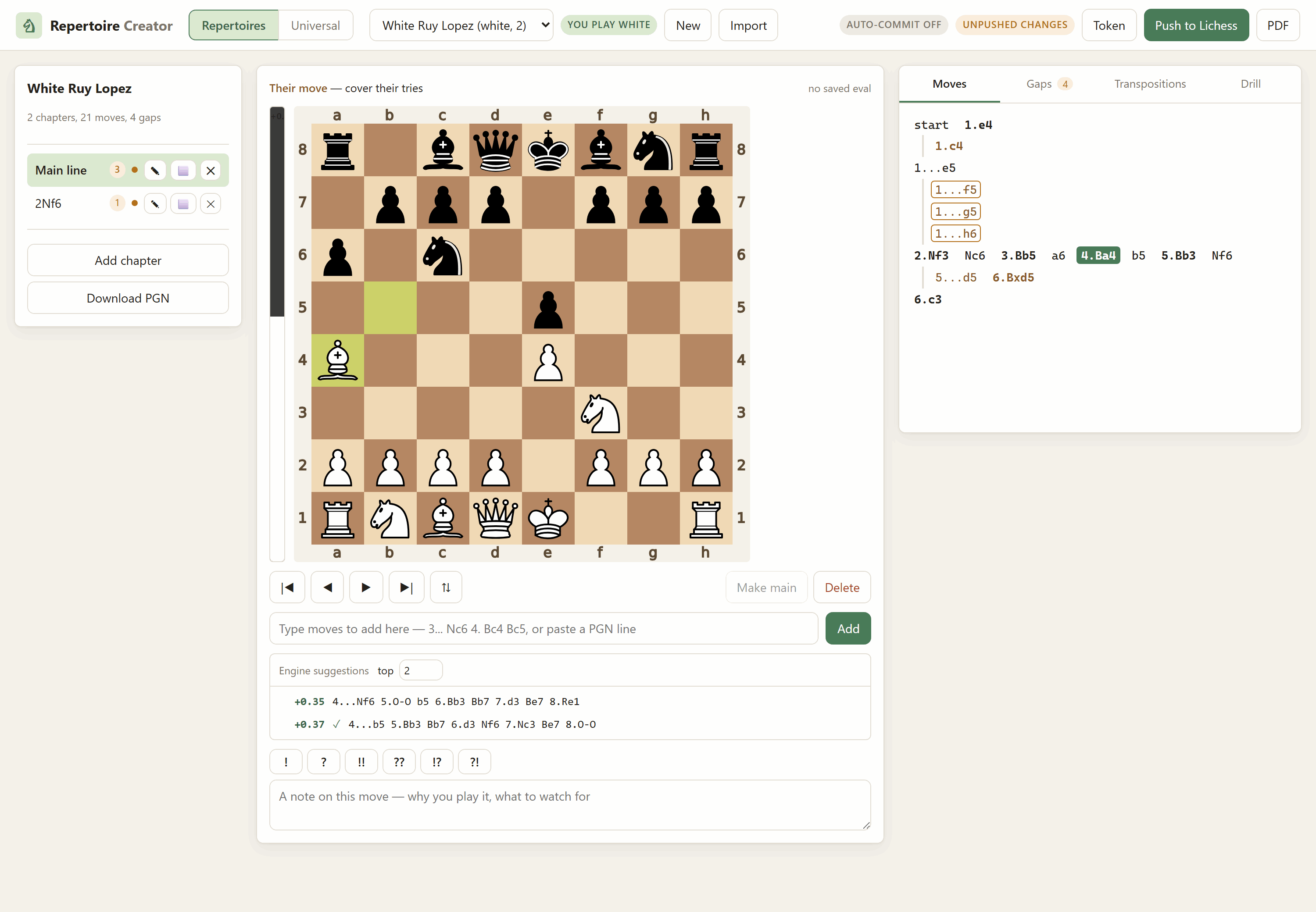

Enter lines	Click moves on the board, or paste notation (1. e4 e5 2. Nf3, nested variations and comments included). Playing a move you already have walks to it instead of duplicating it.
Annotate	Comments, !/?/!!/??/!?/?!, and Lichess's coloured circles and arrows — all stored in the PGN, all shown on Lichess after a push.
Eval bar	Live evaluation of whatever position you are looking at, and an [%eval] written into every saved move so the numbers survive into the file, the study and the PDF.
Engine suggestions	The top few moves here, ranked, with their lines. Two by default, up to five. A tick marks the ones you already have; clicking one plays it into your tree.
Gaps	Every position where it is your turn and you wrote nothing. Optionally, the opening-explorer scan: popular opponent replies you never answered.

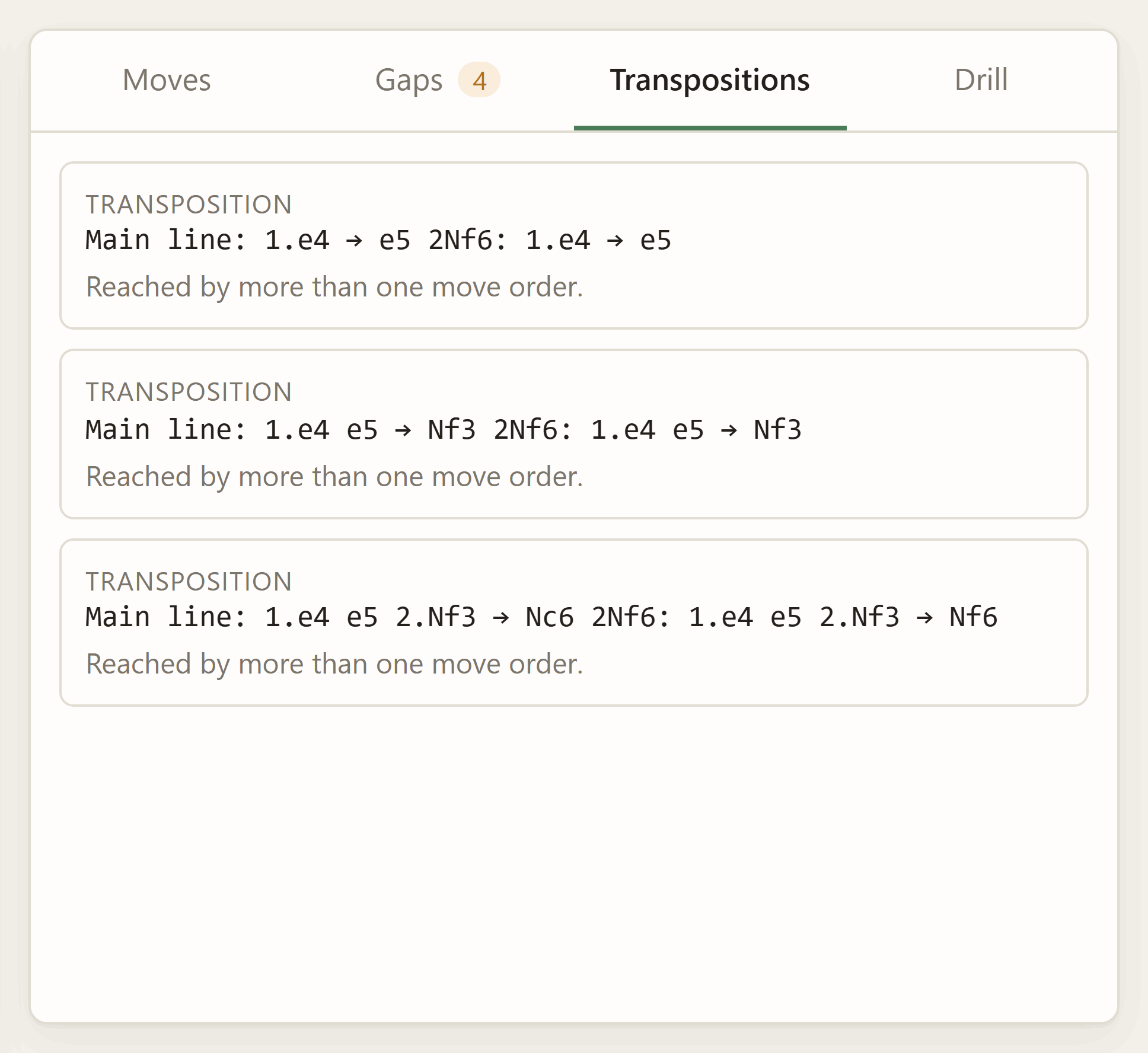

Transpositions	The same position reached by two move orders — flagged loudly when your answer differs between them.
Drill	Spaced repetition over your own moves. The app plays the opponent; you have to find what you wrote.
Universal mode	No chapters. Record sequences as you play them, and everything you have ever written down — recordings and every chapter of every repertoire — becomes one book keyed by position. Turn the assist on and it tells you your own move as you walk, or says gap.
Saves itself	Every edit is written to disk as you make it, and optionally committed to git and pushed, so the repertoire survives the machine.
Publish	Create the Lichess study and push chapters into it. Pushing again updates those same chapters in place rather than duplicating them.
PDF	A typeset chess book, a contact sheet of diagrams, or a step-through slideshow — reusing the sibling app's exporter.

Three of those tabs read the repertoire back to you rather than letting you write into it, and each one is only possible because the app knows which side you play:

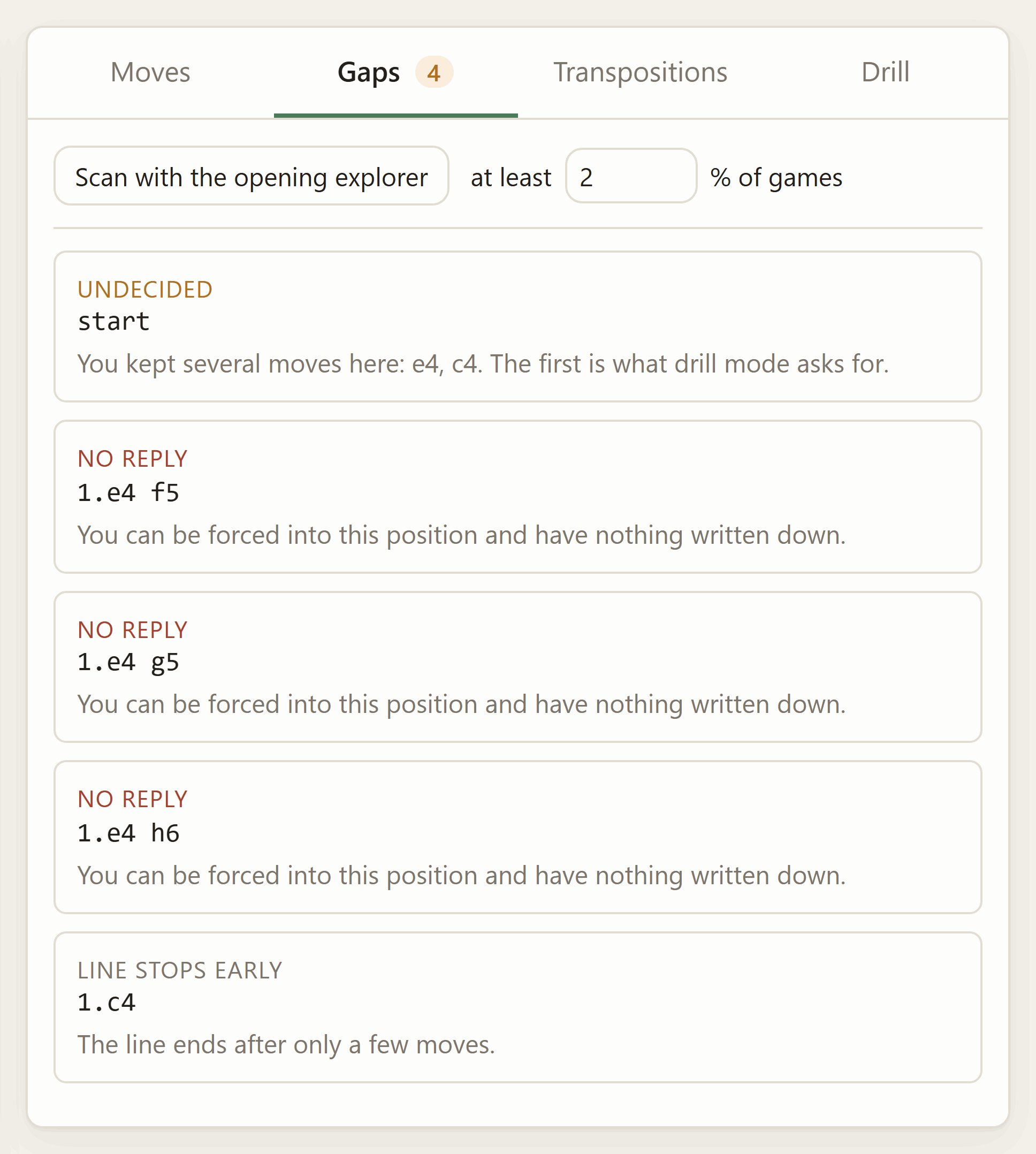

Gaps — every position where it is your turn and you wrote nothing, with a sentence saying why each one counts	Transpositions — the same position by two move orders, flagged loudly when your answers differ

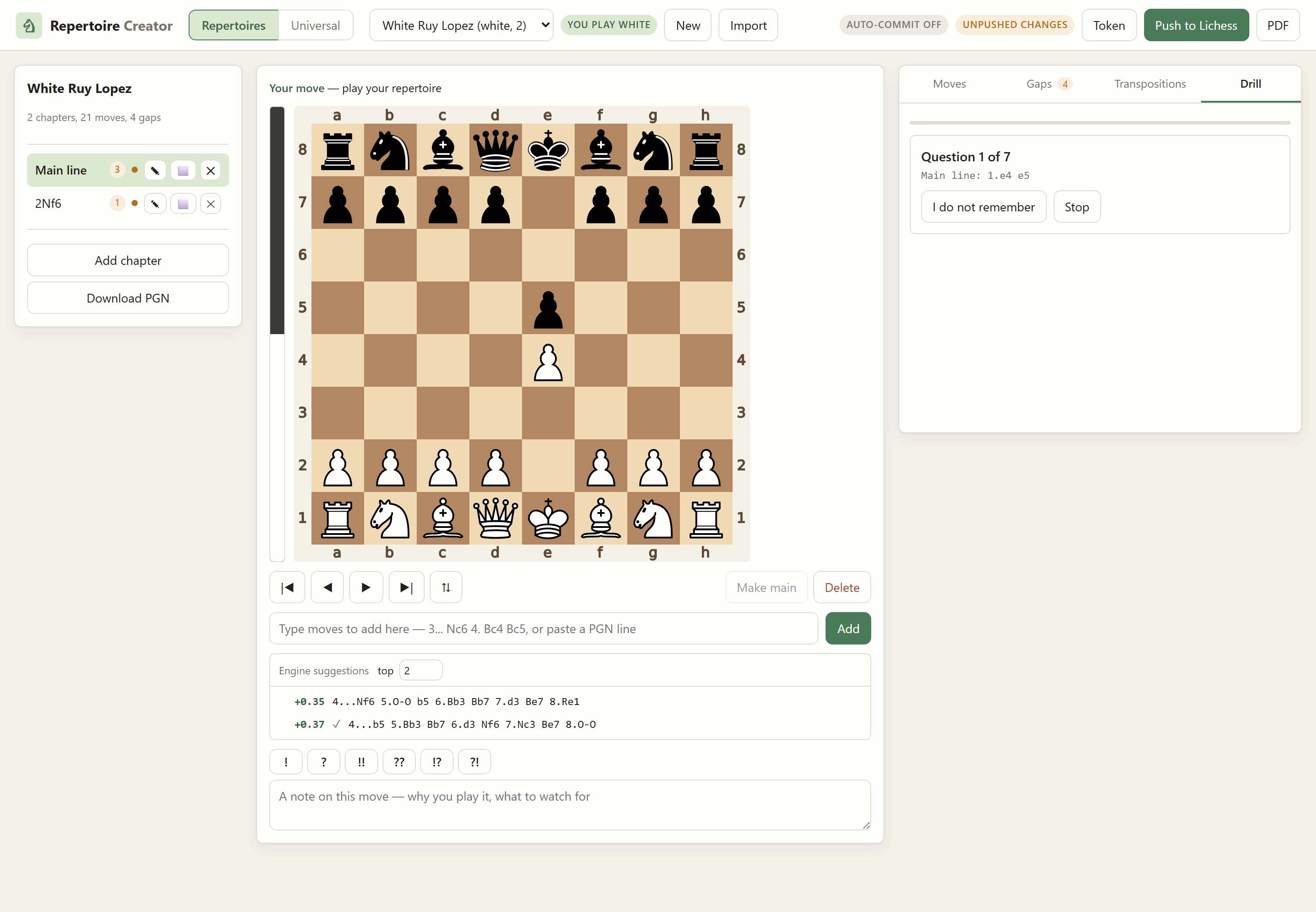

Drill is the third. The app plays the opponent and the board becomes a question — you have to find what you wrote, and anything else counts as a miss and comes back sooner:

Setup

Everything shares the one virtualenv at the repository root. From the repository root:

# Windows PowerShell
python -m venv .lichess
.\.lichess\Scripts\python.exe -m pip install -r Repertoire-Creator\requirements.txt
.\.lichess\Scripts\python.exe -m pip install -e Lichess-Study-to-PDF

# Git Bash on Windows
python -m venv .lichess
./.lichess/Scripts/python.exe -m pip install -r Repertoire-Creator/requirements.txt
./.lichess/Scripts/python.exe -m pip install -e Lichess-Study-to-PDF

# macOS / Linux
python -m venv .lichess
./.lichess/bin/python -m pip install -r Repertoire-Creator/requirements.txt
./.lichess/bin/python -m pip install -e Lichess-Study-to-PDF

That second install is the sibling app, and it is what provides the engine ladder and the PDF layout. Without it the editor still works, but there is no eval bar and no PDF export; the startup banner tells you either way.

Two optional extras, both picked up automatically:

• a Stockfish binary in Lichess-Study-to-PDF/engine/ — the eval bar and eval baking need it
• a LaTeX install (MiKTeX or TeX Live) — only for the typeset book export

Run it

# Windows PowerShell
cd Repertoire-Creator
& "..\.lichess\Scripts\python.exe" -m repertoire_creator.cli serve

# Git Bash on Windows
cd Repertoire-Creator
../.lichess/Scripts/python.exe -m repertoire_creator.cli serve

# macOS / Linux
cd Repertoire-Creator
../.lichess/bin/python -m repertoire_creator.cli serve

Open http://127.0.0.1:8778. Ctrl+C stops it.

Keyboard and mouse

Scrolling the mouse wheel over the board steps through the line — down goes forward, up goes back. Trackpads work too: a flick is one move, not ten. During a drill the board is a question rather than a line, so the wheel scrolls the page as usual.

Key
← →	back and forward through the line
Home End	start of the chapter, end of the current line
F	flip the board
M	make the current move the one you play (promote to main line)
A	toggle the assist (universal mode)
Delete	delete this move and everything after it
Enter in the move box	add the typed line

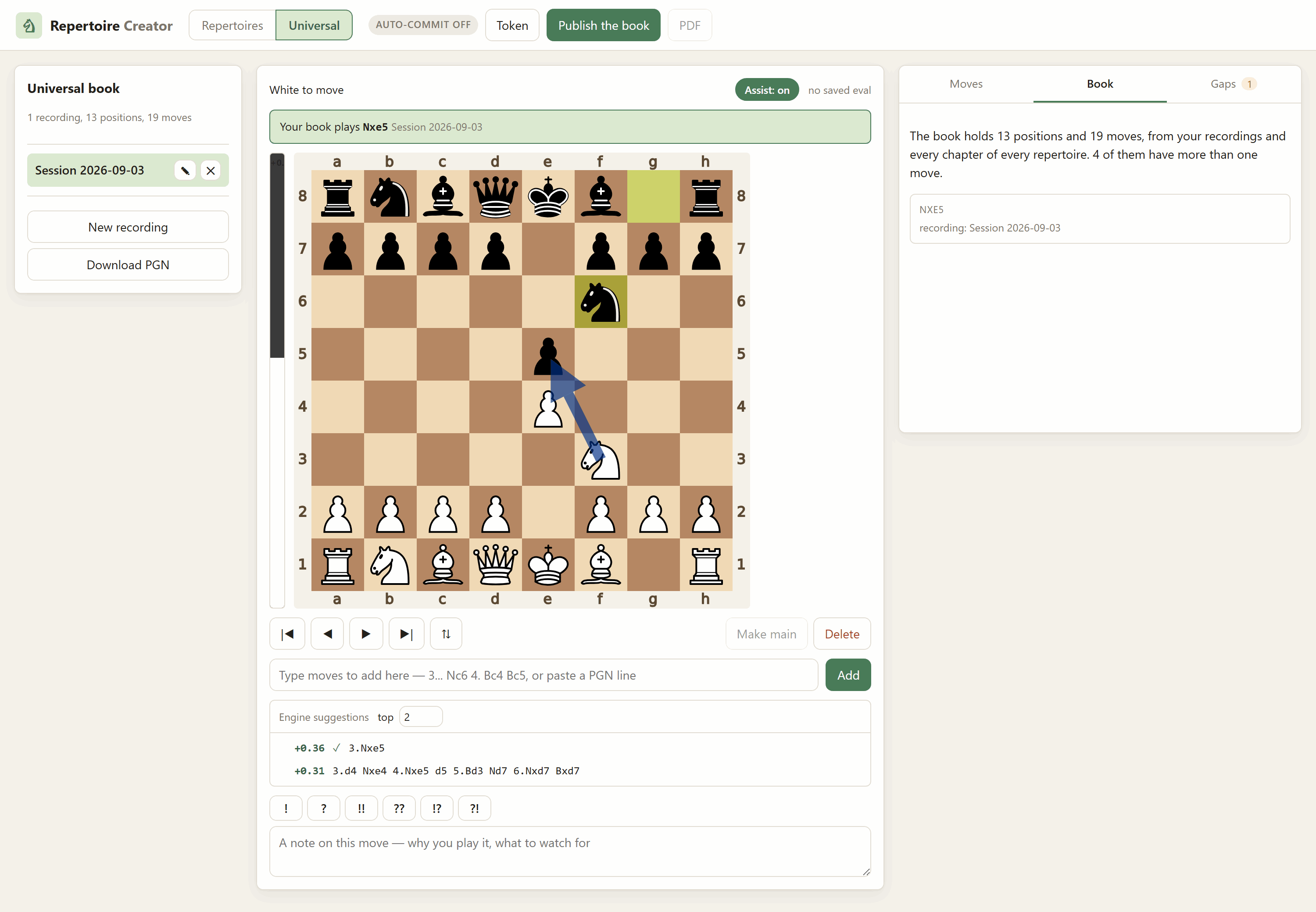

Universal mode

Chapters are a filing system, and a filing system is the wrong shape for the question you ask at the board: given this position, what do I play? That question does not care which chapter the answer was filed in, or by which move order you arrived.

So switch to Universal in the top bar and there are no chapters. You make a recording, play or paste a sequence, and it is saved as you go — as ordinary PGN, one file per recording. Make another one tomorrow. Nothing needs organising.

Underneath, everything you have ever written down is folded into one book keyed by position: your recordings and every chapter of every repertoire. That is what makes it answer correctly through transpositions — a reply you recorded after 1.e4 e5 2.Nf3 Nc6 3.Bc4 is found when you arrive by 2.Bc4 Nc6 3.Nf3, because it is the same position.

Then turn on Assist. As you move, it tells you what your book plays here and draws it on the board, and it distinguishes two kinds of silence:

• Gap — you reached this position through your own lines and there is nothing recorded from it. This is a hole in your preparation. Play the move you want and it is saved.
• Outside your book — no line of yours passes through this position at all, so there is nothing to be missing.

The engine's top lines sit under the board throughout, so a gap and the engine's opinion of how to fill it are on screen together.

The Book tab shows what the book knows about the position you are on and which recording or chapter each move came from. The Gaps tab lists every place a recording runs out.

Universal mode is local by default. Publish the book merges the recordings and splits them into one chapter per opening move, then pushes that as a study; publishing again updates those same chapters. Chapters that came from a repertoire are deliberately left out — publish those from the repertoire itself, or Lichess ends up with two copies of the same preparation.

Saving

Two layers, and the first is not optional.

To disk, always, immediately. There is no save button. Every move, comment and annotation is written to its PGN file the moment you make it, through a temporary file and an atomic rename. Kill the server mid-line and you lose nothing.

To git, if you want it. The git pill in the top bar opens the settings. When auto-commit is on, a save arms a timer — twenty seconds of quiet by default — and then commits, so a burst of twenty moves is one commit and not twenty. With push on as well, it pushes to your remote.

It commits only the repertoires folder, using an explicit pathspec, so anything else you have in flight in the same repository is untouched — even changes you have already staged. Git is run with terminal prompts disabled and a hard timeout, so a missing credential fails visibly rather than wedging. Failures show on the pill; hover it for the reason.

Worth knowing before you leave auto-push on: the default data folder lives inside this repository, so pushing publishes your repertoire wherever that repository points. If the repo is public, so is your preparation — which for an opening repertoire may be exactly what you do not want. Turn push off in the git dialog and keep local commits, point REPERTOIRE_DIR at a private repository, or keep the repo private.

Publishing to Lichess

You need a token with the study:write scope. Create one here, then either paste it into the app's Token dialog (kept in memory, forgotten when the server stops), or make it permanent by saving it to ~/.lichess_token or setting LICHESS_TOKEN.

Local is the source of truth. A push makes the Lichess study look like the folder on your disk. It never merges the other way, so anything you edited in the browser on lichess.org is overwritten by the next push of that chapter.

What a push does, per chapter:

• never pushed → import-pgn creates it, and the Lichess chapter id is saved so next time it can be updated instead of duplicated
• pushed before, changed since → /moves replaces its move tree; the chapter keeps its id, its place in the study and any link you shared
• pushed before, unchanged → skipped, so pushing a 40-chapter repertoire after fixing one line costs one request

What the Lichess API cannot do

Not this app's limitations — the API has no endpoint for them. You do these by hand on lichess.org:

• rename a study, or change its visibility after it is created
• reorder chapters (the app orders them locally; a push does not move them)
• delete a study

Also enforced by Lichess: 64 chapters per study, 30 new studies per day, and rate limiting on writes (the app paces itself about a second apart; if you still get a 429, wait a full minute — retrying sooner extends it).

Two things I could not verify from the API documentation, so treat them as best-effort rather than promises. Chapter orientation is a documented parameter of import-pgn, and so is reliable when a chapter is first created; on later pushes the app sends an Orientation tag through the tags endpoint, but the docs do not say whether Lichess re-reads it to turn the board round. Renaming is the same story — the new name goes up as a ChapterName tag, and whether that renames the chapter or only its tags is not documented. If either one does not take effect, fix it in the browser; nothing else about the push depends on it.

The opening explorer now requires an authenticated request, so the gap scan needs the same token — any scope will do for that part.

Where your repertoire lives

Plain files, in Repertoire-Creator/repertoires/ unless you point REPERTOIRE_DIR or --data somewhere else:

repertoires/
  settings.json            git auto-commit settings, universal study id
  white-italian/
    repertoire.json        colour, chapter order, Lichess ids, push hashes
    drill.json             spaced-repetition state
    chapters/
      0001-main-line.pgn   ordinary PGN: variations, comments, NAGs, evals
      0002-two-knights.pgn
  universal/
    universal.json         the list of recordings
    recordings/
      0001-italian-session.pgn

Every chapter is a PGN file that any chess GUI will open, every write is atomic, and the whole folder diffs cleanly in git. If you delete this app tomorrow, your repertoire is still there and still readable.

Command line

Everything the browser does is also a command, so a push or an export can go in a script.

repertoire new "White — Italian" --color white
repertoire list
repertoire import https://lichess.org/study/abcd1234 --color black
repertoire report white-italian        # gaps, conflicts, counts
repertoire bake white-italian          # write engine evals into the PGN
repertoire push white-italian          # publish
repertoire pdf white-italian --mode book
repertoire token                       # check the token and its scopes

Run them through the venv the same way as serve, e.g. ../.lichess/Scripts/python.exe -m repertoire_creator.cli report white-italian.

How the pieces fit

Module
model.py	the data model and move-tree helpers; a chapter is a chess.pgn.Game
storage.py	the folder layout, atomic writes, the manifest
editing.py	every mutation: play, paste, promote, annotate, merge
analysis.py	gaps, transpositions, counts
explorer.py	the opening-explorer scan for uncovered opponent replies
universal.py	recordings, the position-keyed book, and its export
gitsync.py	debounced commit and push of the repertoires folder
drill.py	question collection and the SM-2 schedule
engine.py	the live eval, the ranked suggestion lines, baking [%eval]
lichess.py	the API client, one method per endpoint
sync.py	push orchestration and importing an existing study
export.py	the bridge to the sibling app's PDF writers
board.py	board SVGs, drawn by python-chess
server.py / web/	the HTTP layer and the browser interface

Tests

../.lichess/Scripts/python.exe -m pytest tests -q

No network and no engine: the Lichess client is faked, so the sync logic — which chapter is created, which is updated in place, which is skipped — is covered without a token.

Hosting it for free

Same profile as the sibling app — FastAPI/Uvicorn needing a real container, not a serverless host — plus two things that make this app's setup different:

1. It needs the sibling package. The eval bar and PDF export come from pip install -e Lichess-Study-to-PDF (see Setup, above), so the Docker build context has to be the repository root, not this folder.
2. It writes your repertoire to disk, and free containers are ephemeral. A redeploy — and possibly a wake from sleep, depending on the host — wipes anything not baked into the image. The fix is the git auto-commit this app already has (see "Saving", above), pointed at a dedicated GitHub repo instead of a folder inside this one.

Dockerfile and entrypoint.sh live in this folder, same as any other app in this repo — but the build still has to run with the repository root as its context, not this folder, so it can see the sibling package. Docker keeps those two concerns separate: "where is the Dockerfile" and "what can COPY see" are independent settings (the -f flag to docker build), which is what Render's separate Root Directory / Dockerfile Path fields below are for. Everything the Dockerfile COPYs is written relative to that repo-root context, e.g. COPY Repertoire-Creator/requirements.txt ..., which is why it looks a little different from a Dockerfile that lives with its own self-contained app. The one exception is .dockerignore — Docker always reads that from the context root regardless of where the Dockerfile sits, so it stays at the repository root.

The entrypoint's rule is deliberately simple and never destructive: the GitHub data repo wins once it has a single commit in it — every boot after the first clones it fresh rather than trusting whatever is baked into the image, and nothing here ever force-pushes.

One-time: a private data repo

1. Create a new, private GitHub repo — e.g. repertoire-data. Leave it empty.
2. Generate a fine-grained Personal Access Token scoped to only that repo, with Contents: Read and write permission.
3. Build https://<token>@github.com/<you>/repertoire-data.git. This whole string is a secret: set it once as an environment variable on your host, never commit it, never paste it anywhere else.

Render

1. Push this repo to GitHub.
2. New Web Service → connect the repo → Root Directory: leave blank (repo root, so the build context can see both apps) → Dockerfile Path: Repertoire-Creator/Dockerfile → Free instance.
3. Add environment variables, marked secret:
   • REPERTOIRE_GIT_REMOTE_URL — the token URL from above
   • REPERTOIRE_AUTH_USER / REPERTOIRE_AUTH_PASS — optional, see "Locking it behind a password" below
4. Deploy, and check the logs for the first-boot message about publishing seed data to the data repo — then confirm it landed in repertoire-data on GitHub.

Hugging Face Spaces

Spaces are their own separate git repo, so:

1. New Space → SDK: Docker → Hardware: CPU basic (free).
2. Clone the Space's repo locally. Copy in, preserving folder names: Lichess-Study-to-PDF/ and Repertoire-Creator/ (the latter already contains Dockerfile and entrypoint.sh) — then copy Repertoire-Creator/Dockerfile up to the Space repo's own root as well, since (unlike Render) Spaces always build whatever is literally named Dockerfile at their repo root, with no separate path setting.
3. Add this to the top of the Space's README.md:

   ---
   title: Repertoire Creator
   sdk: docker
   app_port: 7860
   ---


4. Settings → Repository secrets: the same environment variables as Render, above.
5. Commit and push (a Hugging Face access token as the git password).

Locking it behind a password

server.py has an HTTP Basic Auth gate that only activates when both REPERTOIRE_AUTH_USER and REPERTOIRE_AUTH_PASS are set — leave them unset and local repertoire serve is unaffected. Set both as secrets on whichever host you use and every route, API included, asks for that username and password before responding. It is one shared credential pair, not per-user accounts, sent over the HTTPS both Render and Hugging Face Spaces terminate by default on their *.onrender.com / *.hf.space domains.

LICHESS_TOKEN on a public deployment

Same caveat as "Saving" and "Publishing to Lichess" above, restated for hosting specifically: don't set it as an environment variable on a public deployment. It would be shared by every visitor, letting anyone with the URL publish to or read from whatever your token can access. Paste a token into the UI per session instead.

Troubleshooting

"Position evaluation is unavailable" — the sibling app is not installed. pip install -e Lichess-Study-to-PDF from the repository root.

The eval bar never moves — no Stockfish. Drop a binary into Lichess-Study-to-PDF/engine/ and restart; the banner confirms it on startup.

A push says HTTP 401 or 403 — the token is missing the study:write scope, or you are not the owner or a contributor on that study. repertoire token prints which scopes the token actually has.

A push created a second copy of a chapter — that chapter had no recorded Lichess id, which happens if you created it on lichess.org rather than here. Delete the duplicate on Lichess; the local one now holds the id it created.

The git pill says "git problem" — hover it for the reason. The usual ones are no remote called origin, credentials git cannot supply without a prompt (it is run with prompts disabled on purpose), or a non-fast-forward push because the remote moved. The commit itself will have succeeded; only the push failed, and nothing is lost either way.

The gap scan returns nothing — the explorer needs a token, and it only reports moves above your threshold with enough games behind them. Lower the percentage in the Gaps tab.
