Ringtail

Package for creating SQLite database from virtual screening results, performing filtering, and exporting results. Compatible with AutoDock-GPU and AutoDock-Vina.

AD compat License: L-GPL v2.1 made-with-python

Ringtail reads collections of Docking Log File (DLG) or PDBQT results from virtual screenings performed with AutoDock-GPU and AutoDock-Vina, respectively, and deposits them into a SQLite database. It then allows for the filtering of results with numerous pre-defined filtering options, generation of a simple result scatterplot, export of molecule SDFs, and export of CSVs of result data. Result file parsing is parallelized across the user's CPU.

Ringtail is developed by the Forli lab at the Center for Computational Structural Biology (CCSB) at Scripps Research.

README Outline

Installation

It is recommended that you create a new Conda environment for installing Ringtail. Ringtail requires the following non-standard dependencies:

Installation from source code is outlined below:

$ conda create -n ringtail
$ conda activate ringtail

After this, navigate to the desired directory for installing Ringtail and do the following:

$ git clone git@github.com:forlilab/Ringtail.git
$ cd Ringtail
$ pip install .

This will automatically fetch the required modules and install them into the current conda environment.

If you wish to make the code for Ringtail editable without having to re-run pip install ., instead use

$ pip install --editable .

Test installation

If you would like to test your installation of Ringtail, a set of automated tests are included with the source code. To begin, you must install pytest in the Ringtail conda environment:

$ pip install -U pytest

Next, navigate to the test subdirectory within the cloned Ringtail directory and run pytest by simply calling

$ pytest

The compounds used for the testing dataset were taken from the NCI Diversity Set V. The receptor used was PDB: 4J8M.

Definitions

  • DLG: Docking Log File, output from AutoDock-GPU.
  • PDBQT: Modified PDB format, used for receptors (input to AutoDock-GPU and Vina) and output ligand poses from AutoDock-Vina.
  • Cluster: Each DLG contains a number of independent runs, usually 20-50. These independent poses are then clustered by RMSD, giving groups of similar poses called clusters.
  • Pose: The predicted ligand shape and position for single run of a single ligand in a single receptor.
  • Binding score/ binding energy: The predicited binding energy from AutoDock.
  • Bookmark: The set of ligands or ligand poses from a virtual screening passing a given set of filters. Stored within a virtual screening database as a view.
  • Ringtail:

Drat, I'm not a cat! Even though this eye-catching omnivore sports a few vaguely feline characteristics such as pointy ears, a sleek body, and a fluffy tail, the ringtail is really a member of the raccoon family. https://animals.sandiegozoo.org/animals/ringtail

Getting Started

Ringtail offers a wealth of database creation and filtering options. They are detailed at length below. This section will provide a quick overview of the basic usage of Ringtail from the command line. We will you the provided test data to create a database with default storage options and perform basic filtering of it.

Let us begin in the Ringtail directory. First, we must navigate to the test data directory:

$ cd test/test_data/

Now, let us create a database containing the results from only group 1:

$ rt_process_vs.py write --file_path group1

By default, the database we have created is called output.db. Let us now make a second database named all_groups.db containing all three groups:

$ rt_process_vs.py write --file_path . --recursive --output_db all_groups.db

The --recursive option tells Ringtail to scan the directories specified with --file_path for subdirectories containing output files (in this case, DLGs). This allowed all three group directories to be added to the database with a single --file_path option.

Now that we have created the databases, we can filter them to pull out compounds of interest. Let us start with a basic binding energy cutoff of -6 kcal/mol:

$ rt_process_vs.py read --input_db all_groups.db --eworst -6

This produces an output log output_log.txt with the names of ligands passing the filter, as well as their binding energies. Let's now do another round of filtering, this time with an energy percentile filter of 5 percent (top 5% of coumpounds by binding energy). Each round of filtering is also stored in the database as a SQLite view, which we refer to as a "bookmark". We will also save this round of filtering with the bookmark name "ep5".

$ rt_process_vs.py read --input_db all_groups.db --energy_percentile 5 --log ep5_log.txt --bookmark_name ep5

Now, let us further refine the set of molecules we just filtered. We will use an interaction filter for van der Waals interactions with V279 on the receptor:

$ rt_process_vs.py read --input_db all_groups.db --filter_bookmark ep5 --van_der_waals A:VAL:279: --log ep5_vdwV279_log.txt --bookmark_name ep5_vdwV279

We are now ready to export these molecules for visual inspection in your favorite molecular graphics program. We will create a new directory ep5_vdwV279_sdfs and store the exported molecule files there.

$ mkdir ep5_vdwV279_sdfs
$ rt_process_vs.py read --input_db all_groups.db --bookmark_name ep5_vdwV279 --export_sdf_path ep5_vdwV279_sdfs

Now we have our filtered molecules as SDF files ready for visual inspection!

Extended documentation

Scripts

The Ringtail package includes two command line oriented scripts: rt_process_vs.py and rt_compare.py. Both may be run with options specified in the command line and/or using options specified in a JSON-formatted file given with --config. Command line options override any conflicting options in the config file.

rt_process_vs.py serves as the primary script for the package and is used to both write docking files to a SQLite database and to perform filtering and export tasks on the database. It is designed to handle docking output files associated with a single virtual screening in a single database.

rt_compare.py is used to combine information across multiple virtual screenings (in separate databases) to allow or exclude the selection of ligands passing filters across multiple targets/models. This can be useful for filtering out promiscuous ligands, a technique commonly used in exerimental high-throughput screening. It may also be used if selection of ligands binding multiple protein structures/conformations/homologs are desired.

rt_process_vs.py Documentation

Usage examples

Access help message for rt_process_vs.py

rt_process_vs.py --help

Access help message for rt_process_vs.py write mode

rt_process_vs.py write --help

Access help message for rt_process_vs.py read mode

rt_process_vs.py read --help

Create database named example.db from all input options

rt_process_vs.py write --file lig1.dlg lig2.dlg --file_path path1/ path2 --file_list filelist1.txt filelist2.txt --output_db example.db

Example file list

lig3.dlg
lig4.dlg.gz
rec1.pdbqt

Write and filter using a config file

rt_process_vs.py -c config_w.json write
rt_process_vs.py -c config_r.json read

config_w.json:

{
"file_path": "path1/",
"output_db": "example.db"
}

config_r.json:

{
"energy_percentile": "0.1"
}

Export results from a previous filtering as a CSV

rt_process_vs.py write --file_path Files/
rt_process_vs.py read --input_db output.db --energy_percentile 0.1 --bookmark_name filter1
rt_process_vs.py read --input_db output.db --export_bookmark_csv filter1

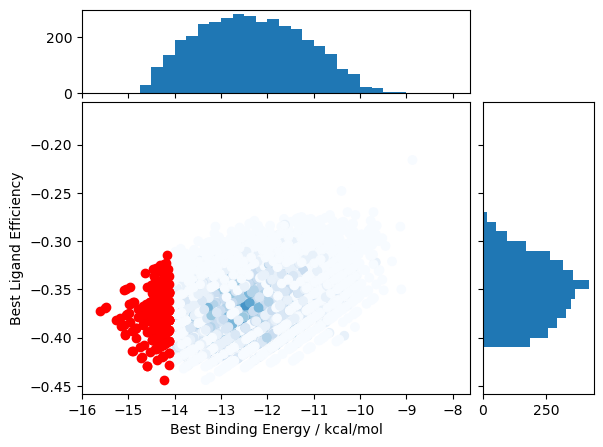

Create scatterplot highlighting ligands passing filters

rt_process_vs.py write --file_path Files/
rt_process_vs.py read --input_db output.db --energy_percentile 0.1 --bookmark_name filter1
rt_process_vs.py read --input_db output.db --bookmark_name filter1 --plot


all_ligands_scatter

Usage Details

The script for writing a database and filtering is rt_process_vs.py. This is intended to be used for a set of DLGs/Vina PDBQTs pertaining to a single target and binding site. This may include multiple ligand libraries as long as the target and binding site is the same. Be cautious when adding results from multiple screening runs, since some target information is checked and some is not. One receptor PDBQT may also be saved to the database.

The rt_process_vs.py script has two modes: write and read. The desired mode must be specified in the command line before any other options are given (except -c [CONFIG] which is given first). The write mode is used to create a database for a virtual screening from ADGPU DLGs or Vina PDBQTs. After this initial run, a database is created and may be read directly by rt_process_vs.py in read mode for subsequent filtering and export operations.

Write Mode

Upon calling rt_process_vs.py in write mode for the first time, the user must specify where the program can find files to write to the newly-created database. This is done using the --file, --file_path, and/or --file_list options. Any combination of these options can be used, and multiple arguments for each are accepted. Compressed .gz files are also accepted.

When searching for result files in the directory specified with --file_path, rt_process_vs.py will search for files with the pattern *.dlg* by default. This may be changed with the --pattern option. Note also that, by default, Ringtail will only search the directory provided in --file_path and not subdirectories. Subdirectory searching is enabled with the --recursive flag. If you are trying to read Vina PDBQTs, specify this with --mode vina. This will automatically change the file search pattern to *.pdbqt*. If the receptor PDBQT file is present in a directory being searched, it must be specified with --receptor_file.

To add new files to an existing database, the --append_results flag can be used in conjuction with --input_db and --file, --file_path, and/or --file_list options. If one is concerned about adding duplicate results, the --duplicate_handling option can be used to specify how duplicate entries should be handled. However, this option makes database writing significantly slower.

To overwrite an existing database, use the --overwrite flag.

One receptor PDBQT, corresponding to that in the DLGs, may be saved to the database using the --save_receptor flag. This will store the receptor file itself in a binary format in the database. The user must specify the path to the receptor file with the --receptor_file option. Ringtail will also throw an exception if this flag is given but no receptor is found, if the name of the receptor in any DLG does not match the receptor file, or if this flag is used with a database that already has a receptor. --save_receptor can be used to add a receptor to an existing database given with --input_db. --save_receptor may not be used with the --append_results option.

By default, the newly-created database will be named output.db. This name may be changed with the --output_db option.

By default (for DLGs), Ringtail will store the best-scored (lowest energy) binding pose from the first 3 pose clusters in the DLG. For Vina, Ringtail will store the 3 best poses. The number of clusters/poses stored may be changed with the --max_poses option. The --store_all_poses flag may also be used to override --max_poses and store every pose from every file.

ADGPU is capable of performing interaction analysis at runtime, with these results being stored in the database if present. If interaction analysis is not present in the input file (including Vina PDBQTs), it may be added by Ringtail with the --add_interactions option. This adds a signifcant increase to the total database write time. Distance cutoffs for the interactions are specified with the --interaction_cutoffs option. Adding interactions requires that the receptor PDBQT be provided as an input by the user with the --receptor_file option.

The --interaction_tolerance option also allows the user to give more leeway for poses to pass given interaction filters. With this option, the interactions from poses within c angstrom RMSD of a cluster's top pose will be appended to the interactions for that top pose. The theory behind this is that this gives some sense of the "fuzziness" of a given binding pose, allowing the user to filter for interactions that may not be present for the top pose specifically, but could be easily accessible to it. When used as a flag, the interaction_tolerance default is 0.8 angstroms. The user may also specify their own cutoff. This option is intended for use with DLGs from AD-GPU, which clusters output poses based on RMSD.

Read mode

In read mode, an existing database is used to filter or export results.

When filtering, a text log file will be created containing the results passing the given filter(s). The default log name is output_log.txt and by default will include the ligand name and binding energy of every pose passing filtering criteria. The log name may be changed with the --log option and the information written to the log can be specified with --outfields. The full list of available output fields may be seen by using the --help option with read mode (see example above). By default, only the information for the top-scoring binding pose will be written to the log. If desired, each individual passing pose can be written by using the --output_all_poses flag. The passing results may also be ordered in the log file using the --order_results option.

No filtering is performed if no filters are given. If both --eworst and --energy_percentile are used together, the --eworst cutoff alone is used. The same is true of --leworst and --le_percentile.

When filtering, the passing results are saved as a view in the database. This view is named passing_results by default. The user can specify a name for the view using the --bookmark_name option. Data for poses in a view may be accessed later using the --new_data_from_bookmark option. When max_miss > 0 is used, a view is created for each combination of interaction filters and is named <bookmark_name>_<n> where n is the index of the filter combination in the log file (indexing from 0).

Filtering may take from seconds to minutes, depending on the size of the database, roughly scaling as O(n) for n database Results rows (i.e. stored poses). One may also filter over a previous bookmark specified with the --filter_bookmark option. If using this option, the bookmarks specified by --filter_bookmark and --bookmark_name must be different. In our experience, it is faster to export the bookmark of interest as its own database with the --export_bookmark_db flag and perform additional sub-selection and export tasks from there.

Other available outputs

The primary outputs from rt_process_vs.py are the database itself (write mode) and the filtering log file (read mode). There are several other output options as well, intended to allow the user to further explore the data from a virtual screening.

The --plot flag generates a scatterplot of ligand efficiency vs binding energy for the top-scoring pose from each ligand. Ligands passing the given filters or in the bookmark given with --bookmark_name will be highlighted in red. The plot also includes histograms of the ligand efficiencies and binding energies. The plot is saved as [filters_file].png if a --filters_file is used, otherwise it is saved as out.png.

Using the --export_sdf_path option allows the user to specify a directory to save SDF files for ligands passing the given filters or in the bookmark given with --bookmark_name. The SDF will contain poses passing the filter/in the bookmark ordered by increasing binding energy. Each ligand is written to its own SDF. This option enables the visualization of docking results, and includes any flexible/covalent ligands from the docking. The binding energies, ligand efficiencies, and interactions are also written as properties within the SDF file, with the order corresponding to the order of the pose order.

If the user wishes to explore the data in CSV format, Ringtail provides two options for exporting CSVs. The first is --export_bookmark_csv, which takes a string for the name of a table or result bookmark in the database and returns the CSV of the data in that table. The file will be saved as <table_name>.csv. The second option is --export_query_csv. This takes a string of a properly-formatted SQL query to run on the database, returning the results of that query as query.csv. This option allows the user full, unobstructed access to all data in the database.

As noted above, a bookmark may also be exported as a separate SQLite dabase with the --export_bookmark_db flag.

Interaction filter formatting and options

Interaction filtering requires interactions to be present in database.

The --vdw, --hb, and --react_res interaction filters must be specified in the order CHAIN:RES:NUM:ATOM_NAME. Any combination of that information may be used, as long as 3 colons are present and the information ordering between the colons is correct. All desired interactions of a given type (e.g. --vdw) may be specified with a single option tag (--vdw=B:THR:276:,B:HIS:226:) or separate tags (--vdw=B:THR:276: --vdw=B:HIS:226:).

The --max_miss option allows the user to separately filter each combination of the given interaction filters excluding up to max_miss interactions. This gives equation combinations for n interaction filters and m max_miss. Results for each combination of interaction filters will be written separately in the log file. This option cannot be used with --plot or --export_poses_path.

Exploring the database in the Command Line

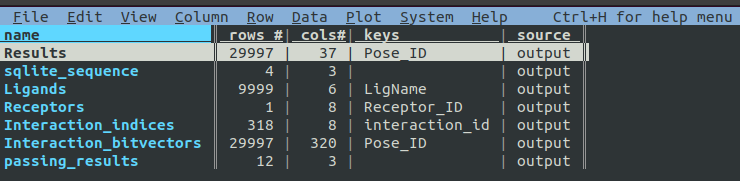

View the data contained within the database using a terminal, we recommend using the VisiData tool. In addition to command line visualization, this tool has a number of other feature, including ploting. Upon opening the database with vd, the terminal should look like this:

Screenshot from 2022-05-18 14-57-22

In this example (made with DLGs), the database contains ~3 poses for 9999 discrete ligands. Each of the rows here is a separate table or view within the database. From this screen, you can easily perform the sanity checks outline below. One should note that the number of column displayed on the first screen is 1 greater than the actual number of columns in a table (the number is correct for views). To more fully explore a given table, one may use the arrow keys or mouse to navigate to it, then press Enter/Return to access that table/view. The user may then scroll horizontally with the arrow keys, or press q to return up a level.

Using vd is particularly helpful to examine possible interactions of interest, stored within the Interaction_indices table.

To exit, return to the screen shown in the image above by pressing q, then press q to exit.

Data integrity sanity checks

There are a few quick checks the user can make to ensure that the data has been properly written from the input files to the database. Discrepancies may indicate an error occurred while writing the database or the input file format did not match that which Ringtail expected.

  • The number of rows in the Ligands table should match the number of input ligand files
  • The number of rows in the Results and Interaction_bitvectors tables should match
  • Number of columns in the Interactions_bitvectors table should match the number of rows in the Interaction_indices table + 1 (+2 if using vd)
  • The number of rows in the Results table should be ~max_poses* number of files and should be less than or equal to that number. For DLGs not every ligand may have up to max_poses, which is why the number of rows is typically smaller than max_poses* number of DLGs.
  • No ligand should have more than max_poses rows in the Results table.
  • If storing all poses, the number of rows in the Results table should match the number of ligands * number of output poses.

Potential pitfalls

Any PDBQT files specified through any of the input options in ADGPU mode will be read by rt_process_vs.py as receptor files, even if the files actually represent ligands. Therefore, ligand PDBQT files should not be present in any directories given with --file_path.

When writing from Vina PDBQTs, ensure there are no other PDBQTs (input or receptor) in directories specified with --file_path UNLESS the receptor PDBQT is specified with the --receptor_file option.

Occassionally, errors may occur during database reading/writing that corrupt the database. This may result in the database becoming locked. If this occurs it is recommended to delete the existing database and re-write it from scratch.

rt_process_vs.py supported arguments

Argument Description Default value Requires interactions
--config -c Configuration JSON file to specify new default options. Overridded by command line no default
--input_db -i Database file to use instead of creating new database no default
--bookmark_name -s Name for bookmark view in database passing_results
--mode -m specify AutoDock program used to generate results. Available options are "dlg" and "vina". Vina mode will automatically change --pattern to *.pdbqt dlg
--verbose -v Flag indicating that passing results should be printed to STDOUT. Will also include information about runtime progress. FALSE
--debug -d Flag indicating that additional debugging information (e.g. error traceback) should be printed to STDOUT. FALSE
Write Mode
--file -f DLG/Vina PDBQT file(s) to be read into database no default
--file_path -fp Path(s) to files to read into database no default
--file_list -fl File(s) with list of files to read into database no default
--pattern -p Specify pattern to search for when finding files *.dlg* / *.pdbqt* (vina mode)
--recursive -r Flag to perform recursive subdirectory search on --file_path directory(s) FALSE
--append_results -a Add new docking files to existing database given with --input_db FALSE
--duplicate_handling -dh Specify how dulicate results should be handled. May specify "ignore" or "replace". Unique results determined from ligand and target names and ligand pose. NB: use of duplicate handling causes increase in database writing time None
--save_receptor -sr Flag to specify that receptor file should be imported to database. Receptor file must also be specified with --receptor_file FALSE
--output_db -o Name for output database output.db
--overwrite -ov Flag to overwrite existing database FALSE
--max_poses -mp Number of clusters for which to store top-scoring pose (dlg) or number of poses (vina) to save in database 3
--store_all_poses -sa Flag to indicate that all poses should be stored in database FALSE
--interaction_tolerance -it Adds the interactions for poses within some tolerance RMSD range of the top pose in a cluster to that top pose. Can use as flag with default tolerance of 0.8, or give other value as desired FALSE -> 0.8 (Å) Yes
--add_interactions -ai Find interactions between ligands and receptor. Requires receptor PDBQT to be written. FALSE
--interaction_cutoffs -ic Specify distance cutoffs for measuring interactions between ligand and receptor in angstroms. Give as string, separating cutoffs for hydrogen bonds and VDW with comma (in that order). E.g. '-ic 3.7,4.0' will set the cutoff for hydrogen bonds to 3.7 angstroms and for VDW to 4.0. 3.7,4.0
--receptor_file -rn Use with --save_receptor and/or --add_interactions. Give receptor PDBQT. None
--max_proc -mpr Maximum number of subprocesses to spawn during database writing. [# available CPUs]
Read Mode
--log -l Name for log of filtered results output_log.txt
--outfields -of Data fields to be written in output (log file and STDOUT). Ligand name always included. e
--order_results -ord String for field by which the passing results should be ordered in log file. no default
--output_all_poses -ap Flag that if mutiple poses for same ligand pass filters, log all poses (OFF)
--export_bookmark_csv -xs Name of database result bookmark or table to be exported as CSV. Output as <table_name>.csv no default
--export_query_csv -xq Create csv of the requested SQL query. Output as query.csv. MUST BE PRE-FORMATTED IN SQL SYNTAX e.g. SELECT [columns] FROM [table] WHERE [conditions] no default
--export_sdf_path -sdf Path for saving exported SDF files of ligand poses passing given filtering criteria no default
--export_bookmark_db -xdb Export a database containing only the results found in the bookmark specified by --bookmark_name. Will save as <input_db>_<bookmark_name>.db FALSE
--data_from_bookmark -nd Flag that out_fields data should be written to log for results in given --bookmark_name. Requires no filters. FALSE
--filter_bookmark -fb Filter over specified bookmark, not whole Results table. FALSE
--plot -p Flag to create scatterplot of ligand efficiency vs binding energy for best pose of each ligand. Saves as [filters_file].png or out.png. FALSE
PROPERTY FILTERS
--eworst -e Worst energy value accepted (kcal/mol) no_default
--ebest -eb Best energy value accepted (kcal/mol) no default
--leworst -le Worst ligand efficiency value accepted no default
--lebest -leb Best ligand efficiency value accepted no default
--energy_percentile -pe Worst energy percentile accepted. Give as percentage (1 for top 1%, 0.1 for top 0.1%) 1.0
--le_percentile -ple Worst ligand efficiency percentile accepted. Give as percentage (1 for top 1%, 0.1 for top 0.1%) no default
LIGAND FILTERS
--name -n Search for specific ligand name. Multiple names joined by "OR". Multiple filters should be separated by commas no default
INTERACTION FILTERS
--van_der_waals -vdw Filter for van der Waals interaction with given receptor information. no default Yes
--hydrogen_bond -hb Filter with hydrogen bonding interaction with given information. Does not distinguish between donating or accepting no default Yes
--reactive_res -r Filter for reation with residue containing specified information no default Yes
--hb_count -hc Filter for poses with at least this many hydrogen bonds. Does not distinguish between donating and accepting no default Yes
--react_any -ra Filter for poses with reaction with any residue FALSE Yes
--max_miss -mm Will separately filter each combination of given interaction filters excluding up to max_miss interactions. Results in equation combinations for n interaction filters and m max_miss. Results for each combination written separately in log file. Cannot be used with --plot or --export_sdf_path. 0 Yes

rt_compare.py Documentation

The rt_compare.py script is designed to be used with databases already made and filtered with the rt_process_vs.py script. The script is used to select ligands which are shared between the given filter bookmark(s) of some virtual screenings (wanted) or exclusive to some screenings and not others (unwanted). The basic process of preparing to use this script and the concept behind it is thus:

Let us assume that kinase1 is our target of interest. It has related proteins kinase1a and kinase1b. protein2 is an unrelated protein.

  1. Create a database for each virtual screening on each target (kinase1.db, kinase1a.db, kinase1b.db, protein2.db)
  2. Filter each database separately to get a set of virtual hits for each target. Each set of filters may be different as desired (e.g. change interaction filters for analogous residues). The bookmark within each database may be given as a single string (same bookmark name in every database) or multiple bookmark names (one per database) with the --bookmark_name option. If specifying multiple names, the order should match the order that the databases were provided in, beginning with wanted, then unwanted databases. The default name is passing_results.
  3. Use rt_compare.py to find ligands that pass the filters for kinase1 but not kinase1a or kinase1b. This will create a log file of the same format as that output from rt_process_vs.py.
rt_compare.py --wanted kinase1.db --unwanted kinase1a.db kinase1b.db
  1. Other usage examples and output options given below. For example, one can also select for potential dual-target ligands with
rt_compare.py --wanted kinase1.db protein2.db --unwanted kinase1a.db kinase1b.db

Usage examples

Access help message for rt_compare.py

rt_compare.py --help

Select ligands found in "passing_results" bookmarks of vs1 but not vs2 or vs3

rt_compare.py --wanted vs1.db --unwanted vs2.db vs3.db

Select ligands found in "passing_results" bookmarks of vs1 and vs2 but not vs3 or vs4

rt_compare.py --wanted vs1.db vs2.db --unwanted vs3.db vs4.db

Select ligands found in "passing_results" bookmarks of every vs except vs4

rt_compare.py --wanted vs1.db vs2.db vs3.db --unwanted vs4.db

Select ligands found in "filter1" bookmarks of vs1 but not vs2

rt_compare.py --wanted vs1.db --unwanted vs2.db --bookmark_name filter1

Save bookmark of ligands found in "filter1" bookmarks of vs1 and vs2 but not vs3 or vs4 as "selective_bookmark" in vs1.db

rt_compare.py --wanted vs1.db vs2.db --unwanted vs3.db vs4.db --save_bookmark selective_bookmark

Export bookmark set of ligands found in "filter1" bookmarks of vs1 and vs2 but not vs3 or vs4 as CSV

rt_compare.py --wanted vs1.db vs2.db --unwanted vs3.db vs4.db --export_csv

rt_compare.py supported arguments

Argument Description Default value
--config -c Configuration JSON file to specify new default options. Overridded by command line no default
--wanted -w Database files for which to include the intersection of ligands in bookmark_name(s) for all databases specified with this option. no default
--unwanted -n Database files for which to exclude any ligands found in bookmark_name of any of the databases specified with this option. no default
--bookmark_name -sn Name of bookmark to select ligands within. Must be present in all databases given. passing_results
--log -l Name for log file selective_log.txt
--save_bookmark -s Save the final selective bookmark as a view with given name in the first database specified with --wanted. no default
--export_csv -x Save final selective bookmark as csv. Saved as [save_bookmark].csv or 'crossref.csv' if --save_bookmark not used. FALSE

Brief python tutorials

Make sqlite database from current directory

from ringtail import RingtailCore

opts = RingtailCore.get_defaults()
opts["storage_opts"]["values"]["storage_type"] = "sqlite"
opts["rman_opts"]["values"]["file_sources"]["file_path"]["path"] = [["."]]
opts["rman_opts"]["values"]["file_sources"]["file_path"]["recursive"] = True

with RingtailCore(**opts) as rt_core:
    rt_core.add_results()

Convert database tables to pandas dataframes

from ringtail import DBManagerSQLite

# make database manager with connection to SQLite file vs.db
with StorageManagerSQLite("vs.db") as dbman:

    # fetch entire Results table as pandas dataframe
    results_df = dbman.to_dataframe("Results")

    # fetch entire Ligands table as pandas dataframe
    ligands_df = dbman.to_dataframe("Ligands")

    # fetch entire Receptors table as pandas dataframe
    rec_df = dbman.to_dataframe("Receptors")

    # fetch entire Interaction Indices table as pandas dataframe
    interaction_idx_df = dbman.to_dataframe("Interaction_indices")

    # fetch entire Interaction bitvectors table as pandas dataframe
    interaction_bv_df = dbman.to_dataframe("Interaction_bitvectors")

Project details


Download files

Download the file for your platform. If you're not sure which to choose, learn more about installing packages.

Source Distribution

ringtail-1.0.0.tar.gz (99.0 kB view hashes)

Uploaded Source

Built Distribution

ringtail-1.0.0-py3-none-any.whl (106.0 kB view hashes)

Uploaded Python 3

Supported by

AWS AWS Cloud computing and Security Sponsor Datadog Datadog Monitoring Fastly Fastly CDN Google Google Download Analytics Microsoft Microsoft PSF Sponsor Pingdom Pingdom Monitoring Sentry Sentry Error logging StatusPage StatusPage Status page
