rockchip-stats 0.1.10

Interactive system-monitor and process viewer for Rockchip SoC devices [RK3588, RK3588S, RK3568, RK3566, RK3399]

rockchip-stats

System monitor and control tool for Rockchip SoC devices

---

rockchip-stats is a monitoring and control package for Rockchip SoC boards. It can be used as a standalone terminal UI (rtop) or imported as a Python library.

Features:

• Real-time monitoring of CPU, GPU, NPU, RGA, MPP, Memory, Temperature, Fan
• Fan speed and CPU governor control
• Board and SoC auto-detection
• Importable Python library
• Docker-compatible via Unix socket
• Graceful degradation — works even when some hardware is absent

---

Supported Hardware

SoC	CPU	GPU	NPU
RK3588 / RK3588S / RK3588M	4× A76 + 4× A55	Mali-G610	6 TOPS (3 cores)
RK3582	2× A76 + 4× A55	Mali-G610	—
RK3576	4× A72 + 4× A53	Mali-G52	6 TOPS
RK3568 / RK3568J	4× A55	Mali-G52	—
RK3566	4× A55	Mali-G52	—
RK3399 / RK3399Pro	2× A72 + 4× A53	Mali-T860	3 TOPS (Pro only)

---

Install

sudo apt update && sudo apt install python3-pip -y
sudo pip3 install -U rockchip-stats          # standard
sudo pip3 install --break-system-packages -U rockchip-stats  # Ubuntu 24.04+

From source:

git clone https://github.com/batuhanberkayaydin/rockchip_stats.git
cd rockchip_stats
sudo pip3 install .

After install, reboot once so your user is added to the rtop group.

---

Usage

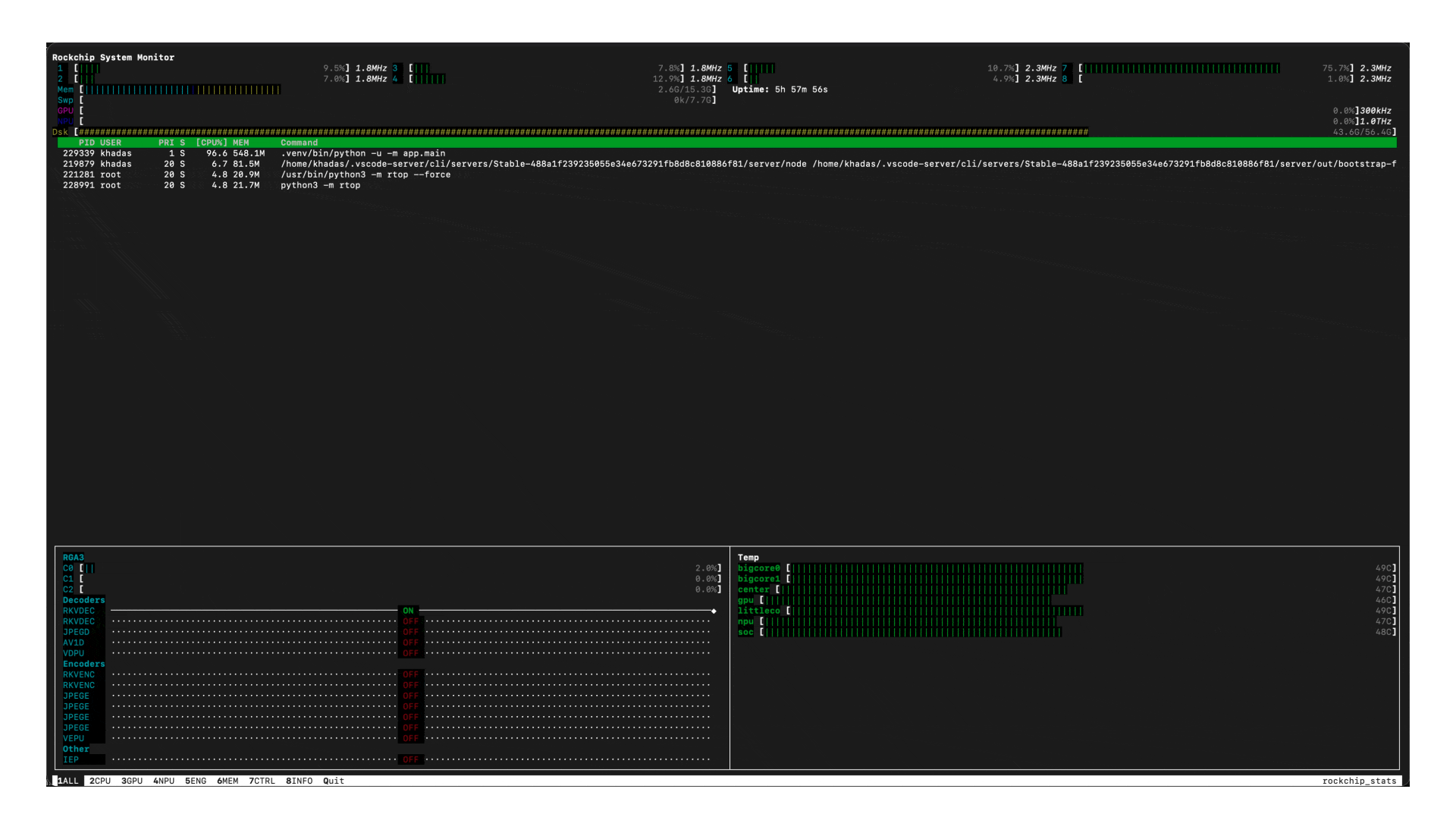

rtop

Key	Page	Description
1	ALL	Overview dashboard
2	CPU	Per-core load & frequency
3	GPU	Mali GPU load & frequency
4	NPU	NPU per-core utilization
5	ENG	RGA & MPP hardware engines
6	MEM	RAM, Swap, CMA
7	CTRL	Temperature, Fan, Power
8	INFO	Board & system information

---

Python Library

from rtop import rtop

with rtop() as r:
    while r.ok():
        cpu = r.cpu
        gpu = r.gpu
        print(f"CPU: {cpu.get('total', 0):.1f}%  GPU: {gpu.get('load', 0)}%")

Read all sensors once:

from rtop import rtop

with rtop() as r:
    if r.ok():
        for name, val in r.temperature.items():
            if isinstance(val, (int, float)):
                print(f"{name}: {val / 1000:.1f}°C")

        for i, core in enumerate(r.npu.get('cores', [])):
            print(f"NPU Core{i}: {core.get('load', 0)}%")

More examples in examples/.

---

Docker

Install rockchip-stats on the host, then pass the socket into your container:

docker run --rm -it \
  -v /run/rtop.sock:/run/rtop.sock \
  ghcr.io/batuhanberkayaydin/rockchip_stats:latest

---

Architecture

rockchip-stats runs as a background service (root) that reads sysfs/procfs/debugfs and exposes data over a Unix socket. The rtop client connects to the socket and renders the TUI.

┌──────────────────┐    /run/rtop.sock    ┌──────────────────┐
│  rtop (client)   │ ◄─────────────────► │  rtop (service)  │
│  curses TUI      │                      │  data collector  │
└──────────────────┘                      └────────┬─────────┘
                                                   │
                                          sysfs · procfs · debugfs

---

Development

Run directly from the repo without installing:

sudo python3 -m rtop                        # normal
sudo python3 -m rtop --debug 2>debug.log    # with debug output
sudo python3 -m rtop --no-service           # without socket
sudo python3 -m rtop --force                # start as service

To use repo changes immediately (editable install):

sudo pip3 install -e . --break-system-packages
sudo systemctl restart rtop

---

License

GNU Affero General Public License v3.0 — see LICENSE.

---

Acknowledgements

Inspired by jetson_stats by rbonghi.
Adapted and extended for Rockchip SoC platforms.
