rpi-backlight

Travis CI License PyPI Documentation Black Issues

A Python module for controlling power and brightness of the official Raspberry Pi 7" touch display.

Example

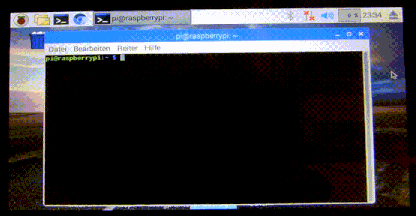

Note: This GIF was created using the old v1 API, so please don't use it as API reference 🙂

Features

  • Change the display brightness smoothly or abrupt
  • Set the display power on or off
  • Get the current brightness
  • Get the maximum brightness
  • Get the display power state (on/off)
  • Command line interface
  • Graphical user interface

Requirements

  • A Raspberry Pi including a correctly assembled 7" touch display v1.1 or higher (look on the display's circuit board to see its version) running a Linux-based OS
  • Python 3.5+
  • Optional: pygobject for the GUI, already installed on a recent Raspbian

Installation

Install from PyPI:

$ pip3 install rpi-backlight

Note: Create this udev rule to update permissions, otherwise you'll have to run Python code, the GUI and CLI as root when changing the power or brightness:

$ echo 'SUBSYSTEM=="backlight",RUN+="/bin/chmod 666 /sys/class/backlight/%k/brightness /sys/class/backlight/%k/bl_power"' | sudo tee -a /etc/udev/rules.d/backlight-permissions.rules

Emulator

For testing without a physical display (e.g. on your main Linux/macOS/Windows machine) you can use linusg/rpi-backlight-emulator.

Usage

API

Example in a Python shell:

>>> from rpi_backlight import Backlight
>>>
>>> backlight = Backlight()
>>> backlight.brightness
100
>>> backlight.brightness = 50
>>> backlight.brightness
50
>>>
>>> with backlight.fade(duration=1):
...     backlight.brightness = 0
...
>>> backlight.fade_duration = 0.5
>>> # subsequent `backlight.brightness = x` will fade 500ms
>>>
>>> backlight.power
True
>>> backlight.power = False
>>> backlight.power
False
>>>

CLI

Open a terminal and run rpi-backlight.

$ rpi-backlight -b 100
$ rpi-backlight --set-brightness 20 --duration 1.5
$ rpi-backlight --get-brightness
20
$ rpi-backlight --get-power
on
$ rpi-backlight --p off
$ rpi-backlight --get-power
off
$ rpi-backlight --set-power off :emulator:
$

For all available options see docs.

GUI

Open a terminal and run rpi-backlight-gui.

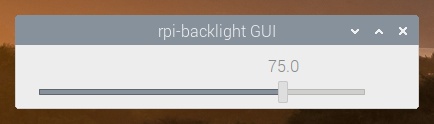

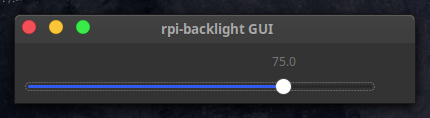

Graphical User Interface Graphical User Interface (2)

Adding a shortcut to the LXDE panel

Panel result

See docs.

Tests

Tests use pytest, install with pip3 install pytest.

Now, run from the repository root directory:

$ python3 -m pytest

Contributing

Please free to open an issue for bug reports and to discuss new features - pull requests for new features or bug fixes are welcome as well!

License

The source code and all other files in this repository are licensed under the MIT license, so you can easily use it in your own projects. See LICENSE for more information.
