rttgap

Spot visitors behind residential, corporate and relay proxies
from the gap between the TCP round trip and a WebSocket echo.

Live check · Research write-up · Install · Quick start · Limits

---

IP reputation can't see residential proxies: the exits are real home and mobile lines. What a proxy can't hide is the detour.

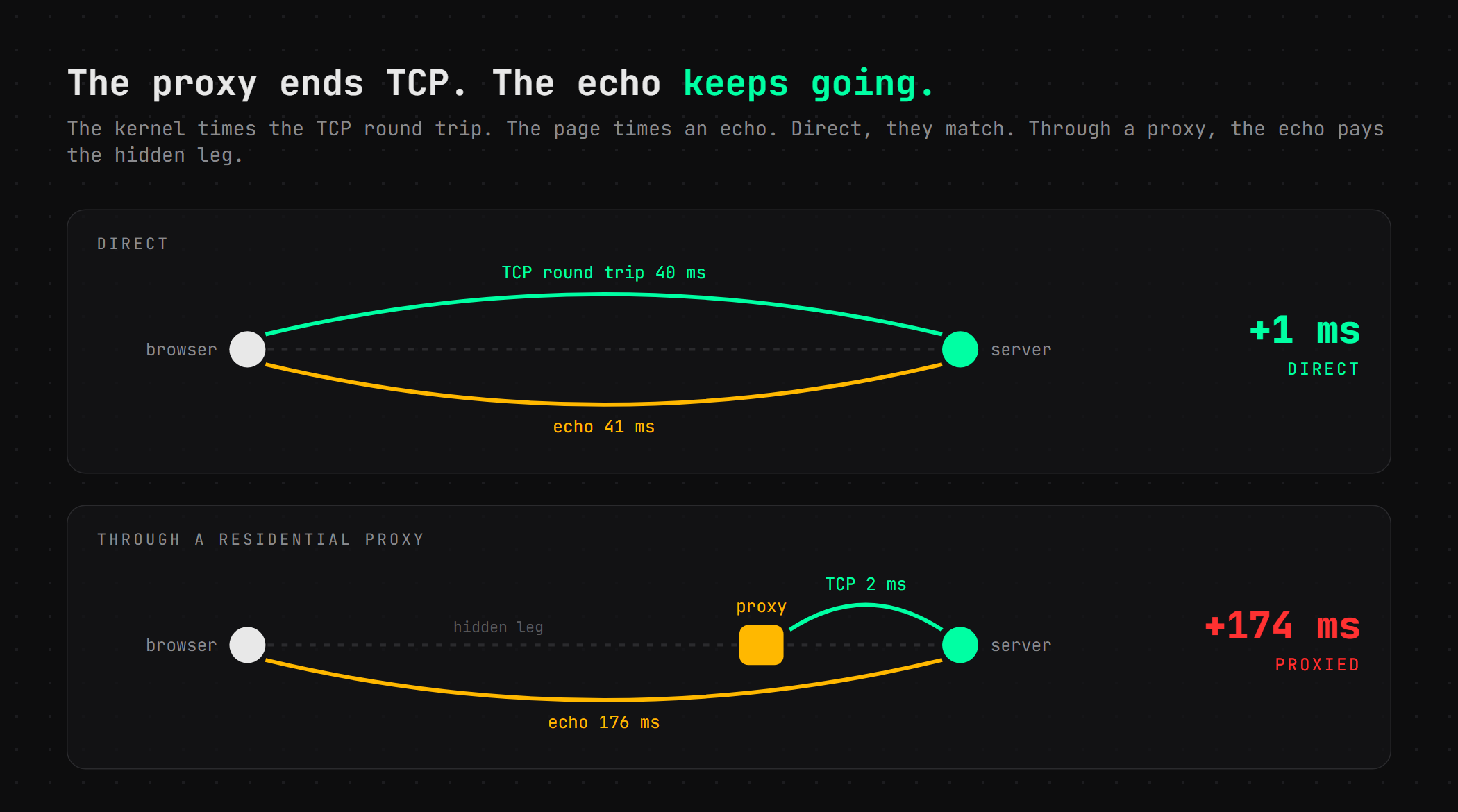

A proxy ends the visitor's TCP connection and opens its own. Your kernel times the round trip to the proxy. An echo sent to the page travels on to the real browser and back. The difference between the two is the part of the path the proxy hides.

Does it work?

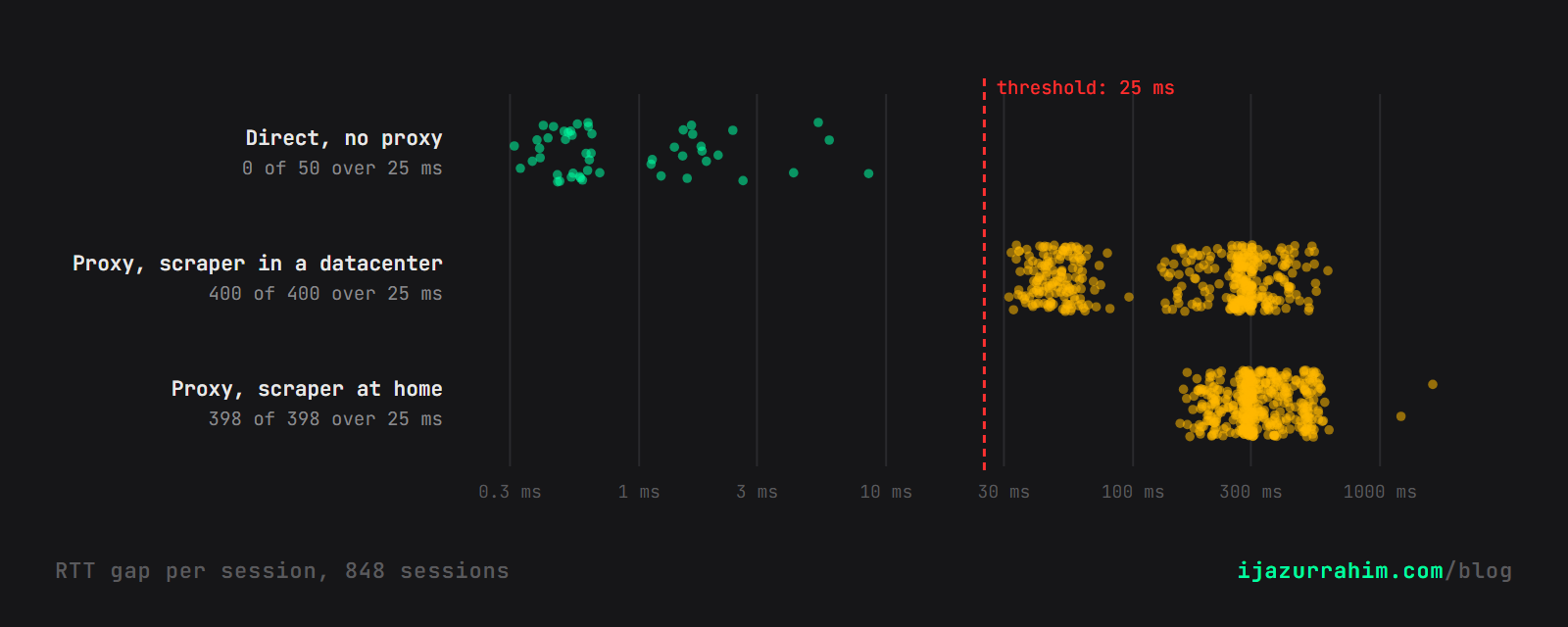

I sent 798 browser sessions through residential proxies in 8 countries, plus 50 direct visits, to a server I control.

Check	Proxied sessions flagged	Direct visits flagged
Free IP reputation	7 of 798	0 of 50
rttgap, gap over 25 ms	798 of 798	0 of 50

Direct visits landed between 0.3 and 8.5 ms. The closest proxy exit still left 31.5 ms. Full method and data.

Install

pip install "rttgap[aiohttp]"      # reads the kernel's RTT from the socket (Linux)
pip install "rttgap[starlette]"    # FastAPI / Starlette behind nginx
pip install rttgap                 # the verdict only, no dependencies

Python 3.9+. The kernel read (tcp_info) is Linux-only; everywhere else, pass the round trip in yourself.

Quick start

aiohttp

aiohttp exposes the socket, so rttgap reads the kernel's minimum RTT for the connection directly.

from aiohttp import web
import rttgap.aiohttp

async def on_result(request, result):
    if result.is_proxied:
        print("proxied:", request.remote, f"{result.gap_ms:.0f} ms")

app = web.Application()
app.router.add_get("/rttgap", rttgap.aiohttp.handler(on_result))
web.run_app(app)

On the page, load the client (serve rttgap.CLIENT_JS as a static file, or inline it) and start the measurement:

<script src="/static/rttgap.js"></script>
<script>rttgap.run('/rttgap');</script>

The browser only learns that the measurement finished. The verdict stays on your server unless you pass reveal=True.

FastAPI / Starlette

ASGI servers don't expose the socket, so let nginx pass its round trip in a header:

location /rttgap {
    proxy_pass http://127.0.0.1:8000;
    proxy_http_version 1.1;
    proxy_set_header Upgrade $http_upgrade;
    proxy_set_header Connection "upgrade";
    proxy_set_header X-TCP-RTT $tcpinfo_rtt;   # microseconds
}

from fastapi import FastAPI, WebSocket
import rttgap.asgi

app = FastAPI()

@app.websocket("/rttgap")
async def rtt_gap(websocket: WebSocket):
    result = await rttgap.asgi.measure(websocket)
    # result.verdict: "direct" | "unsure" | "proxied" | "unknown"

$tcpinfo_rtt is a smoothed RTT, sampled when the request arrives. It runs high on congested links, which shrinks the gap, so expect a few proxied sessions to read unsure. Only trust X-TCP-RTT from your own proxy.

Just the verdict

import rttgap

r = rttgap.evaluate(tcp_rtt_ms=2.1, echoes_ms=[176.0, 174.2, 180.9])
r.verdict   # "proxied"
r.gap_ms    # 172.1

How it decides

1. The server sends 15 short text messages over a WebSocket, one at a time, and times each echo.
2. It takes the TCP round trip from the kernel (tcpi_min_rtt), or from the value you pass.
3. It compares the fastest echo with the fastest TCP round trip. A smoothed RTT runs high on congested links, and one lucky sample against many echoes fakes a gap.

Gap	Verdict	Why
up to 12 ms	direct	the largest direct gap measured was 8.5 ms
12 to 25 ms	unsure	busy Wi-Fi or mobile network: measure again
over 25 ms	proxied	the smallest proxied gap measured was 31.5 ms
no data	unknown	result.reason says why

Change the limits with rttgap.Thresholds(proxied=..., unsure=...).

A page can delay an echo, but it can't answer one early, so the gap can't be faked away. Text echoes are used instead of WebSocket pings, because proxies and servers may answer pings themselves.

API

rttgap.evaluate(tcp_rtt_ms, echoes_ms, thresholds=DEFAULT)	verdict from numbers you already have
rttgap.aiohttp.handler(on_result=None, *, reveal=False, **options)	ready-made aiohttp WebSocket route
rttgap.aiohttp.measure(request, ws, **options)	run the echoes over your own WebSocketResponse
rttgap.asgi.measure(websocket, *, tcp_rtt_ms=None, header="x-tcp-rtt", ...)	Starlette / FastAPI
rttgap.read_tcp_info(sock)	TcpInfo(rtt_ms, rttvar_ms, min_rtt_ms) on Linux, else None
rttgap.CLIENT_JS	the browser client, as a string
Result	verdict, gap_ms, tcp_rtt_ms, min_echo_ms, echoes_ms, tcp_source, reason, is_proxied, as_dict()

Options: echoes=15, interval=0.12 s between probes, timeout=5.0 s per echo, thresholds, tcp_rtt_ms, allow_loopback=False.

Limits

• VPNs forward packets instead of ending TCP, so there's no gap to find. Pair rttgap with an IP reputation check.
• Anything in front of your server ends the TCP connection first. Behind nginx or a tunnel on the same machine, rttgap returns unknown rather than a wrong answer: pass tcp_rtt_ms from the proxy. Behind a CDN, measure at the edge instead. On Cloudflare Workers, request.cf.clientTcpRtt gives the TCP half, which is how the live check works.
• Mobile networks speed up and slow down from one second to the next, which can fake a small gap. Treat unsure, and gaps just over the threshold, as "measure again on a fresh connection". A real proxy's detour shows up every time.
• Blocked WebSockets. Some data-saver modes and corporate proxies cut them. No echoes means unknown.

Demo

pip install "rttgap[aiohttp]"
python -m rttgap --port 8080

Run it on a machine visitors reach directly, then open it with and without a proxy. Each visit's result prints as JSON.

Contributing

Bug reports, integrations for other frameworks, and data from other proxy networks are all welcome. See CONTRIBUTING.md. Security issues: SECURITY.md.

License

MIT © Ijaz Ur Rahim
