SAUL

SAUL is the SeismoAcoustic Utilities Library. It's my take on the collection of tools that I imagine exist, in some form, on every seismoacoustican's computer — utilities for gathering waveform data, plotting waveforms in the time and frequency domain, visualizing key metadata such as station locations, et cetera. The goal of SAUL is to make these fundamental data exploration tools as easy-to-use as possible. Thus, priority is placed upon straightforward (e.g., easily memorized) commands and time-saving helper functions — while attempting to leverage existing dependencies as much as possible to avoid duplicated effort.

🚧 Disclaimer 🚧
As a workhorse "everyday tools" repository, SAUL is currently (perpetually?) under rapid development. Expect to encounter breaking changes after a git pull update!

Installing

SAUL is primarily developed on macOS, but it ought to work on Linux — and Windows via Windows Subsystem for Linux (WSL).

This assumes that you've already installed uv, and that you've navigated to a target directory of your choosing:

uv venv --python 3.11
uv pip install saul

This creates a .venv/ folder in the target directory with SAUL and its dependencies installed.

If you'd rather install SAUL into an existing, e.g., mamba environment instead of using uv, activate that environment and use pip directly:

pip install saul

Using

SAUL works best in an interactive Python console, which is why IPython is included as a dependency. There are multiple options for launching IPython with SAUL available. You can run IPython directly:

<target_directory>/.venv/bin/ipython

Where <target_directory> is the path to the directory in which you installed SAUL. If you're already in that directory, you can also just run:

uv run ipython

Finally, you can activate the virtual environment and launch IPython directly, via (for example):

source <target_directory>/.venv/bin/activate.fish  # Other shells have different scripts
ipython

Here's a simple usage example which highlights SAUL's object-oriented interface:

from saul import PSD, Stream

st = Stream.from_earthscope('AK', 'HOM', 'BDF', (2023, 9, 1, 0, 5), (2023, 9, 1, 0, 15))
st.detrend().taper(0.05).remove_response()  # SAUL Stream objects behave like ObsPy's

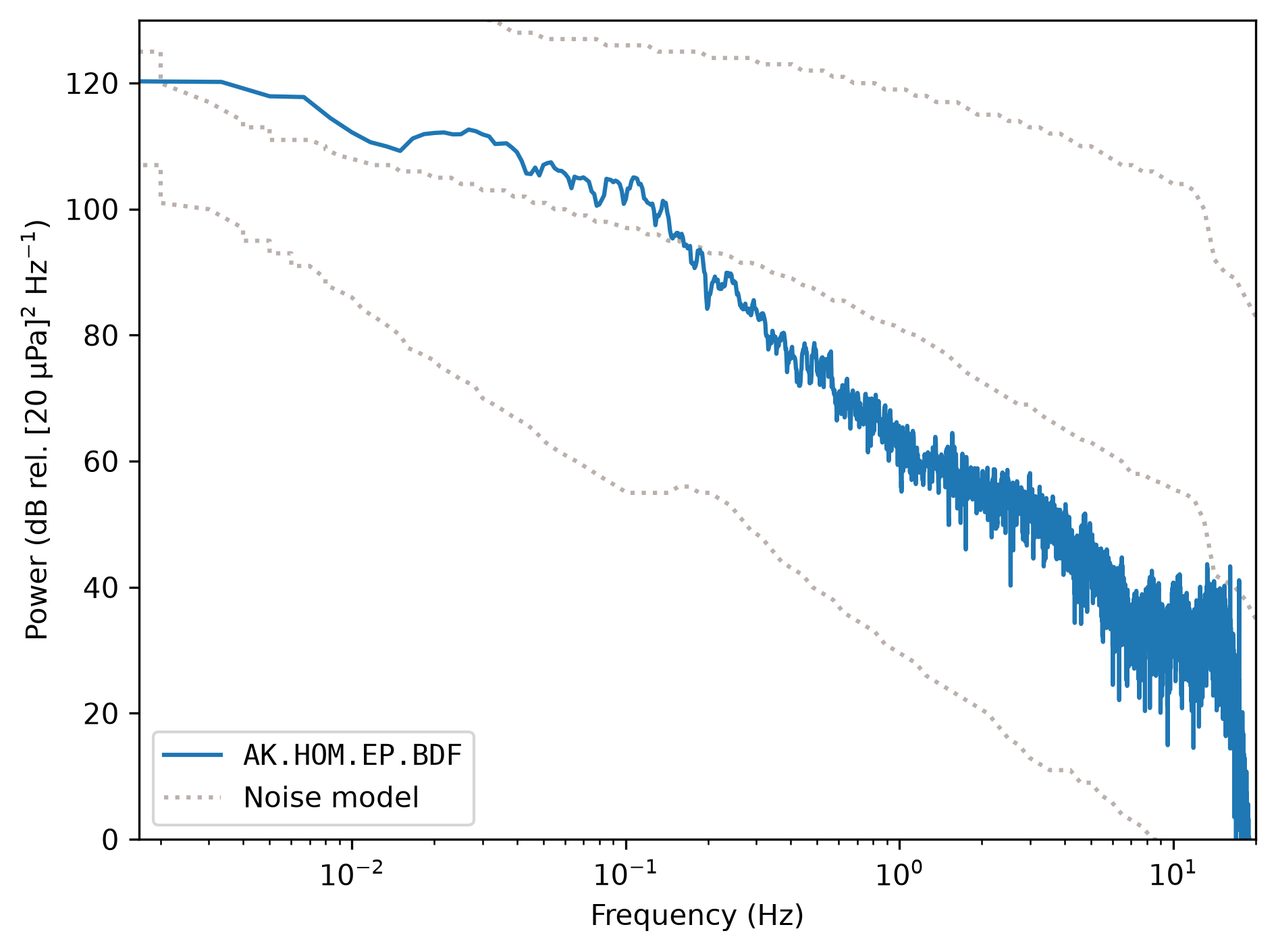

PSD(st, method='multitaper').plot(show_noise_models=True)

For detailed usage information, see the API documentation.

Developing

To develop SAUL, first clone this repository and navigate to the root directory. Then run:

uv sync --all-groups

This creates a .venv/ folder in the repository root with an editable SAUL and all of its dependencies — including those for development and documentation — installed. You can run IPython with SAUL in the same way as described above, but from anywhere:

uv run --project <repository_root> ipython

Where <repository_root> is the path to the root of the SAUL repository. You can view the various developer tasks available with uv run poe.
