scampy 0.0.1

Sub-halo Clustering and Abundance Matching in Python

A Python interface for Sub-halo Clustering and Abundance Matching

SCAMPy is a flexible library for “painting” an observed population of cosmological objects on top of the DM-halo/subhalo hierarchy obtained from DM-only simulations. The method combines the classical Halo Occupation Distribution (HOD) with sub-halo abundance matching (SHAM): a synergy dubbed Sub-halo Clustering and Abundance Matching (SCAM).

The procedure itself is quite easy since it only requires to apply the two methods in sequence:

1. by applying the HOD scheme, the host sub-haloes are selected;

2. the SHAM algorithm associates to each sub-halo an observable property of choice.

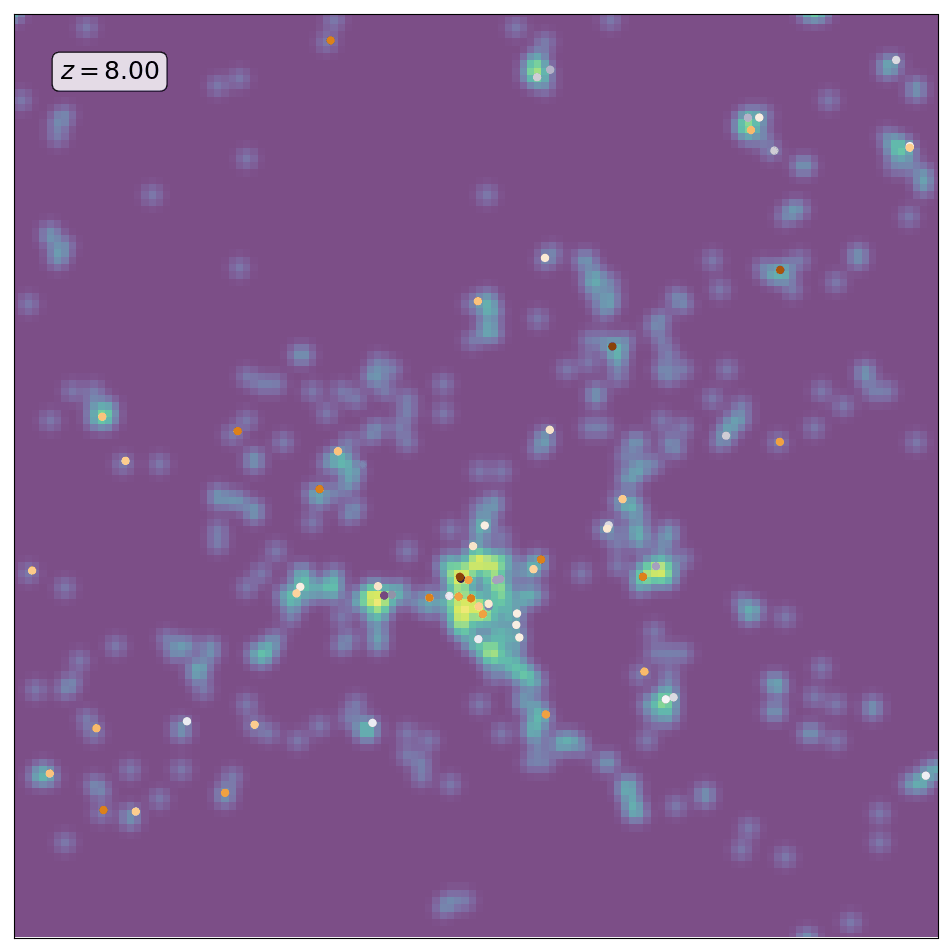

The animation is obtained running SCAMPy on the halo/subhalo catalogues of 42 different snapshots, from redshift \(z=8\) to redshift \(z=0\), of a \(64\,\mathrm{Mpc}/h\) DM-only N-body simulation. The simulation has been obtained with the GADGET-3 code, following the evolution of \(512^3\) DM particles. For each different redshift we have fixed the parameter values for the HOD and matched the UV-luminosity function of star-forming galaxies.

The background colour-code shows the underlying DM-density field computed by smoothing the contribution of DM-particles in a 10 Mpc/h thick slice of the simulation. The markers locate the positions of the mock galaxies generated with SCAMPy. Circles mark the position of central galaxies while crosses mark the position of satellite galaxies. The marker colour represents lower to higher luminosity going from brighter to darker.

Basic Usage

To populate a DM catalogue with mock galaxies assigned a UV magnitude you would do something like:

# read the GADGET SUBFIND tables
from scampy.io.subfind_table import subfind_table
tab = subfind_table( "/path/to/subhalo_tab_snap" )
tab.read_all_files()

# build halo and sub-halo catalogue objects
import numpy as np
from scampy.catalogue import haloCat, subhaloCat, catalogue

haloes = haloCat(
    len( tab.content['GroupMass'] ),
    Mhalo    = tab.content['GroupMass'],
    Rhalo    = tab.content['GroupRadiusM200'],
    X        = tab.content['GroupPos'][:, 0],
    Y        = tab.content['GroupPos'][:, 1],
    Z        = tab.content['GroupPos'][:, 2],
    firstSub = tab.content['GroupFirstSub'],
    numSubs  = tab.content['GroupNsubs'],
)
subhaloes = subhaloCat(
    len( tab.content['SubhaloMass'] ),
    Msubh  = tab.content['SubhaloMass'],
    Parent = tab.content['SubhaloGrNr'],
    X      = tab.content['SubhaloPos'][:, 0],
    Y      = tab.content['SubhaloPos'][:, 1],
    Z      = tab.content['SubhaloPos'][:, 2],
)
cat = catalogue( haloes, subhaloes, Lbox = 512. )  # Lbox in Mpc/h

# select host sub-haloes with an HOD
from scampy.hod import HOD, get_hosts
hod   = HOD( Mmin=1.e12, siglogM=0.5, M0=1.e12, M1=1.e13, alpha=1. )
hosts = get_hosts( cat, Pcen=hod.Pcen, Psat=hod.Psat )

# define a Schechter-like UV luminosity function
def schechter ( mag ) :
    alpha = -1.07
    norm  = 1.6e-2
    mstar = -19.7 + 5. * np.log10( 5. )
    lum   = -0.4 * ( mag - mstar )
    return 0.4 * np.log( 10 ) * norm * 10**( -0.07 * lum ) * np.exp( -10**lum )

# assign magnitudes via sub-halo abundance matching
from scampy.sham import match_distribution
magnitudes = match_distribution(
    cat.subhaloes['Msubh'][hosts], schechter,
    minF = -25, maxF = -10, factF = 1. / cat.volume,
)

The magnitudes array contains the UV magnitude assigned to each mock galaxy.

Installation

The recommended installation uses pip after cloning the repository:

git clone https://github.com/TommasoRonconi/scampy.git
cd scampy
pip install pybind11
python setup.py install

Alternatively, a conda environment file is provided:

conda env create -f scampy_environment.yml
conda activate scampy
python setup.py install

Requirements

Runtime:

• numpy

• scipy

• matplotlib

• h5py

Build-time:

• pybind11

Documentation (optional):

• sphinx>=5.0

• sphinx-rtd-theme

• myst-parser
