scope-bio 0.2.0

scOPE: single-cell Oncological Prediction Explorer — transfer-learning from bulk RNA-seq to predict per-cell mutation probabilities in scRNA-seq.

scOPE — single-cell Oncological Prediction Explorer

---

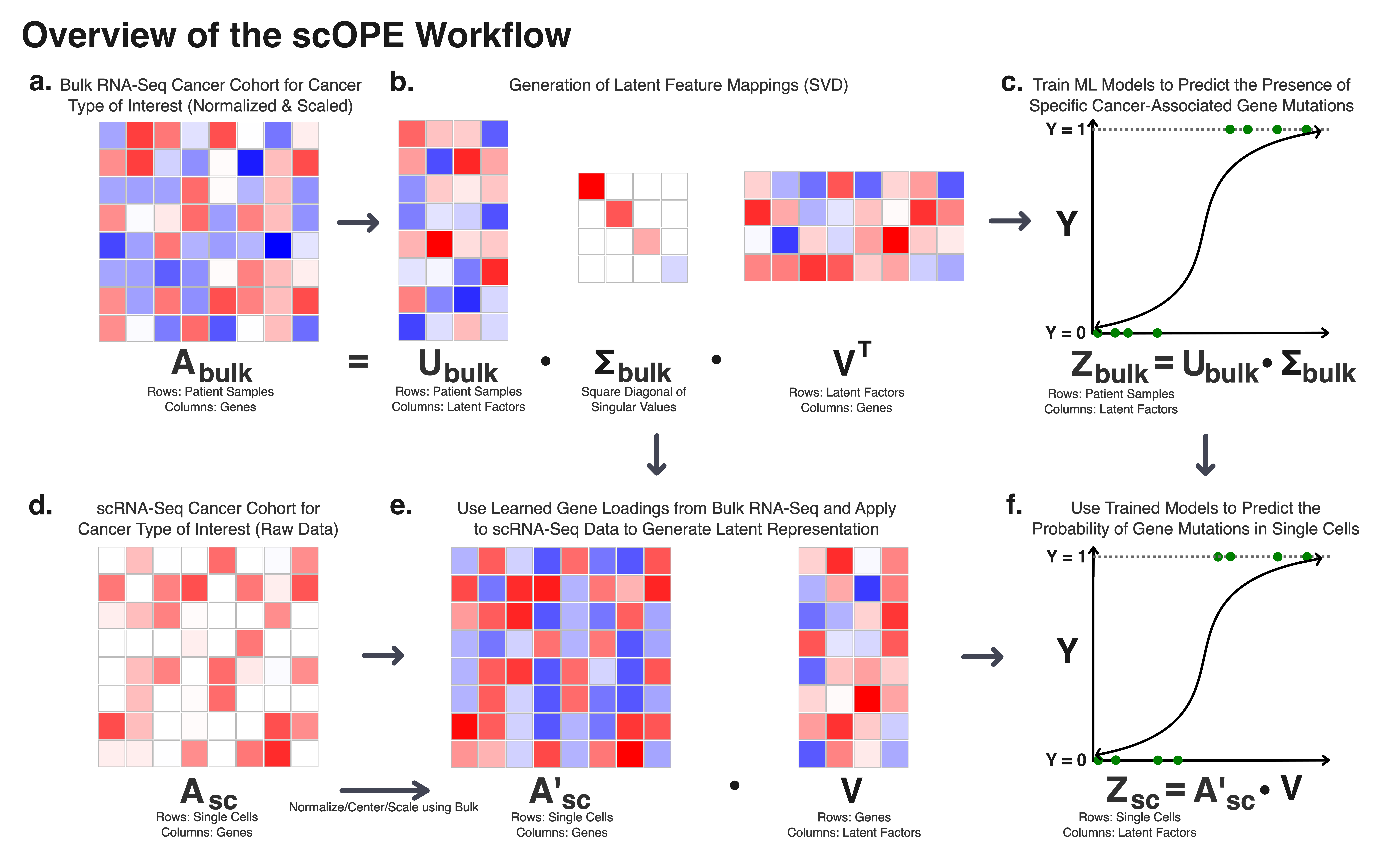

scOPE workflow (transfer learning from bulk → single-cell)

scOPE is a transfer-learning framework that uses bulk RNA-seq cohorts with known mutation status to learn a compact, biologically meaningful latent space, then projects single-cell RNA-seq into that same space to predict the probability that specific cancer-associated gene mutations are present in individual cells. This provides mutation-informed subclonal structure that can complement CNV methods and increase subclonal granularity.

Overview

scOPE proceeds in two phases:

1) Learn latent factors from bulk RNA-seq and train mutation classifiers (Panels a–c)

• i. Bulk expression matrix
  Construct a bulk cohort expression matrix A_bulk (rows = patient samples, columns = genes).
  The bulk matrix is normalized / centered / scaled to ensure comparable gene-wise signal.

• ii. Latent feature mapping via SVD
  Decompose the normalized bulk matrix using SVD:



  • U_bulk: sample scores (rows = patients, columns = latent factors)
  • Σ_bulk: diagonal matrix of singular values
  • V: gene loadings (rows = genes, columns = latent factors)

  Define the bulk latent representation (patient-by-factor embedding):



• iii. Train mutation-prediction models in latent space
  For each mutation / gene-of-interest, train a supervised ML model to predict mutation presence Y from Z_bulk.
  This yields one (or multiple) mutation-specific classifiers operating on the learned latent factors.

---

2) Project scRNA-seq into the bulk-derived latent space and predict mutations per cell (Panels d–f)

• i. Single-cell expression matrix
  Construct a single-cell expression matrix A_sc (rows = single cells, columns = genes).

• ii. Normalize scRNA-seq using bulk-derived parameters
  Apply the same gene-wise normalization / centering / scaling learned from the bulk cohort to obtain A′_sc.
  (This alignment step makes the projection comparable across bulk and single-cell.)

• iii. Project cells into latent space and infer mutation probabilities
  Use the bulk-derived gene loadings V to compute the single-cell latent representation:



  Then apply the trained bulk models to Z_sc to predict per-cell mutation probabilities, producing mutation-informed cellular maps that can be analyzed alongside expression programs, clusters, and CNV signals.

---

Installation

From PyPI

pip install scope-bio

With optional dependencies (UMAP, XGBoost, LightGBM, SHAP)

pip install scope-bio[full]

From conda-forge

conda install -c conda-forge scope-bio

Development install

git clone https://github.com/Ashford-A/scOPE.git
cd scOPE
conda env create -f environments/scope-dev.yml
conda activate scope-dev
pip install -e ".[dev]"

---

Quick start

import anndata as ad
import pandas as pd
from scope import BulkPipeline, SingleCellPipeline
from scope.io import load_mutation_labels

# --- Phase 1: Bulk --------------------------------------------------------
adata_bulk = ad.read_h5ad("bulk_cohort.h5ad")
mutation_labels = load_mutation_labels("mutations.csv", sample_col="sample_id")

bulk_pipe = BulkPipeline(
    norm_method="cpm",
    decomposition="svd",   # "svd" | "nmf" | "ica" | "pca" | "fa" | "cnmf"
    n_components=50,
    classifier="logistic", # "logistic" | "random_forest" | "gbm" | "xgboost" | "lightgbm" | "svm" | "mlp"
)
bulk_pipe.fit(adata_bulk, mutation_labels, cv=5)
bulk_pipe.save("models/bulk_pipeline.pkl")

# --- Phase 2: Single cell --------------------------------------------------
adata_sc = ad.read_h5ad("sc_tumor.h5ad")

adata_bulk_pp = bulk_pipe.preprocessor_.transform(adata_bulk)

sc_pipe = SingleCellPipeline(
    bulk_pipeline=bulk_pipe,
    alignment_method="z_score_bulk",  # "z_score_bulk" | "moment_matching" | "quantile" | "none"
)
sc_pipe.fit(adata_bulk_pp, adata_sc)
adata_sc = sc_pipe.transform(adata_sc)

# adata_sc.obs now contains columns: mutation_prob_KRAS, mutation_prob_TP53, ...

# --- Visualise -------------------------------------------------------------
from scope.visualization import compute_umap, plot_mutation_probabilities

adata_sc = compute_umap(adata_sc, obsm_key="X_svd")
fig = plot_mutation_probabilities(adata_sc, mutations=["KRAS", "TP53"])
fig.savefig("mutation_probs.pdf", bbox_inches="tight")

---

Preprocessing options

BulkPreprocessor and SingleCellPreprocessor are designed to handle the full range of input states — from raw counts to already-normalized matrices — without requiring you to re-implement preprocessing outside the pipeline.

Bulk: handling already-processed inputs

bulk_pipe = BulkPipeline(
    norm_method="none",               # skip library-size normalization
    log1p=False,                      # data is already log-transformed
    decomposition="svd",
    n_components=50,
)

# Or pass flags directly to BulkPreprocessor:
from scope.preprocessing import BulkPreprocessor

preprocessor = BulkPreprocessor(
    norm_method="cpm",
    log1p=True,
    already_log_transformed=False,    # set True if input is e.g. log2-TPM from GEO
    min_samples_expressed=5,          # remove genes expressed in fewer than 5 samples
    min_expression=0.5,               # expression threshold for the above filter
    gene_blacklist=["MALAT1", "NEAT1"],
    auto_remove_mito=True,            # remove MT- genes
    auto_remove_ribo=True,            # remove RPS/RPL genes
    run_hvg=True,                     # select highly variable genes (requires scanpy)
    n_hvg=3000,
    hvg_flavor="seurat_v3",
    batch_key="cohort",               # batch correction via obs column
    batch_method="combat",            # "combat" | "harmony"
)

Single-cell: QC, mito filtering, and doublet removal

from scope.preprocessing import SingleCellPreprocessor

sc_prep = SingleCellPreprocessor(
    filter_strategy="both",           # "min_counts" | "min_genes" | "both" | "none"
    min_counts=500,
    min_genes=300,
    max_counts=25000,
    max_genes=6000,                   # upper bound (doublet proxy)
    max_mito_pct=20.0,                # remove cells with >20% mitochondrial reads
    auto_flag_mito=True,              # annotate pct_mito in adata.obs regardless
    run_doublet_detection=True,       # Scrublet-based doublet removal (pip install scrublet)
    doublet_threshold=None,           # None = automatic Scrublet threshold
    already_qc_filtered=False,        # True = skip all cell-level filters
    already_normalized=False,         # True = skip library-size normalization
    already_log_transformed=False,    # True = skip log1p
)

---

Decomposition methods

scOPE supports several latent-space methods, all sharing the same fit / transform / components_ interface and usable as a drop-in via the decomposition= argument in BulkPipeline.

Key	Class	Notes
"svd"	SVDDecomposition	Default. Linear, interpretable. Gene loadings V enable direct sc projection.
"nmf"	NMFDecomposition	Non-negative, additive gene programs (metagenes). Requires non-negative input.
"ica"	ICADecomposition	Independent components. Useful for finding non-Gaussian expression sources.
"pca"	PCADecomposition	Standard PCA. Equivalent to SVD on centred data.
"fa"	FactorAnalysisDecomposition	Probabilistic FA. Accounts for gene-specific noise variance (heteroscedasticity).
"cnmf"	ConsensusNMFDecomposition	Consensus NMF (Kotliar et al., eLife 2019). Runs NMF n times, clusters components for stability. Recommended over single-run NMF for publication.

# Consensus NMF example
bulk_pipe = BulkPipeline(
    decomposition="cnmf",
    decomposition_kwargs={"n_iter": 50, "n_components": 20},
    classifier="logistic",
)

# Factor Analysis example
bulk_pipe = BulkPipeline(
    decomposition="fa",
    n_components=30,
    classifier="logistic",
)

---

SVD evaluation

When using decomposition="svd", SVDEvaluator produces a comprehensive suite of plots and a gene program table that characterize which components drive classification and which genes define them. This is useful for reviewers, manuscript figures, and biological interpretation.

from scope.evaluation import SVDEvaluator

# After fitting:
adata_pp = bulk_pipe.transform_bulk(adata_bulk)
Z_bulk = adata_pp.obsm[bulk_pipe.obsm_key_]

ev = SVDEvaluator(bulk_pipe, Z_bulk, mutation="KRAS")
ev.run_all(output_dir="figures/svd_eval_KRAS")

run_all() saves the following to output_dir/:

Output	Description
weighted_scree.png	Scree plot with bars colour-coded by |coef|×σ classifier importance
component_importance.png	Ranked bar chart of importance; decomposed |coef| vs σ
gene_loading_heatmap.png	Hierarchically clustered heatmap of top gene loadings × top components
top_genes_per_component.png	Signed gene bar charts for each top-important component
latent_scatter.png	Pairwise scatter of top components coloured by mutation label
separation_violins.png	Component score distributions by mutation status + Mann-Whitney p
component_label_correlation.png	Spearman ρ heatmap between components and mutation label (FDR-corrected)
roc_ablation.png	Cross-validated ROC curve + AUC vs. n_components retained
permutation_test.png	Observed AUROC vs. permutation null distribution
gene_biplot.png	Sample scores + gene loading arrows for top-2 components
shap_summary_dot.png	SHAP dot summary (requires shap)
shap_summary_bar.png	SHAP bar summary (requires shap)
umap_zbulk.png	UMAP of Z_bulk coloured by mutation label (requires umap-learn)
calibration_curve.png	Reliability diagram for predicted mutation probabilities
component_crosscorr.png	Pearson correlation among SVD components (flags batch bleed)
gene_program_table.csv	Tidy table: component rank, σ, |coef|, importance, top genes + loadings

Individual plots can also be called directly:

ev.plot_weighted_scree(output_dir=Path("figures/"))
ev.plot_separation_violins(output_dir=Path("figures/"), top_components=12)
ev.export_gene_program_table(output_dir=Path("figures/"), top_components=10)

---

API reference

Preprocessing

Class	Description
BulkNormalizer	CPM / TPM / median-ratio / TMM normalisation
BulkScaler	Gene-wise centering and scaling
BulkPreprocessor	Combined normalise + scale, with gene filtering, HVG, and batch correction
SingleCellPreprocessor	QC filter + mito filter + doublet removal + normalise + optional scale
BulkSCAligner	z-score / moment-matching / quantile alignment

Decomposition

Class	Description
SVDDecomposition	Truncated SVD (randomized / ARPACK / full)
NMFDecomposition	Non-negative matrix factorization
ICADecomposition	FastICA
PCADecomposition	PCA via sklearn
FactorAnalysisDecomposition	Probabilistic factor analysis (heteroscedastic noise)
ConsensusNMFDecomposition	Consensus NMF for stable gene program discovery
get_decomposition(name)	Factory function

Classification

Class	Description
LogisticMutationClassifier	L1/L2/ElasticNet logistic regression
RandomForestMutationClassifier	Random forest
GBMMutationClassifier	Gradient boosting (sklearn)
XGBMutationClassifier	XGBoost
LGBMMutationClassifier	LightGBM
SVMMutationClassifier	SVM + Platt calibration
MLPMutationClassifier	Multi-layer perceptron
PerMutationClassifierSet	Trains/stores one classifier per mutation
get_classifier(name)	Factory function

Evaluation

Class / Function	Description
SVDEvaluator	Full SVD component interpretation suite (15 plots + gene program CSV)
evaluate_classifier	AUROC, AUPRC, Brier score
evaluate_all	Evaluate all mutations at once
cross_validate_classifiers	Stratified k-fold CV
roc_curve_data / pr_curve_data	Curve arrays for plotting

Visualization

Function	Description
compute_umap	UMAP on latent embedding
compute_tsne	t-SNE on latent embedding
plot_embedding	Scatter by categorical or continuous
plot_mutation_probabilities	Grid of per-mutation probability overlays
plot_scree	Singular value / EVR scree plot
plot_mutation_heatmap	Mean probability per cluster heatmap

---

Optional dependencies

Package	Purpose	Install
umap-learn	UMAP embeddings and SVDEvaluator UMAP plot	pip install scope-bio[full]
shap	SHAP component importance in SVDEvaluator	pip install scope-bio[full]
xgboost	XGBoost classifier	pip install scope-bio[full]
lightgbm	LightGBM classifier	pip install scope-bio[full]
scrublet	Doublet detection in SingleCellPreprocessor	pip install scrublet
combat	ComBat batch correction in BulkPreprocessor	pip install combat
harmonypy	Harmony batch correction in BulkPreprocessor	pip install harmonypy
statsmodels	FDR correction in SVDEvaluator correlation heatmap	pip install statsmodels

---

Running tests

pytest tests/ -v --cov=scope --cov-report=term-missing

---

Citation

If you use scOPE in your research, please cite:

Ashford, A. et al. (2024). scOPE: transfer-learning from bulk RNA-seq to infer per-cell mutation probabilities in single-cell transcriptomics. [Journal] doi: ...

(Work currently in progress - will be filled out later once preprint is up on bioRxiv)

---

License

MIT — see LICENSE.
