Seam

Debug Python and C, C++ or Rust in one session.

When Python calls a native extension, Step Into opens the native function. Set breakpoints there, inspect its variables, and Step Out to Python. The call stack shows both languages in the order they ran.

Seam supports C API, PyO3, pybind11, nanobind and Cython modules. It works in VS Code and Neovim through the Debug Adapter Protocol.

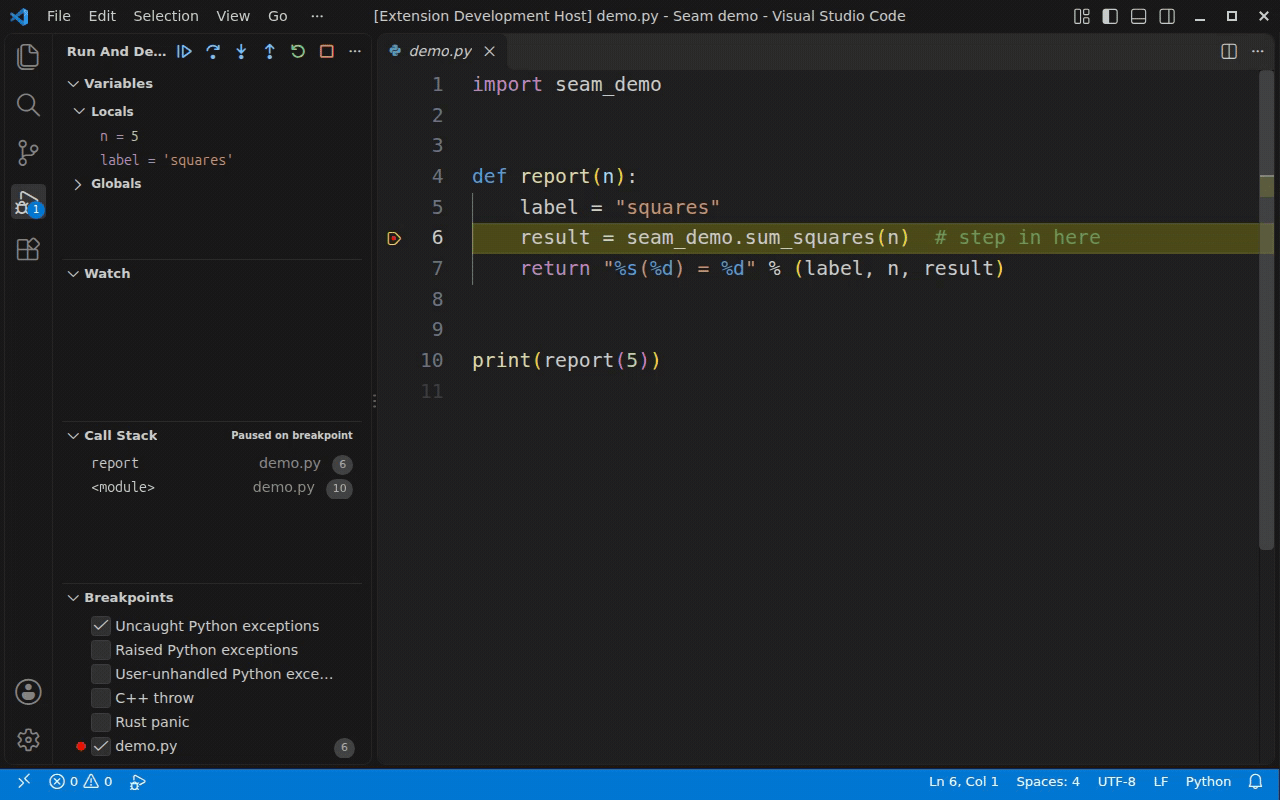

Recorded with the packaged extension. Python calls Rust's sum_squares and receives 30. The recording starts at a Python breakpoint.

Requirements

• Apple Silicon macOS 14 or newer, or Linux x86-64 with glibc. On Windows, run Seam in WSL.
• CPython 3.12, 3.13 or 3.14 for your program. Python 3.15.0rc3 passed the Linux release tests; later 3.15 builds have not been validated for this release. Virtual environments and interpreters without debug information are supported.
• LLDB with Python scripting support. On macOS, use the LLDB supplied with Xcode's command-line tools. On Linux, versions 18, 19 and 20 are tested. Use 19 or 20 for new installations because LLDB 18 can lose sessions when threaded programs start child processes. Seam chooses lldb-20, then lldb-19, then lldb. SEAM_LLDB overrides that choice.
• Build your native extension with debug information for source stepping. Use -g for C and C++, a Rust debug build, or [profile.release] debug = true for Rust release builds.
• Permission to debug the program. Linux attach needs ptrace permission. macOS attach needs a target that allows debugging. Launching your own Python program normally works; protected system processes are outside the supported scope.

The published wheel and VS Code extension include Seam's compiled helper. You do not need a compiler to install Seam. Building from source needs a C compiler and Python headers. Building your native extension still needs its toolchain. Read the limitations before using Seam on a project.

Install

VS Code

On Ubuntu 24.04, run these commands in your Linux or WSL terminal:

sudo apt-get update
sudo apt-get install -y lldb-19

On macOS, install Apple's command-line tools:

xcode-select --install

Use a native ARM64 CPython 3.12, 3.13 or 3.14 interpreter. macOS's bundled system Python is too old. Intel Python running through Rosetta is unsupported.

1. Open your project in VS Code. On Windows, open it in WSL.
2. Install Seam from the Marketplace. In WSL, install the extension on the WSL side.
3. Open the Command Palette and run Seam: Check This Machine. Fix any problems it reports before starting a session.

The extension includes the debugger. A separate pip installation is not needed. You can also install the Linux x64 or macOS ARM64 VSIX from GitHub Releases with Extensions: Install from VSIX.... Then follow Quick start.

Neovim and other DAP clients

On Ubuntu 24.04:

sudo apt-get update
sudo apt-get install -y lldb-19 python3-venv
python3 -m venv ~/.venvs/seam
~/.venvs/seam/bin/pip install --only-binary=:all: seam-debugger==0.1.2
~/.venvs/seam/bin/seam --version

On macOS, install the command-line tools with xcode-select --install, then run those virtual environment commands with your ARM64 Python 3.12+ interpreter. Skip the apt-get commands.

The package comes from PyPI. You can also download the wheel from the GitHub release and install that file with ~/.venvs/seam/bin/pip install /path/to/downloaded.whl. LLDB is a separate system dependency; pip does not install it.

Seam can live in a different Python 3.12+ environment from the program you debug. Put ~/.venvs/seam/bin on PATH, or use the full path to seam in your editor.

Check the installation, naming the interpreter you will debug with:

~/.venvs/seam/bin/seam doctor --python python3

The check reports dependency and permission problems, then runs a short debug session. Include its output when reporting a problem.

Quick start

Suppose demo.py calls a function from your extension module:

import mymodule

def main():
    total = mymodule.add(20, 22)
    print(total)

main()

Build the extension with debug info (-g; for Rust, a debug build or [profile.release] debug = true).

In VS Code, open your project and a Python file. Set a breakpoint on the native call and press F5. If VS Code asks, choose Seam: Python + native. Step Into enters the native function. Step Out returns to Python. No launch.json is required.

Seam debugs with the project's interpreter: the one selected in the Python extension if that is installed, else the python.defaultInterpreterPath setting, else .venv or venv in the workspace folder, else python3. A launch.json entry is optional:

{
  "type": "seam",
  "request": "launch",
  "name": "Seam: demo",
  "program": "${workspaceFolder}/demo.py"
}

In this example, Step Into on total = ... stops inside the native add function, with main and <module> below it in Call Stack. To try a runnable project, follow the PyO3 demo.

For Neovim, follow the nvim-dap guide. Other DAP clients can start seam dap, which reads and writes the protocol on standard input and output.

Launch options

To debug a test run, launch pytest as a module:

{
  "type": "seam", "request": "launch", "name": "Seam: pytest",
  "module": "pytest", "args": ["-q", "tests/test_thing.py"]
}

To stop where a test fails, switch on "User-unhandled Python exceptions" in the exception-breakpoint list: pytest catches the failure itself, so "Uncaught Python exceptions" does not fire.

Attach

{ "type": "seam", "request": "attach", "name": "Seam: attach", "pid": "${command:seam.pickProcess}" }

In VS Code ${command:seam.pickProcess} shows your running Python processes to choose from. pid can also be a number.

On Linux, attaching to a non-child process needs ptrace_scope set to 0 or explicit tracing permission from the program. On macOS, the target must allow debugging; protected system processes cannot be attached. See Limitations for what attach can and cannot do on each Python version.

Breakpoints

Conditions, hit counts and log messages work on both sides of the boundary.

• A condition is a Python expression on a Python line, or an expression evaluated by LLDB on a native line.

• A hit count of 5 or ==5 stops only on hit five. >=5, >5, <5 and <=5 compare the hit count. %5 stops on every fifth hit. With a condition, Seam counts only hits where that condition is true.

• A logpoint prints instead of stopping. Braces evaluate an expression, as in total is {total}.

• Function breakpoints accept Python or native names. Python names can be bare, qualified or module-qualified, such as compute, Point.__init__ or mypackage.geometry.Point.__init__.

• Native data breakpoints stop when a variable changes. Use Break on Value Change in the Variables view. The variable must occupy 1, 2, 4 or 8 bytes in memory; a native frame's Globals scope lists the statics of its file. Not available for Python variables. A watch on a local variable is removed when a later access finds that its function has returned, so reusing its stack slot does not stop the program.

A condition which cannot be evaluated is reported once in the debug console; the breakpoint then behaves as if the condition were true. Native breakpoints also show the error in their message. When a library built without debug info loads, the console says why Step Into cannot enter its functions and its source breakpoints cannot bind.

A native breakpoint on a line the compiler left without code (optimised builds) is either reported as unverified or moved by LLDB to the next line that has code, which can be in the next function; the editor shows where it ended up.

Native code built somewhere else

If an extension was built in a container, in CI or with remapped paths, its debug info names source files that are not on your disk: breakpoints you set in your copy stay grey, and stops in that code have no source. Tell Seam where the files are:

{
  "type": "seam",
  "request": "launch",
  "name": "Seam: mapped source",
  "program": "${workspaceFolder}/demo.py",
  "sourceMap": { "/io": "${workspaceFolder}" }
}

Each entry maps a path prefix in the debug info to a directory on this machine. Several entries are tried in order, and the first one under which the file exists is used. Use "." as the prefix when the debug info has relative paths (-ffile-prefix-map=$PWD=.). When a breakpoint cannot bind for this reason, or Seam stops in your native code and cannot find its source, the debug console names the path in the debug info and, where it can, the exact entry to add. readelf --debug-dump=info lib.so | grep -m3 DW_AT_name shows the paths a Linux library was built with. On macOS, use dwarfdump --debug-info /path/to/module.so.dSYM for its debug symbols.

A project opened through a symbolic link needs no setting: Seam reports files under the path your editor uses.

Stepping through async code, generators and libraries

• Step over an await ends on the next line of the same coroutine, however long it is suspended and whatever other tasks run meanwhile. Step in at await other() lands on the first line of other; step out runs a coroutine until it returns and stops in the coroutine that awaited it.
• When a coroutine that runs as a task finishes (asyncio.create_task, gather, the coroutine given to asyncio.run), nothing of yours called it. The step ends at the next line of your code that runs: another task, the coroutine that was waiting for this one, or the line that called asyncio.run.
• A breakpoint in another task still stops while a step is waiting, and ends the step.
• Generators behave as in pdb: stepping over a yield ends on the generator's next line, when its consumer asks for the next value (the consumer's loop body runs without stopping); step out runs the generator to its end. Step in at a yield follows the value to the consumer instead.
• justMyCode (default true): a step never ends in a Python file of the standard library or of an installed package. Step in on sorted(items, key=f), on a with block made with contextlib, or on a library call that takes a callback lands in your function. When your function returns into a library (a callback called in a loop, a test run by pytest), the step ends where your code runs next. Breakpoints you set in library files still stop; a step from there returns to your code. Set "justMyCode": false to step through library code line by line.

Variables

Values can be changed from the Variables view or the debug console: Python locals, globals, attributes, list items and dict entries at a Python stop (the new value is any Python expression), and native variables at a native stop. Long lists are fetched in pages, and "Copy as Expression" / "Add to Watch" work on nested values. The debug console completes names and attributes while you type.

Exceptions

The editor's exception-breakpoint list offers five choices:

"Your code" means anything outside the standard library and site-packages; set "justMyCode": false to treat library code the same as yours. SystemExit is not an uncaught exception.

Crashes and signals

If the program crashes in native code (a segfault, an abort()), Seam stops at the faulting line with the usual merged call stack: the native frames, then the Python frames that led there, with their locals. Continuing lets the signal take its course, and the debug console says which signal ended the program.

Signals a Python program handles itself (SIGINT, SIGTERM, SIGUSR1, timers) do not stop the debugger; they are delivered as if it were not there. Use stopOnSignals to change which ones stop.

Code without source

Frames in code Seam cannot show source for (a stripped wheel, libc, the interpreter) appear greyed in the call stack as library!function. In VS Code, right-click such a frame and choose Open Disassembly View to see the machine code around it; while that view has focus, Step Over and Step Into advance one instruction at a time. If the program crashes inside the interpreter itself (typically after an extension passed it a bad pointer), the interpreter function that faulted is shown on top of the stack.

Child processes

Seam debugs the program you start, not the processes it starts. Children (os.fork, subprocess, multiprocessing, pytest-xdist workers) run as if no debugger were there: breakpoints in them do not stop, and the debug console says so once, the first time a child that runs Python starts. Expressions typed into the debug console may start processes.

Stopping the session ends the program and the children still in its process group. A child that moved to a session of its own (start_new_session=True, a daemon) is left running. If the program ends by itself, its children are left alone; with internalConsole their output has nowhere to go once the session is over.

When something does not work

Include the machine-check output and reproduction steps in a bug report. Logs can include private paths and values. Check them before sharing.

How it works

LLDB controls the process and handles native breakpoints, stepping and memory reads. A helper inside the program uses CPython's sys.monitoring for Python breakpoints and steps. At a Python stop, it calls seam_trap(), a C function on which LLDB has a breakpoint. The interpreter holds the GIL at that safe point, so Seam can evaluate Python expressions there.

At native stops, Seam reads CPython's frames from memory and merges them with the native stack. It does not evaluate user Python expressions there. The design notes explain memory decoding and the limited bookkeeping calls at native stops.

To step across a native call, Seam arms a Python step and entry breakpoints in the extension's user functions. Returning from native code hands control back to the Python helper, which stops on the caller's line.

When no breakpoint or step needs Python monitoring, the helper disables those events. Measured overhead still depends on the workload, thread activity and library loading. See limitations.

Limitations

Native Windows, Intel Macs, Rosetta targets, Linux ARM, Alpine/musl, free-threaded Python, experimental JIT builds, PyPy and sub-interpreters are outside the validated scope. On Windows, the adapter and program run inside WSL. Remote debugging and managing container connections are unsupported. The adapter and program must run on the same machine and in the same container.

The supported workflows have these limits:

• Python expressions cannot be evaluated at native stops. If the program is stopped in C, C++ or Rust code, Seam refuses to run Python and says so. Python locals and globals of the frames below are still shown, decoded from memory: int, float, str, bytes, bool, None and shallow list/tuple show their values; other objects show their type and address. Namespace views show up to 500 bindings from the first 4,096 dictionary entries. Step or continue to a Python line for full inspection.
• Expressions that crash or time out. Code evaluated by the debugger runs inside the program. A native crash or an interrupted evaluation can leave the interpreter damaged even after LLDB unwinds the call; restart the debug session before evaluating again. Ordinary Python exceptions in expressions are reported without this problem.
• Optimised native code (-O2, Rust release builds). Stepping in from Python needs the user function to exist as a function or as an inlined instance in the debug info; if the compiler removed it entirely the step behaves like step-over. A statement that is a single inlined library call can end up with no code of its own: a breakpoint on it is then reported as unverified, or moved to the next line that has code (Seam tells the client which). Debug builds do not have these problems.
• Stepping into a Python callback from Cython or from optimised code can take several presses of Step Into: the generated or optimised code spreads one source line over many small ranges, and each press advances to the next one. Pieces of binding-layer glue inlined into the line no longer count as presses. A breakpoint in the callback is the reliable alternative.
• Names in generated and generic code. Cython functions and variables appear under their generated C names (__pyx_pf_..., __pyx_v_...) unless the module was built with line directives; Rust names are correct but can be very long.
• Child processes are not debugged (see above). While a child started by subprocess, os.system or os.posix_spawn has not yet replaced itself with the new program, LLDB takes every breakpoint out of the parent; a breakpoint another thread reaches in that moment, normally well under a millisecond, is missed.
• LLDB 18 and child processes in programs with several threads. LLDB 18 mishandles a child being started (subprocess, os.system) at the moment another thread is at a breakpoint, including a conditional one whose condition is false, and several threads starting children at once. It then cannot evaluate expressions any more or loses the program; Seam says so when the program is lost, and the session has to be restarted. A breakpoint in a loop that another thread runs constantly makes this likely; otherwise it takes a coincidence. LLDB 19 and 20 avoid this bug: install one (apt install lldb-19). Seam prefers installed lldb-20/lldb-19 over plain lldb. If SEAM_LLDB is set, remove it or point it to the newer version in the environment of seam dap (for VS Code: of the editor). seam doctor reports the selected path and version, and warns if it is 18.
• Under pytest, a segfault stops twice: at the fault, and again when faulthandler (which pytest enables) re-raises the signal after writing its report. pytest.fail() does not trigger the user-unhandled stop (it is not an Exception); a failing assert does.
• A step waiting in a generator that is never resumed. Stepping over a yield waits for the generator's next line. If its consumer drops it instead, some interpreters (3.12.3) discard it without running it: the step never ends and the program runs on to the next breakpoint, as under pdb.
• Generated code (a dataclass's __init__, anything run through exec) has no source and is stepped over; justMyCode: false steps into it without showing a source.
• Source paths. sourceMap maps directories on the same machine; remote path mapping is not supported. A breakpoint in a header that cannot bind because of its path is not explained (breakpoints in compiled files are).
• Disassembly. Breakpoints cannot be set in the disassembly view. Instructions before the first function of a library section, and code in which LLDB finds no function boundaries, are shown as ??.
• Exception stops. At an uncaught or user-unhandled exception, a C++ throw or a Rust panic there is nothing to step through (the frames have unwound, or control is about to leave by unwinding), so a step simply continues. Uncaught exceptions in threads are seen through threading.excepthook; a program that replaces that hook after start-up hides them from Seam. A thread started with the low-level _thread module is not covered.
• C++ exception messages. what() is read for exceptions whose RTTI describes a single-inheritance chain to std::exception; other throws show their type. This calls a native virtual method, so a custom what() can have side effects.
• Local data breakpoints. A later invocation of the same function reusing the same stack position cannot be distinguished if no watched access happened between them.
• Thread names. Python names are cached at safe stops. Native stops use the last cached names; new or renamed threads need a safe stop and a thread-list request first.
• Very large extension modules. On Linux, Seam looks up each large module's functions once per session. The measured first Step Into cost is about 0.4 s for 15,000 functions and about 4 s for pydantic-core with 123,000 functions and inline instances. Later steps take the usual few hundredths of a second. This shortcut writes /proc/<pid>/mem. On macOS, or where that write is unavailable, Seam uses LLDB breakpoints. A 15,000-function Mac check measured about 5.3 s for the first Step Into and 2.7-3.2 s for later steps. Mac excludes modules with more than 20,000 functions from Step Into from Python. Source and function breakpoints still work in those modules. SEAM_ENTRY_TRAPS=off disables the Linux shortcut.
• Programs with busy Python threads. If a request Seam runs in the program cannot finish on its own thread because another thread holds an interpreter lock, the other threads are let run for the moment it takes (after one second).
• Changing Python breakpoints while the program runs is applied by the main thread at its next bytecode boundary. If the main thread is blocked in a long native call, the change takes effect when that call returns.
• Attach loads the helper at the main thread's next safe point. A main thread blocked indefinitely in a system call will not get there, and the attach times out.
• Program input and output. With console: integratedTerminal the program has the editor's terminal to itself, and Ctrl-C there interrupts it as usual. It is not that terminal's foreground job (a small holder process is), so it is not sent SIGWINCH when the terminal is resized and Ctrl-Z does nothing. With internalConsole the program's stdout and stderr arrive in the debug console as one stream and its standard input is empty: input() raises EOFError.
• Thread-heavy programs measured on Linux run about twice as slowly under Seam even with no breakpoints, because LLDB handles every thread start and exit. CPU-bound work is unaffected.
• Initial library loading pauses while LLDB processes the new module. The no-breakpoint throughput checks exclude interpreter startup and this one-time import cost.
• Embedded interpreters. Launch expects a normal python executable (it injects the helper at Py_RunMain). Programs that embed Python are not supported.
• LLDB quirks. Seam works around LLDB showing stale or cut-short frame lists (see docs/decisions.md §4d and §12); the workaround calls getpid() in the target. Where LLDB cannot unwind a function (LLDB 20 through nanobind's optimised library code), native frames below it are missing; Seam says so in the debug console and still shows every Python frame. On macOS, a signal handler can also hide the interrupted native frame from LLDB's unwinder, including at a second fault after Python's faulthandler runs.

Building from source

To build Seam locally on Ubuntu 24.04:

sudo apt-get install -y lldb-19 gcc python3-dev python3-venv git
git clone https://github.com/ChirayuAgg0706/Seam.git
python3 -m venv ~/.venvs/seam
~/.venvs/seam/bin/pip install ./Seam

On macOS, install the command-line tools and use an ARM64 Python 3.12+ interpreter, then run the clone and pip commands above.

To build a VSIX, run scripts/build-vsix.sh from the checkout; Node.js and the Python headers are required. See CONTRIBUTING.md for the development toolchain.

Development

scripts/test.sh -q              # full suite against /usr/bin/python3.12
SEAM_TEST_PYTHON=/path/to/python3.14 scripts/test.sh -q
SEAM_TEST_OPT=O2 scripts/test.sh -q
SEAM_TEST_REPEAT=20 scripts/test.sh -q -k stepping   # repeat stepping scenarios

The suite launches real programs under Seam through a scripted DAP client and needs LLDB, gcc/g++, uv and, for the PyO3 scenarios, a Rust toolchain.

Licence

Apache-2.0. See LICENSE.
