sensirion-i2c-sen66 1.2.0

I2C driver for the Sensirion SEN66 sensor family

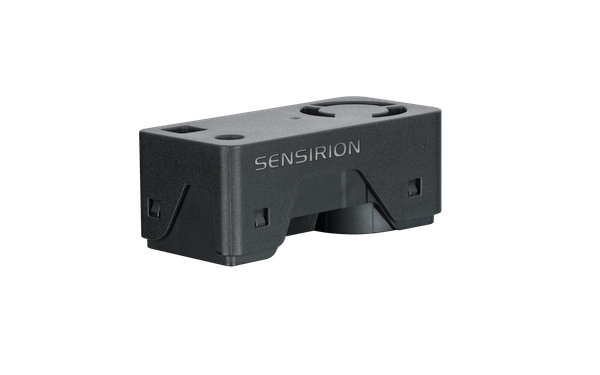

Python I2C Driver for Sensirion SEN66

This repository contains the Python driver to communicate with a Sensirion SEN66 sensor over I2C.

Click here to learn more about the Sensirion SEN66 sensor.

The default I²C address of SEN66 is 0x6B.

Connect the sensor

You can connect your sensor over a SEK-SensorBridge. For special setups you find the sensor pinout in the section below.

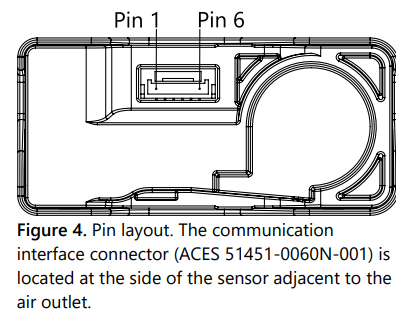

Sensor pinout

Pin	Cable Color	Name	Description	Comments
1	red	VDD	Supply Voltage	3.3V ±5%
2	black	GND	Ground
3	green	SDA	I2C: Serial data input / output	TTL 5V compatible
4	yellow	SCL	I2C: Serial clock input	TTL 5V compatible
5		NC	Do not connect	Ground (Pins 2 and 5 are connected internally)
6		NC	Do not connect	Supply voltage (Pins 1 and 6 are connected internally)

Documentation & Quickstart

See the documentation page for an API description and a quickstart example.

Contributing

Check coding style

The coding style can be checked with flake8:

pip install -e .[test]  # Install requirements
flake8                  # Run style check

In addition, we check the formatting of files with editorconfig-checker:

pip install editorconfig-checker==2.0.3   # Install requirements
editorconfig-checker                      # Run check

License

See LICENSE.
