sensirion-i2c-sht4x 1.0.0

I2C driver for the Sensirion SHT4X sensor family

Python I2C Driver for Sensirion SHT4X

This repository contains the Python driver to communicate with a Sensirion sensor of the SHT4X family over I2C.

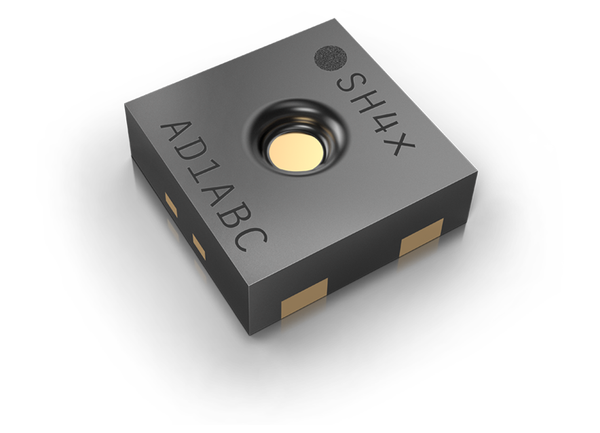

Click here to learn more about the Sensirion SHT4X sensor family.

Supported sensor types

Sensor name	I²C Addresses
SHT40	0x44, 0x45
SHT41	0x44, 0x45
SHT45	0x44, 0x45

The following instructions and examples use a SHT40.

Connect the sensor

You can connect your sensor over a SEK-SensorBridge. For special setups you find the sensor pinout in the section below.

Sensor pinout

Pin	Cable Color	Name	Description	Comments
1	green	SDA	I2C: Serial data input / output
2	black	GND	Ground
3	yellow	SCL	I2C: Serial clock input
4	red	VDD	Supply Voltage	1.1V to 3.6V

Documentation & Quickstart

See the documentation page for an API description and a quickstart example.

Contributing

We develop and test this driver using our company internal tools (version control, continuous integration, code review etc.) and automatically synchronize the master branch with GitHub. But this doesn't mean that we don't respond to issues or don't accept pull requests on GitHub. In fact, you're very welcome to open issues or create pull requests :-)

Check coding style

The coding style can be checked with flake8:

pip install -e .[test]  # Install requirements
flake8                  # Run style check

In addition, we check the formatting of files with editorconfig-checker:

pip install editorconfig-checker==2.0.3   # Install requirements
editorconfig-checker                      # Run check

License

See LICENSE.
