sensortoolkit 1.0.0

Library for evaluating air sensor data

sensortoolkit - Air Sensor Data Analysis Library

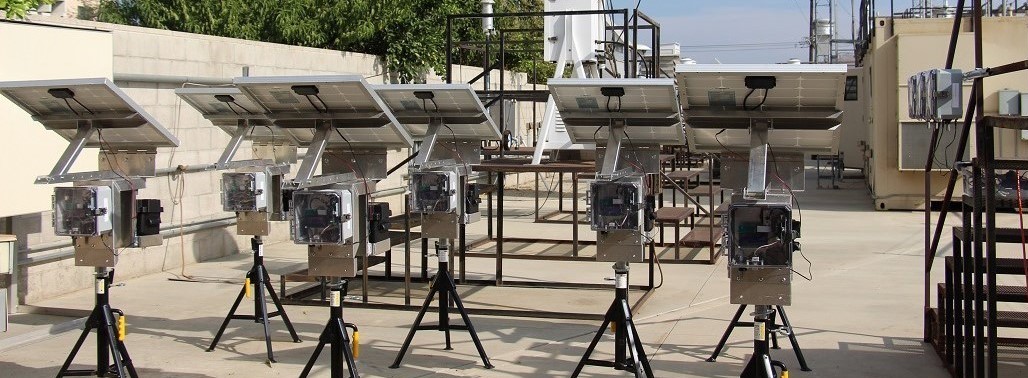

Sensors at an ambient air monitoring site. Photo Credit - South Coast AQMD AQ-SPEC Program

Samuel Frederick, NSSC Contractor (ORAU)

---

Readme Guide

• Overview
  • Key Features
  • Dependencies
  • Contact
  • Resources
• Installation

Overview

sensortoolkit is a Python library for evaluating air sensor data. The library is intended for use with sensors collocated at ambient air monitoring sites alongside FRM/FEM monitors for comparison and analysis of sensor data against reference-grade data.

sensortoolkit can be used to evaluate sensor data for a single or multiple sensors measuring one of the following pollutants: PM₁, PM_2.5 [criteria], PM₁₀ [criteria], CO [criteria], NO, NO₂ [criteria], NO_x, O₃ [criteria], SO₂ [criteria], SO_x.

sensortoolkit is most suitable for individuals who have some prior coding experience in python. The library is equipped with an API (application programming interface) that allows for ease of navigation and customization, making sensortoolkit accessible to individuals with a wide range of skillsets (e.g., individuals interested in monitoring their own sensor data, students and academic researchers, and industry professionals).

In February 2021, EPA released two reports detailing recommended performance testing protocols, metrics, and target values for the evaluation of sensors measuring either fine particulate matter (PM_2.5) or ozone (O₃). The sensortoolkit library includes numerous modules for computing performance metrics recommended by U.S. EPA for evaluating PM_2.5 and O₃ sensors. Additionally, plotting functions are included for visualizing performance evaluation results, including visualization of sensor performance metric values against U.S. EPA’s performance targets, sensor time series, scatter plots comparing collocated sensor and reference measurements, distribution plots for displaying the range of meteorological conditions during the deployment, etc. Tabular statistics and figures can be automatically compiled into testing reports recommended by U.S. EPA’s performance targets documents for testing conducting at ambient air monitoring sites.

Key features

The primary goal of sensortoolkit is to provide a platform for analyzing air sensor data regardless of formatting differences across sensor data formatting schemes. This goal extends to reference data as well, and interactive setup modules are included for interpreting the recorded format for datasets for subsequent Ingestion into standardized formatting schemes for sensor and reference data.

• Import sensor data via a standardized ingestion process and interactive setup module

• Average to 1-hour and/or 24-hour averaging intervals.

• Import FRM/FEM reference data from a variety of sources, including ingestion modules for importing data from AirNowTech, and modules for querying either the AQS or AirNow API services.

• Submit queries for single or multiple parameters, parse datasets into a consistent reference data format and save unmodified and processed datasets to a data directory.

• Conduct analysis with the SensorEvaluation module

• Compute U.S. EPA’s recommended performance metrics for evaluating PM_2.5 and O₃ sensors.

• Visualize sensor performance with various figures and save to file location.

  • Sensor vs. FRM/FEM scatter plots
  • Timeseries indicating both sensor and FRM/FEM concentrations
  • Performance metric results and comparison against target values/ranges.
  • Save performance evaluation results, statistics, and supplemental information detailing the deployment conditions to a deployment JSON file.

• Create testing reports using U.S. EPA’s base-testing report template (PowerPoint file) with the PerformanceReport module.

• Additional modules are included for calculating quantities (AQI, PM_2.5 NowCast, application of sensor correction equations, the U.S. Wide correction equation for PurpleAir sensors via Barkjohn et al. 2021, etc.) and conducting additional analysis (quality control modules for identifying outliers, invalidation of datapoints, A&B channel cleaning for PurpleAir data via Barkjohn et al. 2021, etc.)

• Access to modules utilized by the SensorEvaluation and PerformanceReport for greater customization in conducting analysis.

Dependencies

Click here to be taken to a list of dependencies required by sensortoolkit. The library requires a minimum of Python 3.6.

Contact

Please direct all inquiries to
    Andrea Clements Ph.D., Research Physical Scientist
    U.S. EPA, Office of Research and Development
    Center for Environmental Measurement and Modeling
    Air Methods & Characterization Division, Source and Fine Scale Branch
    109 T.W. Alexander Drive, Research Triangle Park, NC 27711
    Email: [e-mail]

Resources

Documentation

Documentation for sensortoolkit is hosted by readthedocs. The documentation includes formatted tips, notes, and general recommendations for using the sensortoolkit library. Click here to be taken to the documentation landing page. Below are a few of the topics discussed in the documentation:

• Getting started
  • Quick start guide
  • Script templates for outlining package use
  • Directions on installation and updates to sensortoolkit
• Objects and Data Structures
  • Testing Attribute Objects
  • Data Structures
  • The sensortoolkit Data Formatting Scheme
• Analysis and Reports
  • Evaluation Objects
• API Documentation

EPA's Air Sensor Toolbox

Additional information about EPA's research involving air sensors including the reports for fine particulate matter sensors and ozone sensors, past evaluation results, and additional documentation are located at EPA's Air Sensor Toolbox.

Disclaimer

This software/application was developed by the U.S. Environmental Protection Agency (USEPA). No warranty expressed or implied is made regarding the accuracy or utility of the system, nor shall the act of distribution constitute any such warranty. The USEPA has relinquished control of the information and no longer has responsibility to protect the integrity, confidentiality or availability of the information. Any reference to specific commercial products, processes, or services by service mark, trademark, manufacturer, or otherwise, does not constitute or imply their endorsement, recommendation or favoring by the USEPA. The USEPA seal and logo shall not be used in any manner to imply endorsement of any commercial product or activity by the USEPA or the United States Government.

---

Installation

Note: Users will need an installation of Python (v3.6 or greater). It’s highly recommended that users download an Anaconda distribution of Python. Anaconda is a package distribution of Python that includes many widely used libraries as well as the Spyder IDE for editing and compiling code. Anaconda is free for individuals.

1. Clone the repository

From a command line interface, the repository can be cloned via the following command

git clone https://github.com/USEPA/sensortoolkit.git

2. Install sensortoolkit

First, navigate to the folder location for the cloned repository:

cd path/to/sensortoolkit

Next, install the library with pip:

pip install .

Users will see something similar to the following be printed to the console:

Processing c:\users\...\documents\sensortoolkit
Requirement already satisfied: matplotlib in c:\users\...\anaconda3\lib\site-packages (from sensortoolkit) (3.3.4)
Requirement already satisfied: numpy in c:\users\...\anaconda3\lib\site-packages (from sensortoolkit) (1.20.1)
Requirement already satisfied: pandas in c:\users\...\anaconda3\lib\site-packages (from sensortoolkit) (1.2.4)
Requirement already satisfied: pathlib2 in c:\users\...\anaconda3\lib\site-packages (from sensortoolkit) (2.3.5)
Requirement already satisfied: python-pptx in c:\users\...\anaconda3\lib\site-packages (from sensortoolkit) (0.6.18)
Requirement already satisfied: requests in c:\users\...\anaconda3\lib\site-packages (from sensortoolkit) (2.25.1)
Requirement already satisfied: scipy in c:\users\...\anaconda3\lib\site-packages (from sensortoolkit) (1.6.2)
Requirement already satisfied: seaborn in c:\users\...\anaconda3\lib\site-packages (from sensortoolkit) (0.11.1)
Requirement already satisfied: statsmodels in c:\users\...\anaconda3\lib\site-packages (from sensortoolkit) (0.12.2)
Requirement already satisfied: urllib3 in c:\users\...\anaconda3\lib\site-packages (from sensortoolkit) (1.26.4)
Requirement already satisfied: pip in c:\users\...\anaconda3\lib\site-packages (from sensortoolkit) (21.0.1)
Requirement already satisfied: pyparsing!=2.0.4,!=2.1.2,!=2.1.6,>=2.0.3 in c:\users\...\anaconda3\lib\site-packages (from matplotlib->sensortoolkit) (2.4.7)
Requirement already satisfied: pillow>=6.2.0 in c:\users\...\anaconda3\lib\site-packages (from matplotlib->sensortoolkit) (8.2.0)
Requirement already satisfied: python-dateutil>=2.1 in c:\users\...\anaconda3\lib\site-packages (from matplotlib->sensortoolkit) (2.8.1)
Requirement already satisfied: kiwisolver>=1.0.1 in c:\users\...\anaconda3\lib\site-packages (from matplotlib->sensortoolkit) (1.3.1)
Requirement already satisfied: cycler>=0.10 in c:\users\...\anaconda3\lib\site-packages (from matplotlib->sensortoolkit) (0.10.0)
Requirement already satisfied: six in c:\users\...\anaconda3\lib\site-packages (from cycler>=0.10->matplotlib->sensortoolkit) (1.15.0)
Requirement already satisfied: pytz>=2017.3 in c:\users\...\anaconda3\lib\site-packages (from pandas->sensortoolkit) (2021.1)
Requirement already satisfied: lxml>=3.1.0 in c:\users\...\anaconda3\lib\site-packages (from python-pptx->sensortoolkit) (4.6.3)
Requirement already satisfied: XlsxWriter>=0.5.7 in c:\users\...\anaconda3\lib\site-packages (from python-pptx->sensortoolkit) (1.3.8)
Requirement already satisfied: chardet<5,>=3.0.2 in c:\users\...\anaconda3\lib\site-packages (from requests->sensortoolkit) (4.0.0)
Requirement already satisfied: idna<3,>=2.5 in c:\users\...\anaconda3\lib\site-packages (from requests->sensortoolkit) (2.10)
Requirement already satisfied: certifi>=2017.4.17 in c:\users\...\anaconda3\lib\site-packages (from requests->sensortoolkit) (2020.12.5)
Requirement already satisfied: patsy>=0.5 in c:\users\...\anaconda3\lib\site-packages (from statsmodels->sensortoolkit) (0.5.1)
Building wheels for collected packages: sensortoolkit
  Building wheel for sensortoolkit (setup.py) ... done
  Created wheel for sensortoolkit: filename=sensortoolkit-py3-none-any.whl size=264195 sha256=255f3b7f2818bc10ed695d7bbdf9facfcde8fbe88866621d77cba99376ef8fbb
  Stored in directory: C:\Users\...\AppData\Local\Temp\pip-ephem-wheel-cache-k4dnnl3u\wheels\d0\5d\9f\8f5c8d55a67e2c9d9ff85111d0e96da3ef3782e3356c46e010
Successfully built sensortoolkit
Installing collected packages: sensortoolkit
Successfully installed sensortoolkit

Note

The above console output indicates that the dependencies for sensortoolkit were previously installed and found on the user's system. Any packages not found during installation will be installed by pip.
