sliderplot 0.1.1

Turn a function into an interactive plot with a single line of code

sliderplot

Turn a function into an interactive plot with a single line of code.

It is very similar to Holoviews DynamicMap but with multiple lines and plots capabilities, and with only sliders as interactive elements.

pip install sliderplot

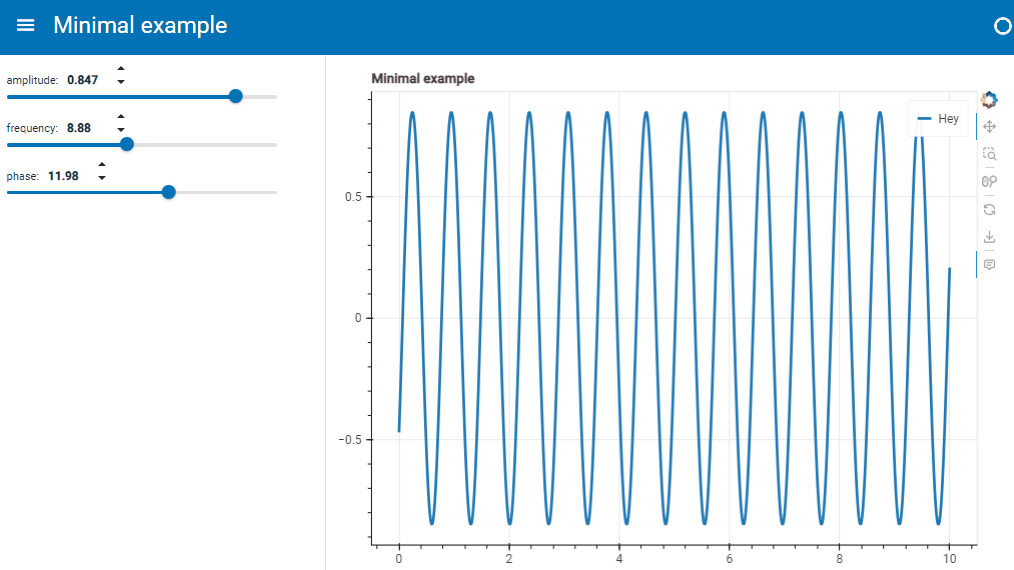

Demo

from sliderplot import sliderplot
import numpy as np


def f(amplitude=1, frequency=np.pi, phase=np.pi / 2):
    x = np.linspace(0, 10, 1000)
    y = amplitude * np.sin(frequency * x + phase)
    return x, y, "Hey"


sliderplot(
    f,
    params_bounds=((0, 1),),
    titles=("Minimal example",),
    page_title="Minimal example",
)

Features

• Single line
• Multiple lines
• Multiple subplots
• Line labels
• Initial slider position
• Slider bounds settings
• Axes labels
• Plot title
• Web page title

Single line

To create a sliderplot with a single line, pass into sliderplot() a function that returns same-length x and y vectors.

Example

def f(amplitude, frequency, phase):
    x = np.linspace(0, 10, 1000)
    y = amplitude * np.sin(frequency * x + phase)
    return x, y


sliderplot(f)

Multiple lines

To create a sliderplot with multiple lines, pass into sliderplot() a function that returns multiple pairs of same-length x and y vectors.

Example

def f(amplitude, frequency, phase):
    x = np.linspace(0, 10, 1000)
    y = amplitude * np.sin(frequency * x + phase)
    return (x, y), (x, 2 * y), (x, 3 * y)


sliderplot(f)

Multiple subplots

To create a sliderplot with multiple subplots, pass into sliderplot() a function that returns a list with the following levels, top to bottom:

1. List of subplots.
2. List of lines.
3. Line: (x, y) pair of same-length vectors, or (x, y, label: str) to add a line label.

Example

def f(amplitude, frequency, phase):
    x = np.linspace(0, 10, 1000)
    y = amplitude * np.sin(frequency * x + phase)
    return ((x, y), (x, 2 * y)), ((x, 3 * y),)


sliderplot(f)

Line labels

To add a label to a line that will be displayed in the plot legend, return the line data with the following format:

(x, y, label: str)

Example

def f(amplitude, frequency, phase):
    x = np.linspace(0, 10, 1000)
    y = amplitude * np.sin(frequency * x + phase)
    return (x, y, "First"), (x, 2 * y), (x, 3 * y, "Third")


sliderplot(f)

Initial slider position

To set the slider initial value for a parameter, simply add a default argument to the function.

Example

In the following example, the initial slider values are:

• amplitude = 1
• frequency = np.pi
• phase = np.pi / 2

def f(amplitude=1, frequency=np.pi, phase=np.pi / 2):
    x = np.linspace(0, 10, 1000)
    y = amplitude * np.sin(frequency * x + phase)
    return x, y


sliderplot(f)

Slider bounds settings

Use the param_bounds argument of the sliderplot() function to specify the slider bounds of each parameter. It takes a list of pairs of (min_value, max_value).

The first pair contains the bounds of the first argument, the second pair contains the bounds of the second argument, etc...

Example

In the following example, the slider bounds are:

• amplitude = (0, 1)
• frequency = (1, 1000)
• phase = (0, np.pi)

def f(amplitude, frequency, phase):
    x = np.linspace(0, 10, 1000)
    y = amplitude * np.sin(frequency * x + phase)
    return x, y


sliderplot(f, params_bounds=((0, 1), (1, 1000), (0, np.pi)))

Axes labels

To add axes labels to the subplots, set the axes_labels argument with a sequence of (x_label, y_label) pair of strings. The first pair will set the axis labels of the first subplot, the second pair the axis labels of the second subplot, etc...

Example

def f(amplitude, frequency, phase):
    x = np.linspace(0, 10, 1000)
    y = amplitude * np.sin(frequency * x + phase)
    return ((x, y), (x, 2 * y)), ((x, 3 * y),)


sliderplot(f, axes_labels=(("x1", "y1"), ("x2", "y2")))

Plot title

To add plot titles to subplots, set the titles argument with a sequence of strings. The first string will be the title of the first subplot, the second string the title of the second subplot, etc...

Example

def f(amplitude, frequency, phase):
    x = np.linspace(0, 10, 1000)
    y = amplitude * np.sin(frequency * x + phase)
    return ((x, y), (x, 2 * y)), ((x, 3 * y),)


sliderplot(f, titles=("Subplot 1", "Subplot2"))

Web page title

To set the title of the web page that show the sliderplot, use the page_title argument.

def f(amplitude=1, frequency=np.pi, phase=np.pi / 2):
    x = np.linspace(0, 10, 1000)
    y = amplitude * np.sin(frequency * x + phase)
    return x, y


sliderplot(f, page_title="Page title")
