Static Code Analysis for Smali
If you ever have looked at Android applications you know to appreciate the ability of analyzing your target at the most advanced level. Dynamic program analysis will give you a pretty good overview of your applications activities and general behaviour. However sometimes you’ll want to just analyze your application without running it. You’ll want to have a look at its components, analyze how they interact and how data is tainted from one point to another.
This is was the major factor driving the development of smalisca. There are indeed some good reasons for a static code analysis before the dynamic one. Before interacting with the application I like to know how the application has been build, if there is any API and generate all sort of call flow graphs. In fact graphs have been very important to me since they visualize things. Instead of jumping from file to file, from class to class, I just look at the graphs.
While graph building has been an important reason for me to code such a tool, smalisca has some other neat features you should read about.
Features
At the moment there are some few major functionalities like:
parsing
You can parse a whole directory of Smali files and extract:
class information
class properties
class methods
calls between methods of different classes
You can then export the results as JSON or SQLite.
Have a loot at the parsing page for more information.
analyzing

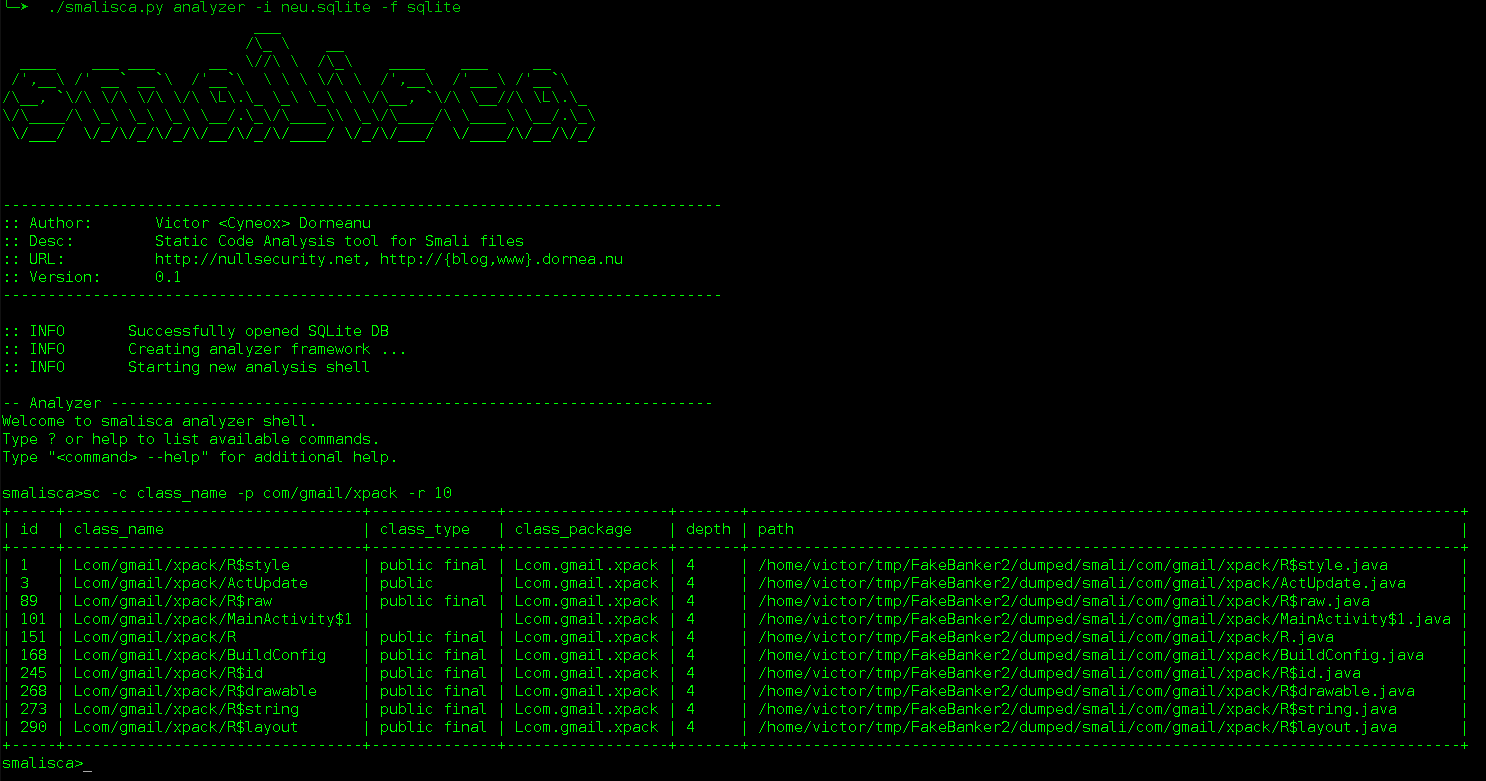

After exporting the results you’ll get an interactive prompt to take a closer look at your parsed data. You can search for classes, properties, methods and even method calls. You can then apply several filters to your search criterias like:
smalisca> sc -c class_name -p test -r 10 -x path -s class_type
This command will search for 10 (-r 10) classes which contain the pattern test (-p) in their class name (-c). Afterwards the command will exclude the column path (-x path) from the results and sort them by the class type (-s).
Let’s have a look at another example:
smalisca> scl -fc com/android -fm init -r 10
This will search for all method calls whose calling class name contains the pattern com/android (-fc). Additionally we can look for calls originating from methods whose name contain the pattern init (-fm).
You can of course read your commands from a file and analyze your results in a batch- like manner:
$ cat cmd.txt sc -c class_name -p com/gmail/xlibs -r 10 -x path quit $ ./smalisca.py analyzer -i results.sqlite -f sqlite -c cmd.txt ...
Have a loot at the analysis page for more information.
web API
smalisca provides a REST web service in order to easily interact with the results by just using a web client. This way you can access data in your own (fancy) web application and have a clean separation between backend and frontend.
Read more about the available REST API at the web API page.
visualizing

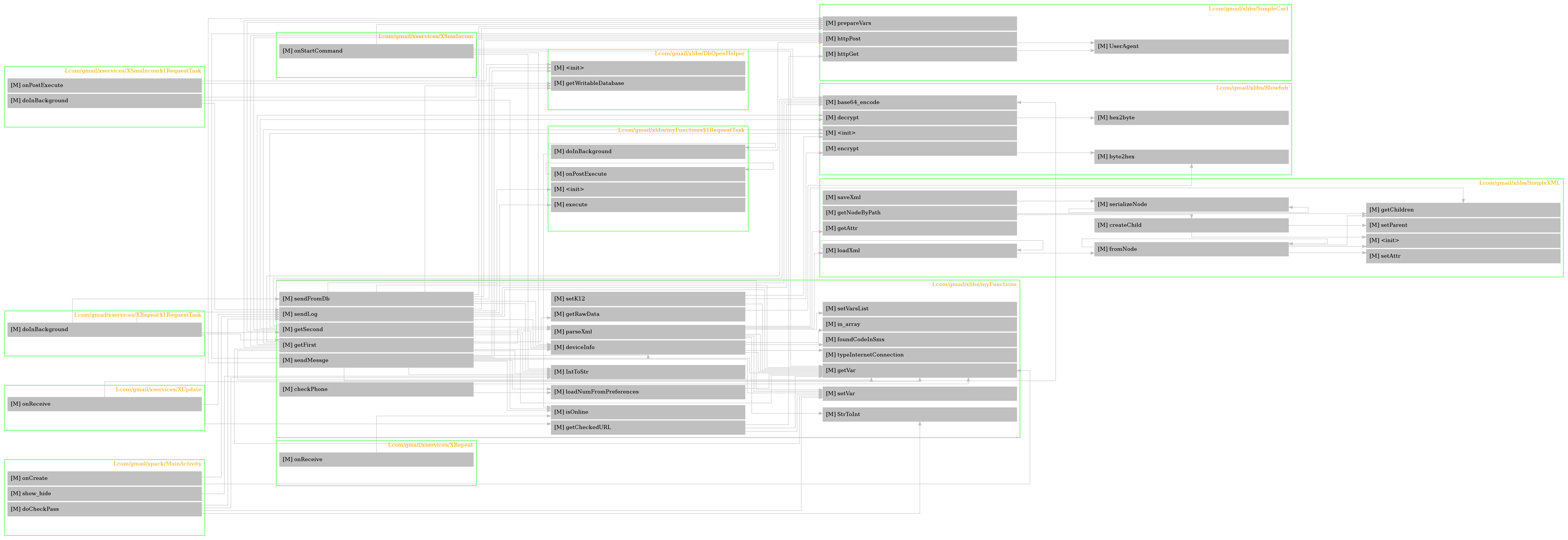

I think this the most valuable feature of smalisca. The ability to visualize your results in a structured way makes your life more comfortable. Depending on what you’re interested in, this tool has several graph drawing features I’d like to promote.
At first you can draw your packages including their classes, properties and methods:
smalisca> dc -c class_name -p test -f dot -o /tmp/classes.dot :: INFO Wrote results to /tmp/classes.dot smalisca>
This will first search classes whose class name contains test and then export the results in the Graphviz DOT language. You can then manually generate a graph using dot, neato, circo etc. Or you do that using the interactive prompt:
smalisca> dc -c class_name -p test -f pdf -o /tmp/classes.pdf --prog neato :: INFO Wrote results to /tmp/classes.pdf smalisca>
Have a loot at the drawing page for more information.
Screenshots
Have a look at the screenshots page.
Installation
Refer to the installation page. Requirements:
Python (2.x / 3.x)
Graphviz
SQLAlchemy
How to use it
After installing the tool, you may want to first pick up an Android application (APK) to play with. Use apktool or my own tool ADUS to dump the APKs content. For the sake of simplicity I’ll be using FakeBanker which I’ve analyzed in a previous blogpost .
First touch
But first let’s have a look at the tools main options:
$ smalisca --help /\_ \ __ ____ ___ ___ __ \//\ \ /\_\ ____ ___ __ /',__\ /' __` __`\ /'__`\ \ \ \ \/\ \ /',__\ /'___\ /'__`\ /\__, `\/\ \/\ \/\ \/\ \L\.\_ \_\ \_\ \ \/\__, `\/\ \__//\ \L\.\_ \/\____/\ \_\ \_\ \_\ \__/.\_\/\____\\ \_\/\____/\ \____\ \__/.\_\ \/___/ \/_/\/_/\/_/\/__/\/_/\/____/ \/_/\/___/ \/____/\/__/\/_/ -------------------------------------------------------------------------------- :: Author: Victor <Cyneox> Dorneanu :: Desc: Static Code Analysis tool for Smali files :: URL: http://nullsecurity.net, http://{blog,www}.dornea.nu :: Version: 0.2 -------------------------------------------------------------------------------- usage: smalisca (sub-commands ...) [options ...] {arguments ...} [--] Static Code Analysis (SCA) tool for Baskmali (Smali) files. commands: analyzer [--] Analyze results using an interactive prompt or on the command line. parser [--] Parse files and extract data based on Smali syntax. web [--] Analyze results using web API. optional arguments: -h, --help show this help message and exit --debug toggle debug output --quiet suppress all output --log-level {debug,info,warn,error,critical} Change logging level (Default: info) -v, --version show program's version number and exit
Parsing
I’ll first parse some directory for Smali files before doing the analysis stuff:
$ smalisca parser -l ~/tmp/FakeBanker2/dumped/smali -s java -f sqlite -o fakebanker.sqlite ... :: INFO Parsing .java files in /home/victor/tmp/FakeBanker2/dumped/smali ... :: INFO Finished parsing! :: INFO Exporting results to SQLite :: INFO Extract classes ... :: INFO Extract class properties ... :: INFO Extract class methods ... :: INFO Extract calls ... :: INFO Commit changes to SQLite DB :: INFO Wrote results to fakebanker.sqlite :: INFO Finished scanning
Also have a look at the parsing page for further information.
Analyzing
Now you’re free to do whatever you want with your generated exports. You can inspect the SQLite DB directly or use smaliscas analysis features:
$ smalisca analyzer -f sqlite -i fakebanker.sqlite ... smalisca>sc -x path -r 10 +----+-----------------------------------------------------------------------------------------+--------------------+--------------------------+-------+ | id | class_name | class_type | class_package | depth | +----+-----------------------------------------------------------------------------------------+--------------------+--------------------------+-------+ | 1 | Landroid/support/v4/net/ConnectivityManagerCompat | public | Landroid.support.v4.net | 5 | | 2 | Landroid/support/v4/view/AccessibilityDelegateCompat$AccessibilityDelegateJellyBeanImpl | | Landroid.support.v4.view | 5 | | 3 | Landroid/support/v4/view/ViewCompat$ViewCompatImpl | interface abstract | Landroid.support.v4.view | 5 | | 4 | Landroid/support/v4/app/ActivityCompatHoneycomb | | Landroid.support.v4.app | 5 | | 5 | Landroid/support/v4/app/NoSaveStateFrameLayout | | Landroid.support.v4.app | 5 | | 6 | Landroid/support/v4/net/ConnectivityManagerCompatHoneycombMR2 | | Landroid.support.v4.net | 5 | | 7 | Lcom/gmail/xpack/BuildConfig | public final | Lcom.gmail.xpack | 4 | | 8 | Landroid/support/v4/app/BackStackRecord$Op | final | Landroid.support.v4.app | 5 | | 9 | Landroid/support/v4/app/FragmentManagerImpl | final | Landroid.support.v4.app | 5 | | 10 | Landroid/support/v4/app/ShareCompat$ShareCompatImpl | interface abstract | Landroid.support.v4.app | 5 | +----+-----------------------------------------------------------------------------------------+--------------------+--------------------------+-------+
Also refer to the analysis page for more available commands and options.
Drawing
Please refer to the drawing page for full examples.
License
smalisca has been released under the MIT license. Have a look at the LICENSE.rst file.
Credits
This tool is dedicated to Lică. Many thanks also go to:
-
Many thanks for all those hours full of APK debugging and great ideas
My gf
Thank you very much for your patience and understanding!
-
Hack the planet!
Changelog
0.2 (2015-06-22)
Bugs
Fixed issue #2
Fixed issue #3
Fixed issue described in pull #5
Parsing
Added concurrency to the parser
You can specify by “-j” the number of jobs/workers
Have a look at this blog post
Configuration
Added configuration files
Specify configuration file by “-c” parameter
Web API
Added REST API to access the SQLite DB
Use http://<host>:<port>/api/<table name> to access JSON data
Based on Flask and Flask Restless
0.1 (2015-04-01)
General
Minor bugs
Small changes related to versioning
Create PyPI package
Parser
Parse for const string (const-string) as well
Analyzer
Added analyzer command (scs) for const strings
Added global search
Search for pattern(s) in tables
Added Makefile
Use make {install, uninstall, clean}
0.1-RC1 (2015-03-11)
Implemented basic project structure
Basic CLI application
Use cement als stable CLI framework
Add basic parsing functionalities
Parse classes, methods, properties
JSONify results
No use of complex regexp (due to performance issues)
Add filter functionalities
Search for classes, methods, properties
Create directed graphs (CFGs)
Output results
JSON
DOT (Graphviz)
